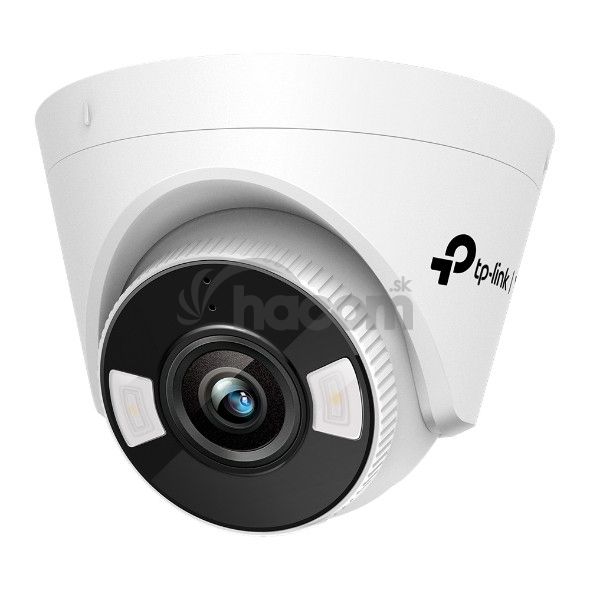

VIGI C450 (4mm) 5MP Full-Color Turret Network Cam.

VIGI C450(4mm)

---

Sledujte 24 hodín denne čisté a farebné detaily, dokonca aj za temných nocí. Farebná kamera VIGI poskytuje maximálne rozlíšenie 5 Mpx a umožňuje farebné monitorovanie okolia vďaka objektívu s veľkou svetelnosťou, senzorom s vysokou citlivosťou a pripevneným prídavným svetlám.

Spoľahlivo pokryte každý kút s kamerou VIGI s funkciou otáčania a naklápania. Vlastné trasy hliadok ponúkajú premyslenejšie a rýchlejšie možnosti sledovania kľúčových oblastí (až 8 bodov pre každú trasu).

Integrované čipy umelej inteligencie podporujú pokročilé algoritmy na rozlišovanie ľudí a vozidiel od iných objektov. Pravidlá alarmu môžete flexibilne prispôsobiť svojim potrebám monitorovania a dostávať presnejšie oznámenia o udalostiach.

Pokračujte v sledovaní požadovaných pohybujúcich sa osôb alebo vozidiel pomocou kamier s funkciou otáčania a naklápania, ktoré vedia inteligentne analyzovať snímaný obraz. Pozorne sledujte požadovanú cestu v čase, keď by mal byť v oblasti malý pohyb.

Vďaka vopred nastaveným pravidlám detekcie môžu kamery VIGI s umelou inteligenciou presne zachytiť rôzne neobvyklé udalosti. Výrazne sa tak znižuje počet falošných poplachov a sú zaistené vaše špecifické potreby monitorovania v rôznych scenároch.

V aplikácii VIGI alebo klientovi máte svoje zabezpečenie plne pod kontrolou, kedykoľvek a kdekoľvek

Features
*5MP Super-High Definition
*24h Full-Color
*Human & Vehicle Classification
*Smart Detection
*People & Vehicle Analytics
*Active Defense
*Two-Way Audio
*Corridor Mode
*H.265+
*PoE/12V DC
*Flexible Management and Storage
Špecifications
CAMERA
Image Sensor
*1/2.7" Progressive Scan CMOS
Shutter Speed
*1/3 to 1/10000 s
Slow Shutter
*Yes
Minimum Illumination
*0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
*IR Cut Filter
Day/Night Switch
*Unified/ Scheduled/ Auto
LENS
Focal Length
*4 mm
Aperture
*F1.6
FOV
*Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount
*M12*P 0.5
PTZ
Pán/tilt Range
* Pán 0° až 332°, Tilt: 0° až 120°
Pán/tilt Speed
*Pán Speed: Configurable od 1° do 55°/s; Preset Speed: 55°/s
*Tilt Speed: Configurable od 1° do 40°/s, Preset Speed 40°/s
Presets
*300
Patrol Scan
*8 patrols, up to 8 presets for each patrol
Power-off Memory
*Yes, Auto restore to previous PTZ a lenský štatút after power failure
Park Action
*Yes, Preset; Patrol Scan
3D Positioning
*Yes
VIDEO
Max. Resolution
*2560 X 1440
Main Stream
*Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
*Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream
*Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
*Resolution: 704x576,640x480, 352x288, 320x240
Bit Rate Control
*CBR, VBR
Video Compression
*Main Stream: H.265+/H.265/H.264+/H.264
*Sub-Stream: H.265/H.264
H.264 Type
*Main Profile/High Profile
H.264+
*Main Stream Supported
H.265 Type
*Main Profile
H.265+
*Main Stream Supported
Video Bit Rate
*Main Stream: 256 Kbps to 6 Mbps
*Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
*Quantity: 2
*Range: 30m
*Wavelength: 850nm
White LED
*Quantity: 2
*Range: 30m
Illuminator On/Off Control
*Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
*Pán: 0° až 360°, Tilt: 0° až 85°
Image Settings
*Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure do Infrared Light, HLC Adjustable by Client Software
Image Enhancement
*BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
*120 dB
SNR
*? 52 dB
Image Parameters Switch
*Yes
Privacy Mask
*Up to 4 Masks
ROI
*1 Región
OSD Setting
*Yes
AUDIO
Audio Communication
*Two-Way Audio
Audio Input/Output
*Yes
Audio Compression
*Yes
Audio Sampling Rate
*8KHz
Environment Noise Filtering
*Yes
Audio Bit Rate
*64 Kbps(G.711 alaw)
NETWORK
Security
*Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
*TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API
*Open Network Video Interface (Profile S)
Simultaneous Live View
*3 Main Streams & 3 Sub-Streams
Client
*VIGI App, VIGI Security Manager, Web UI
Web Browser
*Google Chrome® 57 and above
*Firefox® 52 and above
*Safari® 11 and above
*Microsoft® Edge 91 and above
Cloud
*Yes
ONVIF
*Yes
INTERFACES
Network Interface
*1 RJ45 10/100 Self-Adaptive Ethernet Port, PoE
Alarm
*N/A
Reset Button
*Yes
Power
*DC Power Port
On-board Storage
*Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
*Yes, Records Anything Going on within 15-ft Radius of the Camera
Built-in Speaker
*Yes
Audio
*N/A
ALARM AND EVENT MANAGEMENT
Smart Event
*Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
*Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
*Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method
*N/A
Output Notification
*Message Push
GENERAL
Package Contents
*VIGI Network Camera
*Quick Start Guide
*Waterproof Cable Attachments
*Mounting Accessories
Operating Temperature
*-30–60 °C
Storage Temperature
-40–60 °C
Storage Humidity
*95% alebo Less (Non-Condensing)
Operating Humidity
*95% alebo Less (Non-Condensing)
Material
*Plastic
Net Weight
*0.24 Kg
Gross Weight
*0.4 Kg
Power Supply
*12V DC ±5%, Max. 9 W, 5.5mm Coaxial Power Plug
*PoE: 802.3at, class 0, Max. 10.5 W
Protection
*IP66
Product Dimensions (L x W x H)
*123x 84x 123 mm
Certifications
*CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
