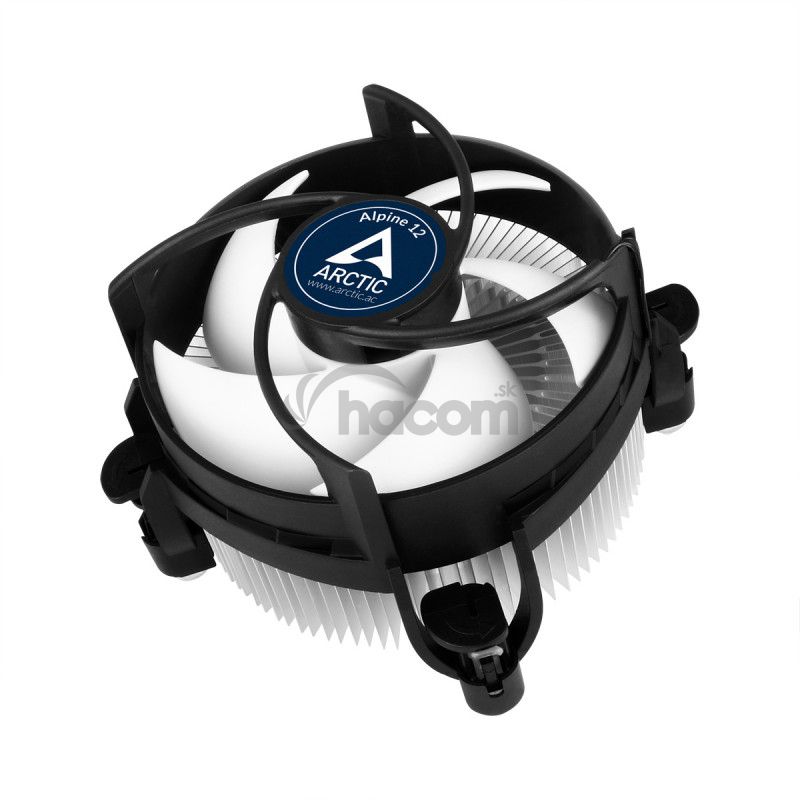

ARCTIC Alpine 12 ACALP00027A

ARCTIC Alpine 12 ACALP00027A

Aktívny chladič procesora Intel Socket 1151, 1150, 1155, 1156 s ventilátorom 92 mm, otáčkami 100-2 000 RPM (riadenými RPWM), 0 db fan módom

Improved Cooling Performance by New Production Process - The high thermal Conductivity of aluminum is fully Retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling FINS of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.

0 dB Mode - The Alpine 12 is able to switch into silent passive mode when PWM signal is below 5% due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

Lower Power Consumption & Minimum Vibration - The new Alpine 12 is powered by an updated motor and runs múch more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5% of the Vibrations from commutation of a regular DC-motor. These factors Contribute towards saving energy, lowering the coil temperature and reducing Vibrations to a minimum without compromising performance.

Extended Life Span - A 10 ° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

High Quality Bearing - Thanks to an alloy / lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Pre-applied MX-2 Thermal Paste - The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.

Easy and Tool-free Installation - Thanks to the push pins, the installation is really easy. Additional tools are not needed to install the cooler.

Compatibility
Intel Socket
1151 1150 1155 1156 2066 ** 2011 (-3) 1366 775
Yes Yes Yes Yes No No No No

AMD Socket
sTR4 AM4 AM3 (+) AM2 (+) AM1 FM2 (+) FM1
No no no no no no no

Recommended for TDP up to: 95 W

Heatsink: Radial heatsink
Material: Aluminium

Fan:
Diameter: 92 mm
Fan Speed: 100-2 000 RPM (Controlled by RPWM), 0 db fan mode below 5% PWM
Bearing: Fluid Dynamic Bearing
Noise Level: 0.3 Sone
Current / Voltage: 0.06 A / 12 V
