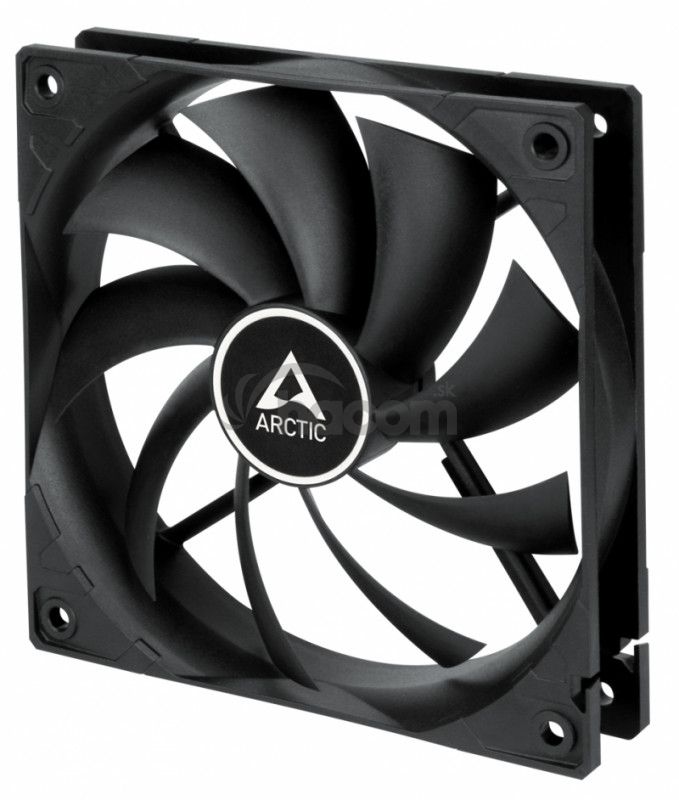

ARCTIC F12 TC (Black) - 120mm case fan with temperature control ACFAN00199A

ARCTIC F12 TC (Black) - 120mm case fan with temperature control ACFAN00199A

F12 TC - 120 mm Temperature Controlled Case Fan

LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
Inovatívny dizajn fanúšikov blas improvuje vzduch flow a vybavenie a vysoko účinný ventilácia. Impeller bol designed with focus on minimzing noise level yet delivering desired airflow and pressure.

IDEAL TEMPERATURE CONTROL
Temperature senzor je na 40 cm kábel a môže byť umiestnený v teplej oblasti vášho počítača. Tieto tlakové úrovne nie sú vysoké pri teplote 38 °C kdekoľvek na mieste a podporujú chladenie vašich CPU alebo grafických kariet. Na druhej strane tohto fanúšika keeps the noise level absolutel minimal and only increases the speed if necessary.

TWO WAY INSTALLATION
Blow warm air out of the case

Draw cool air into your case

TECHNICAL SPECIFICATIONS & MANUAL

General dáta

Performance
Fan Speed: 300 - 1350 rpm
Airflow: 53 CFM/90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C

Fan
Fan Frame: Štandard
Control Type: Temperature Control
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.20 A / 12 V
Cable Lenght: 400 mm

Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g

Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg
