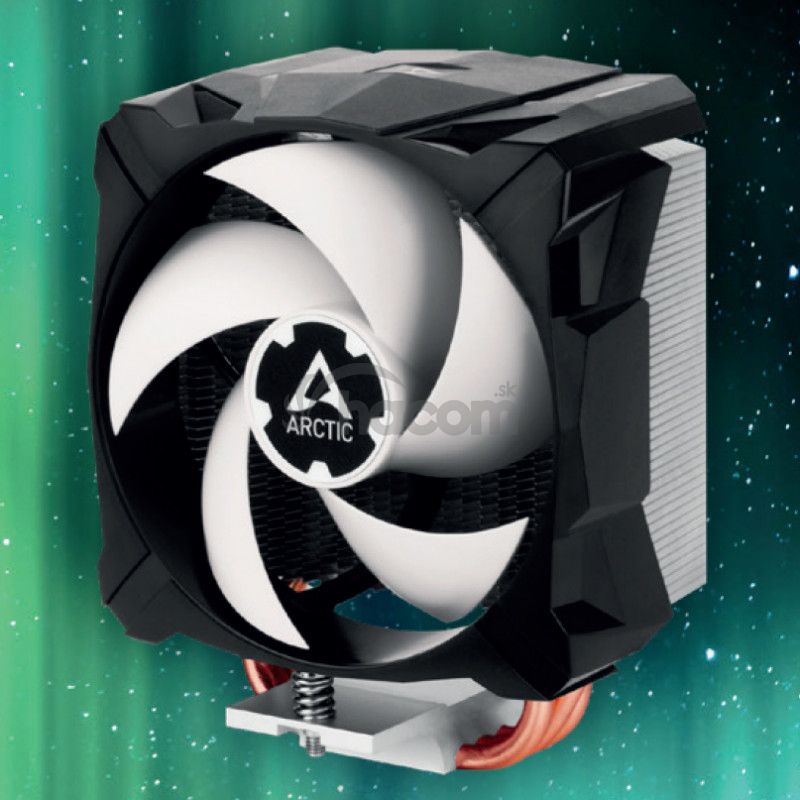

ARCTIC Freezer I13 X ACFRE00078A

ARCTIC Freezer I13 X ACFRE00078A

ARCTIC Freezer I13 X - Kompaktné Intel CPU chladič

• Bezpečné uchytenie
• Vopred nanesená tepelná pasta MX-2
• Predĺžená životnosť vďaka nízkej teplote motora
• Nižšia spotreba energie a menšie vibrácie s novými
technológia motora
• Ofsetové tepelné potrubie zaisťuje optimálny odvod tepla
• smerovanie prúdu vzduchu pre lepšie chladenie

Freezer I13 X - pripravený chladiť procesor Intel

ARCTIC Freezer I13 X je kompaktný chladič CPU s jedným ventilátorom 92 mm. Využíva vylepšeného dizajnu chladiča a prepracovaného
rozloženie tepelného potrubia. V spojení s ventilátorom, ktorý je optimalizovaný pre vysoký statický tlak, sa ARCTIC podarilo výrazne
zlepšiť chladiaci výkon Freezer I13 X '. Je dodávaný s vopred nanesenú tepelnou zmesou ARCTIC MX-2 a má jednoduchý
montážny systém.

špecifikácie

Heat Pipe Direct Touch Priemer 6 mm x 3
Hliníkové rebrovanie chladiča x 44 Hrúbka: 0,4 mm
Predbežne nanesená tepelná zmes MX-2
Rozmery 85,5 (L) x 108,5 (W) x 137 (H) mm
Hmotnosť 425 g
Kompatibilita Intel® 1200, 115x
Obmedzenie RAM nie je obmedzené
Ventilátor 1 x 92 mm, 300-2000 ot / min (riadené PWM)
Prúd / Napätie 0,07 A / 12 V
Ložiská FDB ložisko
Hluk na úrovni 0,3
Konektor 4-kolíkový konektor

ARCTIC Freezer I13 X - Compact Intel CPU Cooler

• Secure hold with backplate
• Pre-applied MX-2 thermal paste
• Extended lifespan thanks to low motor temperature
• Lower power consumption and less vibration with new
motor technology
• Offset heat pipes ensure optimal heat dissipation
• Focused Airstream for imprved cooling performance

Here is the Freezer I13 X - Ready to cool your Intel CPU
The ARCTIC Freezer I13 X is a compact CPU chladič with one 92mm fan. It benefits from an improved heatsink design and a reworked
heat pipe layout. In conjunction with the fan, which is Optimised for high static pressure, ARCTIC was been able to significantly
improve the Freezer I13 X 's cooling performance. It is supplied with pre-applied ARCTIC MX-2 thermal compound and has a simple
assembly system.

Specifications

Heat Pipe Direct Touch Ř 6 mm x 3
Heatsink Aluminium Fins x 44 Thickness: 0.4 mm
Thermal Compound MX-2 pre-applied
Dimensions 85.5 (L) x 108.5 (W) x 137 (H) mm
Weight 425 g
Compatibility Intel® 1200, 115x
RAM Klírens no limit
Fan 1 x 92 mm, 300-2000 RPM (Controlled by PWM)
Current / Voltage 0.07 A / 12 V
Bearings Fluid Dynamic Bearing
Noise Level 0.3 Sone
Connector 4-pin connector

Small Footprint for optimal Compatibillity
The Freezer I13 X combines a compact advanced heat sink
design with 3 direct touch heat pipes. In combination with the
fan designed for static pressure, an optimal cooling performance
is achieved Despite the comparatively small dimensions. the
Freezer I13 X has an installation height of only 137 mm and
there are no Limitations in RAM compatibility.

Pre-applied MX-2 Thermal Paste
Pre-applied, high-performing MX-2 thermal paste ensures
quick and clean assembly.

Longer Lifespan thanks to its Low Motor Temperature
The Freezer I13 X uses a fan motor newly developed by ARCTIC.
This runs less Audible and more efficiently, so that the temperature
of the coils is 20 ° C lower than with conventional motors.
This increases the lifespan of the fans considerably, allowing
ARCTIC to grant a 6-year warranty period for the Freezer I13 X.

Offset Heat Pipes enable Optimal Heat Dissipation
The direct touch heat pipes attached to the Freezer I13 X and
an Optimised design of the 44 cooling FINS together ensure that
the heat from the CPU can be ideally removed and released
into the air.

P-fan for Increased Performance
Inspired by the P-series, the Freezer I13 X 's fan benefits from
all of the advantages of P-fans:
• High static pressure for increased cooling performance
• Broad RPM range
• Lower power consumption
• Less vibration
• PWM for synchronous fan control
For additional information about the P-fans, we recommend
our FAQ.

Fluid Dynamic Bearing
Thanks to a combination of alloy and lubricant developed in
Germany, the friction within the bearing is reduced, leading to
greater efficiency. In this way, less heat is generated, there is
less bearing noise and the life of the fan is extended.

Direct Touch Heat Pipes
The Freezer I13 X uses direct touch heat pipes. this ensures
that the heat to be dissipated is transferred directly to the heat
pipes without an additional material layer, and transported into
the heatsink via the pipes.

More Cooling Capacity with Freezer I13 X
The ARCTIC Freezer I13 X sets new standards in cooling.
Proven to outperform its predecessor in cooling capacity.

More Efficient and Whisper Quiet
In addition to operating more quietly, even at maximum speed,
the Freezer I13 X 's built-in fan motor is also múch more efficient.
The power consumption was reduced from 0.18 A to 0.07 A,
which corresponds to an effective savings of 60% in power
consumption. ARCTIC engineers were also able to reduce
the volume by 40%, allowing the Freezer I13 X to run at a
whisper-quiet 0.3 sone when at maximum speed.

Multilingual Manuals
ARCTIC offers a regularly updated user manual in many languages
conveniently at your FINGERTIPS anywhere and anytime.
Put the QR code sticker in an easy-to-reach place and never
again waste time searching for product instructions.
