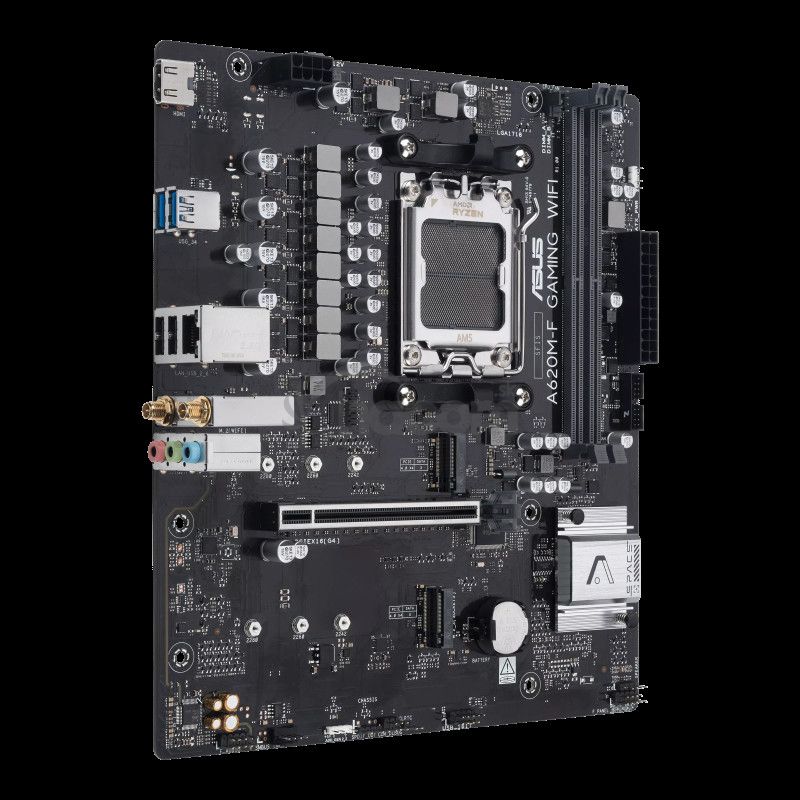

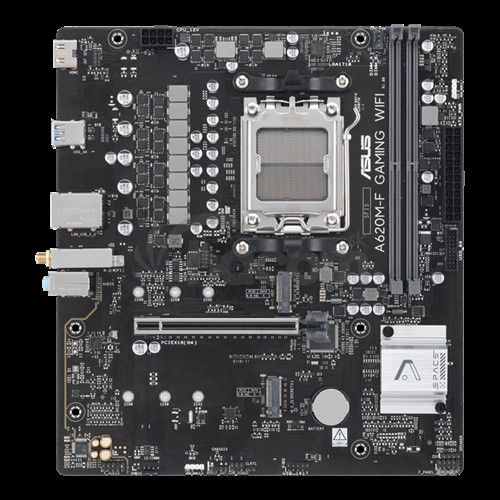

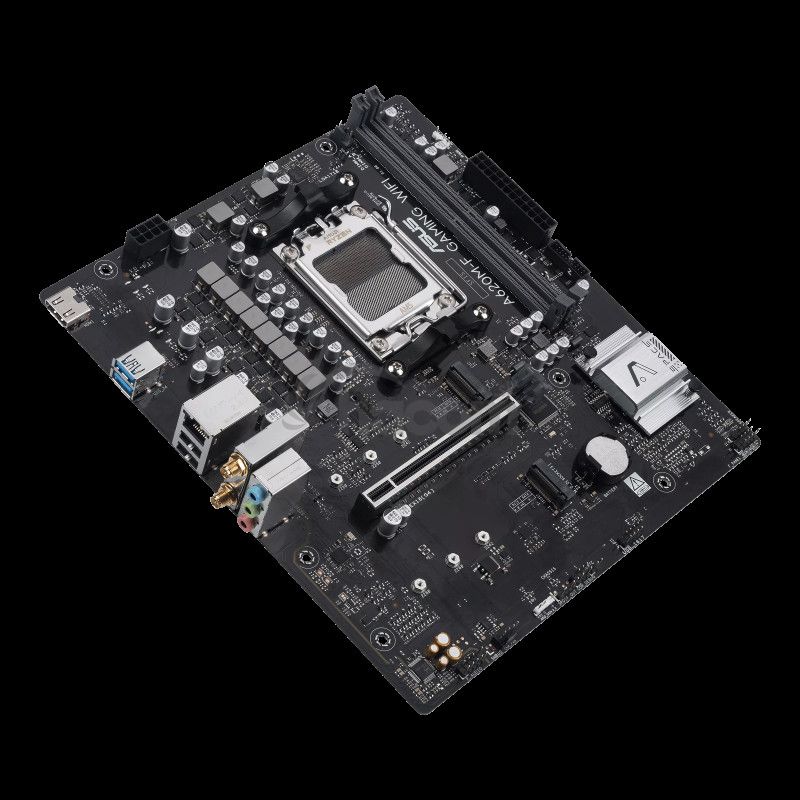

ASUS A620M-F GAMING WIFI 90MB1KT0-M0EAY0

ASUS A620M-F GAMING WIFI 90MB1KT0-M0EAY0

ASUS A620M-F GAMING WIFI

CPU:
AMD Socket AM5 pre stolné procesory AMD Ryzen™ rady 9000, 8000 a 7000
Podporuje procesory AMD až do 120 W

Chipset: AMD A620 Chipset

Pamäť: 2 x DIMM slots, max. 128GB, DDR5 8000+

Grafické výstupy: 1 x port HDMI™ - Supporty 4K@60Hz as špecifikované v HDMI 2.1.

Rozširujúce sloty:
Stolové procesory AMD Ryzen™ rady 9000, 8000 a 7000
1× slot PCIe 4.0 ×16

Úložisko: 2 x M.2 slot
Ethernet: 1 x Realtek RTL8125D 2.5Gb

Bezdrôtové pripojenie a Bluetooth:
Wi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3

USB:
Zadné USB (celkom 4 porty)
2× USB 3.2 Gen 1 (5 Gb/s) porty (2× Type-A)
2× USB 2.0 porty (2× Type-A)

Predné USB (celkom 4 porty)
1× USB 3.2 Gen 1 (5 Gb/s) konektor pre vyvedenie 2 ďalších USB 3.2 Gen 1 portov
1× USB 2.0 konektor pre vyvedenie 2 ďalších USB 2.0 portov

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC

Podpora: detekcia zapojenia konektorov, multi-streaming, premapovanie konektorov na prednom paneli
Podpora prehrávania až v kvalite 24 bit / 192 kHz

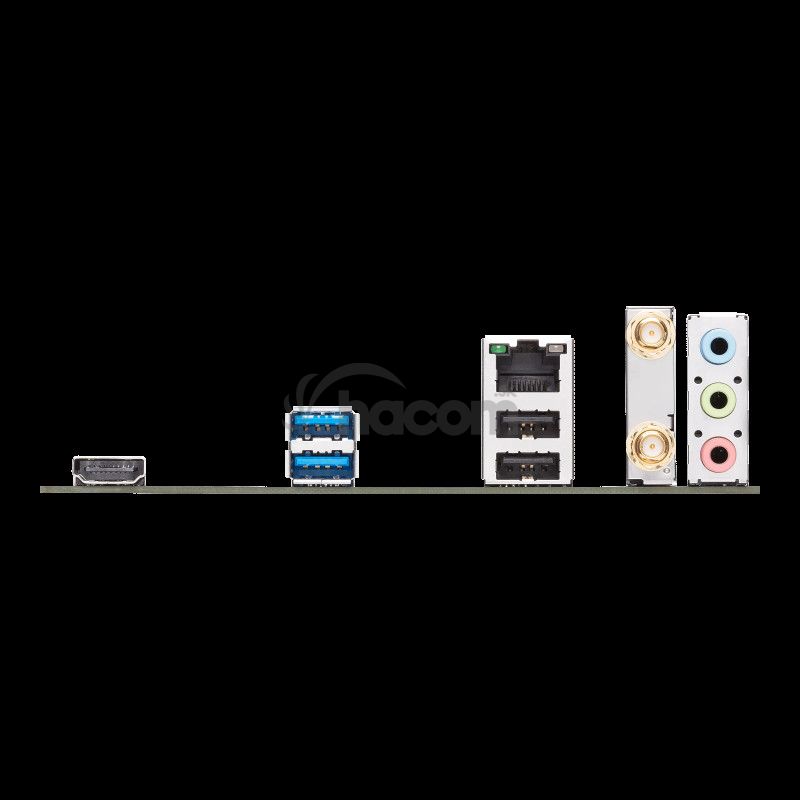

Porty na zadnom paneli:
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Interné konektory:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Veľkosť: 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

Odkaz na oficiálny web:
https://www.asus.com/ sk/motherboards-components/motherboards/others/a620m-f-gaming-wifi/
