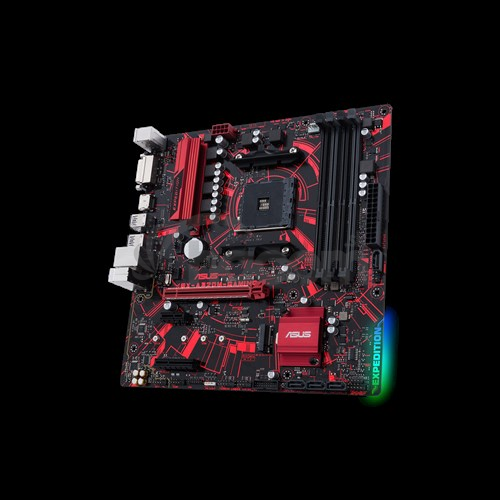

ASUS EX-A320-GAMING 90MB0VG0-M0EAYM

ASUS EX-A320-GAMING 90MB0VG0-M0EAYM

základné informácie
* Idálne pre nepretržitú prevádzku (najlepšia voľba pre iKavárny)
* Náter proti vlhkosti, pozlátené PCIe x16, USB Guard, 5X Protection III
* Navrhnuté pre neptržité hranie (Aura sync, ASUS Beyond VW

Technické špecifikácie:
Formát: mATX (24,4 x 24,4 cm)
CPU: AMD AM4 Socket for AMD Ryzen ™ / 7th Generation A-series / Athlon (podpora CPU až 8 jadier)
Čipová sada: AMD A320
Operačná pamäť: až 4 x DIMM, Max. 64GB, DDR4 SDRAM 2666/2400/2133 MHz, ECC a NON-ECC
Lan: Realtek® RTL8111H
Zvuk: Realtek® ALC887 8-kanálové High Definition Audio CODEC
Grafická karta: V závislosti na CPU

Úložný priestor:
AMD Ryzen ™ Processors:
-1 x M.2 x4 Socket 3 (SATA 6Gb / s & PCI-E Gen3 x4 link),
AMD 7th Generation A-series / Athlon ™ Processors:
-1 x M.2 Socket 3,
AMD A320 chipset:
-4 x SATA 6Gb / s port (s)

Rozširujúce sloty:
AMD Ryzen ™ Processors
-1 x PCIe 3.0 / 2.0 x16 (x16 mode)
AMD 7th Generation A-series / Athlon ™ Processors
-1 x PCIe 3.0 / 2.0 x16 (x8 mode)
AMD A320 chipset
-1 x PCIe 2.0 x4 (x2 mode)
-1 x PCIe x1

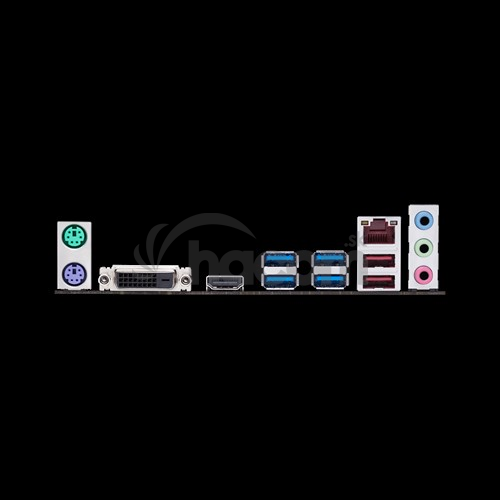

Externé porty:
-1 x PS / 2 keyboard (purple)
-1 x PS / 2 mouse (green)
-1 x DVI-D
-1 x HDMI
-1 x LAN (RJ45) port (s)
-4 x USB 3.1 Gen 1 (blue)
-2 x USB 2.0
-3 x Audio jack (s)

Interné porty:
-1 x AAFP connector
-1 x RGB Header (s)
-1 x USB 3.1 Gen 1 connector (s) support (s) additional 2 USB 3.1 Gen 1 port (s)
-2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
-1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
-4 x SATA 6Gb / s connector (s)
-1 x CPU Fan connector (s)
-1 x Chassis Fan connector (s)
-1 x AIO_PUMP connector
-1 x 24-pin EATX Power connector (s)
-1 x 8-pin ATX 12V Power connector (s)
-1 x System panel (s)
-1 x Clear CMOS jumper (s)
-1 x 14-1 pin TPM connector
-1 x COM port header
-1 x AIO PUMP Header

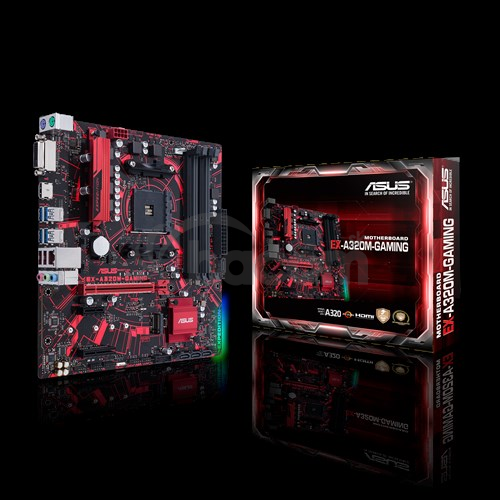

Príslušenstvo:
Užívateľsky príručka
-I / O Shield
-2 x SATA 6Gb / s cable (s)
-1 x M.2 Screw Package
-1 x Supporting DVD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1 ...

Viac na stránkach výrobcu https://www.asus.com/Motherboards/EX-A320M-GAMING/specifications/
