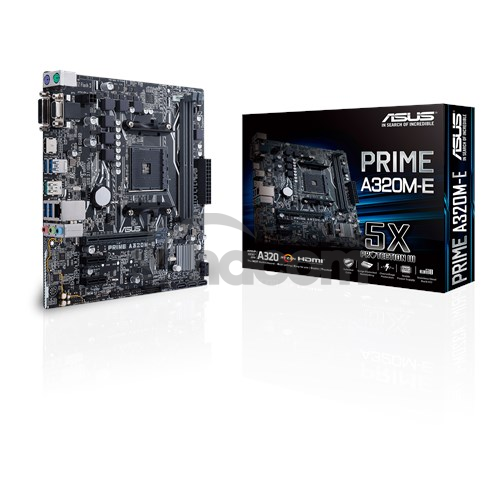

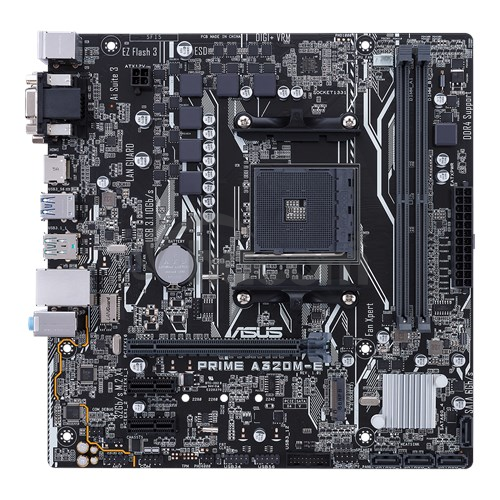

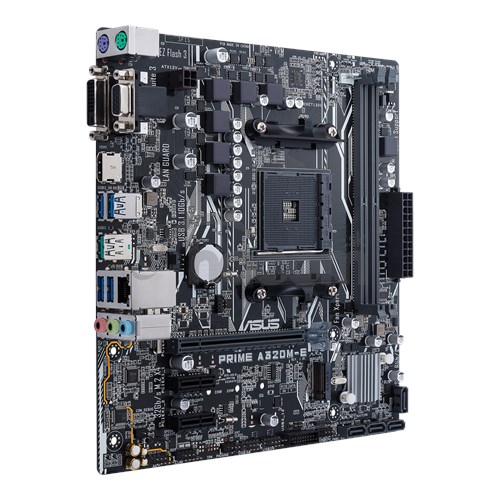

ASUS PRIME A320-E 90MB0V10-M0EAY0

ASUS PRIME A320-E 90MB0V10-M0EAY0

základné informácie
* 5x Protection III: Pokročilé viacnásobné bezpečnostné hardvérové prvky pre komplexnú ochranu.
* Osvetlenie LED: Ovládanie osvetlenie audio trás
* Native M.2: Blesková rýchlosť ukladania
* Integrovaný USB 3.1: Najnovšie konektivita pre super rýchle 10GB / s prenosom dát
* Ovládanie z jedného miesta: Médiami oceňovaný UEFI BIOS a EZ Flash 3

Technické špecifikácie:
Formát: mATX (22,6 x 22,1 cm)
CPU: AMD AM4 Socket for AMD Ryzen ™ / 7th Generation A-series / Athlon ™ Processors
Čipová sada: AMD A320
Operačná pamäť: až 2 x DIMM, Max. 32GB, DDR4 SDRAM 3200 MHz (přetakt.), ECC a NON-ECC
Lan: Realtek® RTL8111H, 1 x Gigabit LAN Controller (s)
Zvuk: Realtek® ALC887 8-Channel High Definition Audio CODEC
Grafická karta: V závislosti na CPU

Úložný priestor:
AMD A320 chipset:
-4 x SATA 6Gb / s port (s), gray,
Support Raid 0, 1, 10
AMD Ryzen ™ Processors:
-1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series / Athlon ™ Processors:
-1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

Rozširujúce sloty:
AMD Ryzen ™ Processors
-1 x PCIe 3.0 / 2.0 x16 (x16 mode)
AMD 7th Generation A-series / Athlon ™ Processors
-1 x PCIe 3.0 / 2.0 x16 (x8 mode)
AMD A320 chipset
-2 x PCIe 2.0 x1

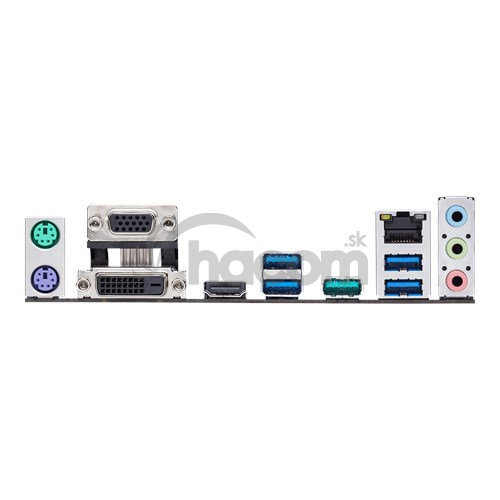

Externé porty:
-1 x PS / 2 keyboard (purple)
-1 x PS / 2 mouse (green)
-1 x DVI-D
-1 x D-Sub
-1 x HDMI
-1 x LAN (RJ45) port (s)
-1 x USB 3.1 Gen 2 (teal blue)
-4 x USB 3.1 Gen 1 (blue)
-3 x Audio jack (s)

Interné porty:
-1 x USB 3.1 Gen 1 connector (s) support (s) additional 2 USB 3.1 Gen 1 port (s) (19-pin)
-2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
-1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x COM port (s) connector (s)
-4 x SATA 6Gb / s connector (s)
-1 x CPU Fan connector (s) (1 x 4-PIN)
-1 x Chassis Fan connector (s) (1 x 4-PIN)
-1 x S / PDIF out header (s)
-1 x 24-pin EATX Power connector (s)
-1 x 4-pin ATX 12V Power connector (s)
-1 x Front panel audio connector (s) (AAFP)
-1 x System panel (s)
-1 x Clear CMOS jumper (s)
-1 x Speaker connector

Príslušenstvo:
-User 's manual
-I / O Shield
-2 x SATA 6Gb / s cable (s)
-1 x M.2 Anchor
-1 x Supporting DVD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1 ...

Viac na stránkach výrobcu https://www.asus.com/cz/Motherboards/PRIME-A320M-E/specifications/
