ASUS PRIME H410-A 90MB13G0-M0EAY0

ASUS PRIME H410-A 90MB13G0-M0EAY0

Chipset: Intel® H410

Rozmerový formát: mATX Form Factor (226 mm x 203 mm)
Podpora pre procesory: Intel® Socket 1200 for 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 SDRAM DIMM (dual channel)
Podpora pre pamäte: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Intel® Extreme Memory Profile (XMP)

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek ALC887 7.1-Channel High Definition Audio CODEC

Sieťová karta:
* Realtek® RTL8111H

Rozširujúce sloty:
* 1x PCIe 3.0 x16 (x16 mode)
* 2x PCIe 3.0 x1

RAID radič: nie je

SATA:
* 4x SATA 6 Gb / s

M.2:
* 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

USB:
zadné USB porty (spolu 4)
* 2x USB 3.2 Gen 1 port (s) (2 x Type-A)
* 2x USB 2.0 port (s) (2 x Type-A)
predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 port (s)
* 4x USB 2.0 port (s)

Interné porty:
* 1x CPU Fan connector (s)
* 2x Chassis Fan connector (s)
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
* 1x SPI TPM header
* 1x COM port (s) connector (s)
* 4x SATA 6Gb / s connector (s)
* 1x S / PDIF out header (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin EATX 12V Power connectors
* 1x Front panel audio connector (s) (AAFP)
* 1x Clear CMOS jumper (s)
* 1x System panel connector
* 1x Speaker connector

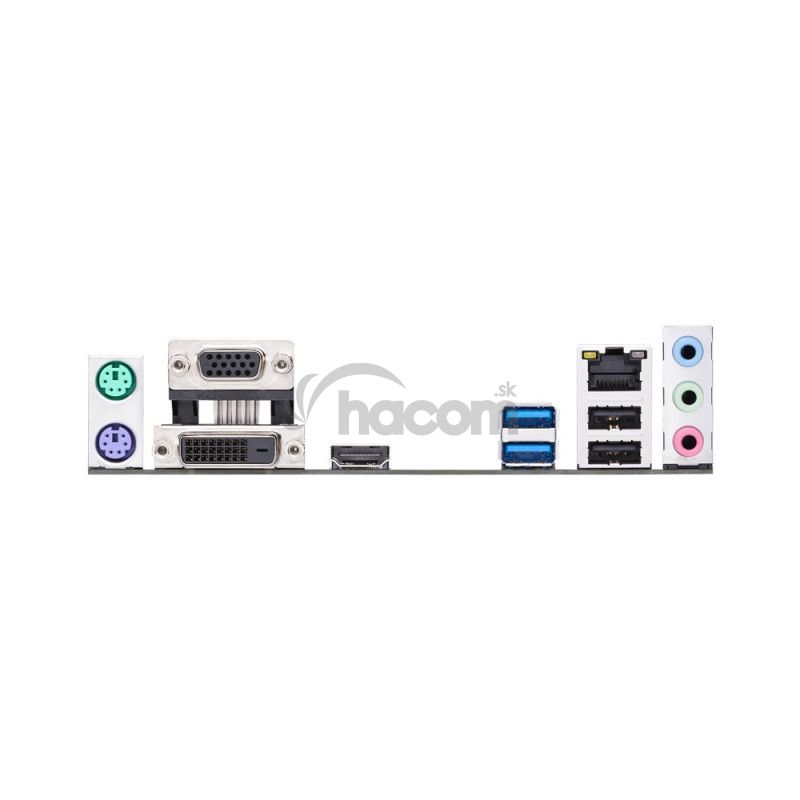

Externé porty:
* 1x PS / 2 keyboard (purple)
* 1x PS / 2 mouse (green)
* 1x DVI-D
* 1x D-Sub
* 1x HDMI
* 1x LAN (RJ45) port (s)
* 2x USB 3.2 Gen 1 Type-A
* 2x USB 2.0
* 3x Audio jack (s)

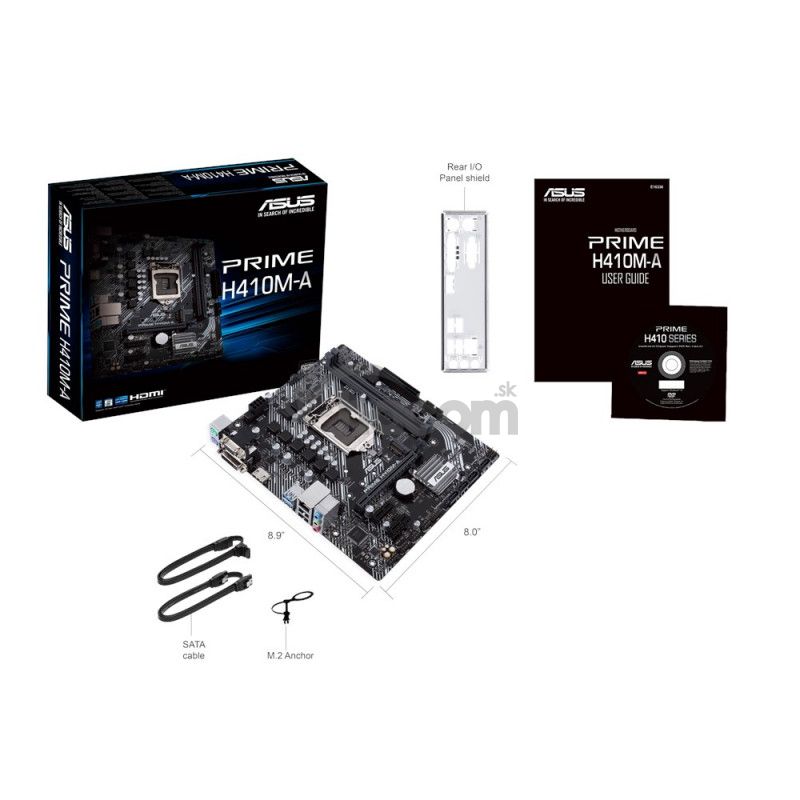

Obsah balenia:
* I / O Shield
* 2x SATA 6Gb / s cable (s)
* 1x M.2 Anchor
* 1x Supporting DVD
* User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/PRIME-H410M-A/overview/
https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/
https://www.asus.com/support/FAQ/1046215
