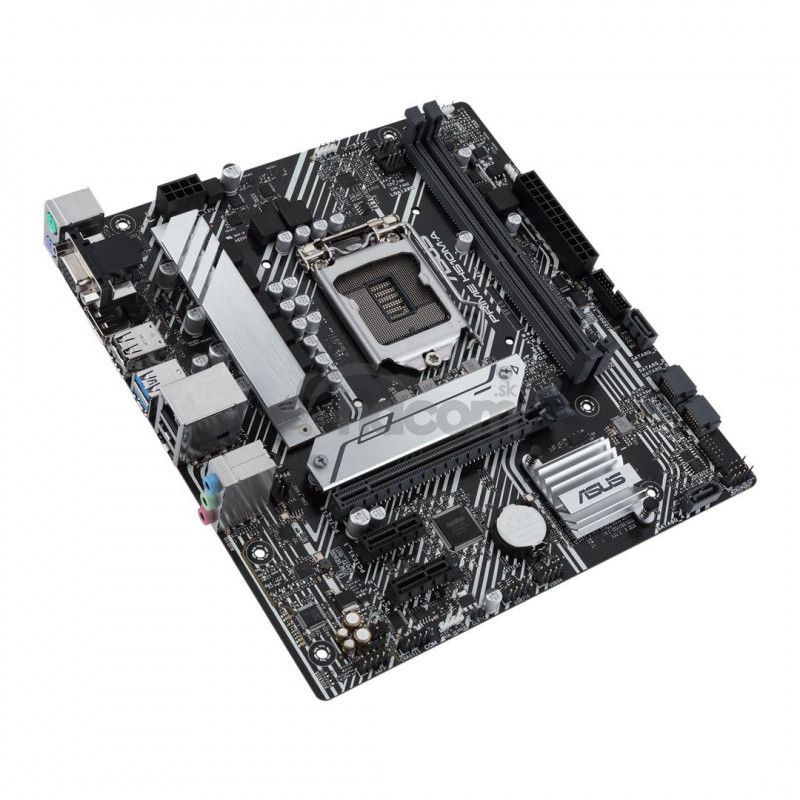

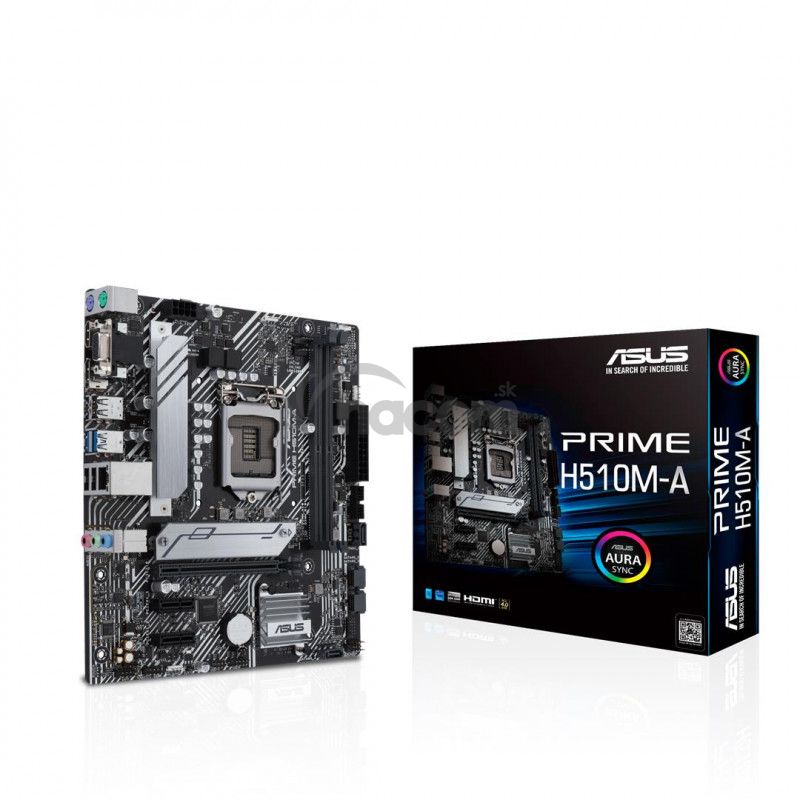

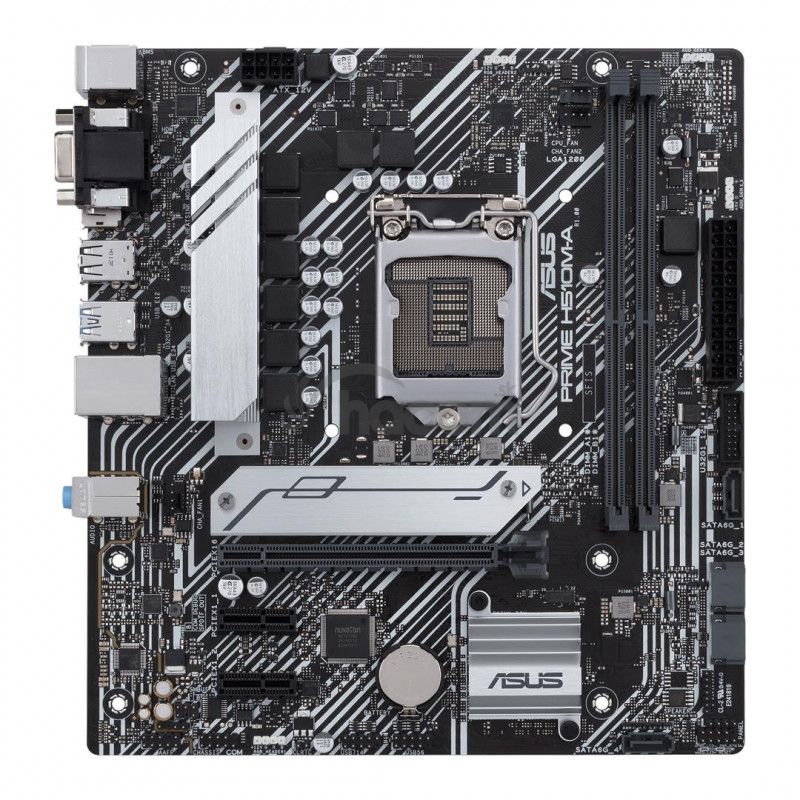

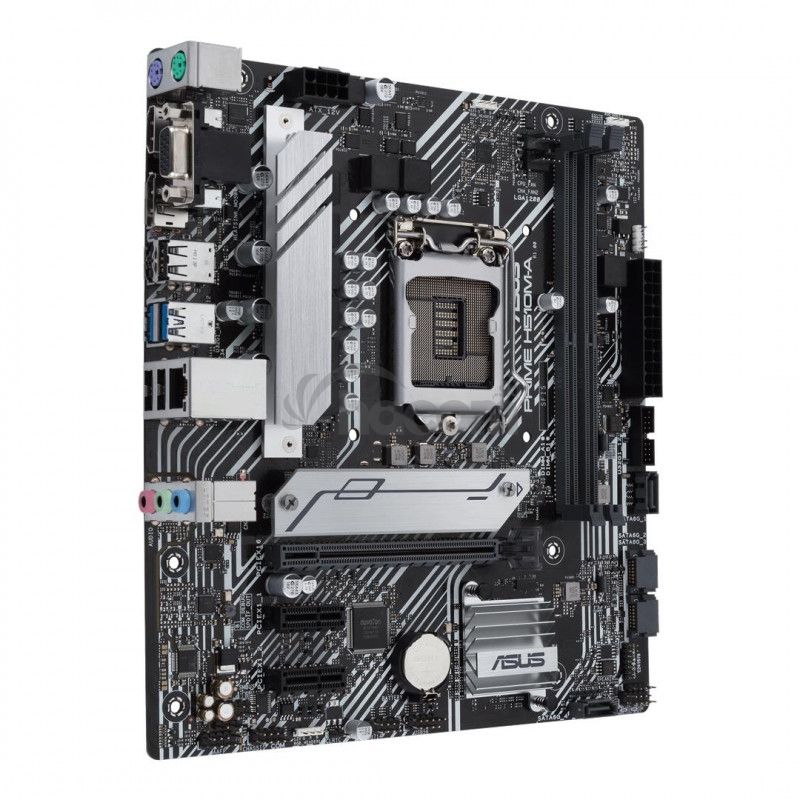

ASUS PRIME H510-A 90MB17C0-M0EAY0

ASUS PRIME H510-A 90MB17C0-M0EAY0

Chipset: Intel® H510 chipset

Rozmerový formát: microATX Form Factor (226 mm x 211 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 3200 (OC) / 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek ALC897 / 887 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* 1x Intel® I219-V 1Gb Ethernet

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot
* 2x PCIe 3.0 x1 slots

SATA:
* 4x SATA 6Gb / s ports

M.2:
* M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
* Zadné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 ports (2 x Type-A)
* 4x USB 2.0 ports (4 x Type-A)
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 1x 4-pin CPU Fan header
* 2x 4-pin Chassis Fan headers
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 1x M.2 slot (Key M)
* 4x SATA 6Gb / s ports
* 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2x USB 2.0 headers support additional 4 USB 2.0 ports
* 2x AURA addressable Gen 2 headers
* 2x AURA RGB headers
* 1x Clear CMOS header
* 1x COM Port header
* 1x Front Panel Audio header (AAFP)
* 1x S / PDIF Out header
* 1x Speaker header
* 1x SPI TPM header (14-1pin)
* 1x 10-1 pin System Panel header

Externé porty:
* 2x USB 3.2 Gen 1 ports (2 x Type-A)
* 4x USB 2.0 ports (4 x Type-A)
* 1x DisplayPort
* 1x D-Sub port
* 1x HDMI ™ port
* 1x Intel® I219-V 1Gb Ethernet port
* 3x Audio jacks
* 1x PS / 2 Keyboard (purple) port
* 1x PS / 2 Mouse (green) port

Obsah balenia:
* 2x SATA 6Gb / s cables
* 1x I / O Shield
* 1x M.2 Rubber Package
* 1x M.2 SSD screw package
* 1x Support DVD
* 1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
