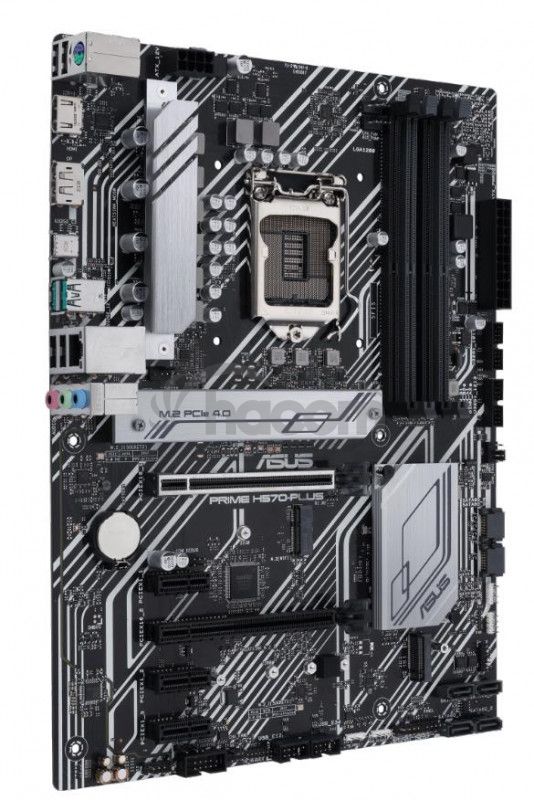

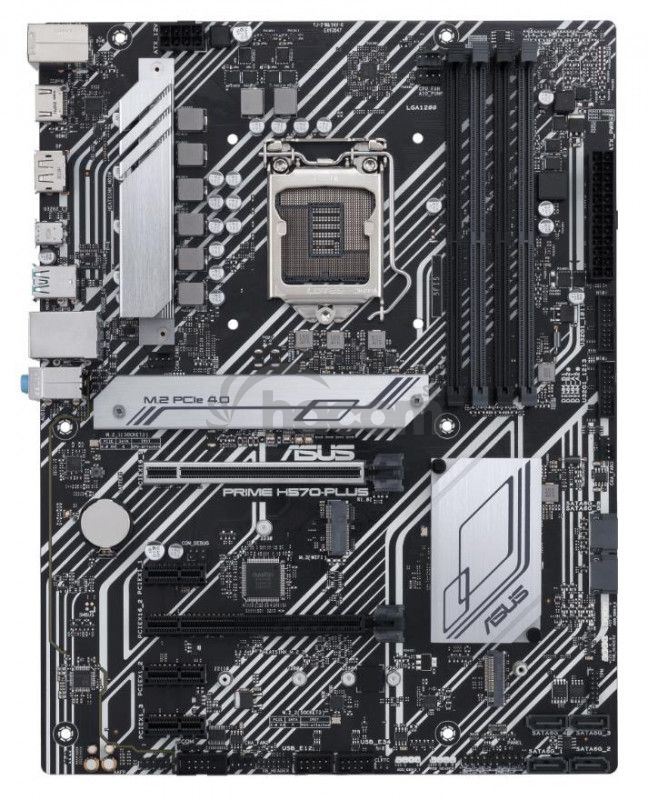

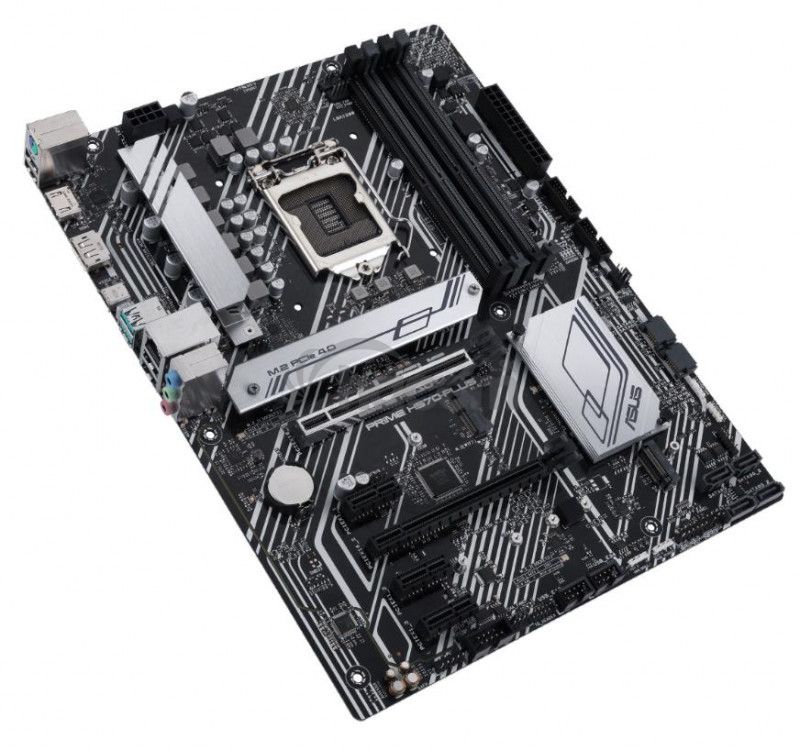

ASUS PRIME H570-PLUS 90MB16M0-M0EAY0

ASUS PRIME H570-PLUS 90MB16M0-M0EAY0

Chipset: Intel® H570 chipset

Rozmerový formát: ATX Form Factor (305 mm x 234 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200 (OC) / 2933/2800 / 2666/2400/2133 MHz Non-ECC, Un-buffered memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* ASUS optima

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* ALC887 / 897

Sieťová karta:
* 1x Intel® I219-V 1Gb Ethernet

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot
* 1x PCIe 3.0 x16 slot (max. At x4 mode)
* 3x PCIe 3.0 x1 slots

SATA:
* 6x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280/22110
* M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)

USB:
* Zadné USB porty (celkom 7)
* 2x USB 3.2 Gen 2 ports (2 x Type-A)
* 1x USB 3.2 Gen 2 port (1 x USB Type-C®)
* 4x USB 2.0 ports (4 x Type-A)

* Predné USB porty (celkom 8)
* 4x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 1x TB Header (for add-on TB card)
* 1x 4-pin CPU Fan header
* 1x 4-pin AIO Pump header
* 3x 4-pin Chassis Fan headers
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 2x M.2 slots (Key M)
* 6x SATA 6Gb / s ports
* 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
* 2x USB 2.0 headers support additional 4 USB 2.0 ports
* 2x AURA addressable Gen 2 headers
* 2x AURA RGB headers
* 1x Clear CMOS header
* 1x COM Port header
* 1x Front Panel Audio header (AAFP)
* 1x S / PDIF out header
* 1x 20-3pin System Panel header with Chassis intrude function
* 1x 14-1 pin SPI TPM header
* 1x M.2 slot (Key E)
* 1x Thunderbolt 4 header

Externé porty:
* 1x DP port
* 1x HDMI port
* 3x Audio jacks
* 1x PS / 2 Keyboard / Mouse combo port
* 1x Intel® I219-V port
* 4x USB 2.0 ports (4 x Type-A)
* 2x USB 3.2 Gen 2 ports (2 x Type-A)
* 1x USB 3.2 Gen 2 port (1 x USB Type-C®)

Obsah balenia:
* 2x SATA 6Gb / s cables
* 1x M.2 Rubber Package
* 1x IO Shield
* 1x M.2 SSD screw package
* 1x M.2 Key E screw package
* 1x Supporting DVD
* 1x User 'manual

BIOS: 194Mb Flash ROM, UEFI AMI BIOS
