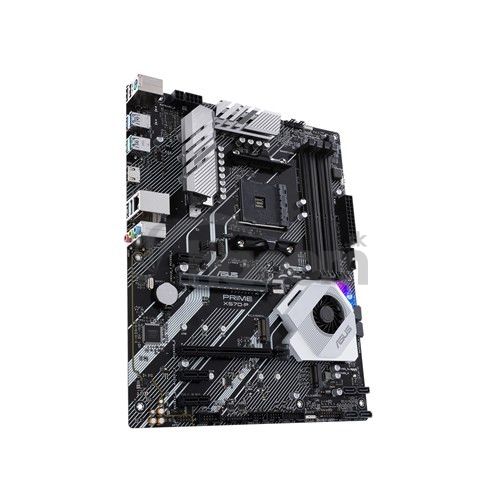

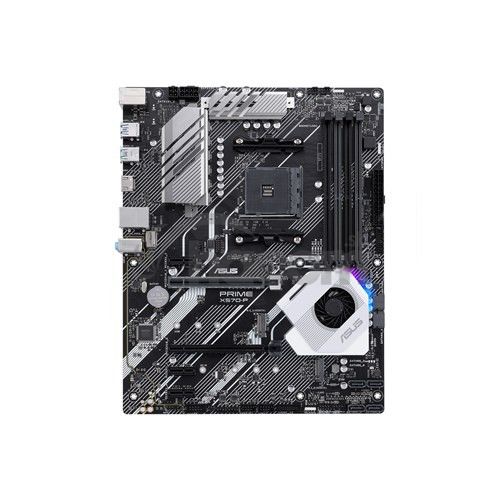

ASUS PRIME X570-P 90MB11N0-M0EAY0

ASUS PRIME X570-P 90MB11N0-M0EAY0

Chipset: AMD X570

Rozmerový formát: ATX (30.5 cm x 24.4 cm)
Podpora pre procesory: 3rd and 2nd AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
Pätica procesora: AM4

Pozícia na pamäti:
* 3rd Gen AMD Ryzen ™ Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 / 3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
* 2nd Gen AMD Ryzen ™ Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 3000 (OC) / 2933/2800/2666/2400/2133 MHz Un-buffered Memory
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 3200 (OC) / 3000 (OC) / 2933/2800/2666/2400/2133 MHz Memory
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.


Grafická karta: HDMI 1.4b maximálne rozlíšenie 4096 x 2160 @ 24 Hz
Zvuková karta: Realtek® S1200 8-Channel High Definition Audio CODEC
Sieťová karta: Realtek® RTL8111H

Rozširujúce sloty:
* 3rd Gen AMD Ryzen ™ Processors
* 1 x PCIe 4.0 x16 (x16 mode)
* 2nd Gen AMD Ryzen ™ Processors
* 1 x PCIe 3.0 x16 (x16 mode)
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 1 x PCIe 3.0 x16 (x8 mode)
* AMD X570 chipset
* 1 x PCIe 4.0 x16 (max at x4 mode)
* 3 x PCIe 4.0 x1

RAID radič: Raid 0, 1, 10

SATA: 6 x SATA 6Gb / s port (s)
M.2:
* 3rd Gen AMD Ryzen ™ Processors:
* 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
* 2nd Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors:
* 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
* AMD X570 chipset:
* 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

USB:
* 3rd and 2nd Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors:
* 2 x USB 3.2 Gen 2 port (s) (2 na zadnom Panella, teal blue, Type-A *)
* 3rd and 2nd Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors:
* 2 x USB 3.2 Gen 1 port (s) (2 na zadnom paneli, blue, Type-A)
* AMD X570 chipset:
* 2 x USB 3.2 Gen 2 port (s) (2 na zadnom paneli, teal blue, Type-A)
* AMD X570 chipset:
* 4 x USB 3.2 Gen 1 port (s) (4 na základnej doske)
* AMD X570 chipset:
* 5 x USB 2.0 port (s) (2 na zadnom paneli,, 3 na základnej doske)

Interné porty:
* 2 x Aura RGB Strip Headers
* 1 x addressable Gen 2 header (s)
* 2 x USB 2.0 connector (s) support (s) additional 5 USB 2.0 port (s)
* 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
* 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
* 1 x SPI TPM header
* 1 x COM port (s) connector (s)
* 6 x SATA 6Gb / s connector (s)
* 1 x CPU Fan connector (s) (1 x 4-PIN)
* 3 x Chassis Fan connector (s) (3 x 4-PIN)
* 1 x PCH_FAN (1 x 4-PIN)
* 1 x AIO_PUMP connector (1 x 4-PIN)
* 1 x S / PDIF out header (s)
* 1 x 24-pin EATX Power connector (s)
* 1 x 8-pin ATX 12V Power connector (s)
* 1 x 4-pin ATX 12V Power connector (s)
* 1 x Front panel audio connector (s) (AAFP)
* 1 x System panel (s)
* 1 x Clear CMOS jumper (s)
* 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

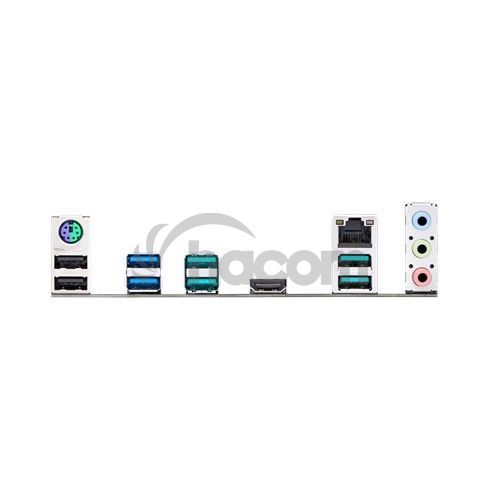

Externé porty:
* 1 x PS / 2 keyboard / mouse combo port (s)
* 1 x HDMI
* 1 x LAN (RJ45) port (s)
* 2 x USB 2.0
* 3 x Audio jack (s)
* 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
* 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)

BIOS: UEFI AMI BIOS 256 Mb Flash

Príslušenstvo:
* I / O Shield
* 2 x SATA 6Gb / s cable (s)
* 1 x M.2 Screw Package
* 1 x Supporting DVD
* 1 x Extension cable for addressable LED
