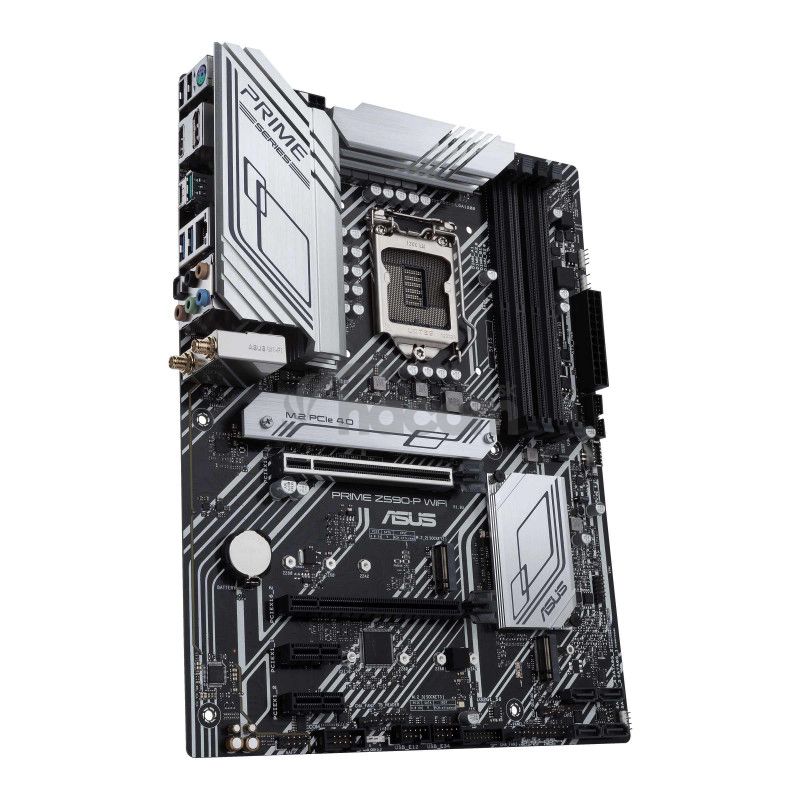

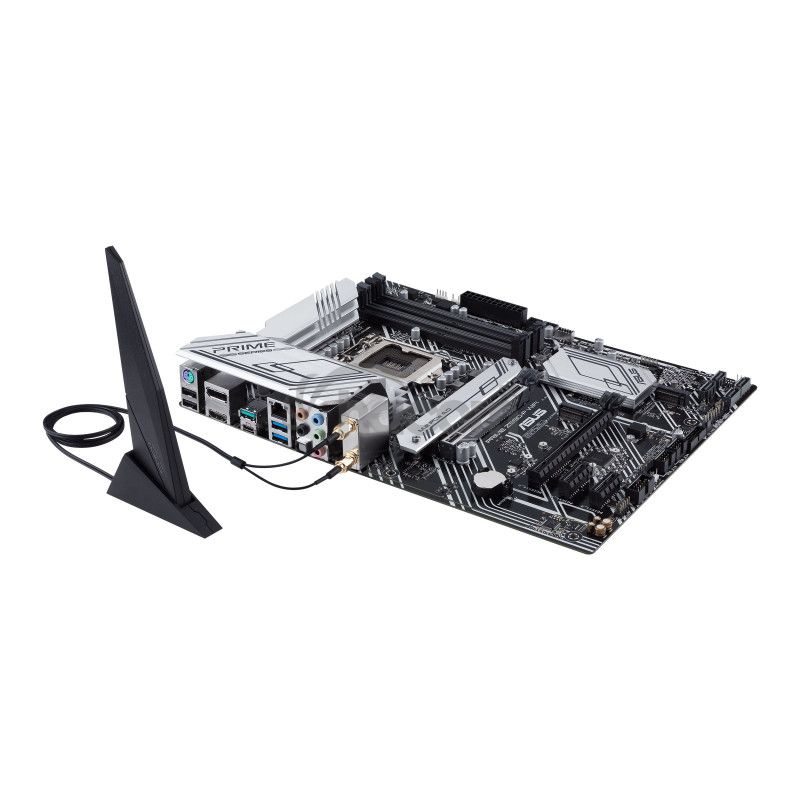

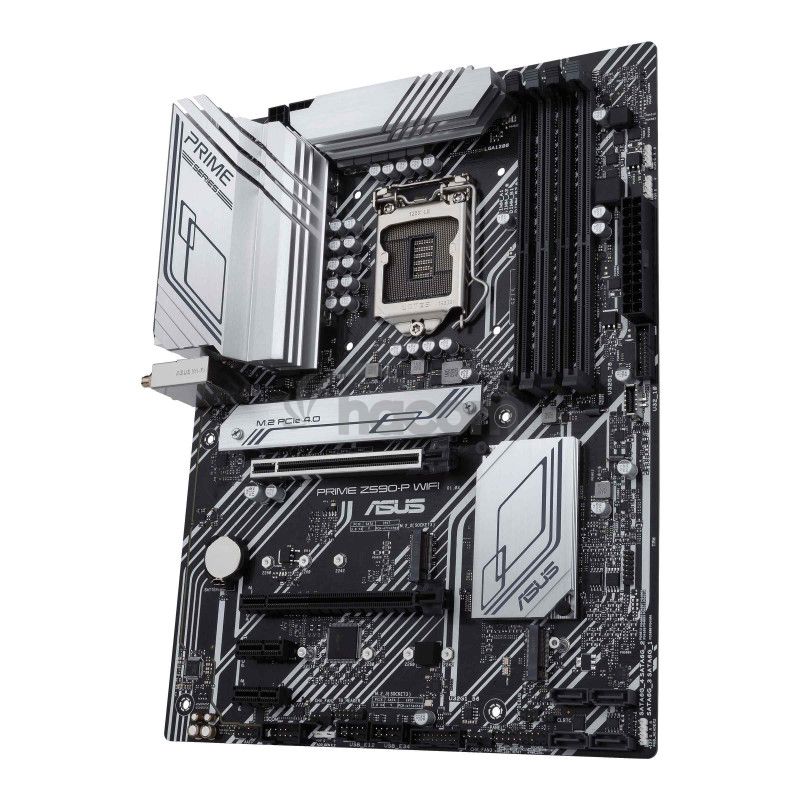

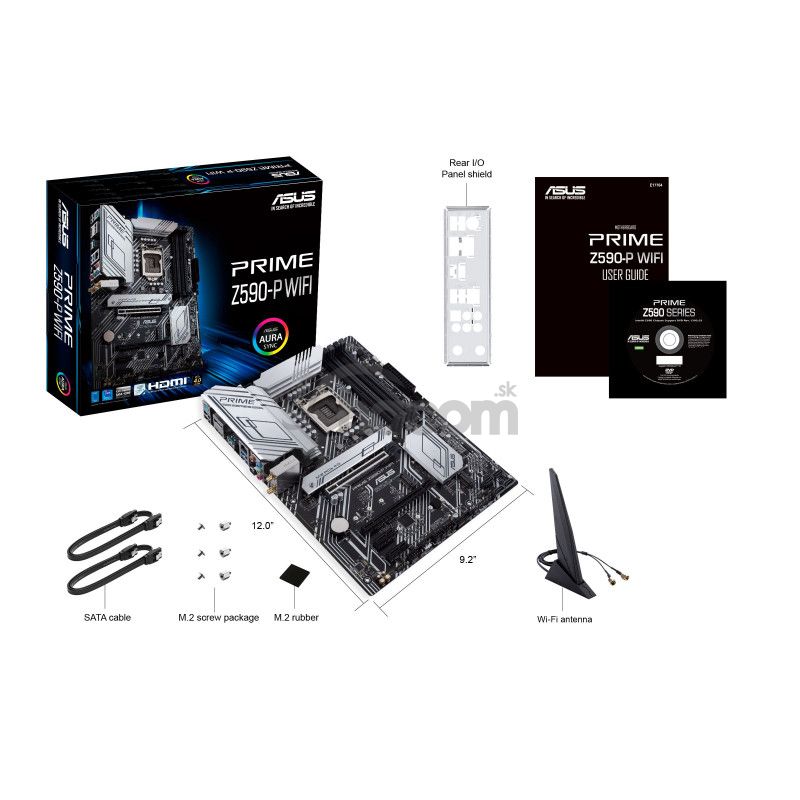

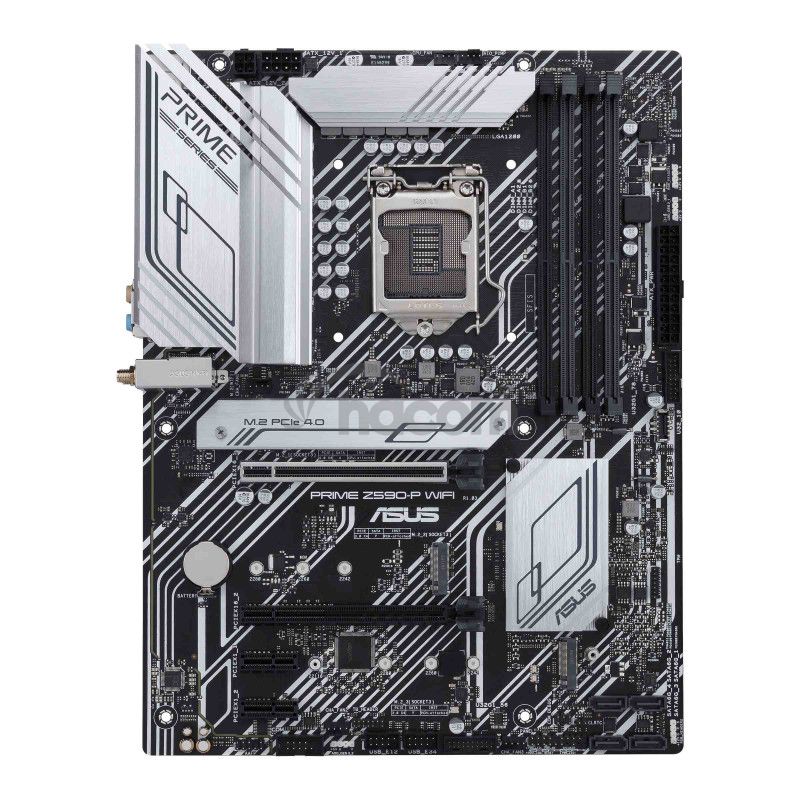

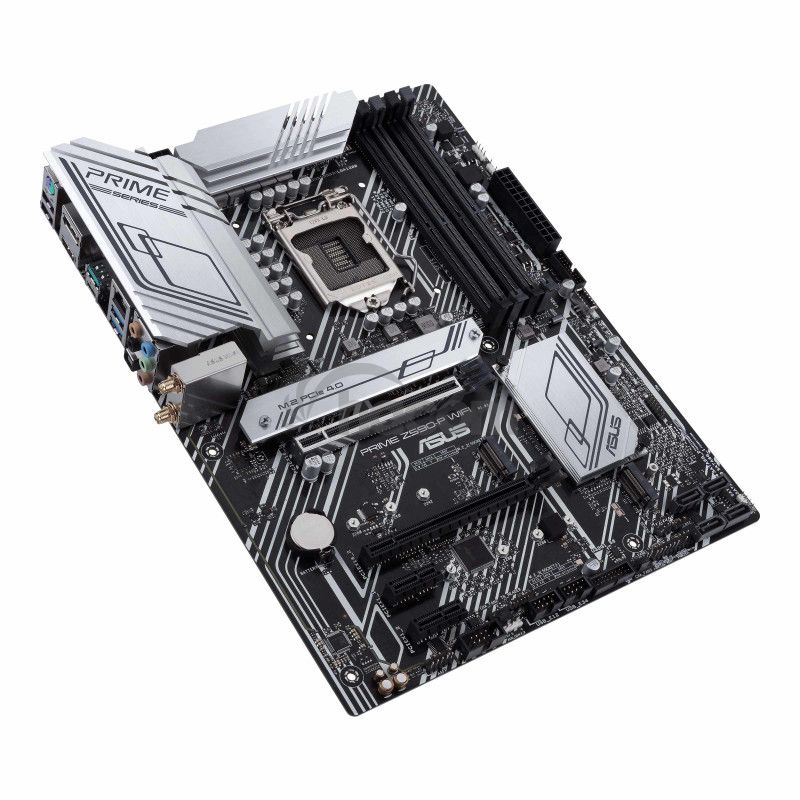

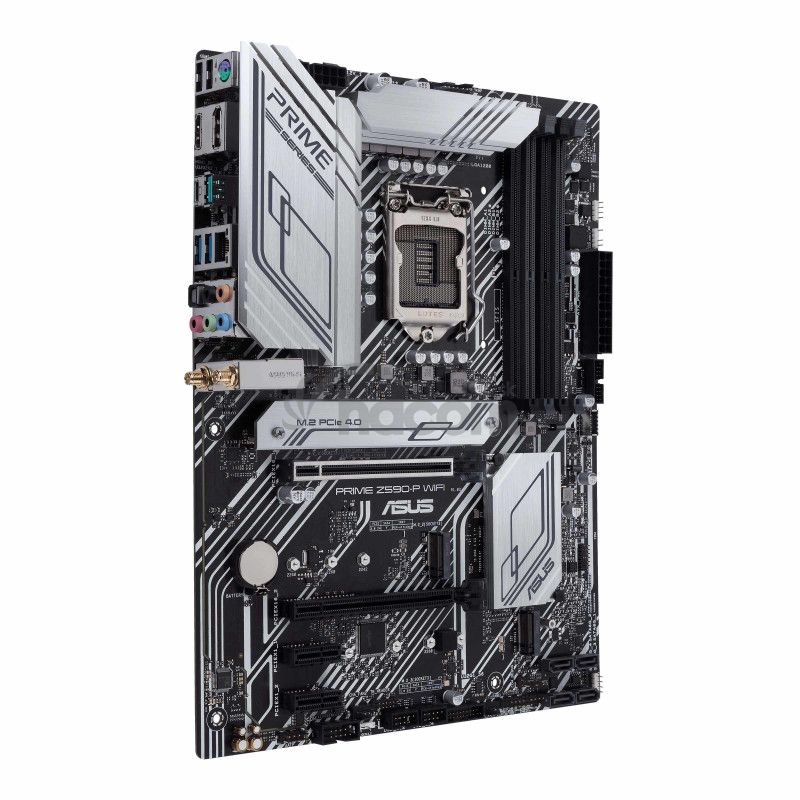

ASUS PRIME Z590-P WIFI 90MB1810-M0EAY0

ASUS PRIME Z590-P WIFI 90MB1810-M0EAY0

Chipset: Intel Z590

Rozmerový formát: ATX
Podpora pre procesory:
* 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Supports Intel 14 nm CPU
* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Pätica procesora: Intel Socket LGA1200

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
* 10th Gen Intel Core i7 / i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 SDRAM 2666MHz
* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively
Maximálna veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Supports Intel Extreme Memory Profile (XMP)
* optimom
* 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un -buffered Memory

Grafická karta:
* Podľa procesora

Zvuková karta:
* Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit / 192 kHz playback

Sieťová karta:
* 1 x Realtek 2.5Gb Ethernet
* Intel Wi-Fi 6

Rozširujúce sloty:
* 1 x PCIe 4.0 / 3.0 x16 + 1 x PCIe 3.0 x16 (max. X4)
* 1 x PCIe 4.0 / 3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode
* 1 x PCIe 3.0 x16 slot (supports x4 mode)
* 2 x PCIe 3.0 x1 slots
- Intel Q570 Chipset

SATA:
* 4 x SATA 6Gb / s ports

M.2:
* 3 x M.2 slots

USB:
* Zadné USB porty (celkom 6)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
* Predné USB porty (celkom 5)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interné porty:
* 1 x TB Header (for add-on TB card)
* 1 x 4-pin CPU Fan header
* 1 x 4-pin AIO Pump header
* 3 x 4-pin Chassis Fan headers
* 1 x 24-pin Main Power connector
* 1 x 8-pin + 12V Power connector
* 1 x 4-pin + 12V Power connector
* 3 x M.2 slots (Key M)
* 4 x SATA 6Gb / s ports
* 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
* 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
* 2 x AURA addressable Gen 2 headers
* 2 x AURA RGB headers
* 1 x Clear CMOS header
* 1 x COM Port header
* 1 x Front Panel Audio header (AAFP)
* 1 x SPI TPM header (14-1pin)
* 1 x 20-5pin System Panel header
* 1 x Thunderbolt header

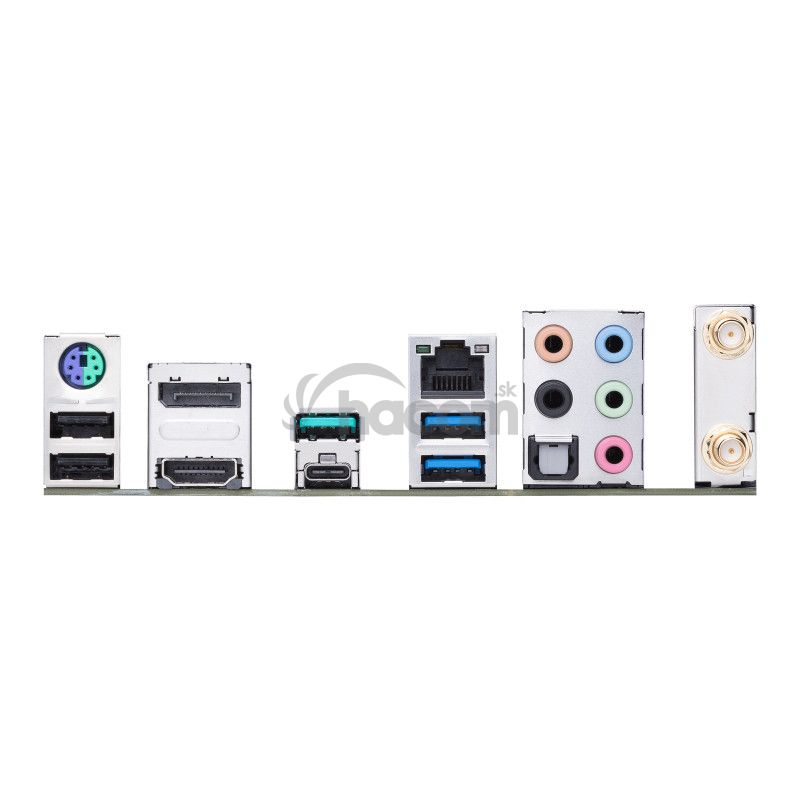

Externé porty:
* 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
* 1 x USB 3.2 Gen 2 port (1 x Type-A)
* 2 x USB 3.2 Gen 1 ports (2 x Type-A)
* 2 x USB 2.0 ports (2 x Type-A)
* 1 x DisplayPort
* 1 x HDMI port
* 1 x ASUS Wi-Fi Module
* 1 x Realtek 2.5Gb Ethernet port
* 5 x Audio jacks
* 1 x Optical S / PDIF out port
* 1 x PS / 2 Keyboard / Mouse combo port

BIOS: 192 (128 + 64) Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z590-P-WIFI/techspec/
