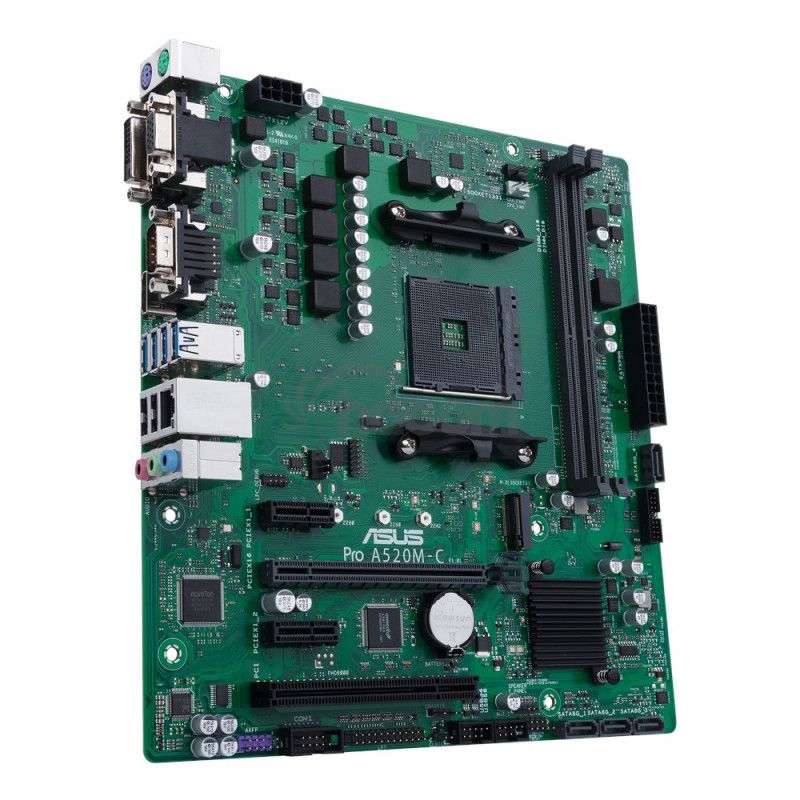

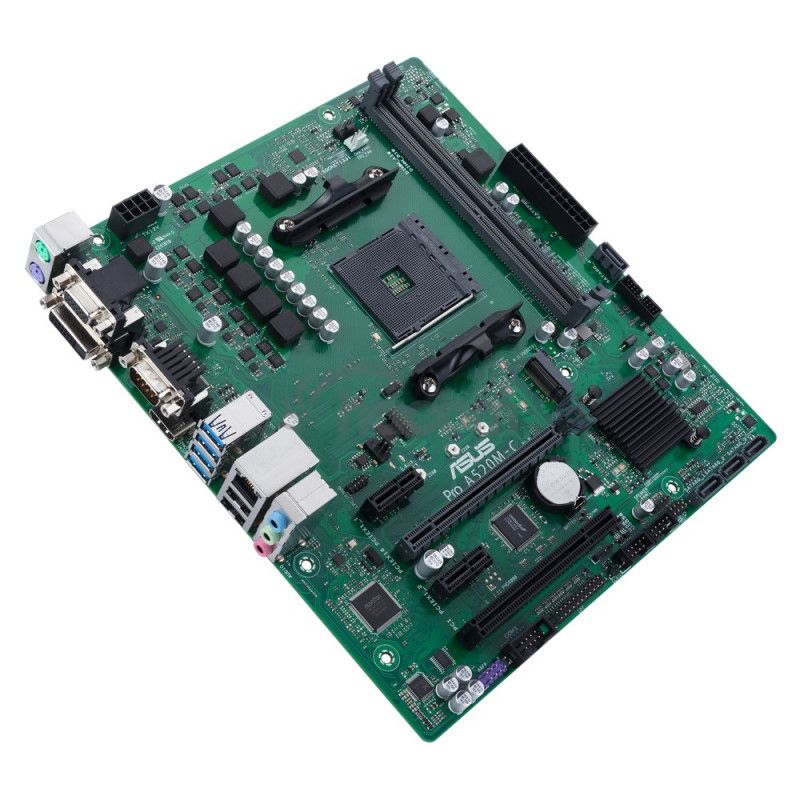

ASUS PRO A520-C / CSM 90MB1550-M0EAYC

ASUS PRO A520-C / CSM 90MB1550-M0EAYC

Chipset: AMD A520

Rozmerový formát: mATX Form Factor (244 mm x 229 mm)
Podpora pre procesory: 3rd Gen AMD Ryzen ™ and 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors
Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 4600 (OC) / 4400 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/3000/2800/2666/2400 / 2133 MHz Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM (Dual Channel Memory Architecture)
* ECC Memory (ECC mode) support varies by CPU.

Grafická karta: (na základe CPU)

Zvuková karta:
* Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty:
* 1x PCIe 3.0 x16 (x16 mode)
* 2x PCIe 3.0 x1
* 1x PCI

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s port (s)

M.2:
* 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 1 port (s) (4 x Type-A)
* 2x USB 2.0 port (s) (2 x Type-A)
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 port (s) (2 x Type-A)
* 4x USB 2.0 port (s) (4 x Type-A)

Interné porty:
* 1x CPU Fan connector (s)
* 2x Chassis Fan connector (s)
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x SPI TPM header
* 1x LPT header
* 4x SATA 6Gb / s connector (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin EATX 12V Power connectors
* 1x Front panel audio connector (s) (AAFP)
* 1x Clear CMOS jumper (s)
* 1x System panel connector
* 1x COM port header
* 1x Chassis intrusion header
* 1x LPC Debug header
* 1x Speaker connector

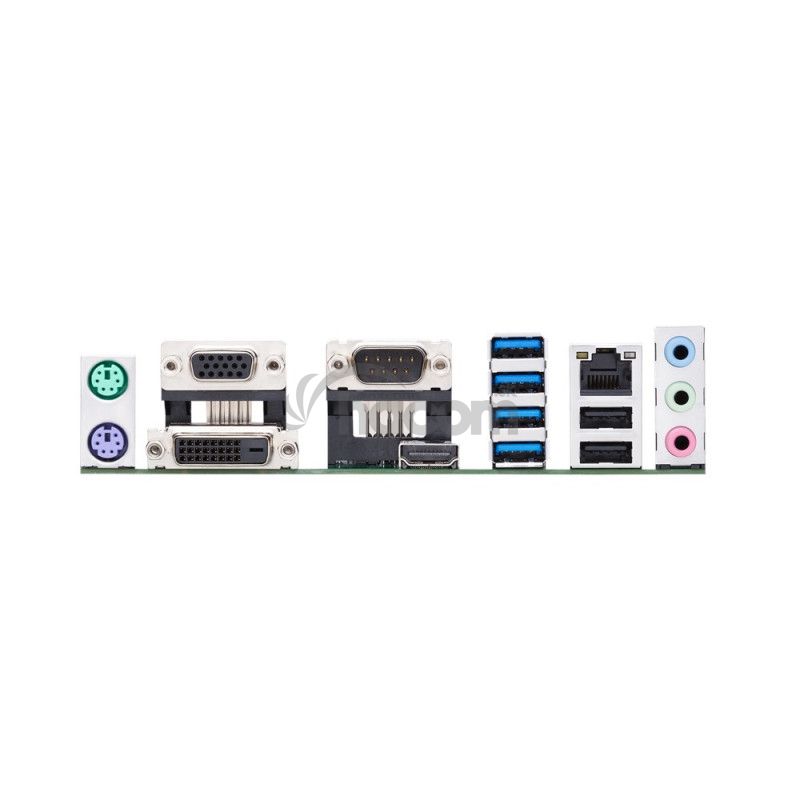

Externé porty:
* 1x PS / 2 keyboard (purple)
* 1x PS / 2 mouse (green)
* 1x DVI-D
* 1x D-Sub
* 1x HDMI
* 1x LAN (RJ45) port (s)
* 4x USB 3.2 Gen 1 (blue) Type-A
* 2x USB 2.0
* 1x COM port (s)
* 3x Audio jack (s)

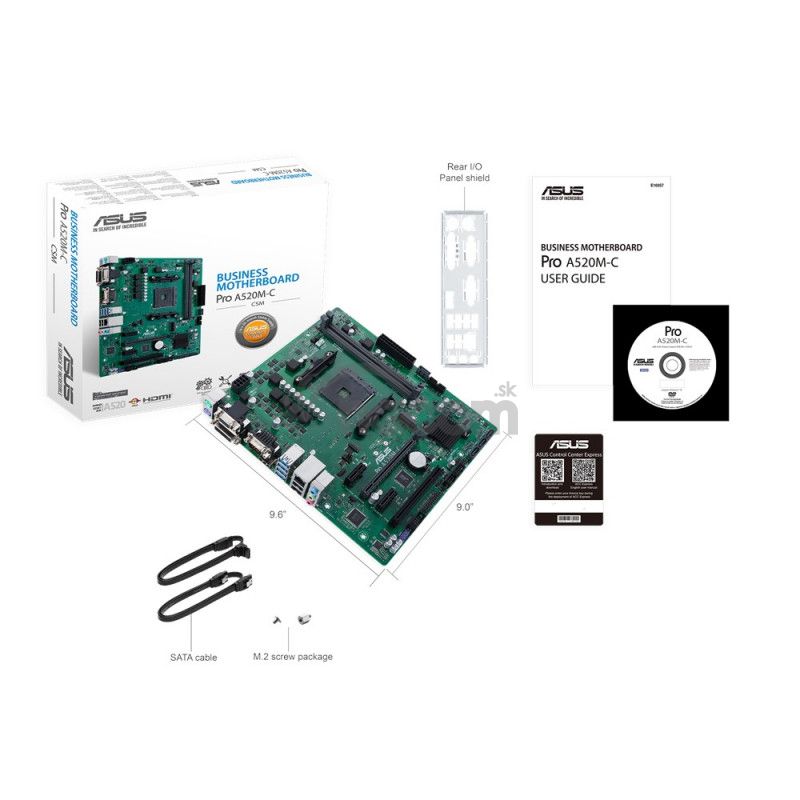

Príslušenstvo:
* Užívateľská príručka
* 1x ACC Express Activation Key Card
* I / O Shield
* 2x SATA 6Gb / s cable (s)
* 1x Supporting DVD
* 1x M.2 SSD screw package (s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/Pro-A520M-C-CSM
