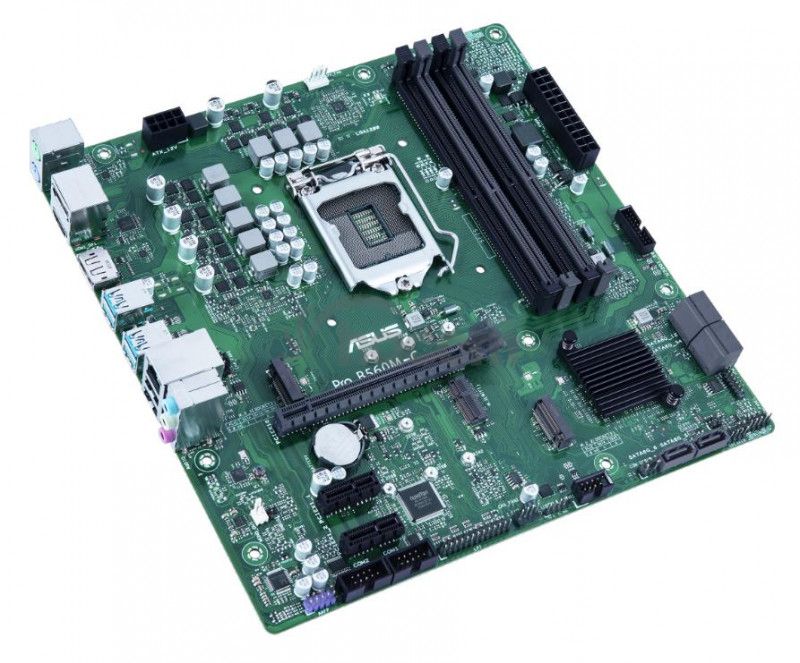

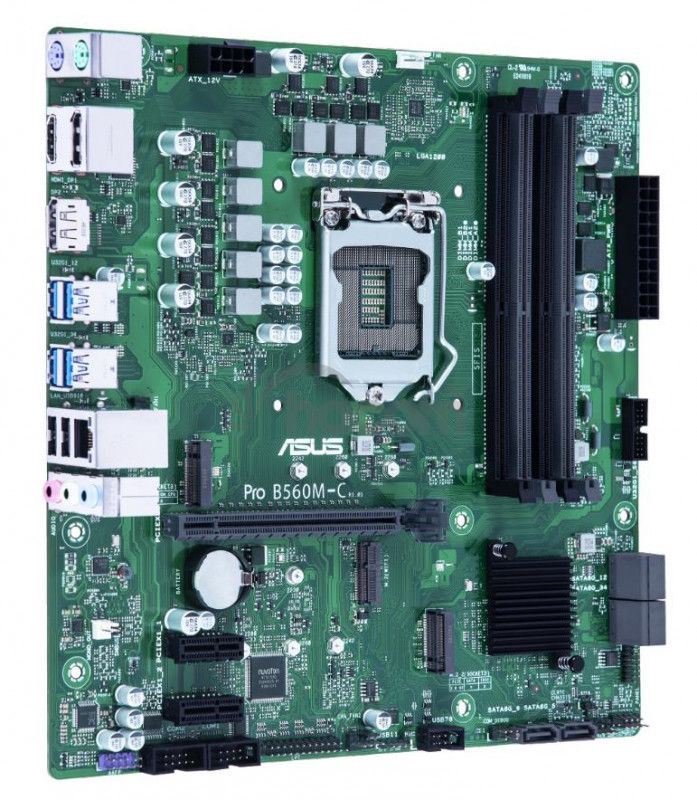

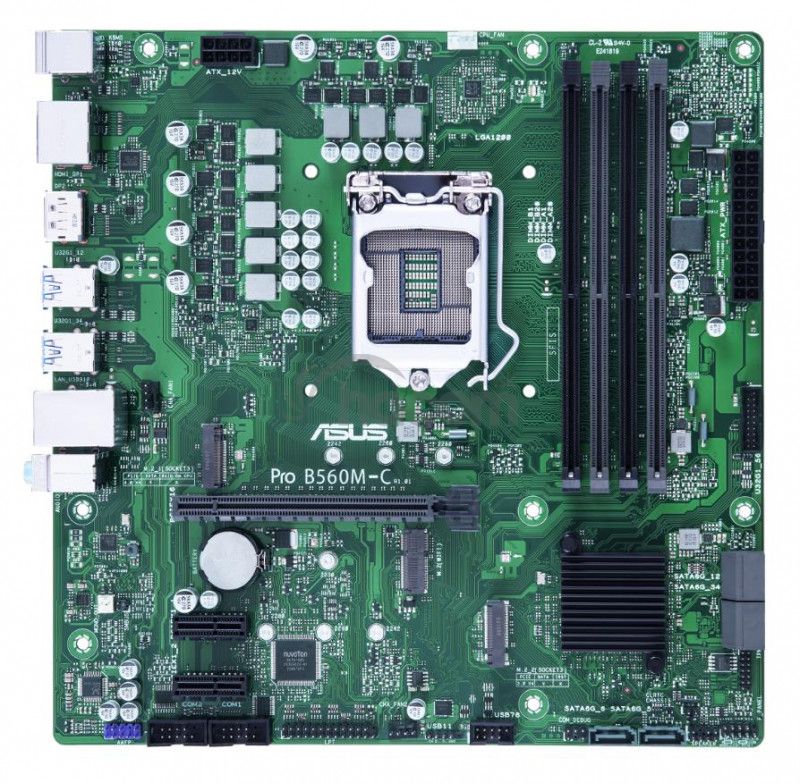

ASUS PRO B560-C / CSM 90MB1720-M0EAYC
Chipset: Intel® B560 chipsetRozmerový formát: microATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200
Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) // 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200 (OC) / 2933/2800 / 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* optima
Grafická karta:
* Integrated Graphics Processor (na základe procesora)
Zvuková karta:
* ALC887 / 897
Sieťová karta:
* 1x Intel® I219-V 1Gb Ethernet
Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (support x16 mode)
* 2x PCIe 3.0 x1 slots
SATA:
* 6x SATA 6Gb / s ports
M.2:
* M.2_1 slot (Key M), type 2242/2260/2280
* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 1 ports (4 x Type-A)
* 2x USB 2.0 ports (2 x Type-A)
* Predné USB porty (celkom 5)
* 2x USB 3.2 Gen 1 ports
* 2x USB 2.0 ports
* 1x USB 2.0 port
Interné porty:
* 1x 4-pin CPU Fan header
* 2x 4-pin Chassis Fan headers
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 2x M.2 slots (Key M)
* 6x SATA 6Gb / s ports
* 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 1x USB 2.0 header supports additional 2 USB 2.0 ports
* 1x USB 2.0 header supports additional 1 USB 2.0 port
* 1x Clear CMOS header
* 1x Chassis Intrude header
* 2x COM Port headers
* 1x Front Panel Audio header (AAFP)
* 1x COM debug header
* 1x LPT header
* 1x Mono-out header (with Amp IC)
* 1x SMBus header
* 1x Speaker header
* 1x SPI TPM header (14-1pin)
* 1x 10-1 pin System Panel header
Externé porty:
* 4x USB 3.2 Gen 1 ports (4 x Type-A)
* 2x USB 2.0 ports (2 x Type-A)
* 2x DisplayPort
* 1x HDMI port
* 1x M.2 slot (Key E)
* 1x Intel® I219V 1Gb Ethernet port
* 3x Audio jacks
* 1x PS / 2 keyboard (purple) port
* 1x PS / 2 mouse (green) port

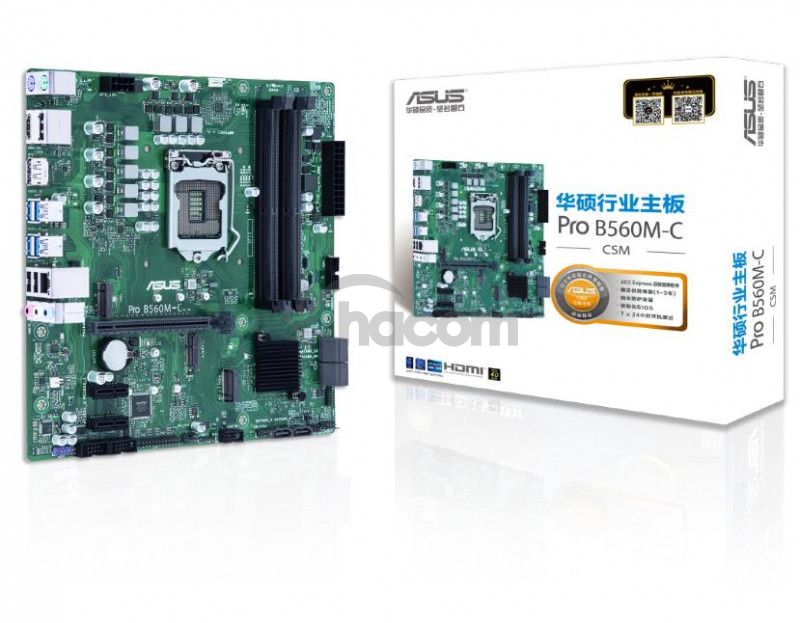

Obsah balenia:
* 2x SATA 6Gb / s cables
* 1x I / O Shield
* 1x M.2 SSD screw package
* 1x M.2 Key E screw package
* 1x Support DVD
* 1x ACC Express Activation Key Card
* 1x User manual
BIOS: 128Mb Flash ROM, UEFI AMI BIOS
Stránka výrobca: https://www.asus.com/Motherboards-Components/Motherboards/All-series/Pro-B560M-C-CSM
https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/
https://www.asus.com/support/FAQ/1046215
Parametre
Hmotnosť | 0,866 kg |
---|
