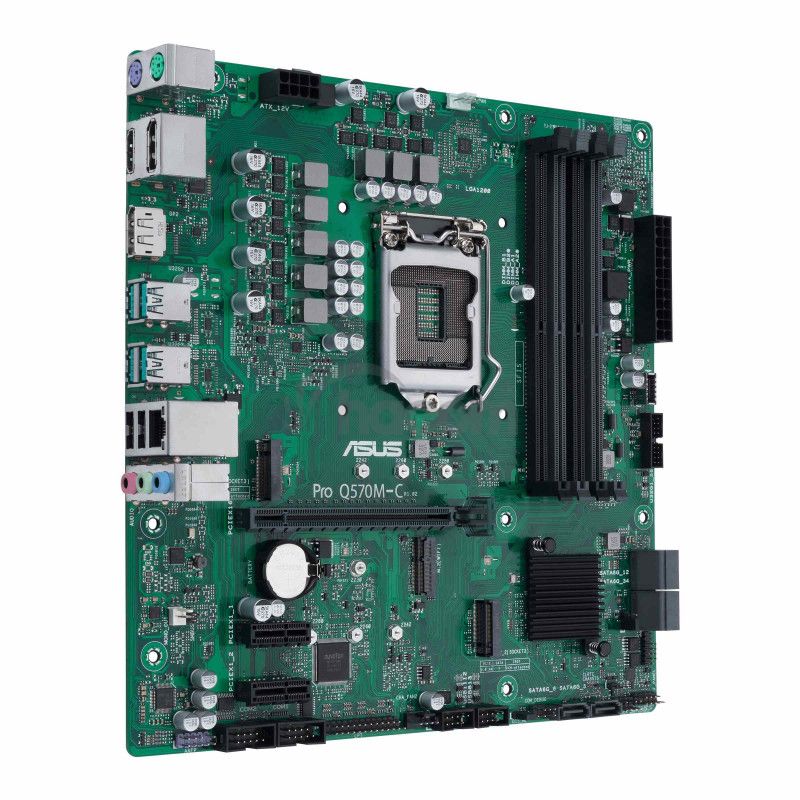

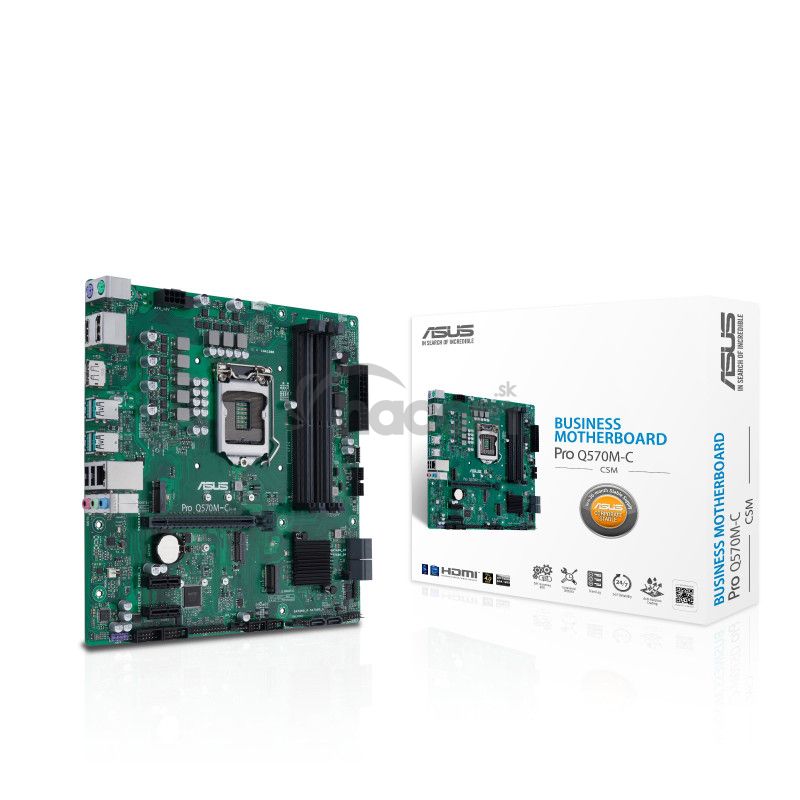

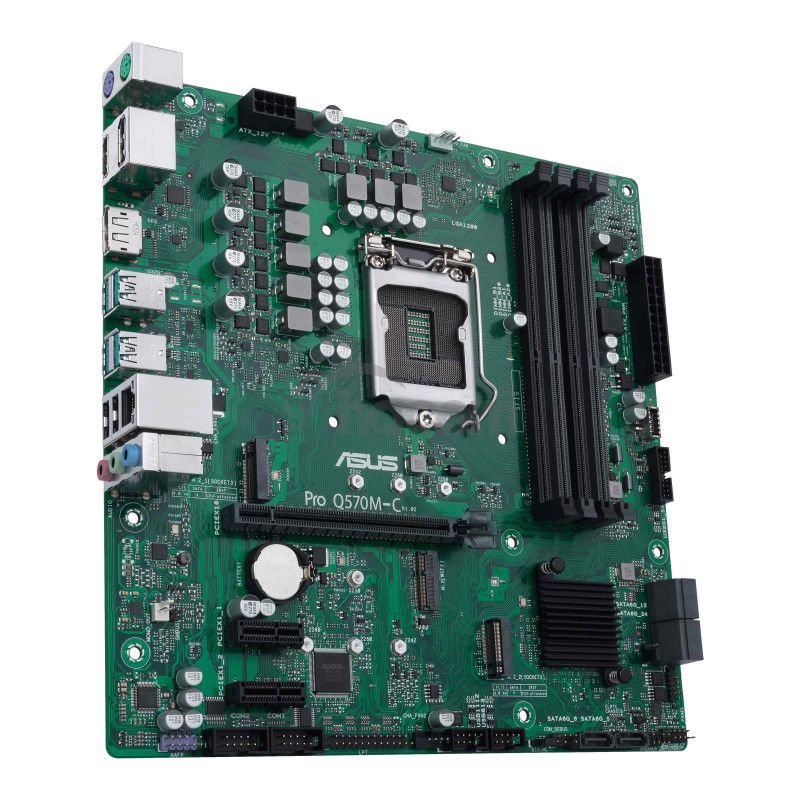

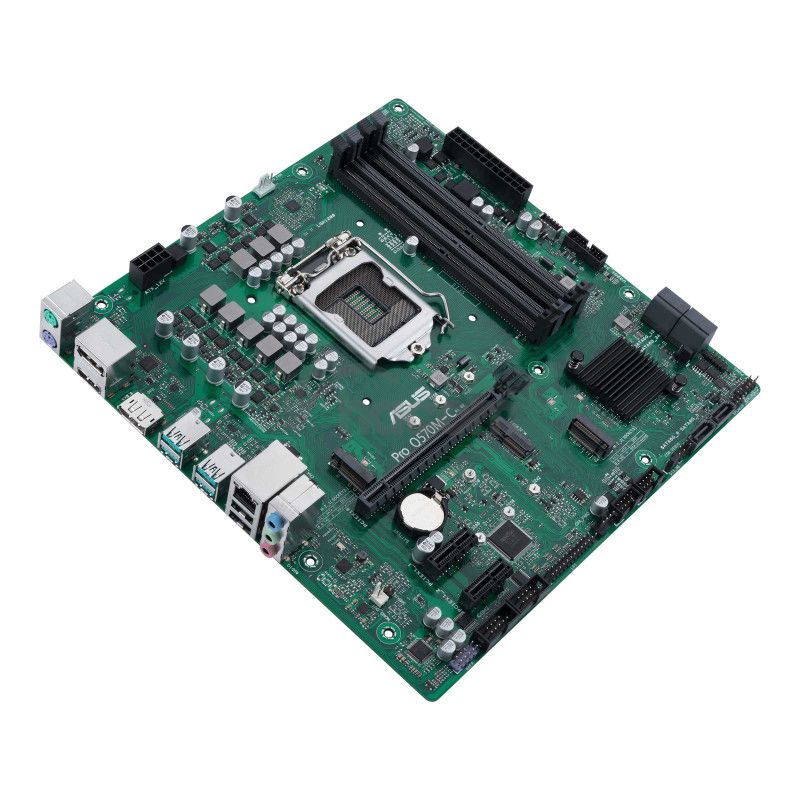

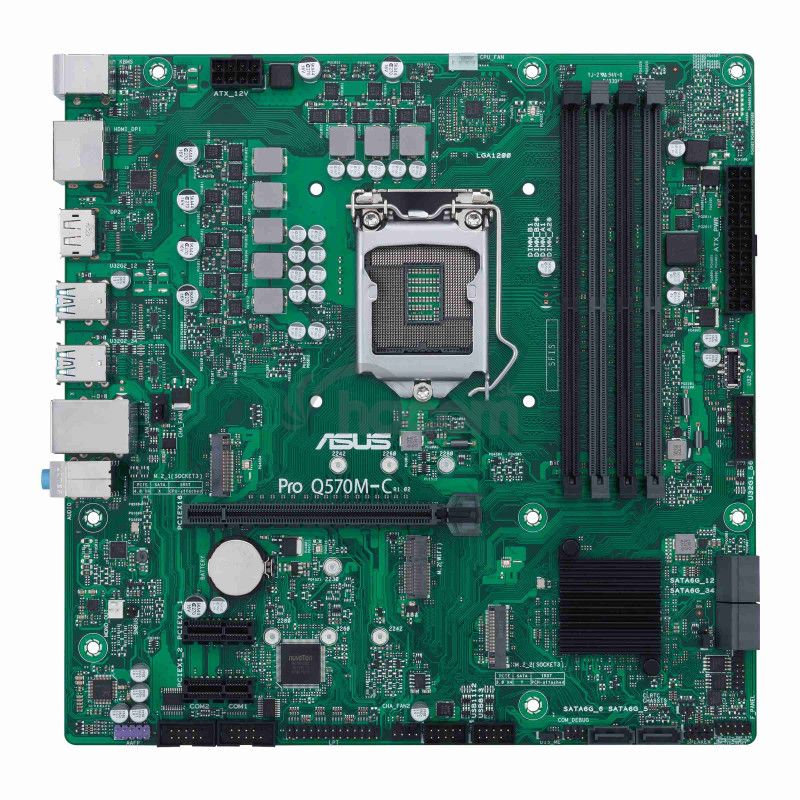

ASUS PRO Q570M-C / CSM 90MB1700-M0EAYC

ASUS PRO Q570M-C / CSM 90MB1700-M0EAYC

Chipset: Intel Q570

Rozmerový formát: microATX (24.4cm x 24.4cm)
Podpora pre procesory:
* 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Supports Intel 14 nm CPU
* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Pätica procesora: Intel Socket LGA1200

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
* 10th Gen Intel Core i7 / i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 SDRAM 2666MHz
* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively
Maximálna veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Supports Intel Extreme Memory Profile (XMP)
* optimom
* 3200 (OC) / 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Grafická karta:
* Podľa procesora

Zvuková karta:
* Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC *
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit / 192 kHz playback

Sieťová karta:
* 1 x Intel® 1Gb Ethernet

Rozširujúce sloty:
* 1 x PCIe 4.0 / 3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode
* 2 x PCIe 3.0 x1 slots
- Intel Q570 Chipset

SATA:
* 6 x SATA 6Gb / s ports

M.2:
* 2 x M.2 slots

USB:
* Zadné USB porty (celkom 6)
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
* Predné USB porty (celkom 7)
- 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interné porty:
* 1 x 4-pin CPU Fan header
* 2 x 4-pin Chassis Fan headers
* 1 x 24-pin Main Power connector
* 1 x 8-pin + 12V Power connector
* 2 x M.2 slots (Key M)
* 6 x SATA 6Gb / s ports
* 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
* 1 x Clear CMOS header
* 1 x Chassis Intrude header
* 2 x COM Port headers
* 1 x Front Panel Audio header (AAFP)
* 1 x COM debug header
* 1 x DIS ME jumper
* 1 x LPT header
* 1 x Mono-out header (with Amp IC)
* 1 x M.2 slot (Key E)
* 1 x SMBus header
* 1 x Speaker header
* 1 x 10-1 System Panel header

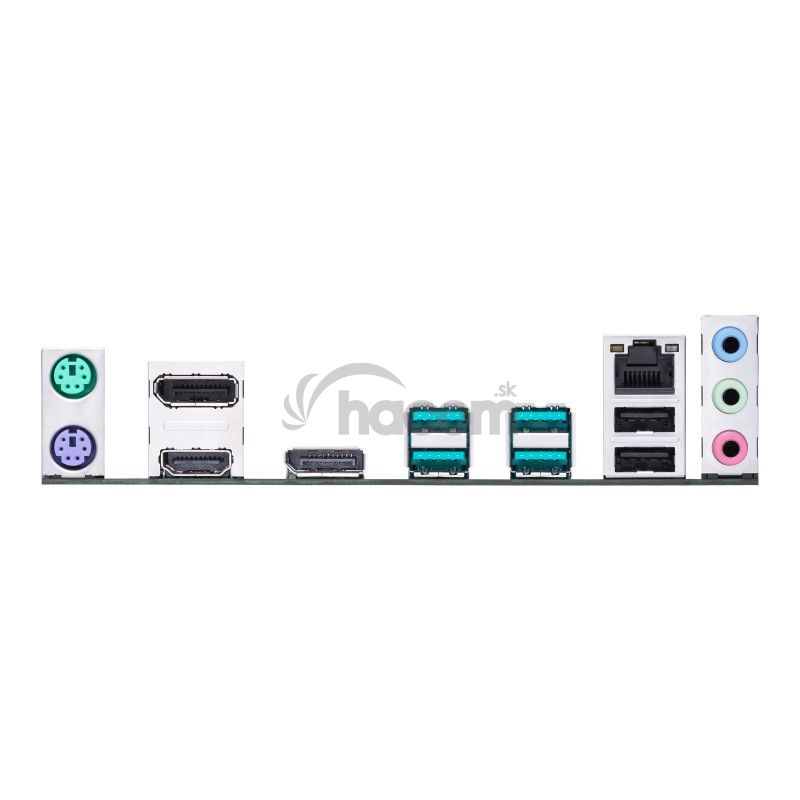

Externé porty:
* 4 x USB 3.2 Gen 2 ports (4 x Type-A)
* 2x USB 2.0 ports (2 x Type-A)
* 2 x DisplayPort
* 1 x HDMITM
* 3 x Audio jacks
* 1 x Intel I219-LM 1Gb Ethernet
* 1 x PS / 2 keyboard (purple) port
* 1 x PS / 2 mouse (green) port

BIOS: 128 + 64 Mb Flash ROM

Stránka výrobca: https://www.asus.com/Motherboards-Components/Motherboards/Business/Pro-Q570M-C-CSM/techspec/
