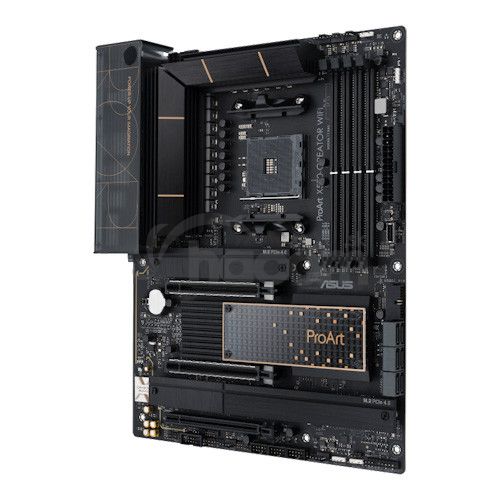

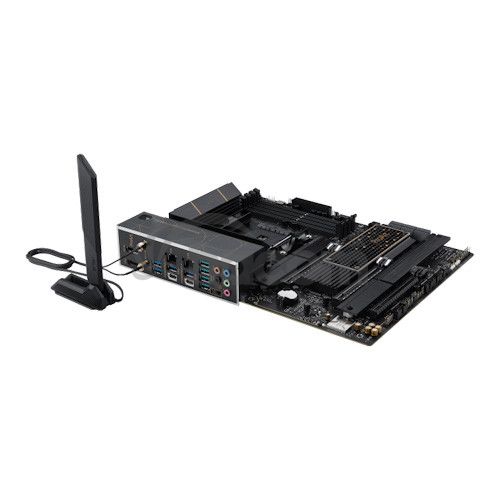

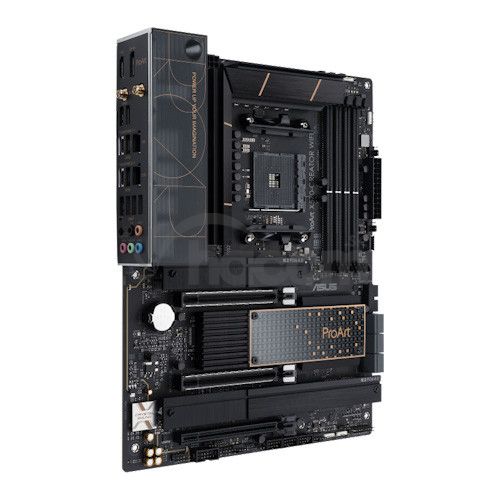

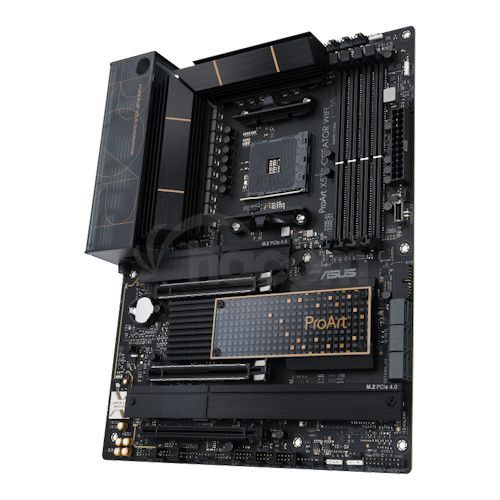

ASUS PROART X570-CREATOR WIFI 90MB18Z0-M0EAY0

ASUS PROART X570-CREATOR WIFI 90MB18Z0-M0EAY0

Chipset: AMD X570 chipset

Rozmerový formát: ATX Form Factor (30.5 cm x 24.4 cm)

Podpora pre procesory:
* AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors
* AMD Socket AM4 for AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors

Pozícia na pamäti: 4x Dual Channel Memory Architecture
Podpora pre pamäte:
* AMD Ryzen 5000 Series / 3000 Series Desktop Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 ( OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz, un-buffered memory
* AMD Ryzen 5000 G-Series and 4000 G-Series Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM DDR4 SDRAM 5100 (OC) / 5000 (OC) / 4866 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz, un-buffered memory
* AMD Ryzen 2000 Series Desktop Processors
* 4 x DIMM, max. 128GB, DDR4 SDRAM 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 3000 (OC) / 2933/2800/2666/2400/2133 MHz, un-buffered memory
* AMD Ryzen 3000 G-Series and 2000-G Series Desktop Processors
* 4 x DIMM, max. 128GB, DDR4 SDRAM 3200 (OC) / 3000 (OC) / 2933/2800/2666/2400/2133 MHz, un-buffered memory
Maximálna veľkosť pamäte: 128 GB
Podpora pre pamäte typu: ECC Memory (ECC mode)

Grafická karta: (na základe procesora)
* 1 x DisplayPort (Input only)
* 1 x HDMI port

Zvuková karta: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* 1 x Marvell AQtion AQC113CS 10Gb Ethernet
* 1 x Intel I225-V 2.5Gb Ethernet
* Wi-Fi 6E (2x2 Wi-Fi 6E (802.11 a / b / g / n / ac / ax))
* Bluetooth v5.2

Rozširujúce sloty:
* AMD Ryzen 5000 Series and 3000 Series Desktop Processors
* 2 x PCIe 4.0 x16 (x16 or dual x8)
* AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors
* 2 x PCIe 3.0 x16 (x16 or dual x8)
* AMD Ryzen 2000 G-Series and 3000 G-Series Processors
* 1 x PCIe 3.0 x16 (x8 mode)
* AMD X570 Chipset
* 1 x PCIe 4.0 x16 slot (supports x4 mode)

RAID radič: RAID 0, 1, 10

SATA: 6x SATA 6Gb / s

M.2: 3x M.2 slot

USB:
* Interné:
* 1 x USB 3.2 Gen 2 connector (support (s) USB Type-C)
* 1 x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports
* 3 x USB 2.0 header (s) support (s) additional 6 USB 2.0 ports
* Externé:
* 2 x Thunderbolt 4 USB Type-C port (s)
* 4 x USB 3.2 Gen 2 port (s) (4 x Type-A)
* 4 x USB 3.2 Gen 1 port (s) (4 x Type-A)

Interné porty:
* 2 x Thunderbolt 4 port (s) (2 x USB Type-C) with up to 5V / 3A, 15W charging support
* Fan and Cooling related
* 1 x 4-pin CPU Fan header (s)
* 1 x 4-pin CPU OPT Fan header (s)
* 1 x 4-pin AIO Pump header (s)
* 1 x W_PUMP + header (s)
* 4 x 4-pin Chassis Fan header (s)
* 1 x 24-pin Main Power connector
* 1 x 8-pin + 12V Power connector
* 1 x 4-pin + 12V Power connector
* 3 x M.2 slots (Key M)
* 6 x SATA 6Gb / s ports
* 1 x USB 3.2 Gen 2 connector (support (s) USB Type-C)
* 1 x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports
* 3 x USB 2.0 header (s) support (s) additional 6 USB 2.0 ports
* 3 x AURA addressable Gen 2 header (s)
* 1 x AURA RGB header (s)
* 1 x Clear CMOS header
* 1 x COM Port header
* 1 x Front Panel Audio header (AAFP)
* 1 x SPI TPM header (14-1pin)
* 1 x 20-3 pin System Panel header with Chassis intrude function
* 1 x Thermal Sensor header

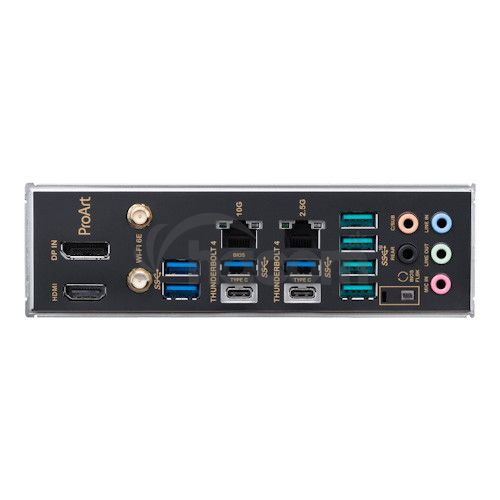

Externé porty:
* 2 x Thunderbolt 4 USB Type-C port (s)
* 4 x USB 3.2 Gen 2 port (s) (4 x Type-A)
* 4 x USB 3.2 Gen 1 port (s) (4 x Type-A)
* 1 x DisplayPort (Input only)
* 1 x HDMI port
* 1 x Intel I225-V 2.5Gb Ethernet port
* 1 x Marvell AQtion AQC113CS 10Gb Ethernet port
* 1 x ASUS Wi-Fi Module
* 5 x Audio jacks
* 1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
