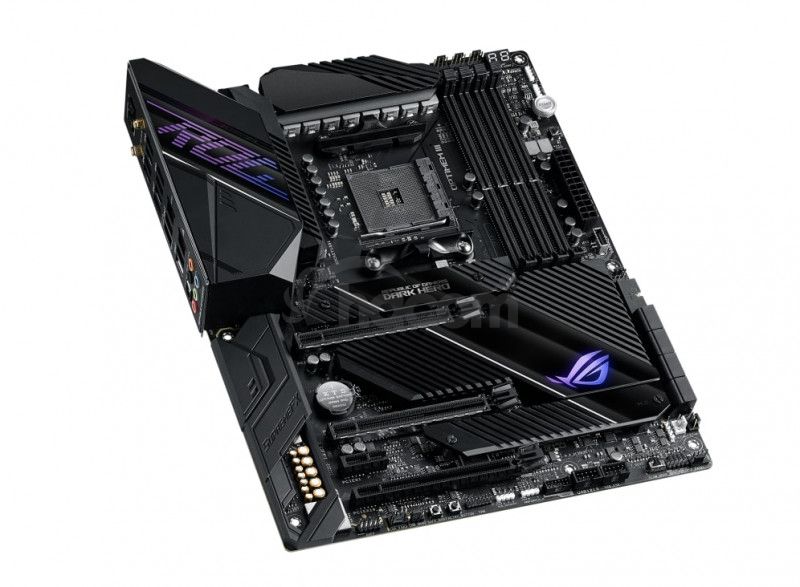

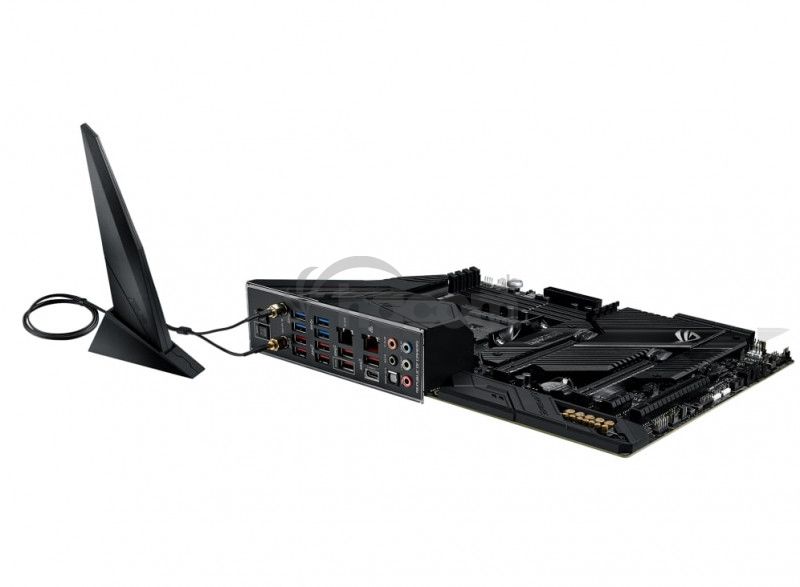

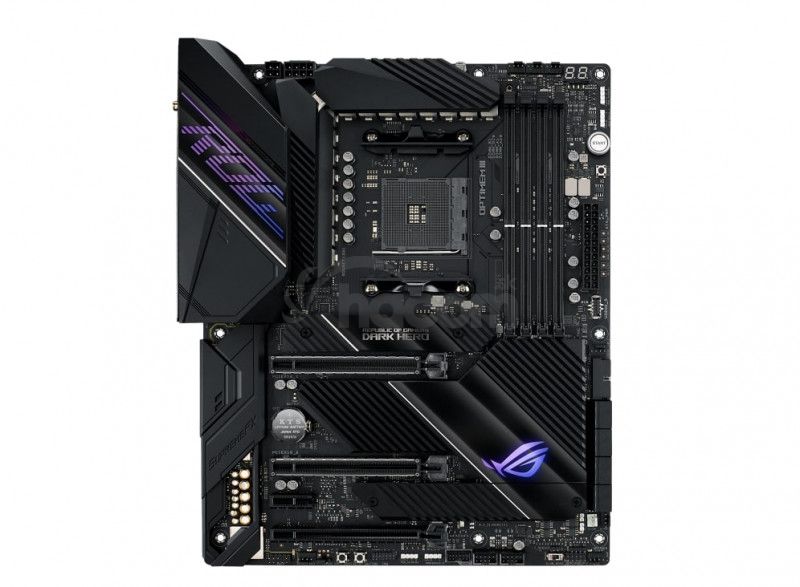

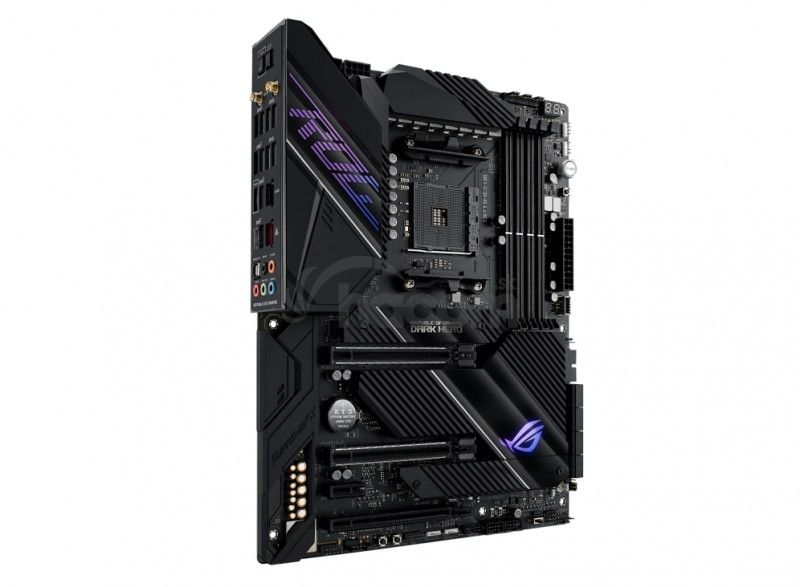

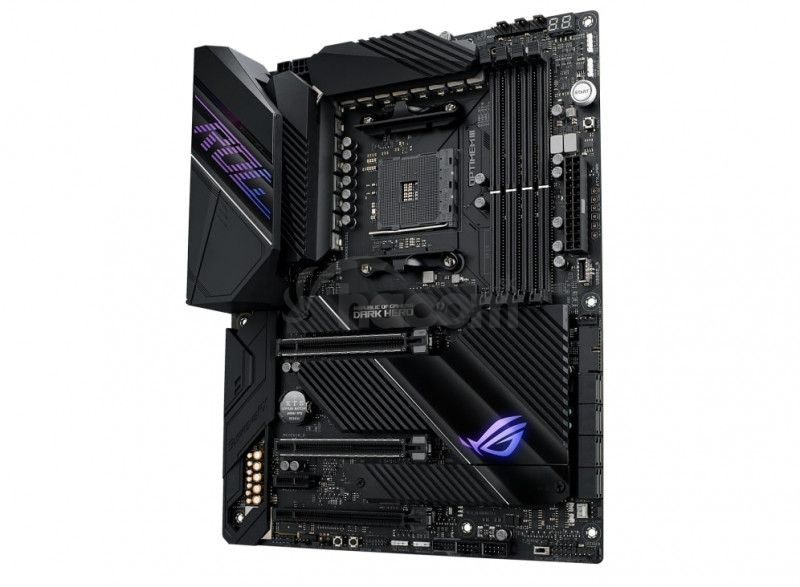

ASUS ROG CROSSHAIR VIII DARK HERO, X570 90MB1760-M0EAY0

ASUS ROG CROSSHAIR VIII DARK HERO, X570 90MB1760-M0EAY0

Chipset: AMD X570

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: AMD AM4 Socket for AMD Ryzen ™ 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 4866 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400 (OC) / 2133 MHz Non-ECC, Un-buffered Memory
* 5100 (OC) / 5000 (OC) / 4866 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* 3600 (OC) / 3466 (OC) / 3200/3000 (OC) / 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* 3200/3000 (OC) / 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.

Grafická karta: Nie

Multi GPU:
* NVIDIA 2-Way SLI® Technology
* AMD 3-Way CrossFireX ™ Technology
* AMD 2-Way CrossFireX ™ Technology

Zvuková karta:
* ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* Intel® I211-AT
* Realtek® RTL8125-CG 2.5G LAN
* Intel® Wi-Fi 6 AX200
* Bluetooth V5.1

Rozširujúce sloty:
* 3x PCIe x16
* 1x PCIe 4.0 x1

RAID radič: 0, 1, 10

SATA:
* 8x SATA 6Gb / s

M.2:
* 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280
* 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

USB:
* Zadné USB porty (celkom 12)
* 4x USB 3.2 Gen 1 (up to 5Gbps) ports
* 8x USB 3.2 Gen 2 (up to 10Gbps) ports
* Predné USB porty (celkom 8)
* 2x USB 3.2 Gen 1 ports
* 2x USB 3.2 Gen 2 ports
* 4x USB 2.0 ports

Interné porty:
* 2x M.2 Socket 3
* 2x Aura RGB Strip Headers
* 2x addressable Gen 2 header (s)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x TPM connector (s)
* 8x SATA 6Gb / s connector (s)
* 1x CPU Fan connector (s)
* 1x CPU OPT Fan connector (s)
* 3x Chassis Fan connector (s)
* 1x AIO_PUMP connector
* 1x H_AMP fan connector
* 1x W_PUMP + connector
* 1x 24-pin EATX Power connector (s)
* 1x Front panel audio connector (s) (AAFP)
* 1x Slow Mode switch (es)
* 1x Reset button (s)
* 1x Node Connector (s)
* 1x LN2 Mode jumper (s)
* 1x Safe Boot button
* 1x Retro button
* 1x System panel connector
* 1x T_Sensor Connector
* 1x W_IN header
* 1x W_OUT header
* 1x W_FLOW header
* 1x Tlačidlo Štart
* 1x Speaker connector
* 1x USB 3.2 Gen 2 (up to 10Gbps) connector
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
* 1x 8-pin ATX 12V Power connector (s)
* 1x 4-pin ATX 12V Power connector (s)

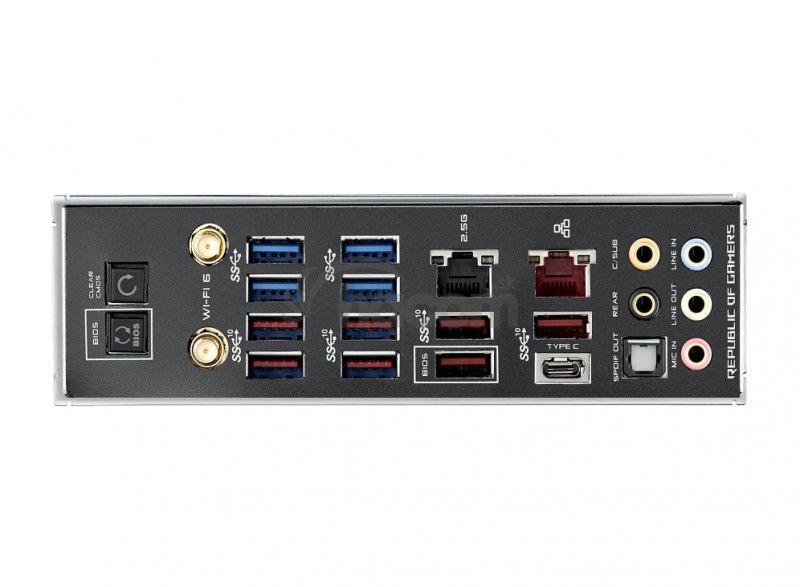

Externé porty:
* 1x BIOS FlashBack ™ Button (s)
* 1x Optical S / PDIF out
* 1x Clear CMOS button (s)
* 1x ASUS Wi-Fi Module
* 5x Gold-plated audio jacks
* 4x USB 3.2 Gen 1 (up to 5Gbps) ports
* 8x USB 3.2 Gen 2 (up to 10Gbps) ports
* 1x Anti-surge 2.5G LAN (RJ45) port
* Anti-surge LAN (RJ45) port

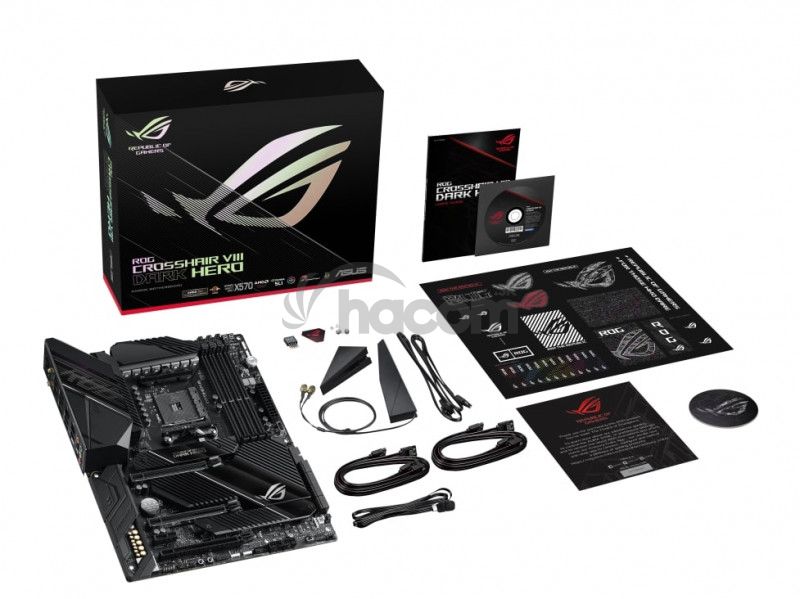

Obsah balenia:
* 1x M.2 SSD screw package (s)
* User's manual
* 4x SATA 6Gb / s cable (s)
* 1x Supporting DVD
* 1x ROG big sticker
* 1x Q-Connector
* 1x Wi-Fi Antenna (s)
* 1x Extension Cable for RGB strips (80 cm)
* 1x Extension cable for addressable LED
* 1x ROG coaster (s)
* 1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Stránka výrobca: https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-viii-dark-hero-model
