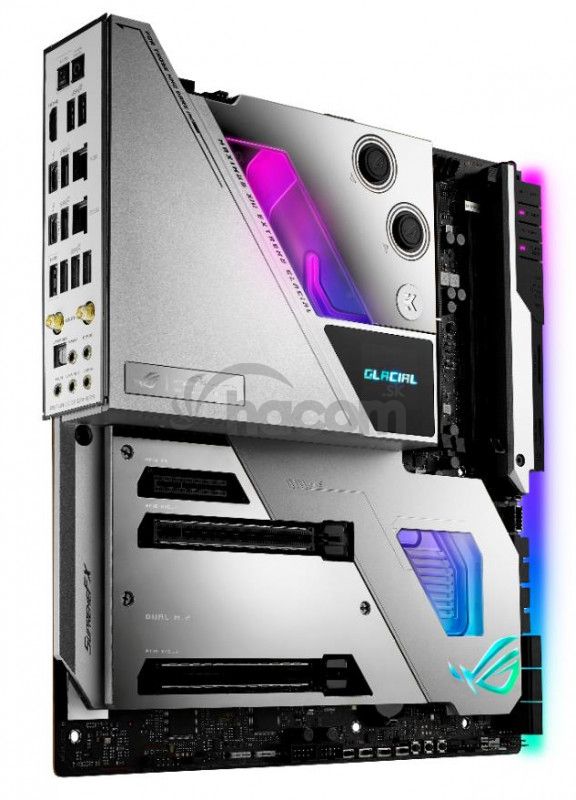

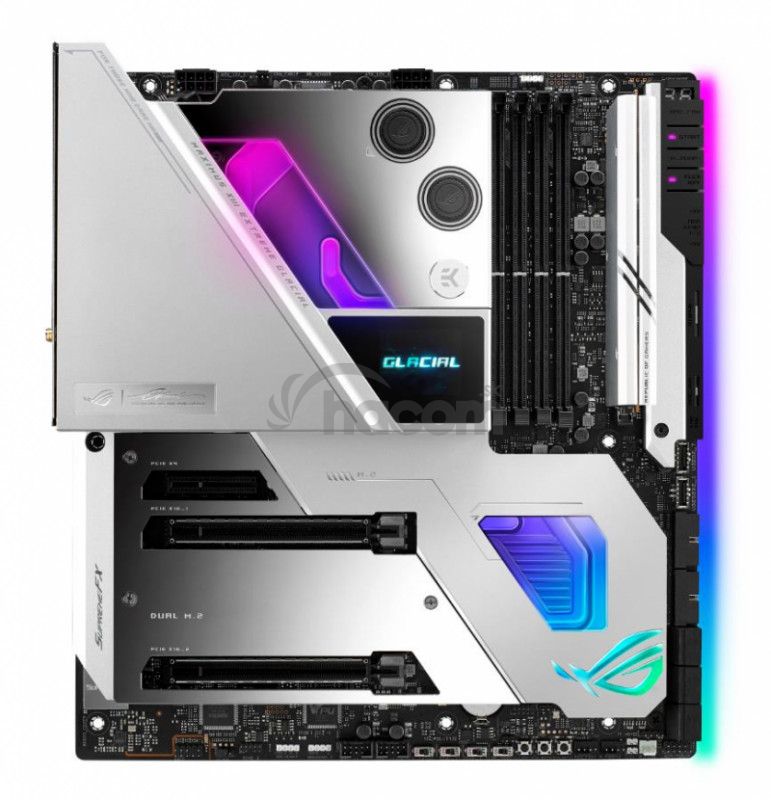

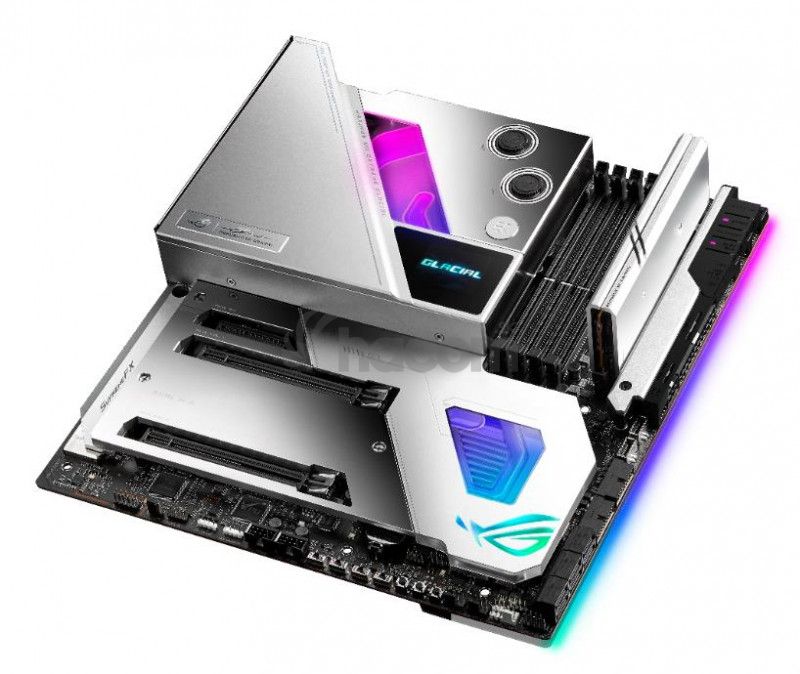

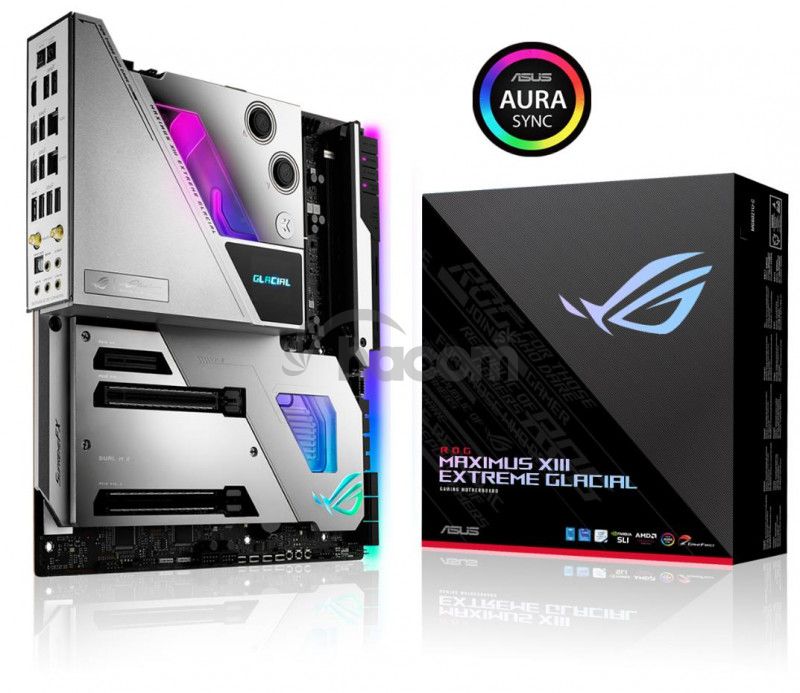

ASUS ROG MAXIMUS XIII EXTREME Glacial, Z590 90MB1730-M0EAY0

ASUS ROG MAXIMUS XIII EXTREME Glacial, Z590 90MB1730-M0EAY0

Chipset: Intel® Z590 chipset

Rozmerový formát: Extended ATX Form Factor (305 mm x 277 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte: 5333 (OC) / 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400 / 2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* Optima III

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Multi GPU: NVIDIA 2-Way SLI® Technology

Zvuková karta:
* ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Sieťová karta:
* 1x Intel® 2.5Gb Ethernet
* 1x Marvell® 10Gb Ethernet
* Intel® Wi-Fi 6E
* Bluetooth v5.2

Rozširujúce sloty:
* 2x PCIe 4.0 / 3.0 x16 slot (s)
* 1x PCIe 3.0 x4 slo

SATA:
* 6x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280
* M.2_2 slot (Key M), type 2242/2260/2280
* M.2_3 slot (Key M), type 2242/2260/2280
* DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
* DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

USB:
* Zadné USB porty (celkom 10)
* 2x Thunderbolt ™ 4 port (s) (2 x USB Type-C®) with up to 5V / 3A, 15W charging support
* 8x USB 3.2 Gen 2 port (s) (8 x Type-A)
* Predné USB porty (celkom 10)
* 1x USB 3.2 Gen 2x2 connector (s) (suppport (s) USB Type-C®
* 1x USB 3.2 Gen 2 Front Panel connector (s) (support (s) USB Type-C®
* 4x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 2x 4-pin Chassis Fan header (s)
* 2x 4-pin Radiator Fan header (s)
* 2x W_PUMP + header (s)
* 1x WB_SENSOR header (s)
* 1x 2-pin Water In header
* 1x 2-pin Water Out header
* 1x 3-pin Water Flow header
* 1x 24-pin Main Power connector
* 2x 8-pin + 12V Power connector
* 1x 6-pin PCIe Graphics Card connector
* 3x M.2 slots (Key M)
* 1x DIMM.2 slot supports 2 x M.2 slots (Key M)
* 6x SATA 6Gb / s ports
* 1x USB 3.2 Gen 2x2 connector (support (s) USB Type-C®)
* 1x USB 3.2 Gen Gen 2 connector (support (s) USB Type-C®)
* 2x USB 3.2 Gen 1 header (s) support (s) additional 4 USB 3.2 Gen 1 ports
* 2x USB 2.0 header (s) support (s) additional 4 USB 2.0 ports
* 3x AURA addressable Gen 2 header (s)
* 1x AURA RGB header (s)
* 1x WB_ADD header (s)
* 1x BIOS Switch button
* 1x FlexKey button
* 1x Front Panel Audio header (AAFP)
* 1x LN2 Mode jumper
* 8x ProbeIt Measurement Points
* 1x Retro button
* 2x RSVD switch
* 1x RSVD header
* 1x Safe Boot button
* 1x Slow Mode switch
* 1x Speaker header
* 1x Tlačidlo Štart
* 1x V_LATCH switch
* 1x 10-1 pin System Panel header
* 1x Thermal Sensor header

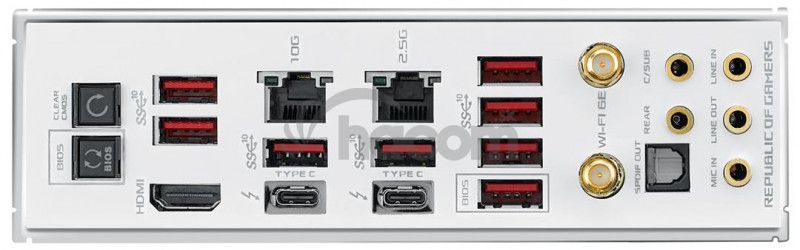

Externé porty:
* 2x Thunderbolt ™ 4 USB Type-C® port (s)
* 8x USB 3.2 Gen 2 port (s) (8 x Type-A)
* 1x HDMI ™ port
* 1x ASUS Wi-Fi Module
* 1x Marvell® AQtion AQC113CS 10Gb Ethernet
* 1x Intel® I225-V 2.5Gb Ethernet
* 5x LED-illuminated audio jacks
* 1x Optical S / PDIF out port
* 1x BIOS FlashBack ™ button
* 1x Clear CMOS button

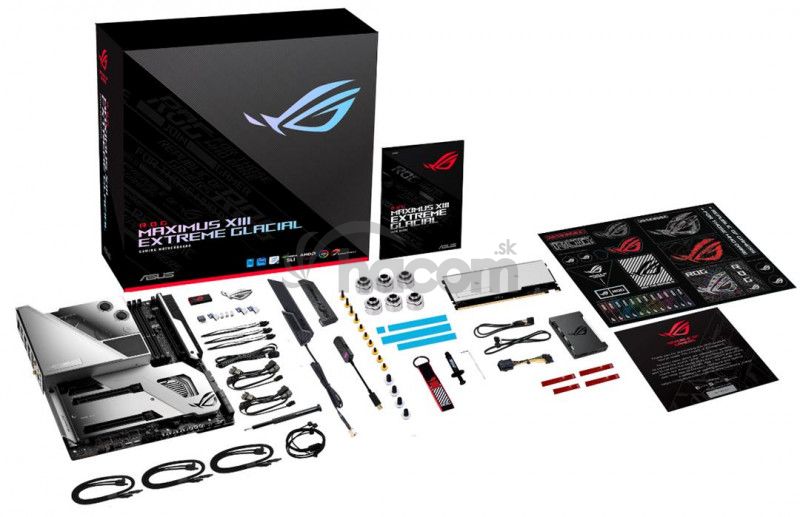

Obsah balenia:
* 1x 1-to-3 ARGB splitter cable
* 2x 1-to-4 fan splitter cable
* 1x RGB extension cable
* 3x ROG weave SATA 6G cables
* 1x 3-in-1 Thermistor cables pack
* 1x ROG Fan Controller
* 1x Fan EXT PWR cable
* 1x ARGB input cable
* 1x USB input cable
* 1x ROG Fan Controller 3M Mounting tape
* 1x Fan Controller manual
* 1x ROG DIMM.2 with heatsink
* 1x M.2 pad for ROG DIMM.2
* 2x M.2 screw package for ROG DIMM.2
* 1x Monoblock
* 3x Screw package for monoblock
* 1x Thermal pad for monoblock
* 1x Fittings for monoblock
* 1x ASUS Wi-Fi moving Antennas
* 1x M.2 Rubber Package (s)
* 1x M.2 SSD screw package (s)
* 1x Q-connector
* 1x ROG CLAVIS DAC
* 1x ROG key chain
* 1x ROG logo plate stickers
* 1x ROG screwdriver
* 1x ROG stickers
* 1x ROG thank you card
* 1x ROG Graphics card holder
* 1x USB drive with utilities and drivers
* 1x User manual

BIOS: 2x 256 Mb Flash ROM, UEFI AMI BIOS
