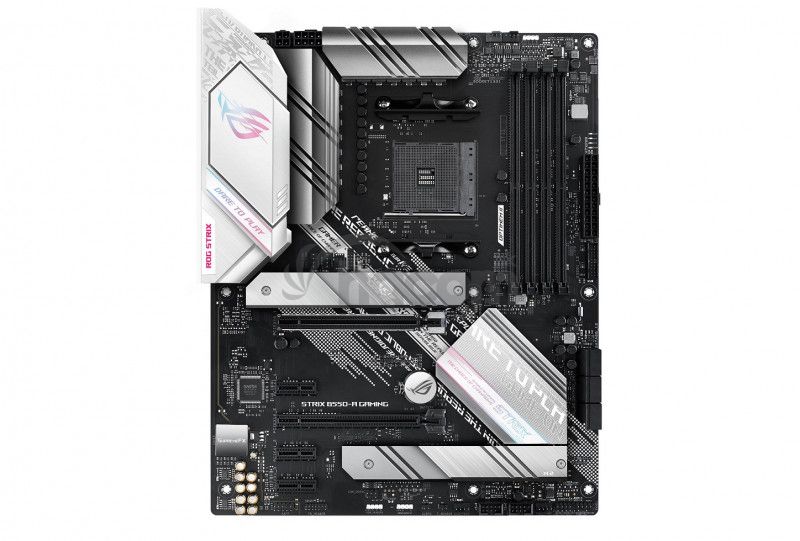

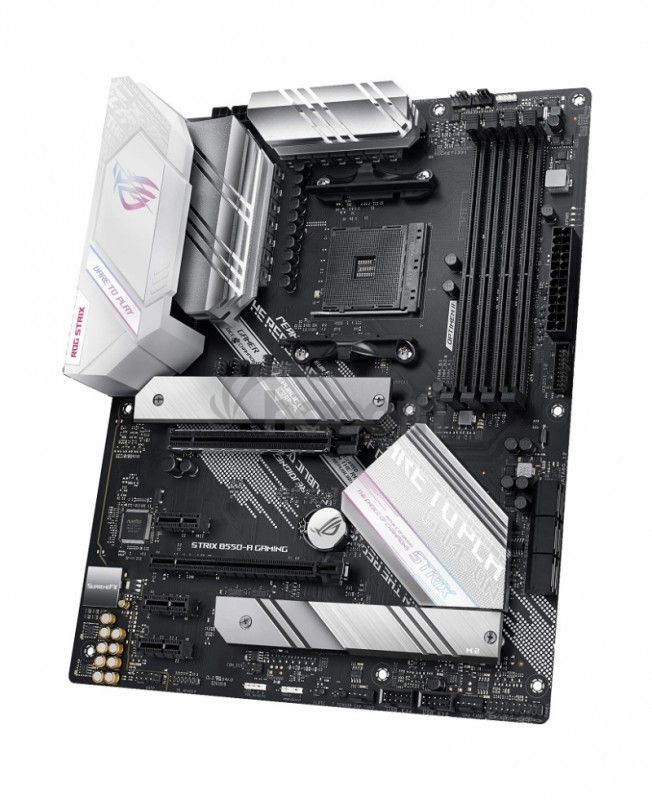

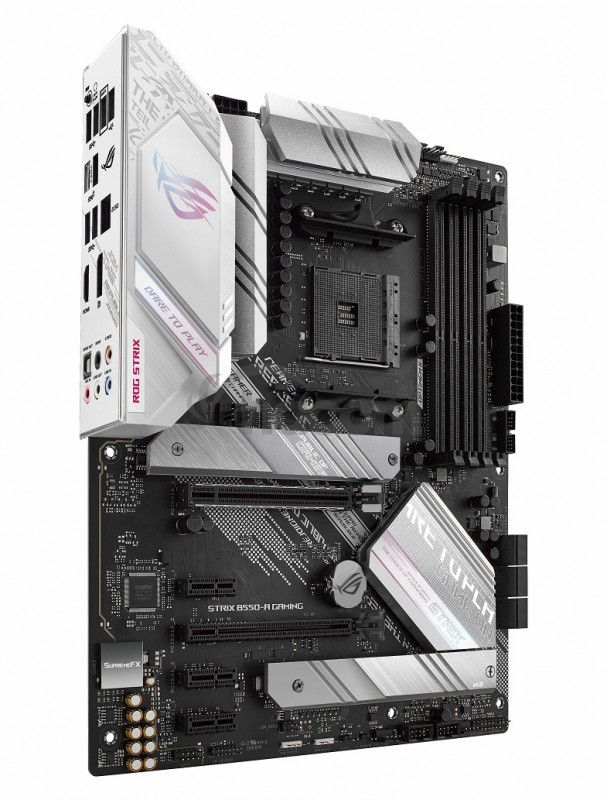

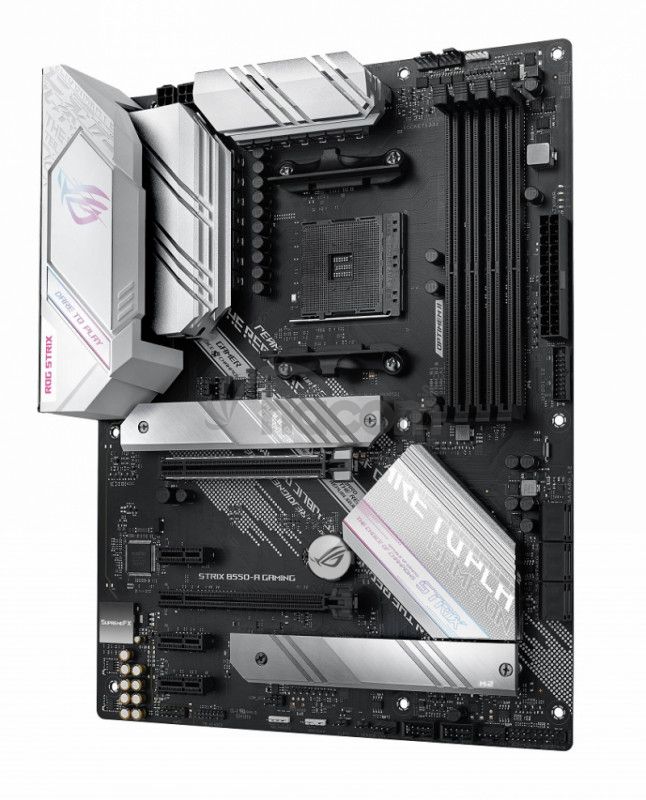

ASUS ROG STRIX B550-A GAMING 90MB15J0-M0EAY0

ASUS ROG STRIX B550-A GAMING 90MB15J0-M0EAY0

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: AMD AM4 Socket for AMD Ryzen ™ 5000 Series / 4000 G-Series / 3000 Series Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 5100 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 (OC) / 3200/3000 / 2800/2666/2400/2133 MHz Un-buffered Memory
* 4600 (OC) / 4400 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 (OC) / 3200/3000/2800/2666/2400/2133 MHz un- buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:
* ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Sieťová karta:
* Intel® I225-V 2.5Gb Ethernet (ASUS Languard)

Rozširujúce sloty:
* 3x PCIe 3.0 x1
* 1x PCIe 4.0 x16 (x16 mode)
* 1x PCIe 3.0 x16 (x16 mode)

RAID radič: 0, 1, 10

SATA:
* 6x SATA 6Gb / s

M.2:
* 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)
* 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:
* Zadné USB porty (celkom 8)
* 2x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C®)
* 4x USB 3.2 Gen 1
* 2x USB 2.0
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 port (s)
* 4x USB 2.0 port (s)

Interné porty:
* 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)
* 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
* 1x Thunderbolt header (s)
* 1x CPU Fan connector (s)
* 1x CPU OPT Fan connector (s)
* 3x Chassis Fan connector (s)
* 1x AIO_PUMP connector
* 1x AAFP connector
* 2x Aura RGB Strip Header (s)
* 1x addressable Gen 2 header (s)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 6x SATA 6Gb / s connector (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin ATX 12V Power connector (s)
* 1x 4-pin ATX 12V Power connector (s)
* 1x System panel (s)
* 1x Thermal sensor connector (s)
* 1x Clear CMOS jumper (s)

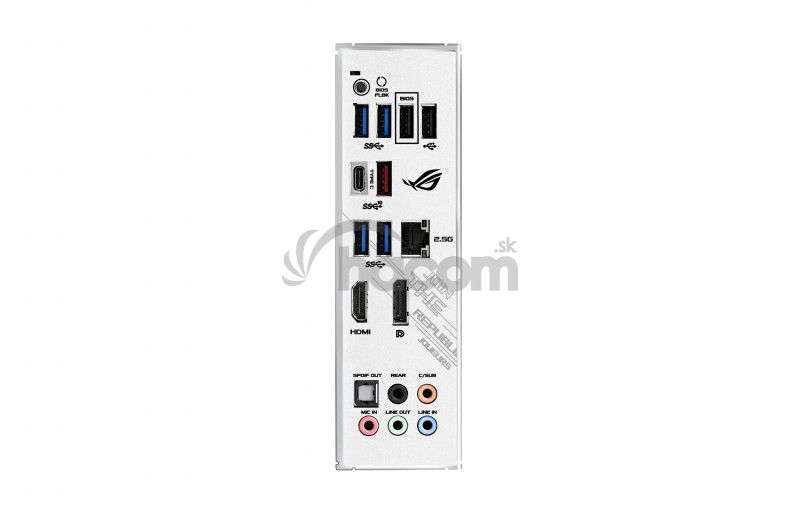

Externé porty:
* 1x BIOS FlashBack ™ Button (s)
* 2x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C®)
* 1x Intel® I225-V 2.5Gb Ethernet
* 4x USB 3.2 Gen 1
* 1x DisplayPort
* 1x HDMI
* 2x USB 2.0
* 1x Optical S / PDIF out
* 5x Gold-plated audio jacks

Obsah balenia:
* 1 x M.2 SSD screw package (s)
* 1x M.2 Rubber Package (s)
* User's manual
* 4x SATA 6Gb / s cable (s)
* 1x Supporting DVD
* 1x ROG Strix stickers
* 1x Cable ties pack (s)
* 1x Extension cable for addressable LED
* 1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/
