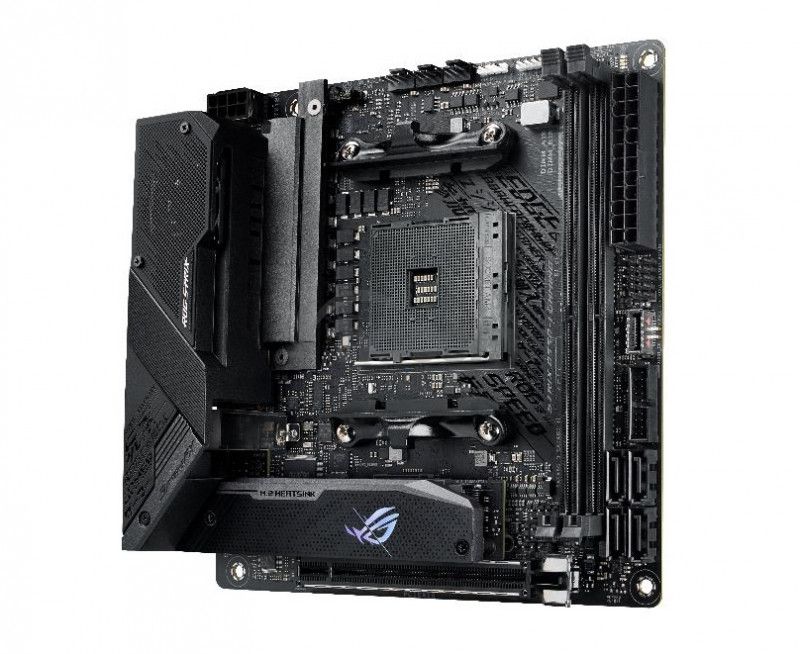

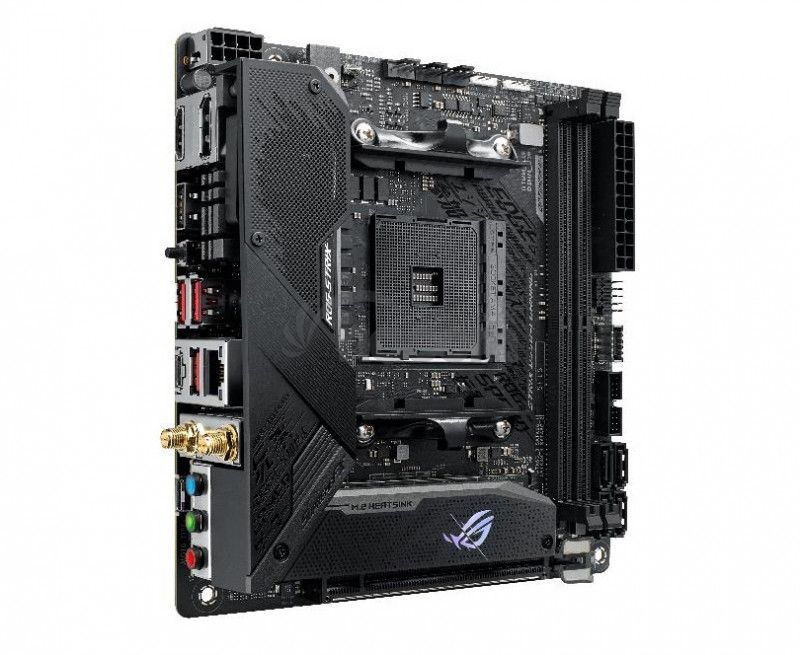

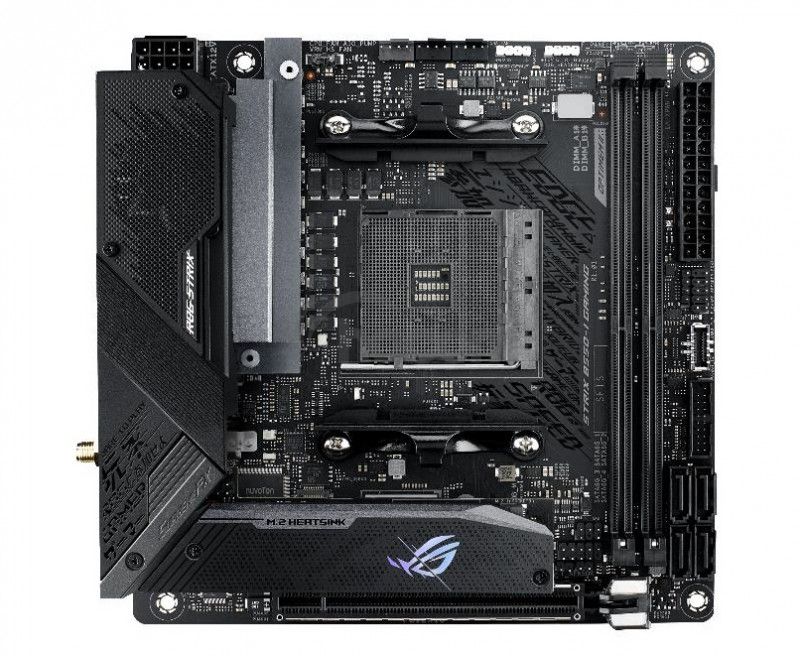

ASUS ROG STRIX B550-I GAMING 90MB14L0-M0EAY0

ASUS ROG STRIX B550-I GAMING 90MB14L0-M0EAY0

Chipset: AMD B550

Rozmerový formát: Mini ITX Form Factor (170 mm x 170 mm)
Podpora pre procesory: AMD AM4 Socket 3rd Gen AMD Ryzen ™ Processors
Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 5100 (OC) / 5000 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3800 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Optima II
* ECC Memory (ECC mode) support varies by CPU

Grafická karta: (na základe procesora)
* 1x HDMI 2.1 (4K @ 60Hz)
* 1x DisplayPort 1.4

Zvuková karta:
* SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Sieťová karta:
* Intel® I225-V 2.5Gb Ethernet (ASUS Languard)
* Intel® Wi-Fi 6 AX200
* Bluetooth 5.1

Rozširujúce sloty:
* 1x PCIe 4.0 x16 (x16 mode)

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s port (s)

M.2:
* 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
* 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 2 port (s) (1 x USB Type-C® +3 x Type-A)
* 1x USB 2.0 port (s)
* 1x USB 2.0 port (s) (1 x audio USB Type-C®)
* Predné USB porty (celkom 5)
* 1x USB 3.2 Gen 2 front panel connector port (s) (1 x USB Type-C®)
* 2x USB 3.2 Gen 1 port (s)
* 2x USB 2.0 port (s)

Interné porty:
* 1x CPU Fan connector (s)
* 1x Chassis Fan connector (s)
* 1x AIO_PUMP connector
* 1x Aura RGB Strip Header (s)
* 1x addressable Gen 2 header (s)
* 1x USB 3.2 Gen 1 front panel TypeC ™ connector
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
* 1x USB 2.0 connector (s) support (s) additional 2 USB 2.0 port (s)
* 2x M.2 Socket 3 with M Key dizajn, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
* 4x SATA 6Gb / s connector (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin ATX 12V Power connector (s)
* 1x Front panel audio connector (s) (AAFP)
* 1x Thermal sensor connector (s)
* 1x Clear CMOS jumper (s)
* 1x System panel connector
* 1x Speaker connector
* 1x VRM_HS_FAN Header

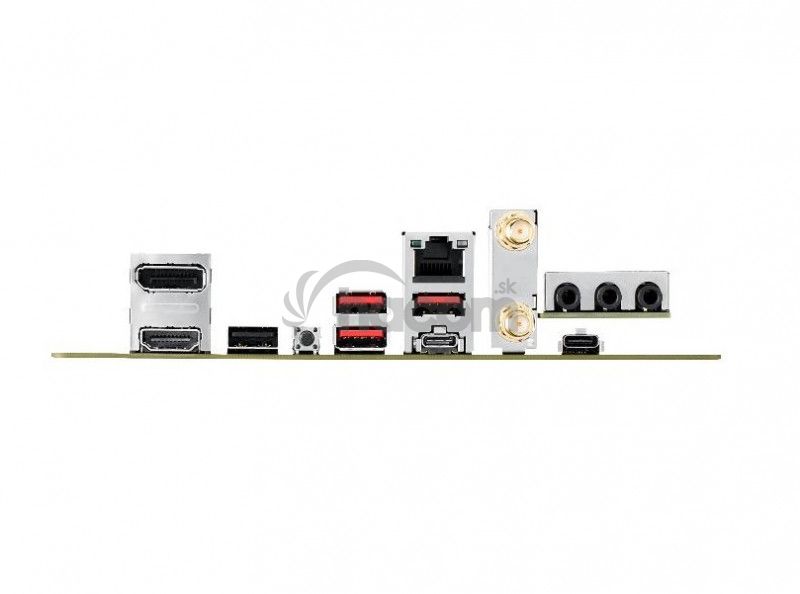

Externé porty:
* 1x Intel® I225-V 2.5Gb Ethernet
* 1x DisplayPort
* 1x HDMI
* 4x USB 3.2 Gen 2 (1 x USB Type-C® + 3 x Type-A)
* 2x USB 2.0 (one port can be switched to USB BIOS FlashBack ™ 1 for audio USB Type-C®)
* 1x BIOS FlashBack ™ Button (s)
* 1x ASUS Wi-Fi Module
* 3x LED-illuminated audio jacks

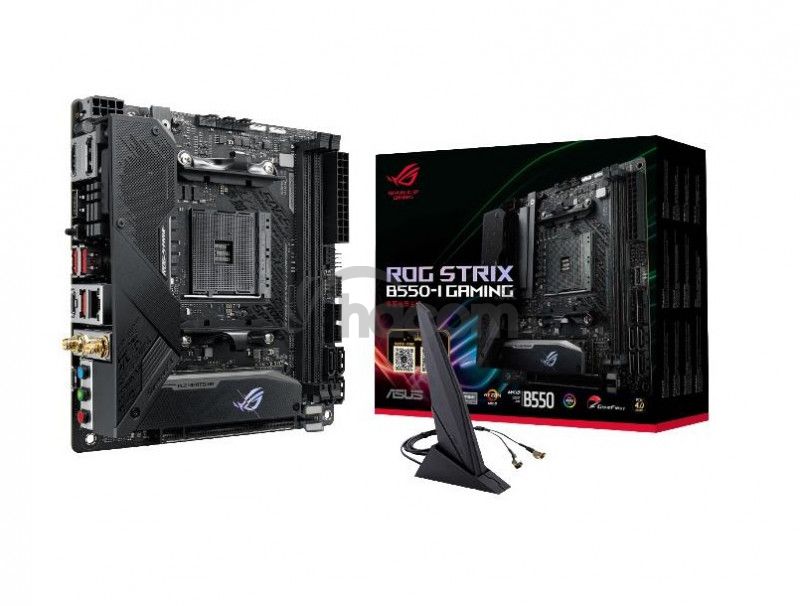

Obsah balenia:
* User 'manual
* I / O Shield
* 4x SATA 6Gb / s cable (s)
* 2x M.2 Screw Package
* 1x Supporting DVD
* 1x ROG Strix stickers
* 1x M.2 bracket
* 1x Cable ties pack (s)
* 1x Wi-Fi Antenna (s)
* 1x Extension cable for addressable LED
* 1x Panel cable
* 1x ROG Thank you card
* 1x ROG audio USB Type-C® cable

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/ROG-STRIX-B550-I-GAMING
