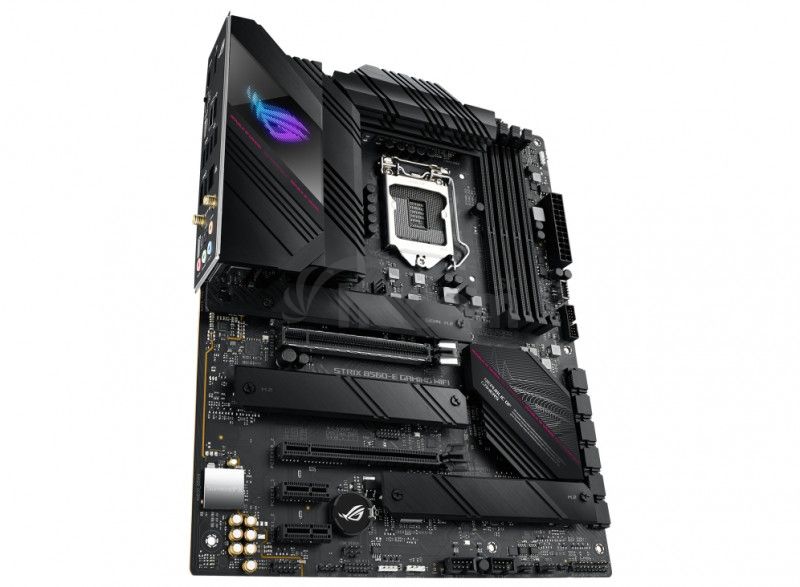

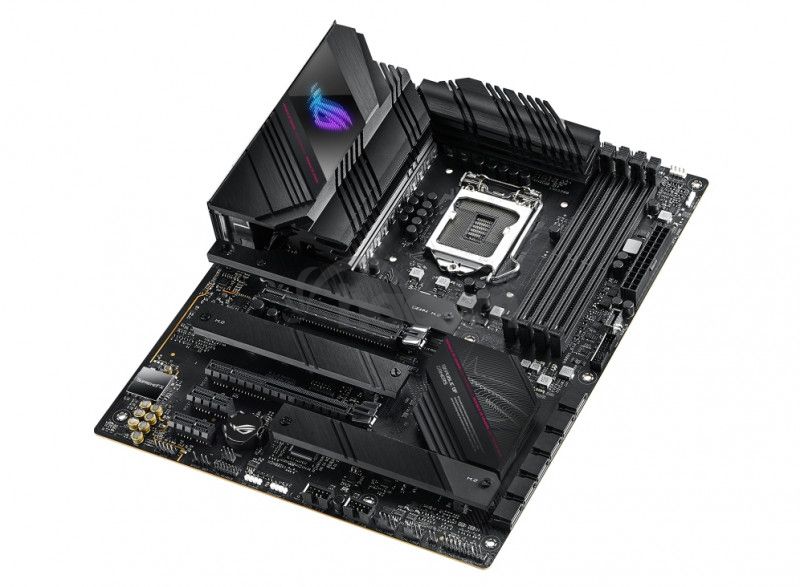

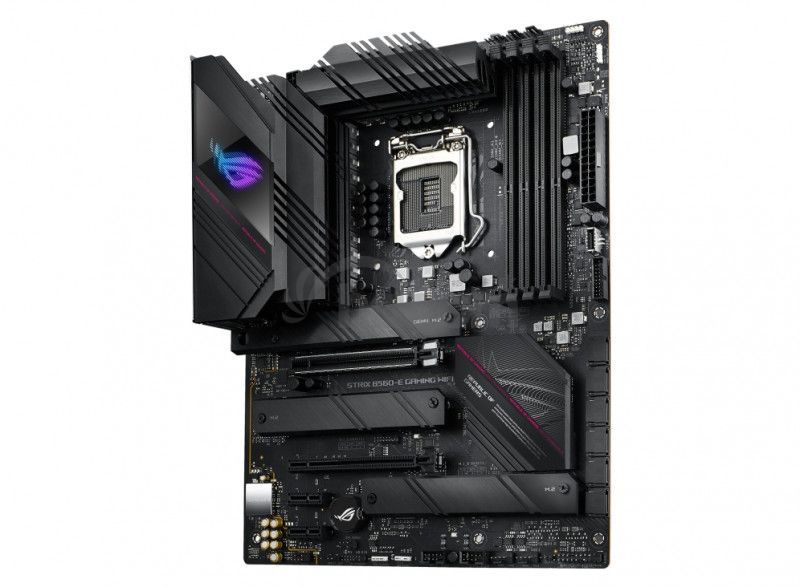

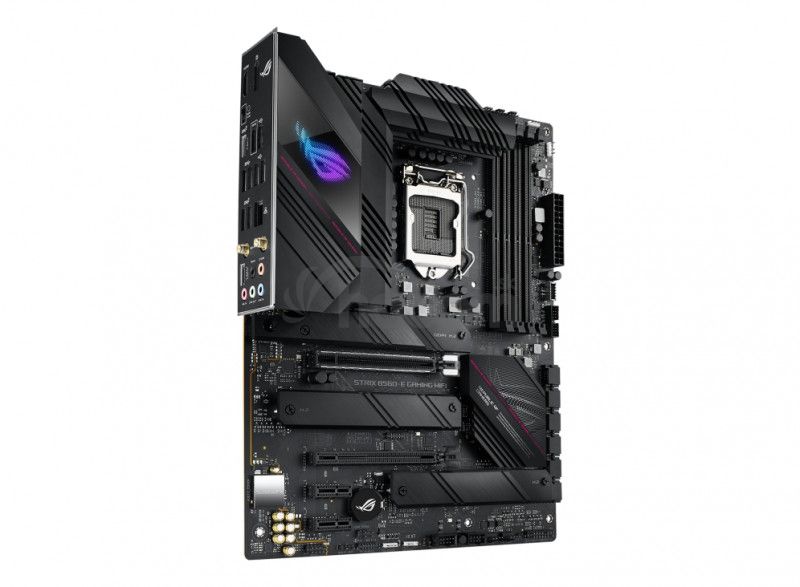

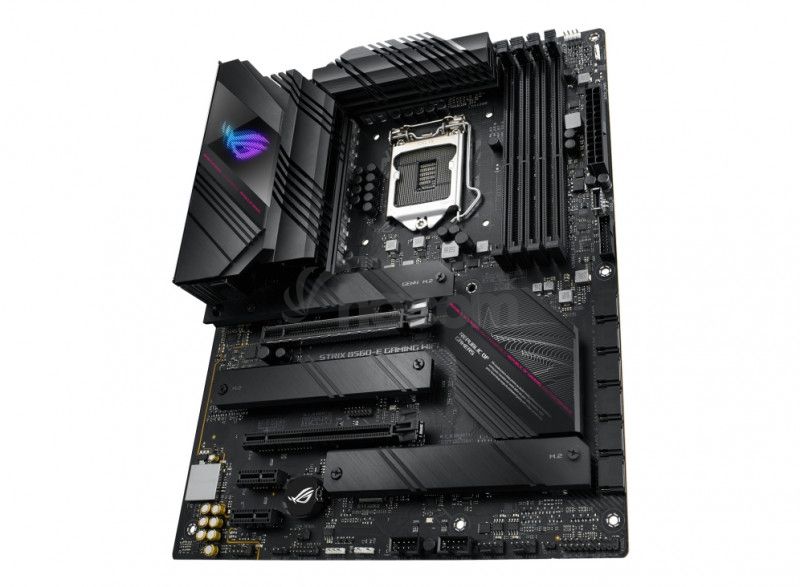

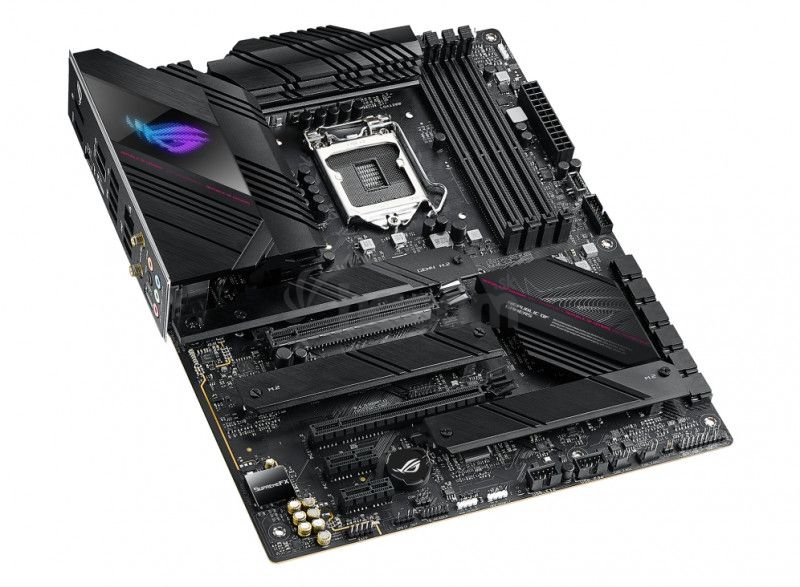

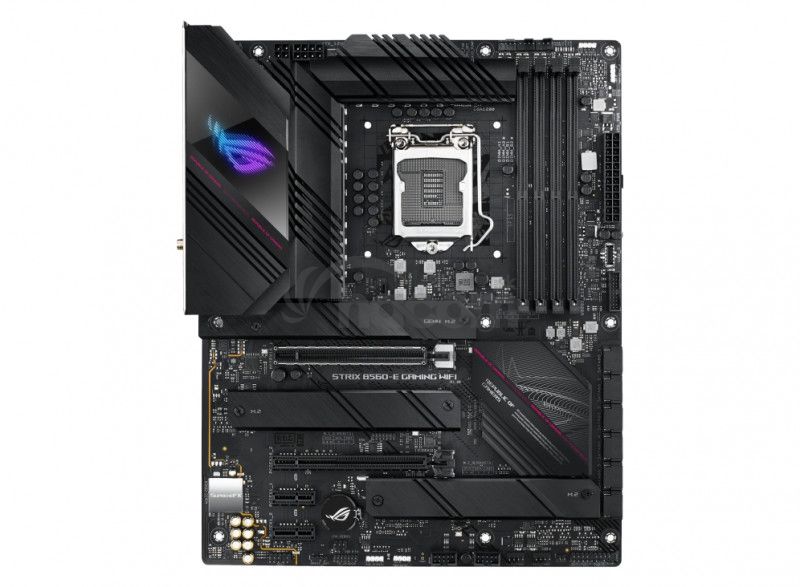

ASUS ROG STRIX B560-E GAMING WIFI 90MB1880-M0EAY0

ASUS ROG STRIX B560-E GAMING WIFI 90MB1880-M0EAY0

Chipset: Intel B560

Rozmerový formát: ATX (30.5cm x 24.4cm)
Podpora pre procesory:
* 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Supports Intel 14 nm CPU
* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Pätica procesora: Intel Socket LGA1200

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
* 10th Gen Intel Core i7 / i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 SDRAM 2666MHz
* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively
Maximálna veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Supports Intel Extreme Memory Profile (XMP)
* Optimom II
* 5333 (OC) / 5000 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Grafická karta:
* Podľa procesora

Zvuková karta:
* ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedancia sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit / 384 kHz playback

Sieťová karta:
* 1 x Intel 2.5Gb Ethernet
* Intel Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a / b / g / n / ac / ax)
Supports 2.4 / 5 / 6GHz frequency band
Bluetooth v5.2 hardware ready
WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later.

Rozširujúce sloty:
* 1 x PCIe 4.0 / 3.0 x16 slot (s)
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
- Intel Q570 Chipset

SATA:
* 6 x SATA 6Gb / s ports

M.2:
* 3 x M.2 slots

USB:
* Zadné USB porty (celkom 10)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C)
* Predné USB porty (celkom 5)
- 1 x USB 3.2 Gen 1 connector (s) (suppport (s) USB Type-C)
- 1 x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header (s) support (s) additional 4 USB 2.0 ports

Interné porty:
* 1 x TB Header (for add-on TB card)
* 1 x 4-pin CPU Fan header (s)
* 1 x 4-pin CPU OPT Fan header (s)
* 1 x 4-pin AIO Pump header (s)
* 3 x 4-pin Chassis Fan header (s)
* 1 x 24-pin Main Power connector
* 1 x 8-pin + 12V Power connector
* 1 x 4-pin + 12V Power connector
* 3 x M.2 slots (Key M)
* 6 x SATA 6Gb / s ports
* 1 x USB 3.2 Gen 1 connector (support (s) USB Type-C)
* 1 x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 header (s) support (s) additional 4 USB 2.0 ports
* 2 x AURA addressable Gen 2 header (s)
* 2 x AURA RGB header (s)
* 1 x Clear CMOS header
* 1 x Front Panel Audio header (AAFP)
* 1 x SPI TPM header (14-1pin)
* 1 x 20-5 pin System Panel header
* 1 x Thunderbolt header
* 1 x S / PDIF Out header

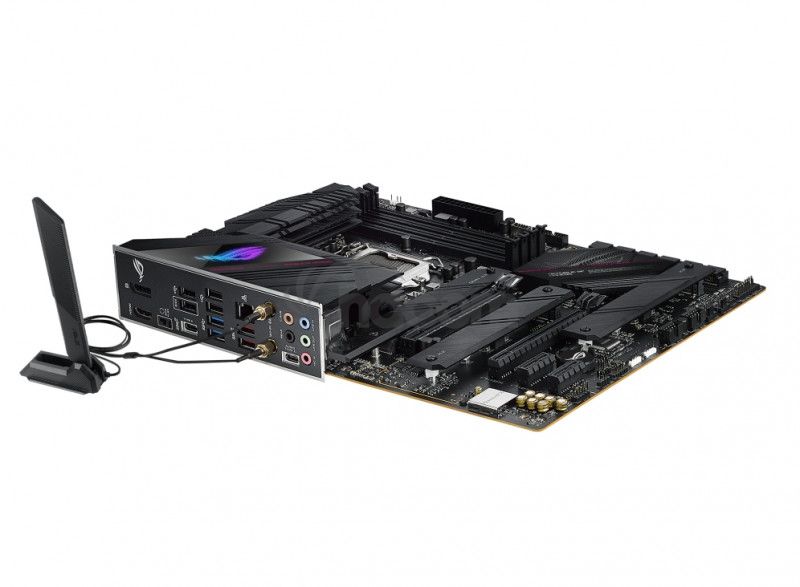

Externé porty:
* 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
* 2 x USB 3.2 Gen 2 port (s) (2 x Type-A)
* 2 x USB 3.2 Gen 1 port (s) (2 x Type-A)
* 5 x USB 2.0 port (s) (4 x Type-A, 1 x audio USB Type-C)
* 1 x HDMI port
* 1 x DisplayPort
* 1 x ASUS Wi-Fi Module
* 1 x Intel I225-V 2.5Gb Ethernet
* 5 x Audio jacks
* 1 x BIOS FlashBack button

B> BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://rog.asus.com/motherboards/rog-strix/rog-strix-b560-e-gaming-wifi-model/spec
