ASUS ROG STRIX B560-G GAMING WIFI 90MB1750-M0EAY0

ASUS ROG STRIX B560-G GAMING WIFI 90MB1750-M0EAY0

Chipset: Intel® B560 chipset

Rozmerový formát: microATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 5000 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* Optima II

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Sieťová karta:
* 1x Intel® 2.5Gb Ethernet
* Intel® Wi-Fi 6

Rozširujúce sloty:
* 1x PCIe 4.0 x16
* 1x PCIe 3.0 x16 (max. X4)
* 2x PCIe 3.0 x1 slots

SATA:
* 6x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280/22110
* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
* Zadné USB porty (celkom 9)
* 1x USB 3.2 Gen 2x2 port (s) (1 x USB Type-C®)
* 1x USB 3.2 Gen 2 port (s) (1 x Type-A)
* 7x USB 2.0 port (s) (6 x Type-A, 1 x audio USB Type-C®)
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 2 connector (s) (suppport (s) USB Type-C®)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

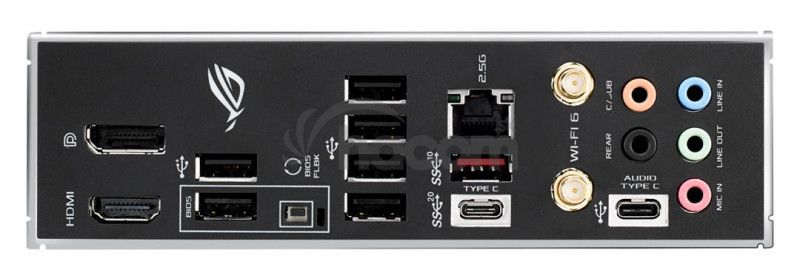

Externé porty:
* 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 1x USB 3.2 Gen 2 port (1 x Type-A)
* 7x USB 2.0 port (s) (6 x Type-A, 1 x audio USB Type-C®)
* 1x HDMI ™ port
* 1x DisplayPort
* 1x ASUS Wi-Fi Module
* 1x Intel® I225-V 2.5Gb Ethernet
* 5x Audio jacks
* 1x BIOS FlashBack ™ button

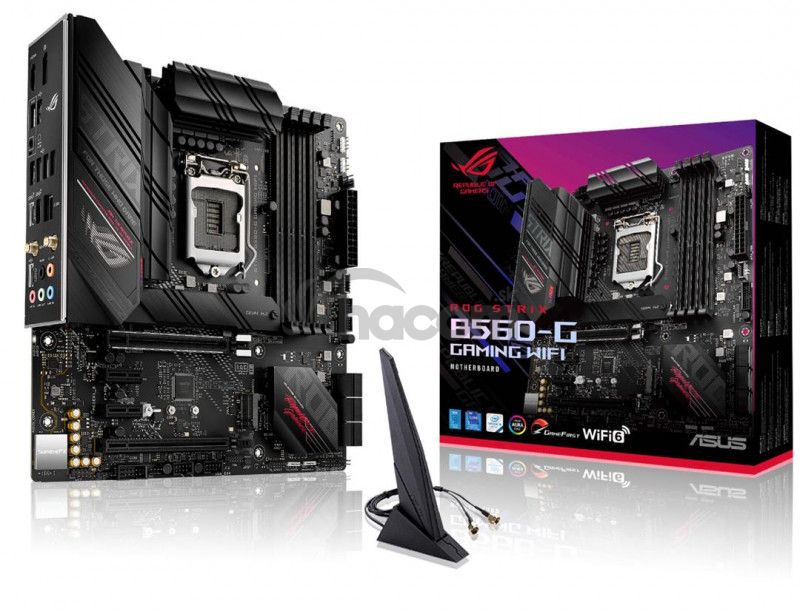

Obsah balenia:
* 2x SATA 6Gb / s cables
* 1x ROG audio USB Type-C® cable
* 1x ASUS Wi-Fi moving Antennas
* 1x Cable ties pack
* 1x M.2 Q-Latch package
* 1x M.2 Rubber Package
* 1x M.2 SSD screw package
* 1x ROG key chain
* 1x ROG STRIX stickers
* 1x ROG STRIX thank you card
* 1x Support DVD
* 1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://rog.asus.com/motherboards/rog-strix/rog-strix-b560-g-gaming-wifi-model
