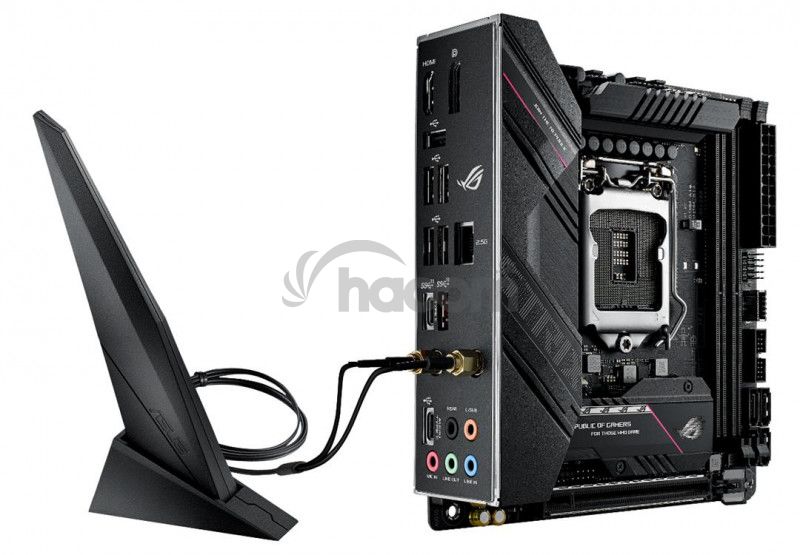

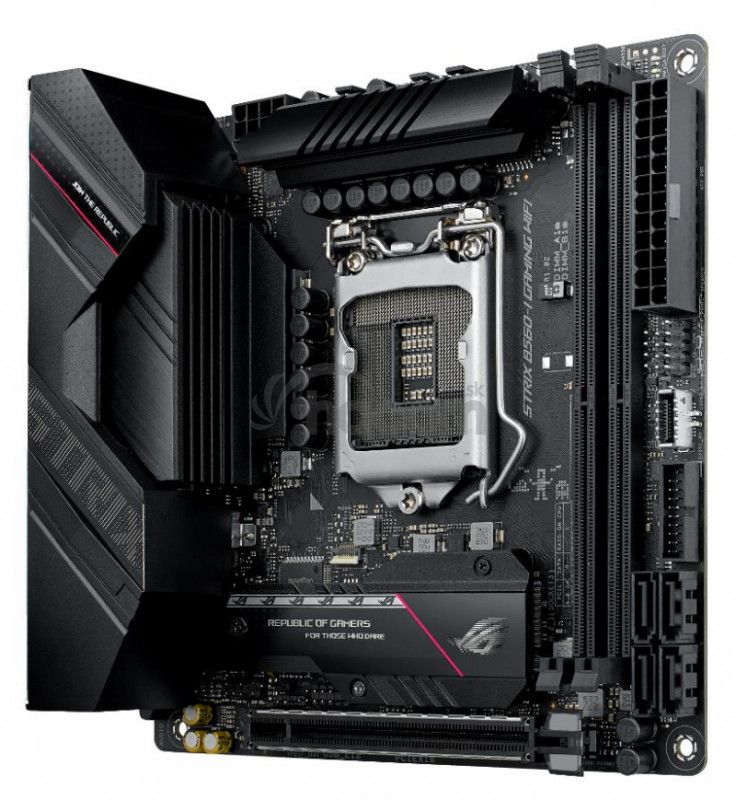

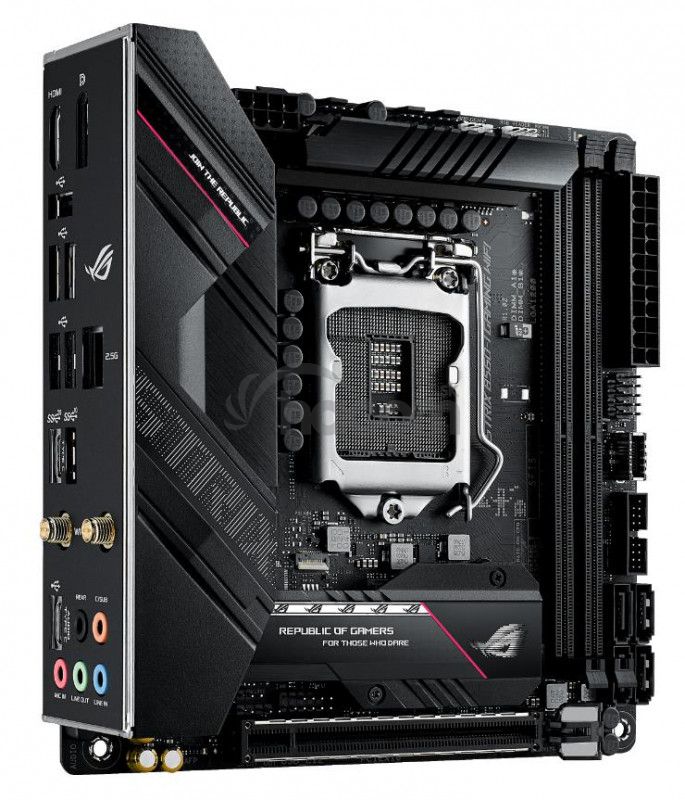

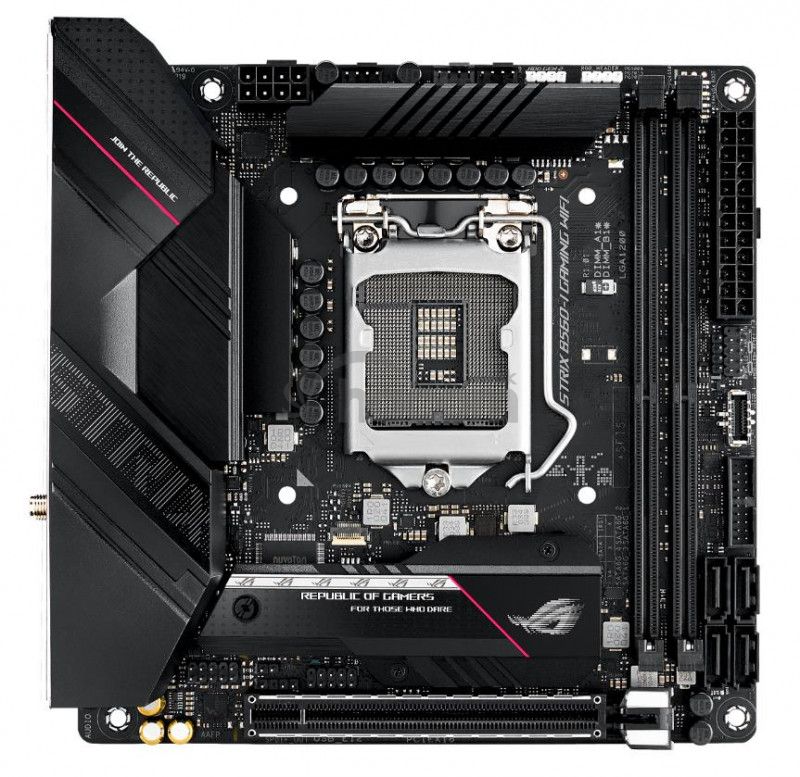

ASUS ROG STRIX B560-I GAMING WIFI 90MB16Y0-M0EAY0

ASUS ROG STRIX B560-I GAMING WIFI 90MB16Y0-M0EAY0

Chipset: Intel® B560 chipset

Rozmerový formát: Mini ITX Form Factor (170 mm x 170 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 5333 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* Optima II

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Sieťová karta:
* 1x Realtek 2.5Gb Ethernet
* Intel® Wi-Fi 6

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (s)

SATA:
* 4x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280
* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
* Zadné USB porty (celkom 8)
* 1x USB 3.2 Gen 2x2 port (s) (1 x USB Type-C®)
* 1x USB 3.2 Gen 2 port (s) (1 x Type-A)
* 6x USB 2.0 port (s) (5 x Type-A, 1 x audio USB Type-C®)
* Predné USB porty (celkom 5)
* 1x USB 3.2 Gen 2 connector (s) (support (s) USB Type-C®)
* 2x USB 3.2 Gen 1 ports
* 2x USB 2.0 ports

Interné porty:
* 1x 4-pin CPU Fan header (s)
* 1x 4-pin AIO Pump header (s)
* 1x 4-pin Chassis Fan header (s)
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 2x M.2 slots (Key M)
* 4x SATA 6Gb / s ports
* 1x USB 3.2 Gen 2 connector (support (s) USB Type-C®)
* 1x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports
* 1x USB 2.0 header (s) support (s) additional 2 USB 2.0 ports
* 1x AURA addressable Gen 2 header (s)
* 1x AURA RGB header (s)
* 1x Clear CMOS header
* 1x Front Panel Audio header (AAFP)
* 1x S / PDIF Out header
* 1x Speaker header
* 1x 10-1 pin System Panel header

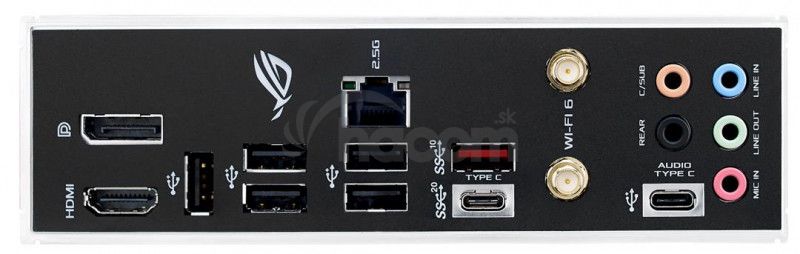

Externé porty:
* 1x USB 3.2 Gen 2x2 port (s) (1 x USB Type-C®)
* 1x USB 3.2 Gen 2 port (s) (1 x Type-A)
* 6x USB 2.0 port (s) (5 x Type-A, 1 x Audio USB Type-C®)
* 1x DisplayPort
* 1x HDMI ™ port
* 1x ASUS Wi-Fi Module
* 1x Realtek 2.5Gb Ethernet port
* 5x Audio jacks

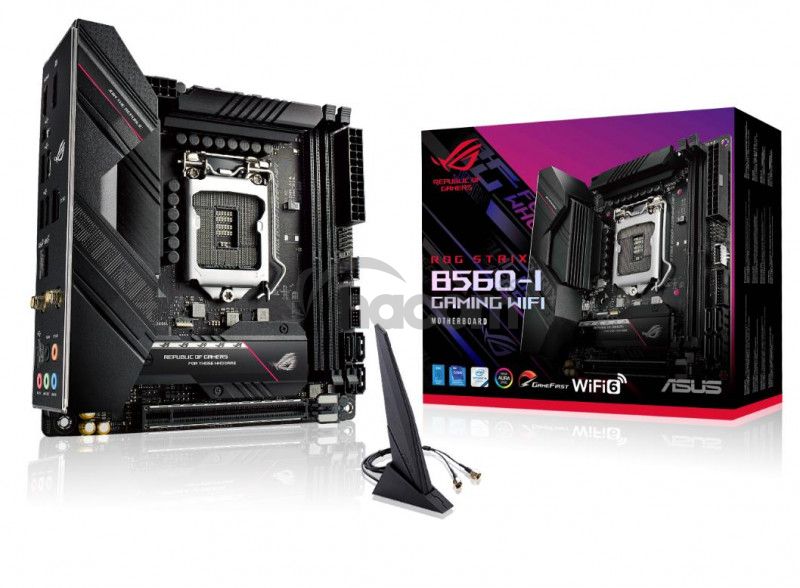

Obsah balenia:
* 1x ROG audio USB Type-C® cable
* 2x SATA 6Gb / s cables
* 1x ROG USB2.0 splitter cable
* 1x Panel cable
* 1x ASUS Wi-Fi moving Antennas
* 1x Cable ties pack
* 2x M.2 SSD screw package (s)
* 1x M.2 Bracket
* 1x ROG key chain
* 1x ROG Strix stickers
* 1x ROG Strix thank you card
* 1x Support DVD
* 1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
