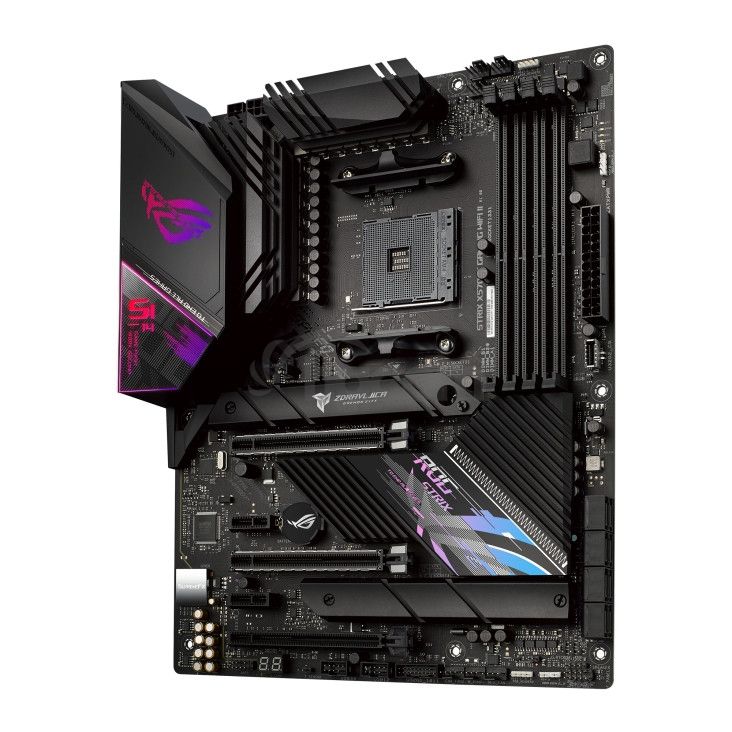

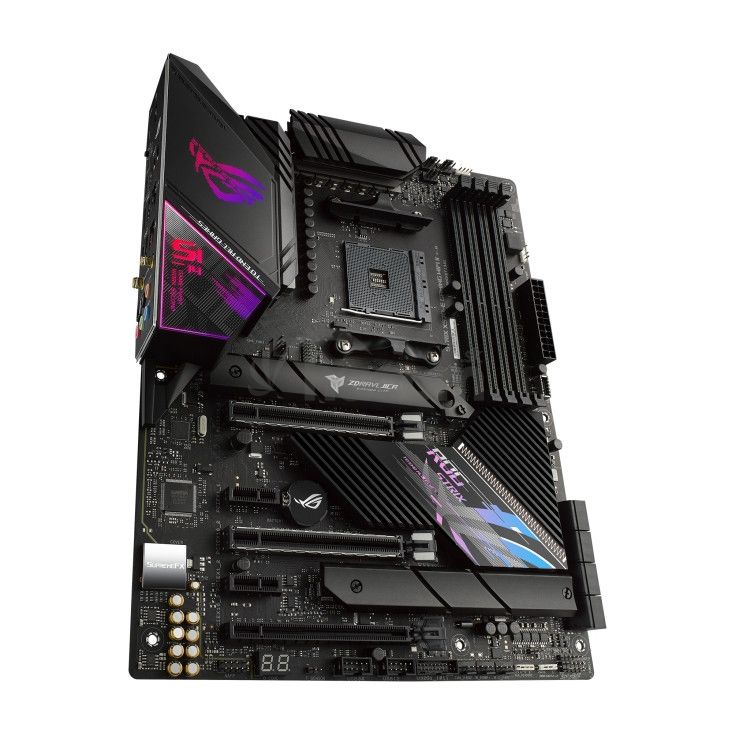

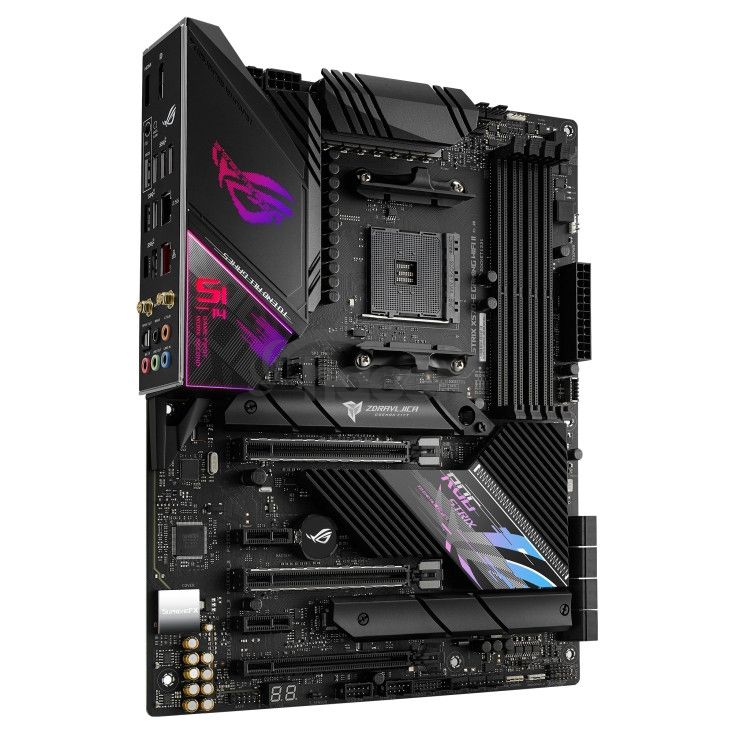

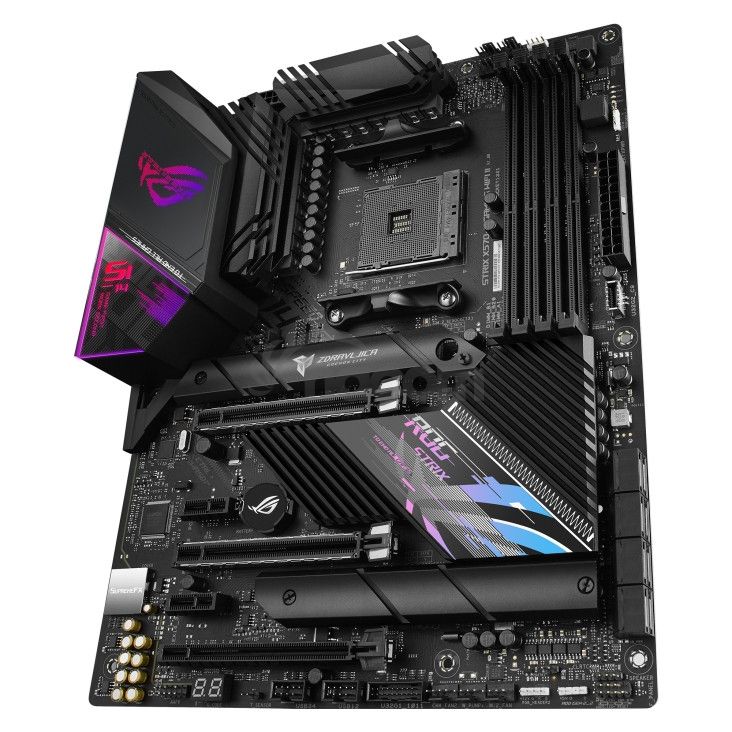

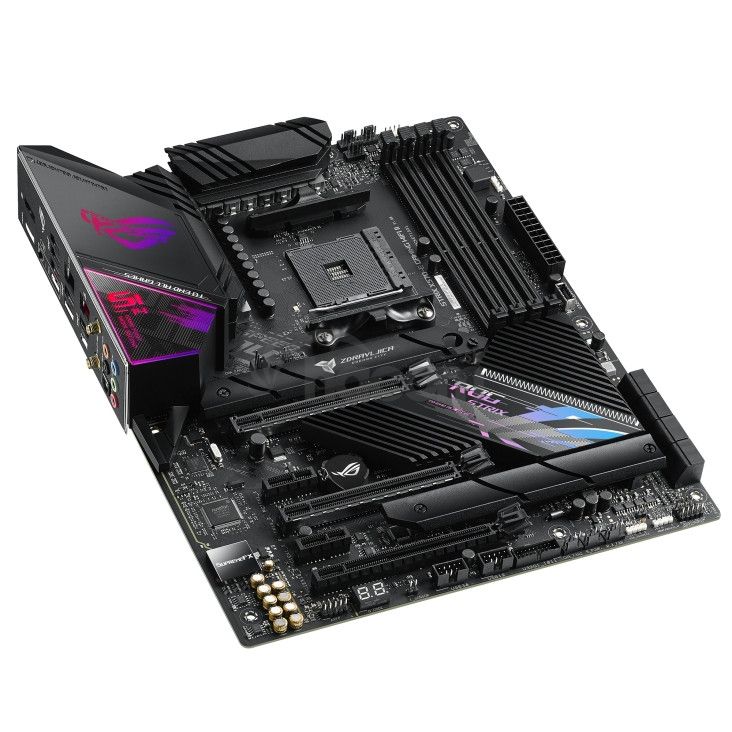

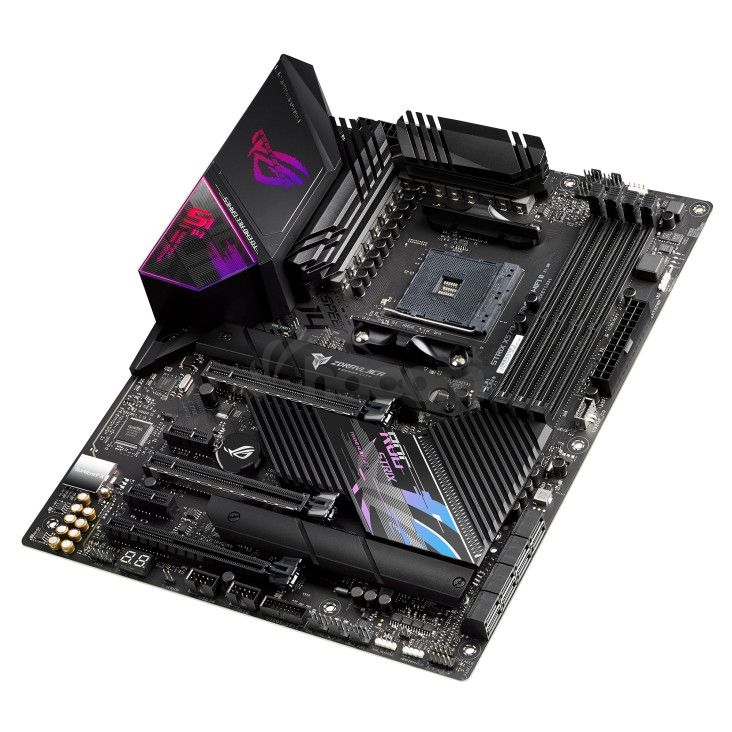

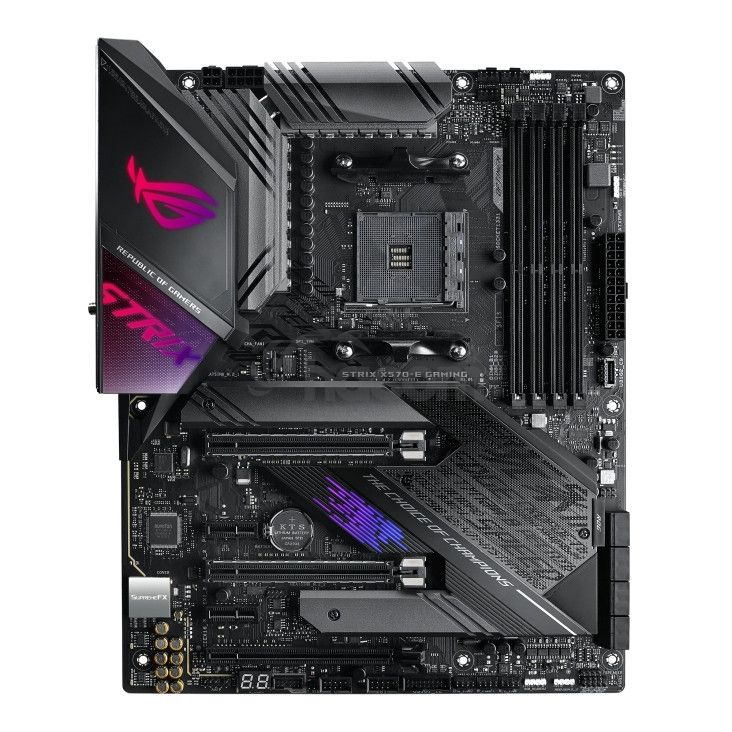

ASUS ROG STRIX X570-E GAMING WIFI II 90MB19W0-M0EAY0

ASUS ROG STRIX X570-E GAMING WIFI II 90MB19W0-M0EAY0

Chipset: AMD X570

Rozmerový formát: ATX
Podpora pre procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
Dual Channel Memory Architecture
ECC Memory (ECC mode) na podporu varies by CPU.
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
*4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400( OC)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 5000 a 4000 G-Series Processors
*4 x DIMM, Max. 128GB, DDR4 5100(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3600( OC)/3466(OC)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 2000 Series Desktop Processors
*4 x DIMM, max. 128 GB, DDR4 3600(OC)/3466(OC)/3400(OC)/3200(OC)/3000(OC)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen 2000 a 3000 G-Series Desktop Processors
*4 x DIMM, max. 128GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133, un-buffered memory

Max.veľkosť operačnej pamäte: 128 GB

Grafická karta: nie (1x DisplayPort + 1x HDMI port)

Zvuková karta:
*Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
*1 x Intel 1Gb Ethernet
*1 x Realtek 2.5Gb Ethernet
*1 x Realtek 2.5Gb Ethernet
*1 x Intel I211-AT 1Gb Ethernet
*2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2
*Wi-Fi 6E
*2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
*Supports 2.4/5/6GHz frequency band*
*Bluetooth v5.2

Rozširujúce sloty:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
*2 x PCIe 4.0 x16 (x16 alebo dual x8)
AMD Ryzen 5000 G Series/4000 G-Series/ 2000 Series Processor
*2 x PCIe 3.0 x16 (x16 alebo dual x8)
AMD Ryzen 2000 G-Series/ 3000 G-Series Processor
*1 x PCIe 3.0 x16 (x8 mode)
AMD X570 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*2 x PCIe 4.0 x1

RAID radič: Raid 0, 1, 10

SATA:
*8 x Port(y) SATA 6Gb/s

M.2:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
*M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
*M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
*M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

USB: zadné USB - celkom 8, predné USB - celkom 7
AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, a 3000 Series Desktop Processors
*4 x USB 3.2 Gen2 porty (4 porty na back panel, Type-A)
AMD Ryzen 3000 G-Series, 2000, a 2000 G-Series Desktop Processors
*4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
*1 x USB 3.2 Gen2 front panel connector
*4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
*2 x USB3.2 Gen1 ports (at front panel)
*4 x USB 2.0 ports (at front panel)

Interné porty:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*2 x 4-pin Chassis Fan headers
*1 x 4-pin M.2 Fan header
*1 x W_PUMP+ header
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*2 x M.2 slots (Key M)
*8 x SATA 6Gb/s ports
*1 x USB 3.2 Gen 2 konektor (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*2 x Addressable Gen 2 headers
*2 x AURA RGB headers
*1 x Clear CMOS header
*1 x Front Panel Audio header (AAFP)
*1 x SPI TPM header (14-1pin)
*1 x Speaker header
*1 x 10-1 pin System Panel header
*1 x Thermal Sensor header

Externé porty:
*8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Intel I211-AT 1Gb Ethernet port
*1 x Realtek 2.5Gb Ethernet port
*5 x Gold-plated audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack button

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
