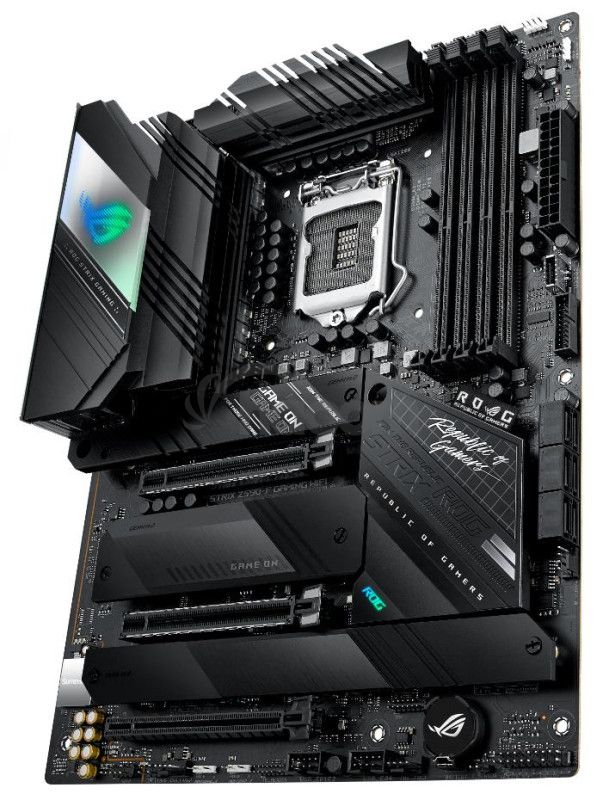

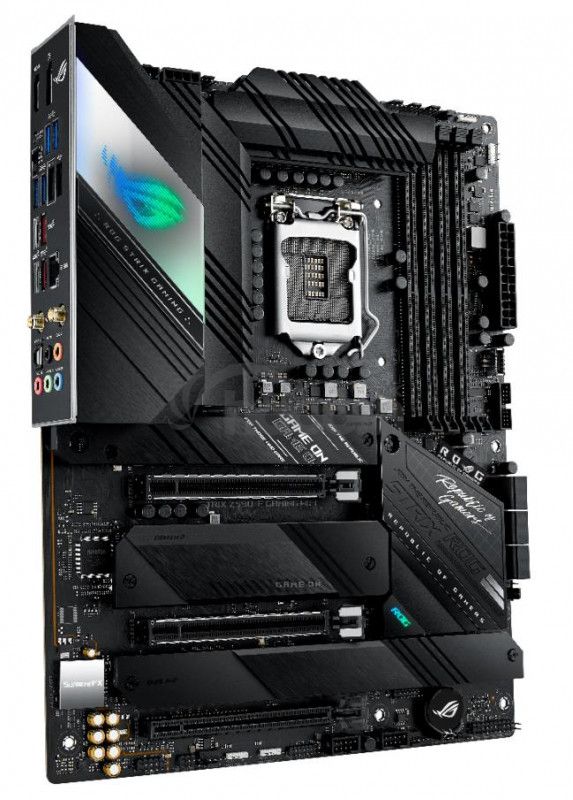

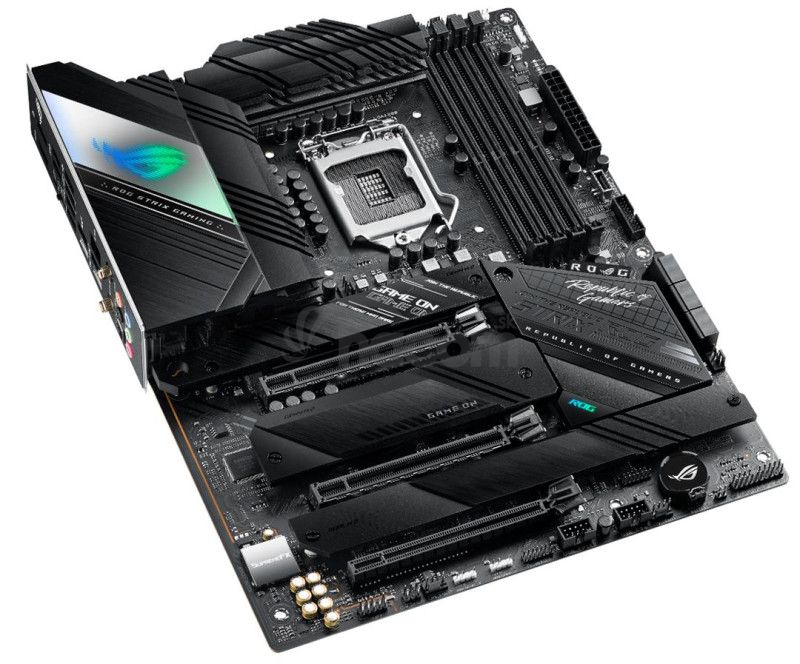

ASUS ROG STRIX Z590-F GAMING WIFI 90MB1630-M0EAY0

ASUS ROG STRIX Z590-F GAMING WIFI 90MB1630-M0EAY0

Chipset: Intel® Z590 chipset

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte: 5333 (OC) / 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400 / 2133 MHz MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* Optima II

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* SupremeFX Shielding Technology
* ALC4080 + Savita SV3H712 AMP

Sieťová karta:
* 1x Intel® 2.5Gb Ethernet
* Intel® Wi-Fi 6E
* Bluetooth v5.2

Rozširujúce sloty:
* 2x PCIe 4.0 / 3.0 x16 (x16, x8 / x4)
* 1x PCIe 3.0 x16 (max. X4)

SATA:
* 6x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280/22110
* M.2_2 slot (Key M), type 2242/2260/2280/22110
* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
* M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
* Zadné USB porty (celkom 10)
* 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 3x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
* 4x USB 3.2 Gen 1 ports (4 x Type-A)
* 2x USB 2.0 ports (2 x Type-A)
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 2 connector (supports USB Type-C®)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 1x Thunderbolt 4 header
* 1x 4-pin CPU Fan header
* 1x 4-pin CPU OPT Fan header
* 1x 4-pin AIO Pump header
* 3x 4-pin Chassis Fan headers
* 1x VRM heatsink Fan header
* 1x W_PUMP + header
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 1x 4-pin + 12V Power connector
* 4x M.2 slots (Key M)
* 6x SATA 6Gb / s ports
* 1x USB 3.2 Gen 2 connector (supports USB Type-C®)
* 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2x USB 2.0 headers support additional 4 USB 2.0 ports
* 3x AURA addressable Gen 2 headers
* 1x AURA RGB header
* 1x CPU Over Voltage jumper
* 1x Front Panel Audio header (AAFP)
* 1x SPI TPM header (14-1pin)
* 1x 20-3 pin System Panel header with Chassis intrude function
* 1x Thermal Sensor header
* 1x Thunderbolt header

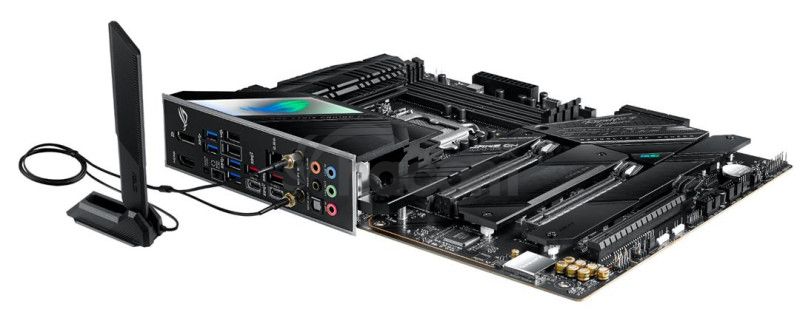

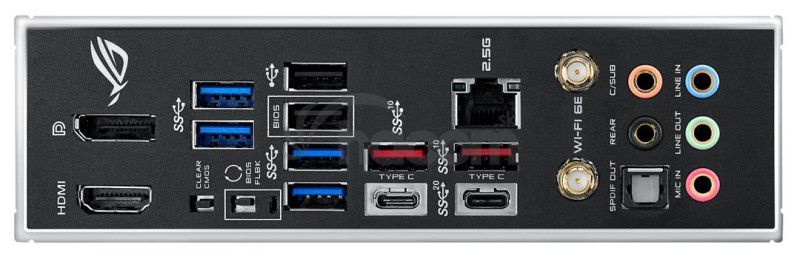

Externé porty:
* 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 3x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
* 4x USB 3.2 Gen 1 ports (4 x Type-A)
* 2x USB 2.0 ports (2 x Type-A)
* 1x HDMI ™ port
* 1x DisplayPort
* 1x Intel® Wi-Fi 6E
* 1x Intel® I225-V 2.5Gb Ethernet
* 5x Gold-plated audio jacks
* 1x Optical S / PDIF out port
* 1x BIOS FlashBack ™ button
* 1x Clear CMOS button

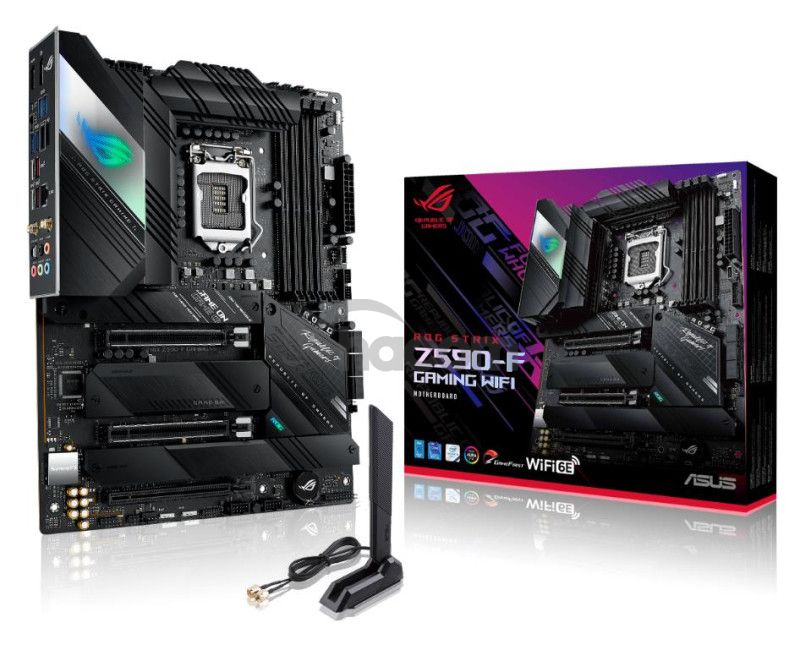

Obsah balenia:
* 4x SATA 6Gb / s cables
* 1x Fan holder
* 1x ASUS 2x2 Dual-Band Wi-Fi moving Antennas
* 1x M.2 Q-Latch package
* 2x M.2 Rubber Packages
* 1x ROG key chain
* 1x cable rozhodujuca
* 1x ROG STRIX stickers
* 1x ROG STRIX thank you card
* 1x Support DVD
* 1x User manual

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
