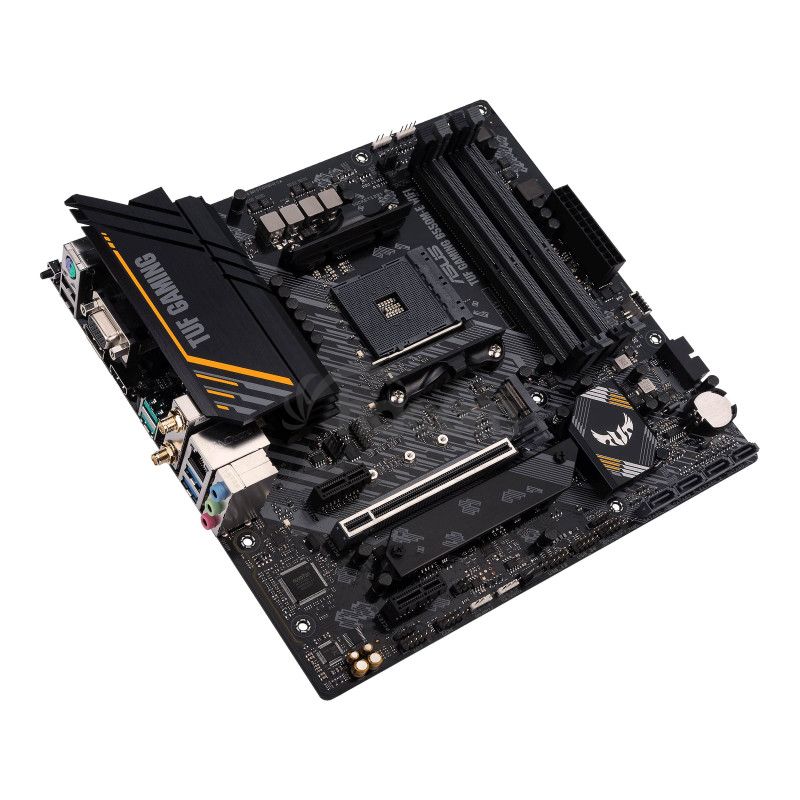

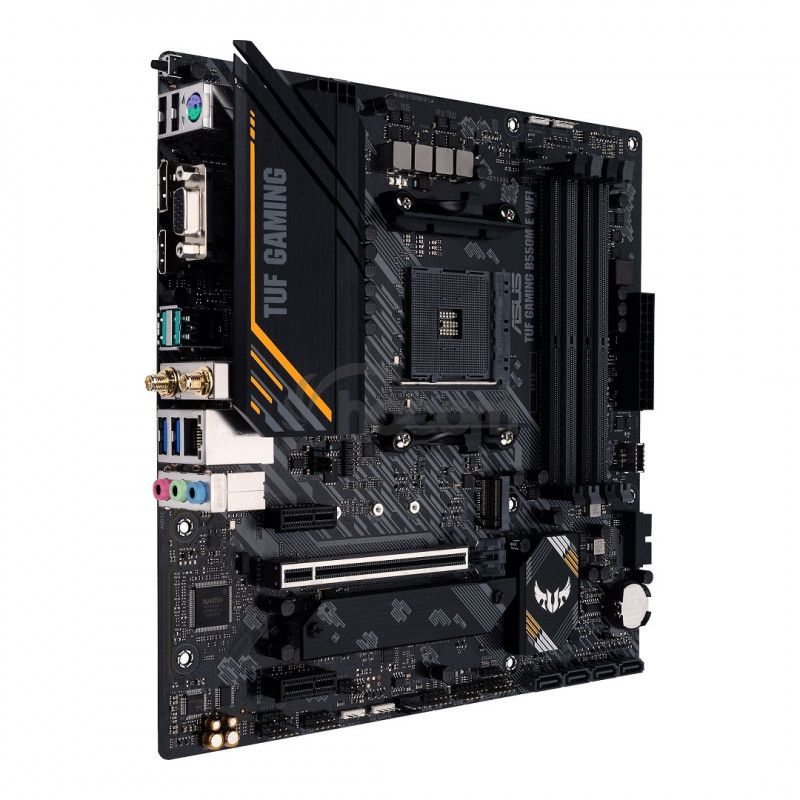

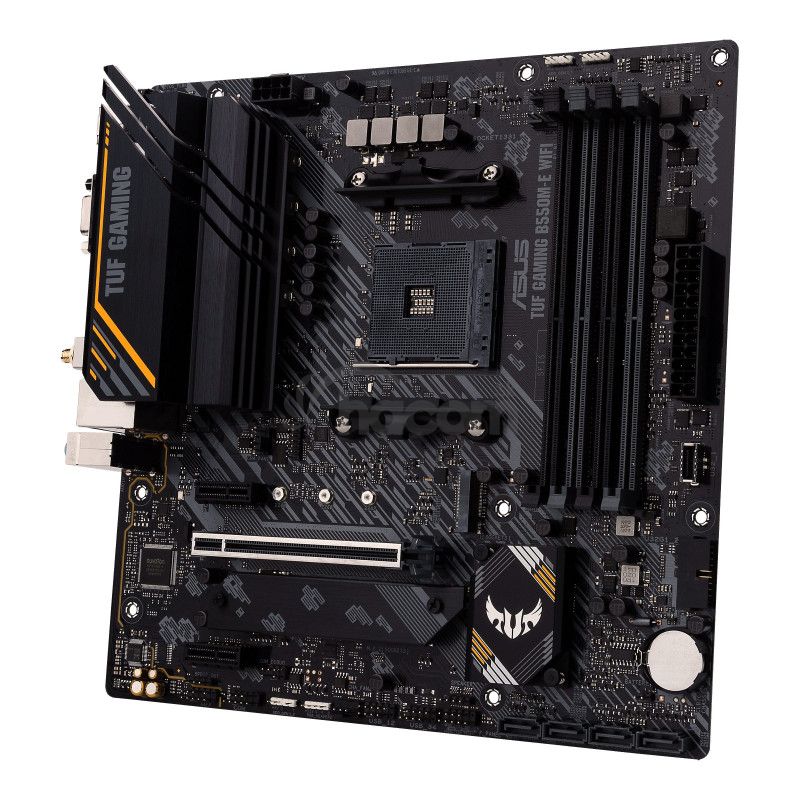

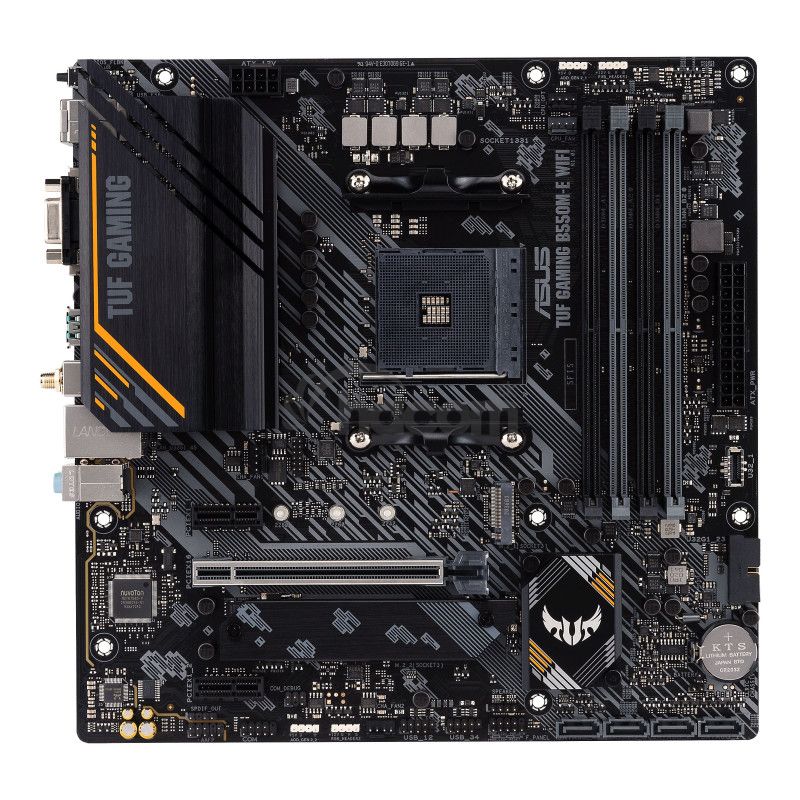

ASUS TUF GAMING B550-E WIFI 90MB17T0-M0EAY0

ASUS TUF GAMING B550-E WIFI 90MB17T0-M0EAY0

Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: AMD Ryzen ™ 5000 Series / 4000 G-Series / 3000 Series Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* AMD Ryzen ™ 5000 Series / 3000 Series Desktop Processors - 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC ) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
* AMD Ryzen ™ 4000 G-Series Desktop Processors - 4800 (OC) / 4600 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4100 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666 / 2400/2133 MHz, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* ECC memory (ECC mode) support varies by CPU

Grafická karta: (na základe procesora)
* 1x DisplayPort 1.2
* 1x D-Sub
* 1x HDMI ™ 2.1 (4K @ 60Hz)

Zvuková karta:
* Podpora: Jack-detection, Multi-streaming, Front Panel Jack-retasking
* Podporuje až 24-Bit / 192 kHz playback
* Audio Shielding
* Premium Japanese audio Capacitors
* Dedicated audio PCB layers

Sieťová karta:
* Realtek 1Gb Ethernet
* 2x2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax)
* Bluetooth 5.2

Rozširujúce sloty:
* 1x PCIe (3.0 / 4.0) x16 slot (supports x16 mode)
* 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s ports

M.2:
* 1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe (3.0 / 4.0) x4 & SATA modes)
* 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
* Zadné USB porty (celkom 6)
* 2x USB 3.2 Gen 2 ports (2x Type-A)
* 2x USB 3.2 Gen 1 ports (2x Type-A)
* 2x USB 2.0 ports (2x Type-A)
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 1 connector (supports USB Type-C®)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 1x 4-pin CPU Fan header
* 1x 4-pin CPU OPT Fan header
* 2x 4-pin Chassis Fan headers
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 2x M.2 slots (Key M)
* 4x SATA 6Gb / s ports
* 1x USB 3.2 Gen 1 connector (supports USB Type-C®)
* 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2x USB 2.0 headers support additional 4 USB 2.0 ports
* 2x AURA addressable Gen 2 headers
* 2x AURA RGB headers
* 1x Clear CMOS header
* 1x COM Port header
* 1x Front Panel Audio header (AAFP)
* 1x S / PDIF Out header
* 1x Speaker header
* 1x SPI TPM header (14-1pin)
* 1x 10-1 pin System Panel header

Externé porty:
* 2x USB 3.2 Gen 2 ports (2x Type-A)
* 2x USB 3.2 Gen 1 ports (2x Type-A)
* 2x USB 2.0 ports (2x Type-A)
* 1x DisplayPort
* 1x D-Sub port
* 1x HDMI ™ port
* 1x ASUS Wi-Fi Module
* 1x Realtek 1Gb Ethernet port
* 3x Audio jacks
* 1x BIOS FlashBack ™ button
* 1x PS / 2 Keyboard / Mouse combo port

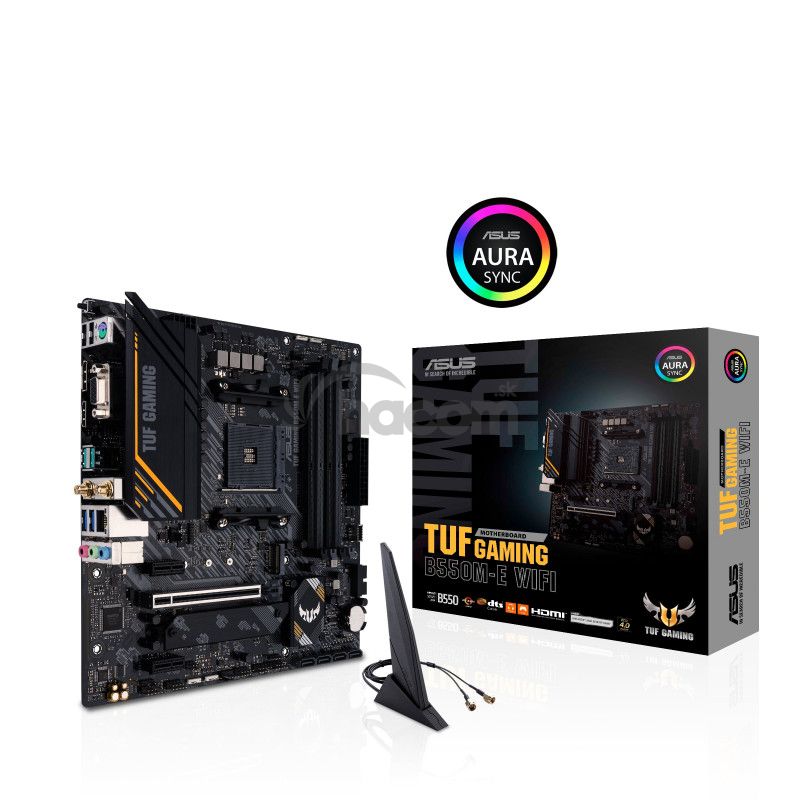

Obsah balenia:
* 2x SATA 6Gb / s cables
* 1x ASUS Wi-Fi moving Antennas
* 1x I / O Shield
* 1x M.2 Rubber package
* 1x M.2 SSD screw package
* 1x TUF Gaming sticker
* 1x Support DVD
* 1x TUF Certification card
* 1x User manual

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-E-WIFI/
