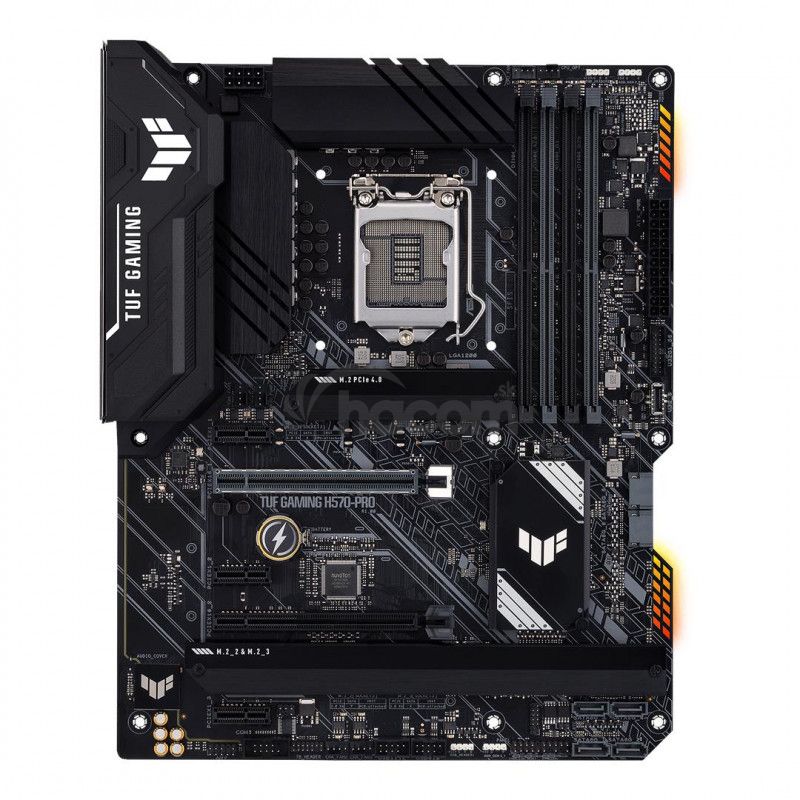

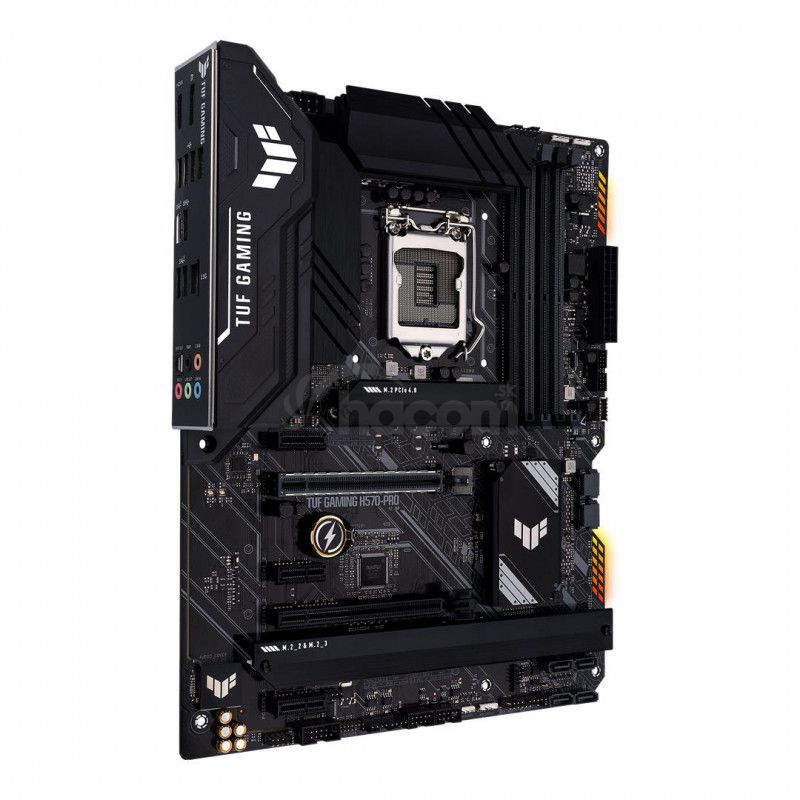

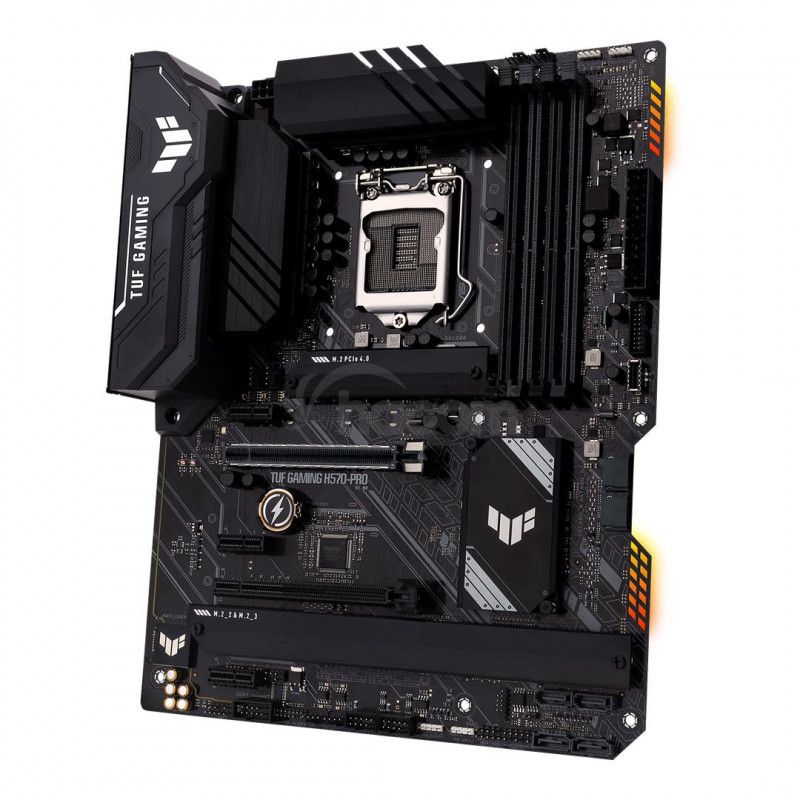

ASUS TUF GAMING H570-PRO 90MB16K0-M0EAY0

ASUS TUF GAMING H570-PRO 90MB16K0-M0EAY0

Chipset: Intel® H570 chipset

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core ™ Processors & 10th Gen Intel® Core ™, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 5000 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* Intel® Extreme Memory Profile (XMP)
* Optima II

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek ALC S1200 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* 1x Realtek 2.5Gb Ethernet

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16
* 1x PCIe 3.0 x16 (max. X4)
* 3x PCIe 3.0 x1 slots

SATA:
* 6x SATA 6Gb / s ports

M.2:
* M.2_1 slot (Key M), type 2242/2260/2280
* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

USB:
* Zadné USB porty (celkom 8)
* 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 2x USB 3.2 Gen 2 ports (2 x Type-A)
* 1x USB 3.2 Gen 1 port (1 x Type-A)
* 4x USB 2.0 ports (4 x Type-A)
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 1 connector (suppports USB Type-C®)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 ports

Interné porty:
* 1x Thunderbolt 4 header
* 1x 4-pin CPU Fan header
* 1x 4-pin CPU OPT Fan header
* 1x 4-pin AIO Pump header
* 3x 4-pin Chassis Fan headers
* 1x 24-pin Main Power connector
* 1x 8-pin + 12V Power connector
* 3x M.2 slots (Key M)
* 6x SATA 6Gb / s ports
* 1x USB 3.2 Gen 1 connector (supports USB Type-C®)
* 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2x USB 2.0 headers support additional 4 USB 2.0 ports
* 2x AURA addressable Gen 2 headers
* 2x AURA RGB headers
* 1x Clear CMOS header
* 1x COM Port header
* 1x Front Panel Audio header (AAFP)
* 1x 20-3 pin System Panel header with Chassis intrude functionpasting
* 1x Thunderbolt ™ header

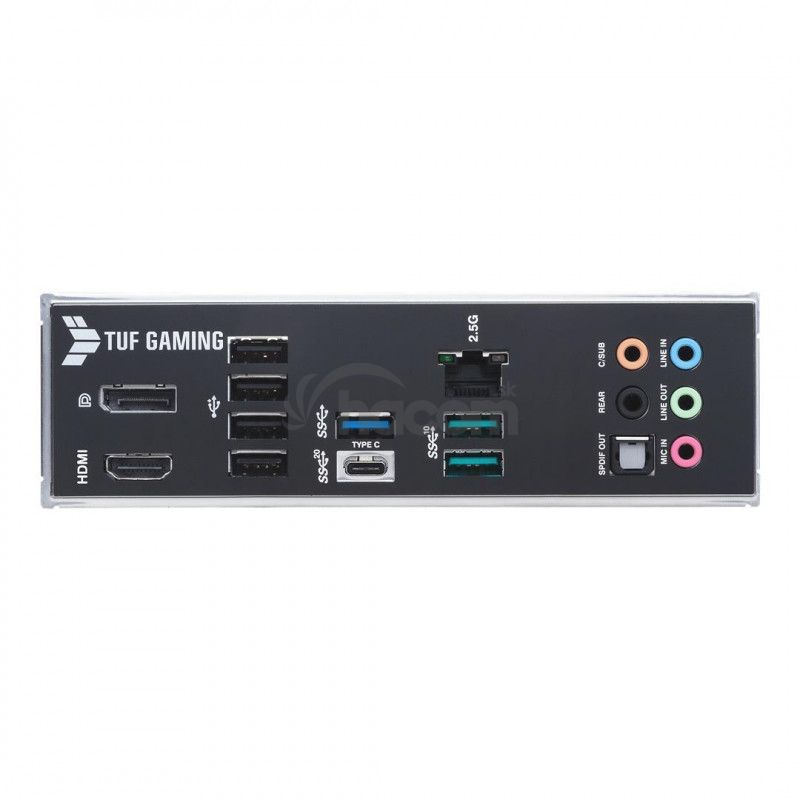

Externé porty:
* 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 2x USB 3.2 Gen 2 ports (2 x Type-A)
* 1x USB 3.2 Gen 1 port (1 x Type-A)
* 4x USB 2.0 ports (4 x Type-A)
* 1x DisplayPort
* 1x HDMI ™ port
* 1x Realtek 2.5Gb Ethernet port
* 5x Audio jacks
* 1x Optical S / PDIF out port

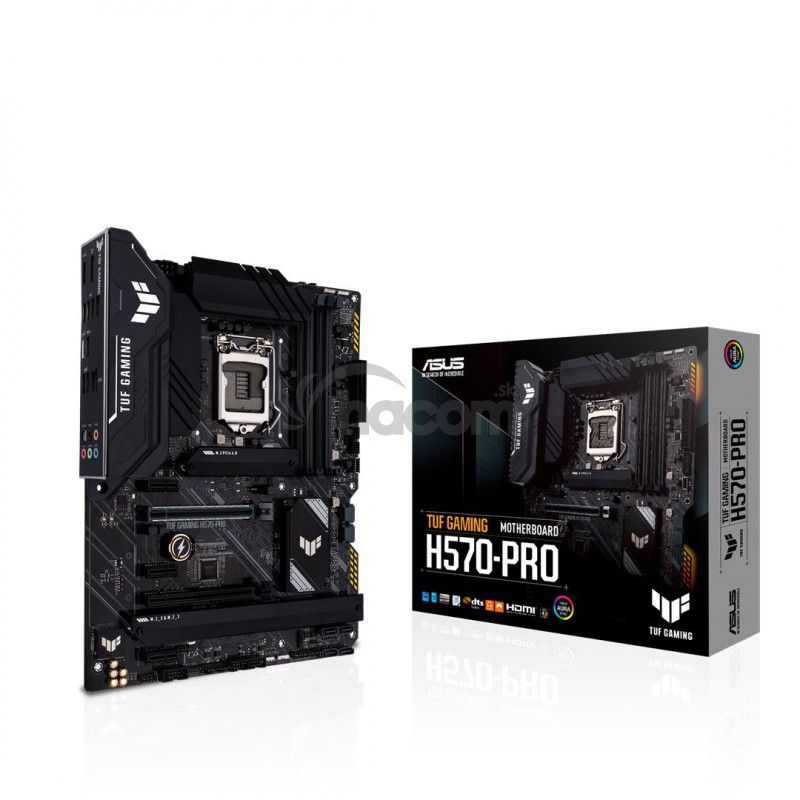

Obsah balenia:
* 2x SATA 6Gb / s cables
* 2x M.2 Rubber Packages
* 2x M.2 SSD screw packages
* 1x TUF Gaming sticker
* 1x Support DVD
* 1x TUF Certification card
* 1x User manual

BIOS: 192 (128 + 64) Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-H570-PRO/
https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/
https://www.asus.com/support/FAQ/1046215
