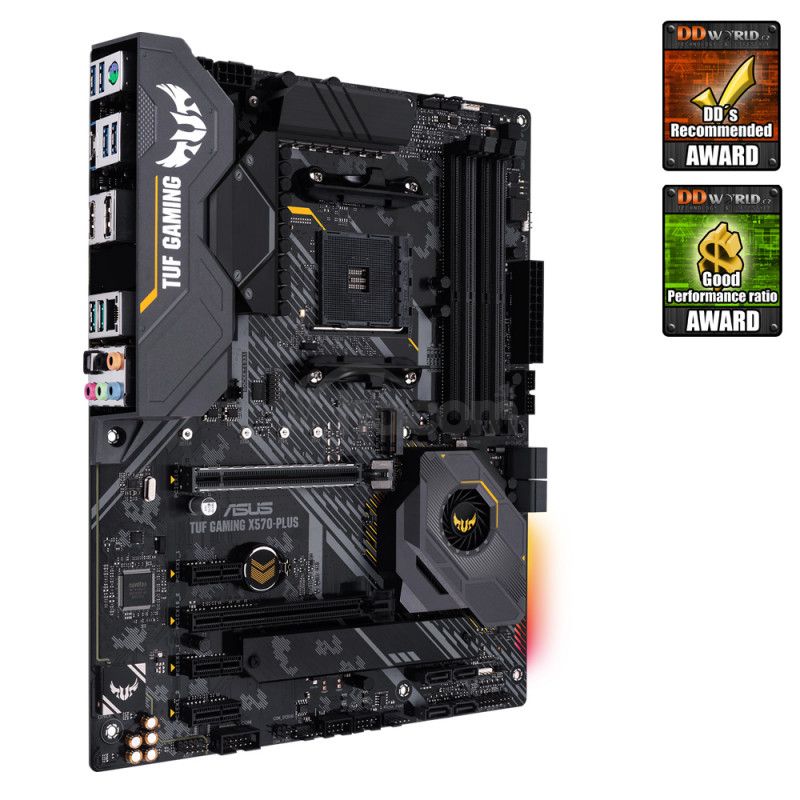

ASUS TUF GAMING X570-PLUS (WI-FI) 90MB1170-M0EAY0

ASUS TUF GAMING X570-PLUS (WI-FI) 90MB1170-M0EAY0

Chipset: AMD X570

Rozmerový formát: ATX (30.5 cm x 24.4 cm)
Podpora pre procesory: 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics / AMD Ryzen ™ 2nd Generation / 3rd Gen AMD Ryzen ™ Processors
Pätica procesora: AM4

Pozícia na pamäti:
* 3rd Gen AMD Ryzen ™ Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 4400 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHz Un-buffered Memory
* 2nd Gen AMD Ryzen ™ Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHz Un-buffered Memory
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 4 x DIMM, Max. 128GB, DDR4 SDRAM 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHz Un-buffered Memory
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.

Grafická karta:
* HDMI 1.4b maximálne rozlíšenie 4096 x 2160 @ 24 Hz
* DisplayPort maximálne rozlíšenie 4096 x 2160 @ 60 Hz

Zvuková karta: Realtek® ALC S1200 8-Channel High Definition Audio CODEC
Sieťová karta:
* Realtek® L8200A
* Intel® Wireless-AC 9260 (802.11 a / b / g / n / ac)
* Bluetooth® 5.0

Rozširujúce sloty:
* 3rd Gen AMD Ryzen ™ Processors
* 1 x PCIe 4.0 x16 (x16 mode)
* 2nd Gen AMD Ryzen ™ Processors
* 1 x PCIe 3.0 x16 (x16 mode)
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 1 x PCIe 3.0 / 2.0 x16 (x8 mode)
* AMD X570 chipset
* 1 x PCIe 4.0 x16 (max at x4 mode)
* 2 x PCIe 4.0 x1

RAID radič: Raid 0, 1, 10

SATA: 8 x SATA 6Gb / s port (s)
M.2:
* 3rd Gen AMD Ryzen ™ Processors:
* 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
* 2nd Gen AMD Ryzen ™ Processors:
* 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
* AMD X570 chipset:
* 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

USB:
* 3rd and 2nd Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors:
* 4 x USB 3.2 Gen 1 port (s) (4 na zadnom paneli,)
* AMD X570 chipset:
* 3 x USB 3.2 Gen 2 port (s) (3 na zadnom paneli,, 2 x Type-A + 1 x USB Type-CTM)
* AMD X570 chipset:
* 2 x USB 3.2 Gen 1 port (s) (2 na základnej doske)
* AMD X570 chipset:
* 4 x USB 2.0 port (s) (4 na základnej doske)

Interné porty:
* 2 x Aura RGB Strip Header (s)
* 1 x addressable Gen 2 header (s)
* 2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
* 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
* 1 x SPI TPM header
* 8 x SATA 6Gb / s connector (s)
* 1 x CPU Fan connector (s)
* 1 x CPU OPT Fan connector (s)
* 3 x Chassis Fan connector (s)
* 1 x AIO_PUMP connector
* 1 x 24-pin EATX Power connector (s)
* 1 x 8-pin ATX 12V Power connector (s)
* 1 x 4-pin ATX 12V Power connector (s)
* 1 x Front panel audio connector (s) (AAFP)
* 1 x System panel (s)
* 1 x Clear CMOS jumper (s)
* 1 x COM port header
* 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Externé porty:
* 1 x PS / 2 keyboard / mouse combo port (s)
* 1 x DisplayPort
* 1 x HDMI
* 1 x LAN (RJ45) port (s)
* 1 x Optical S / PDIF out
* 5 x Audio jack (s)
* 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
* 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
* ASUS Wi-Fi module (Wi-Fi 802.11 a / b / g / n / ac and Bluetooth v5.0)

BIOS: UEFI AMI BIOS, 256MB Flash ROM

Príslušenstvo:
* User 'manual
* I / O Shield
* 2 x SATA 6Gb / s cable (s)
* 1 x M.2 Screw Package
* 1 x Supporting DVD
* 1 x ASUS 2T2R dual band Wi-Fi moving Antennas (Wi-Fi 802.11a / b / g / n / ac compliant)
* 1 x TUF GAMING Sticker
* 1 x TUF Certification card (s)

ocenenie
DDW: Základná doska ASUS TUF GAMING X570-PLUS (WI-FI) získala ocenenie "DD 's Recommended" od servera Ddworld.cz. "ASUS je v daných cenových hladinách špičkou nielen kvalitou, ale dokáže to za podobné ceny konkurenčných menej kvalitných modelov. Inými slovami, ASUS teraz ponúka aj skvelý pomer cena / výkon! TUF Gaming X570-PLUS (Wi-Fi) potom predstavuje asi najlepšie kvalitné cenovo dostupný X570 základ na trhu.
