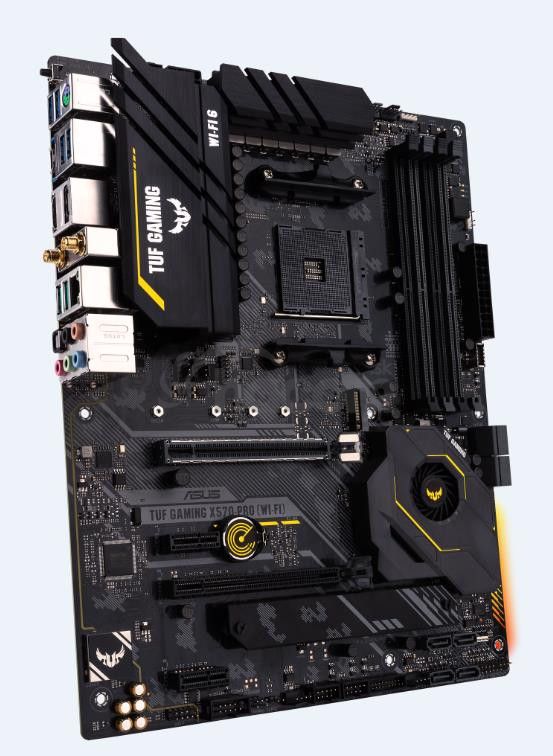

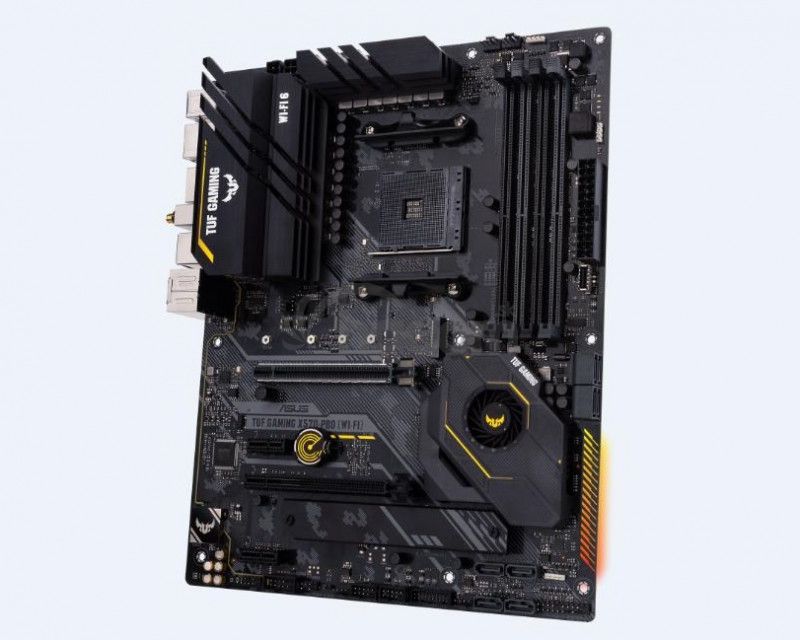

ASUS TUF GAMING X570-PRO (WI-FI) 90MB15H0-M0EAY0

ASUS TUF GAMING X570-PRO (WI-FI) 90MB15H0-M0EAY0

Chipset: AMD X570

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: 3rd and 2nd Gen AMD Ryzen ™ / 3rd, 2nd and 1st Gen AMD Ryzen ™ with Radeon ™
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte: 5100 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture

Grafická karta:
* Integrated Graphics Processor (na základe procesorov 3., 2. a 1. generácie AMD s Radeon Grpahics)

Multi GPU: AMD 2-Way CrossFireX ™ Technology

Zvuková karta:
* Realtek® ALC S1200 8-Channel High Definition Audio CODEC

Sieťová karta:
* Intel® I225-V 2.5Gb Ethernet
* Intel® Wi-Fi 6 AX200
* Bluetooth V5.1

Rozširujúce sloty:
* 3rd Gen AMD Ryzen ™ Processors
* 1x PCIe 4.0 x16 (x16 mode)
* 2nd Gen AMD Ryzen ™ and 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors
* 1x PCIe 3.0 x16 (x16 mode)
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 1x PCIe 3.0 / 2.0 x16 (x8 mode)
* AMD X570 chipset
* 1x PCIe 4.0 x16 (max at x4 mode)
* 2x PCIe 4.0 x1

RAID radič: 0, 1, 10

SATA:
* 8x SATA 6Gb / s ports

M.2:
* 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
* 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:
* Zadné USB porty (celkom 7)
* 3x USB 3.2 Gen 2 port (s) (2 x Type-A +1 x Type-C)
* 4x USB 3.2 Gen 1 port (s) (4 x Type-A)
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 2 front panel connector port (s) (1 x Type-C)
* 2x USB 3.1 Gen 1 port (s) (2 x Type-A)
* 4x USB 2.0 port (s) (4 x Type-A)

Interné porty:
* 1x CPU Fan connector (s)
* 1x CPU OPT Fan connector (s)
* 3x Chassis Fan connector (s)
* 1x AIO_PUMP connector
* 2x Aura RGB Strip Header (s)
* 1x addressable Gen 2 header (s)
* 1x USB 3.2 Gen2 connector support additional 1 USB ports (20-pin, Type-C)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
* 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
* 1x SPI TPM header
* 8x SATA 6Gb / s connector (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin ATX 12V Power connector (s)
* 1x 4-pin ATX 12V Power connector (s)
* 1x Front panel audio connector (s) (AAFP)
* 1x System panel (s)
* 1x Clear CMOS jumper (s)
* 1x COM port header
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

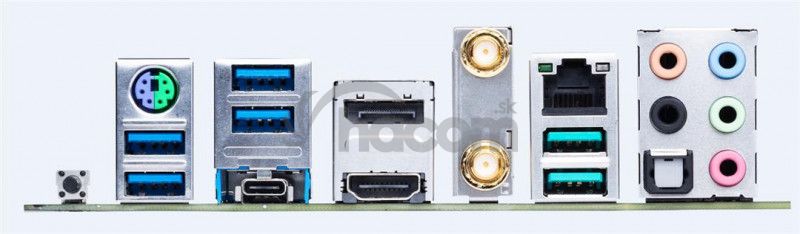

Externé porty:
* 1x PS / 2 keyboard / mouse combo port (s)
* 1x DisplayPort
* 1x HDMI
* 1x LAN (RJ45) port (s)
* 1x Optical S / PDIF out
* 5x Audio jack (s)
* 1x BIOS FlashBack ™ Button (s)
* 1x ASUS Wi-Fi Module
* 4x USB 3.2 Gen 1 (up to 5Gbps) ports
* 3x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)

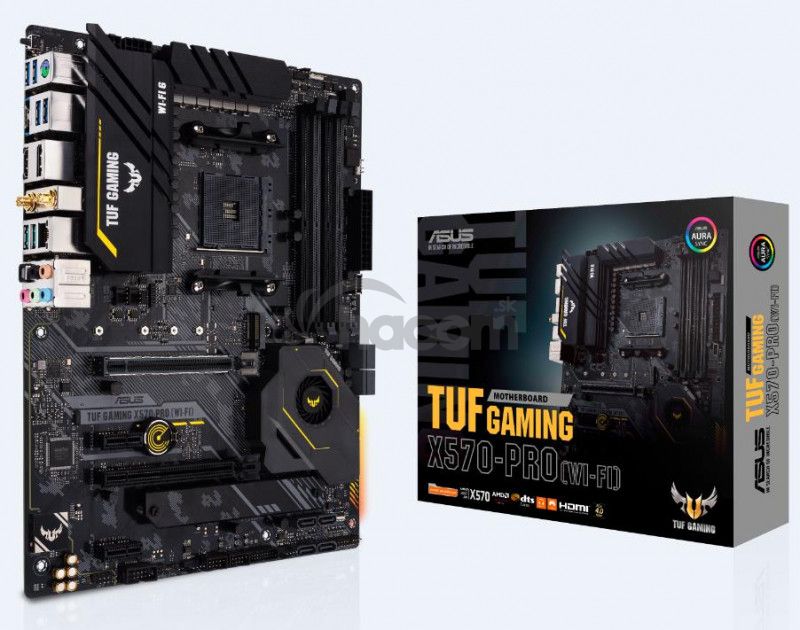

Obsah balenia:
* User 'manual
* I / O Shield
* 2x SATA 6Gb / s cable (s)
* 1x M.2 Screw Package
* 1x Supporting DVD

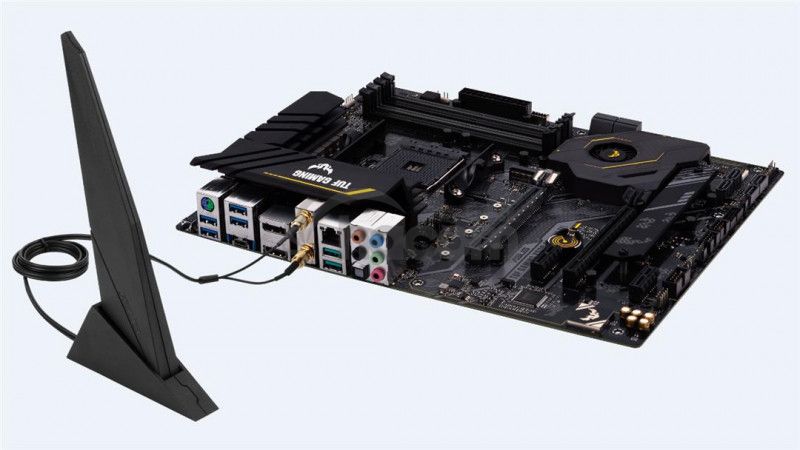

* 1x ASUS 2T2R dual band Wi-Fi moving Antennas (Wi-Fi 802.11a / b / g / n / ac compliant)
* 1x TUF GAMING Sticker
* 1x TUF Certification card (s)
* 1x M.2 Rubber Package (s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/TUF-GAMING-X570-PRO-WI-FI
