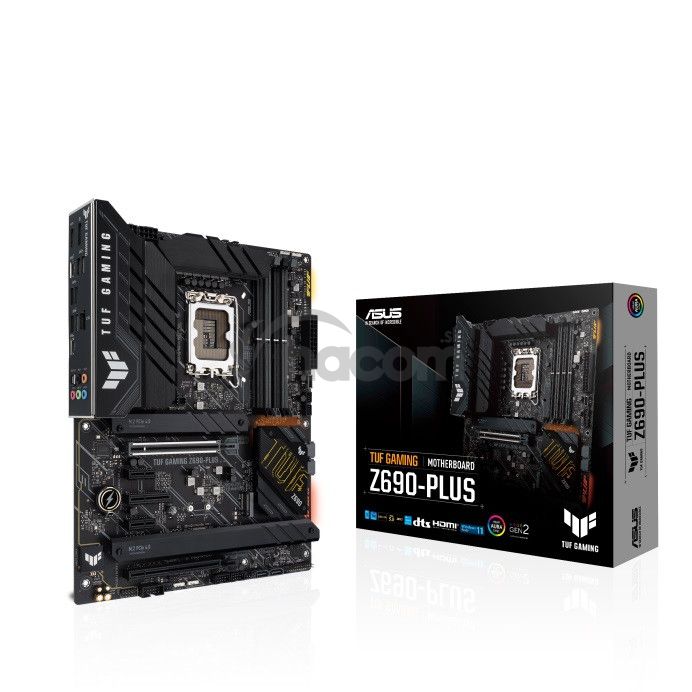

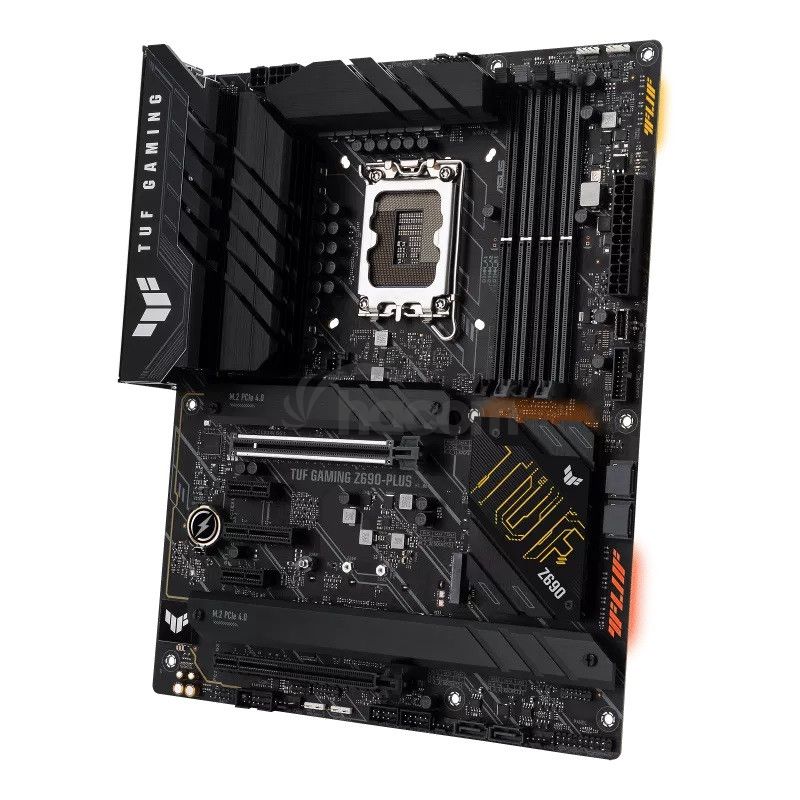

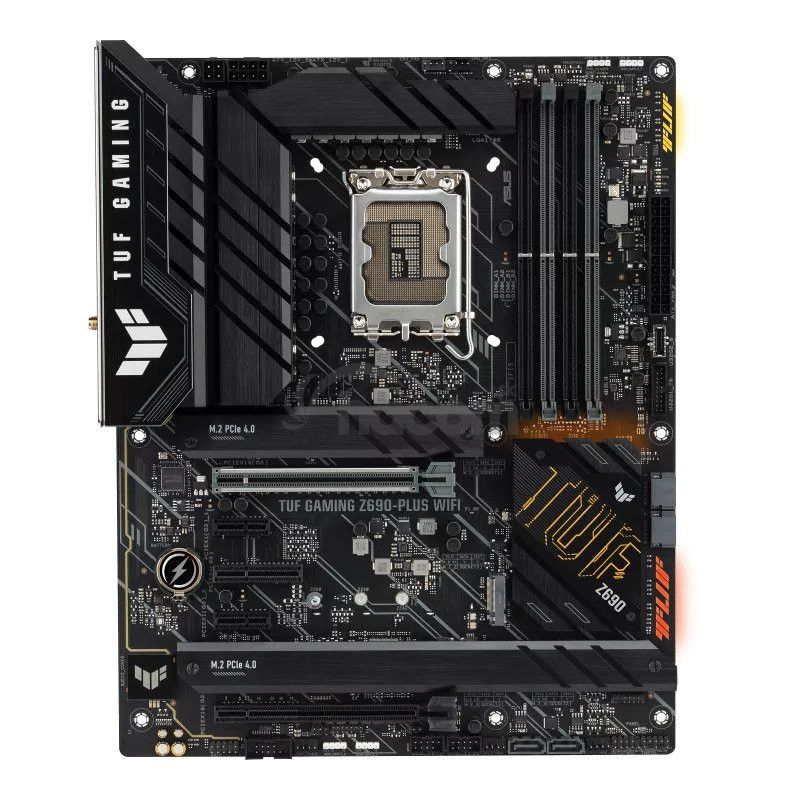

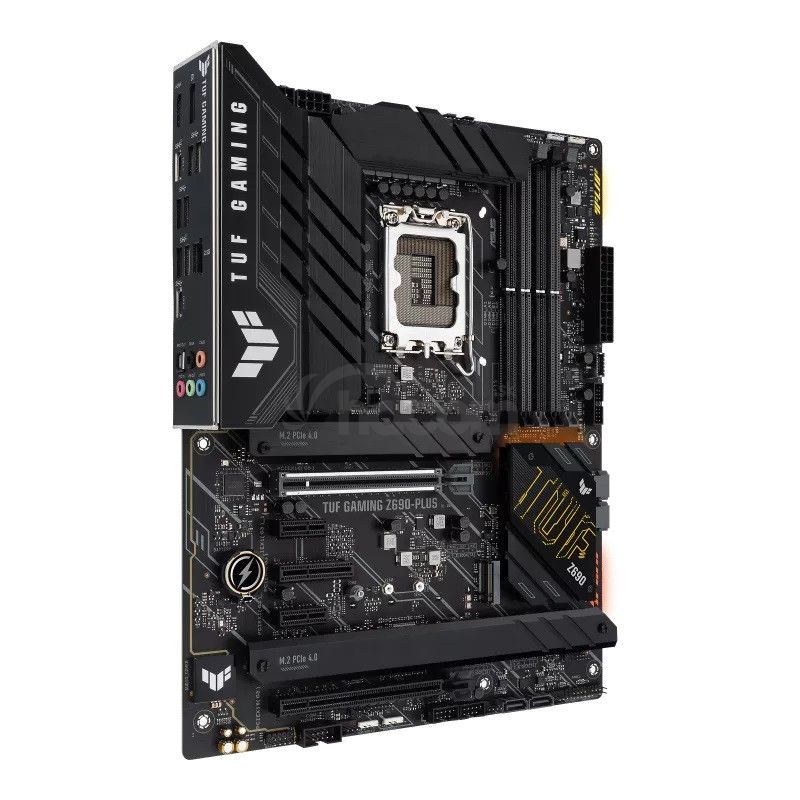

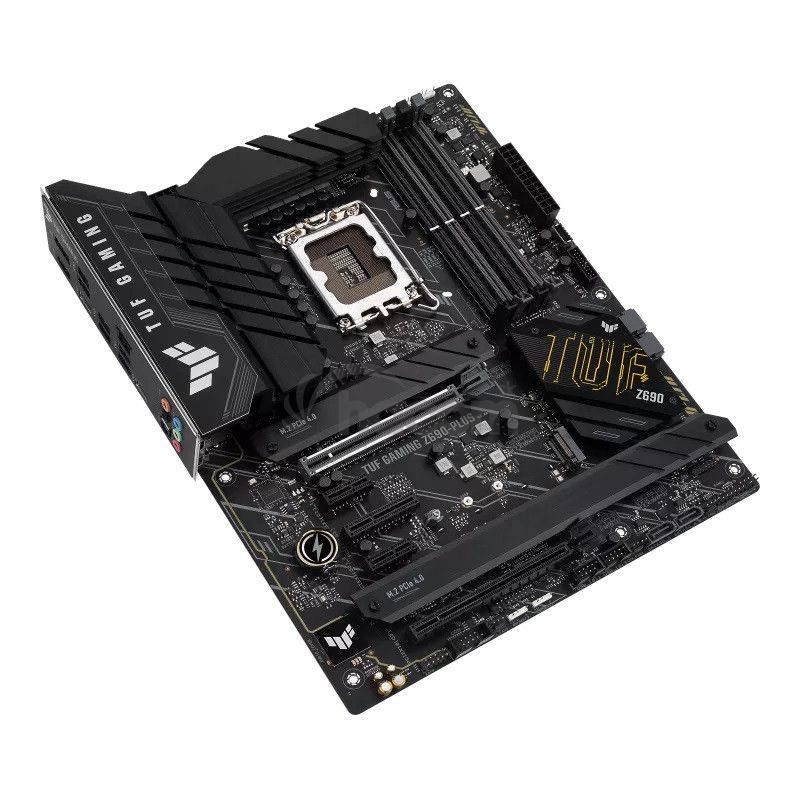

ASUS TUF GAMING Z690-PLUS/LGA 1700/ATX 90MB1AV0-M0EAY0

ASUS TUF GAMING Z690-PLUS/LGA 1700/ATX 90MB1AV0-M0EAY0

Chipset: Intel Z690 Chipset

Rozmerový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pre procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pre pamäte: DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP

Grafická karta: (na základe procesora)
*1 x DisplayPort
*1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
*optical S/PDIF out port

Sieťová karta:
*1 x Intel 2.5Gb Ethernet
*Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2

Rozširujúce sloty:
*1 x PCIe 5.0 x16 slot
*1 x PCIe 3.0 x16 slot (supports x4 mode)
*1 x PCIe 3.0 x4 slot
*2 x PCIe 3.0 x1 slots

RAID radič:
*NVMe RAID 0/1/5
*SATA RAID 0/1/5/10

SATA: 4 x SATA 6Gb/s ports

M.2: 4 x M.2 slots (Key M)

USB:
* Interné:
*1 x USB 3.2 Gen 2 konektor (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
* Externé:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*2 x USB 3.2 Gen 2 ports (2 x Type-A)
*5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)


Interné porty:
* Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
* Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
* Storage related
*4 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
* USB
*1 x USB 3.2 Gen 2 konektor (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
* Miscellaneous
*3 x Addressable Gen 2 headers
*1 x AURA RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel hlavy s Chassis intrude function
*1 x Thunderbolt header

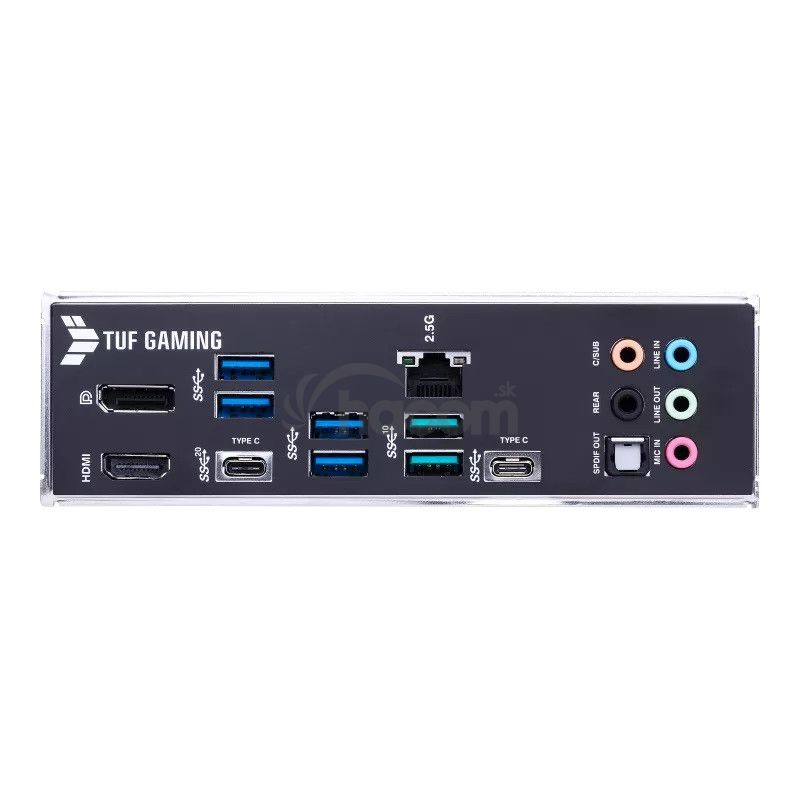

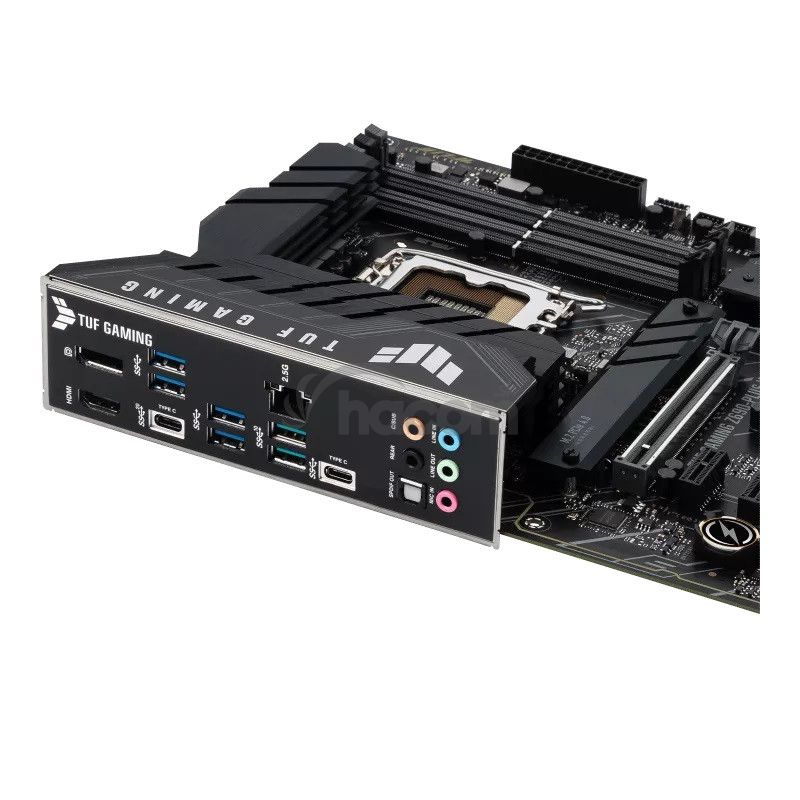

Externé porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*2 x USB 3.2 Gen 2 ports (2 x Type-A)
*5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Intel 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port

BIOS: UEFI AMI BIOS, 192 (128+64) Mb Flash ROM
