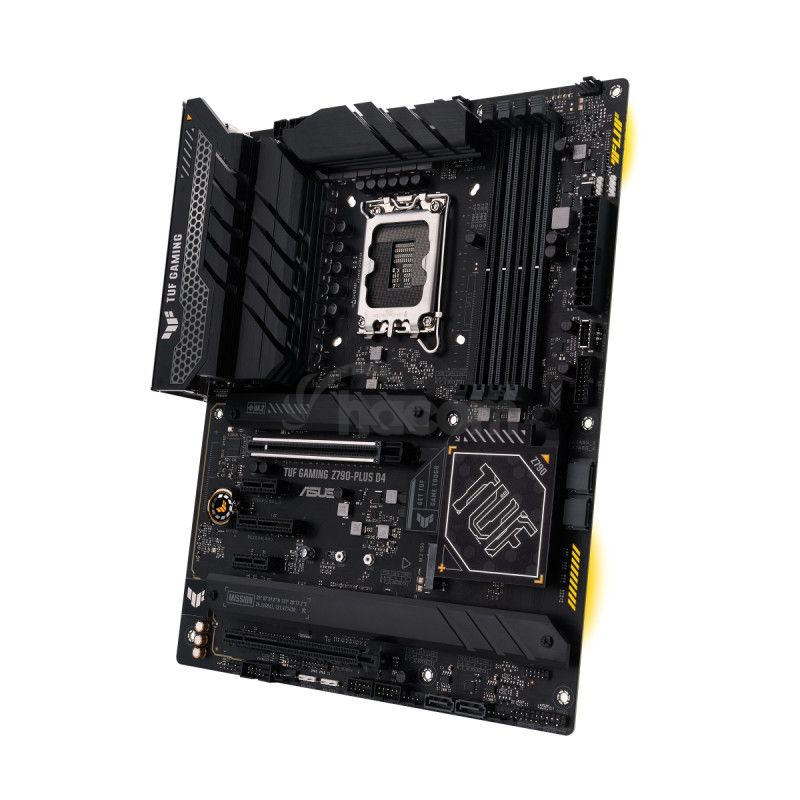

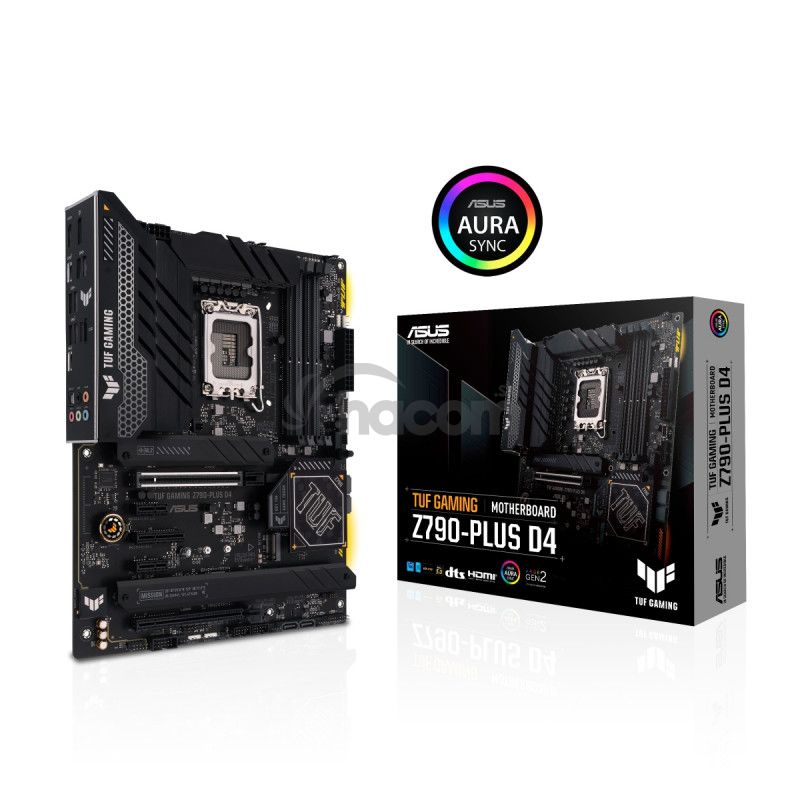

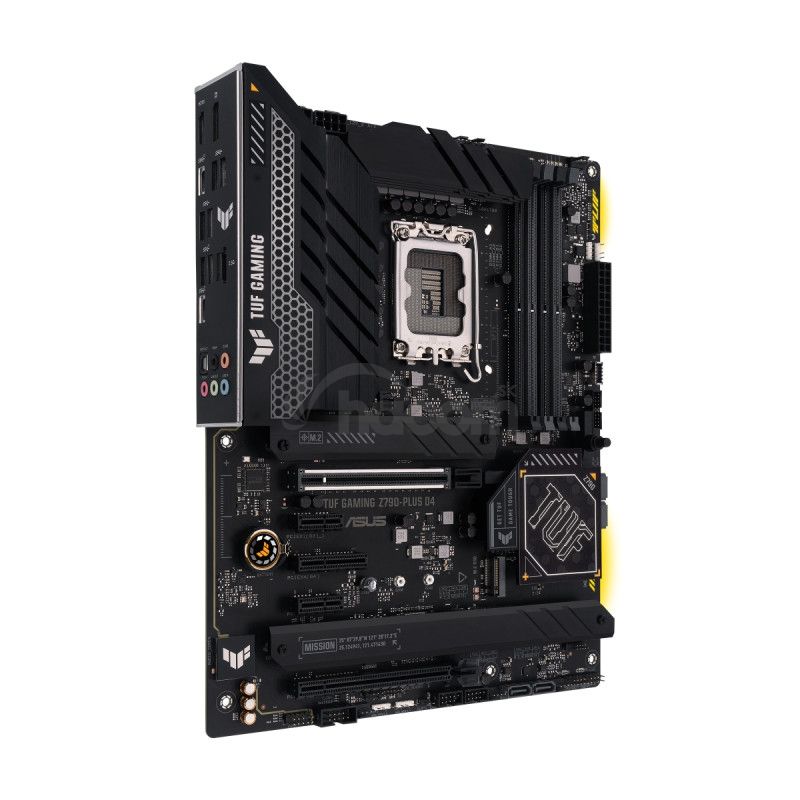

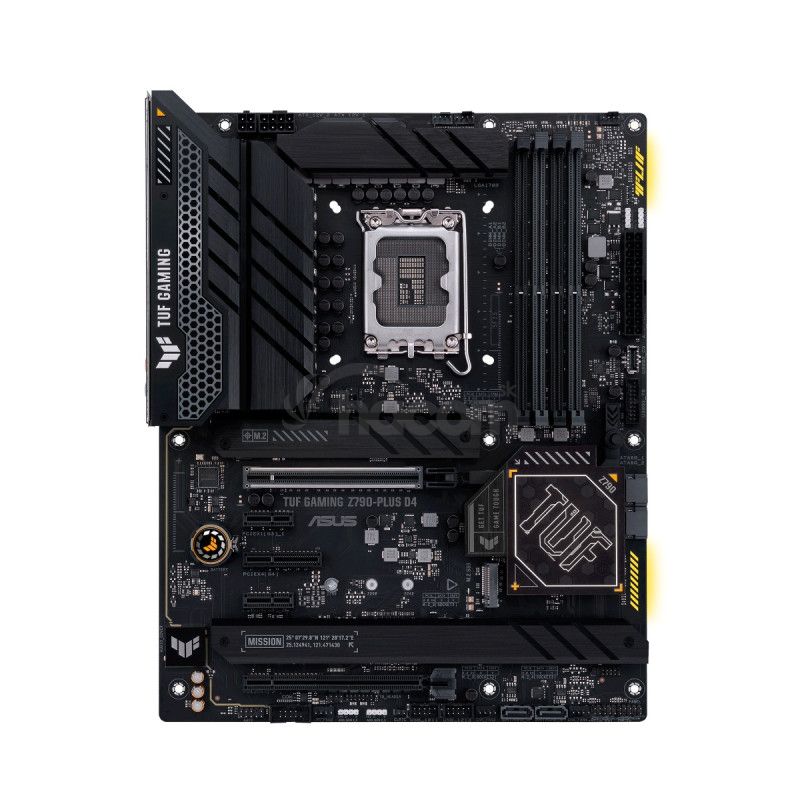

ASUS TUF GAMING Z790-PLUS D4 90MB1CQ0-M0EAY0

ASUS TUF GAMING Z790-PLUS D4 90MB1CQ0-M0EAY0

Chipset: Intel Z790

Rozmerový formát: ATX
Podpora pre procesory: 13. Gen Intel Core Processors & 12. Gen Intel Core, Pentium Gold and Celeron Processors

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
*4 x DIMM
*Max. 128GB
*DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC) )/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
*Dual Channel Memory Architecture
*Supports Intel Extreme Memory Profile (XMP)
*OptiMom II
Max. veľkosť operačnej pamäte: 128 GB

Grafická karta: nie (1x DisplayPort + 1x HDMI port)

Zvuková karta:
*Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
*1 x Intel 2.5Gb Ethernet

Rozširujúce sloty:
Intel 13th & 12th Gen Processors
*1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x4 slot
*2 x PCIe 3.0 x1 slots

RAID radič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA:
*4 x SATA 6Gb/s ports

M.2:
Intel 13th & 12th Gen Processors
*M.2_1 slot (Key M), typ 2242/2260/2280/22110
Intel Z790 Chipset
*M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*M.2_3 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
*M.2_4 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

USB: zadné USB - celkom 8, predné USB - celkom 7
ZADNÝ
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
PREDNÝ
*1 x USB 3.2 Gen 2 konektor (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interné porty:
Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
Storage related
*4 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB
*1 x USB 3.2 Gen 2 konektor (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
*3 x Addressable Gen 2 headers
*1 x Aura RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel hlavy s Chassis intrude function
*1 x Thunderbolt (USB4) header

Externé porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Intel 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
