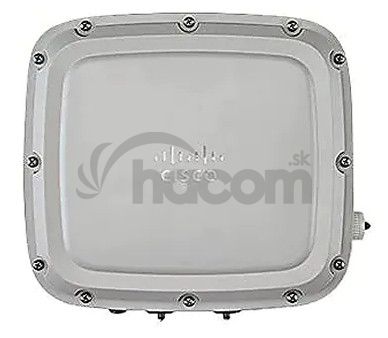

C9124AXD-E
4x4:4 in both 2.4GHz a 5 GHz uplink/downlink MU-MIMO with four spatial streams
2.4 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
5 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
BLE Antenna Gain: 5 dBi, internal antenna, Vertical Polarization, omnidirectional
Catalyst 9124AXE prístupový bod je certifikovaný pre použitie s anténovými gainmi až do 13 dBi (2.4 GHz a 5GHz)
Cisco offers industry's broadest výber antény, delivering optimálne coverage for variety of deployment scenarios.
Supports Self-Identifiable Antennas (SIA)
Pre viac detailov, pozri Catalyst 9124AX Series Getting Started Guide.
1x 100/1000/2500 BASE-T (Ethernet) uplink interface
1x Gigabit Ethernet SFP
Supports PoE output (802.3af compliant PSE) na 1x 10/100/1000 BASE-T (Ethernet) downlink interface if C9124AX powered z jedného z nasledujúcich:
UPOE alebo 802.3bt inline power source (Switch or Power Injector)

DC input (with external power supply rated 3 60W)

Management console port (RJ-45)
Status LED indicates boot loader štatút, asociation štatút, operating status, boot loader warnings

802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE)
Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=
Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at)
DC power source: Auxiliary DC vstup, 24V to 56V

2.4 GHz

30 dBm (1W)
-4 dBm (0.4 mW)
5 GHz

30 dBm (1W)
-4 dBm(0.4 mW)
