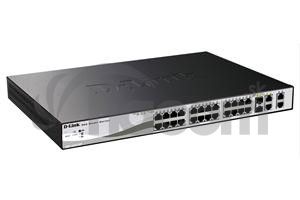

D-Link DES-1210-28P 24x100 + 2xGbit + 2xSFP Smart / PoE + DES-1210-28P
Informácie k záruke:Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov potom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe.
Pre nárok na obmedzenú doživotnú záruku treba produkt zaregistrovať (pozri nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál.
http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in
• PoE and the new PoE + standards
• Intuitive Web GUI
• VLAN support for traffic segmentation
• AutoVoice VLAN for seamless integration with IP telephony
• AutoSurveillance VLAN to easily add IP cameras in the network
• Loopback detection and broadcast storm control to avoid network Downtime
• QoS (Quality of Service) and bandwidth control to ensure smooth operation
• Innovative firewall-like ACL to enforce security and access restriction
• IGMP snooping to save bandwidth on multicast streams
• Cable diagnostics function to help Troubleshoot wiring problems
• Smart fans based on temperature threshold
Features
• 24x 100Base-TX Fast Ethernet ports
• 2x 1000Base-T Gigabit ports
• 2x 1000Base-T / SFP combo ports
• 19 "rack size
• Auto MDI / MDIX
• 802.3x Flow control
performance
• Switching capacity: 12.8 Gbps.
• Max. forwarding rate: 9.5 Mpps.
• MAC table: 8K entries
• Packet buffer: 512 KB
Network
• 802.3ad Link Aggregation (max. 8 groups, 8 ports per group)
• Bandwidth control (port-based)
• IGMP v1 / v2 snooping
• Port mirroring
Resiliency
• 802.1D Spanning Tree
• 802.1w Rapid Spanning Tree
• Loopback detection (LBD)
• Cable diagnostics
VLAN
• 802.1q VLAN
• Auto Voice VLAN (10 užívateľskú defined OUI, 8 default OUI)
• AutoSurveillance VLAN (5 užívateľskú defined OUI)
• Static VLAN (256 groups)
• VLAN VID configurable (1-4096)
Quality of Service (QoS)
• 802.1p QoS
• 4 queues per port
• Strict priority or Weighted Round Robin (WRR)
• DSCP CoS
Security
• Static MAC (128 entries)
• Port Security (max. 64 MAC addrsses per port)
• Broadcast / Multicast / Unknown Unicast Storm Control
• ACL (max 50 profiles)
Management
• Web-based GUI
• SmartConsole Utility
• Password control
• Configuration backup / restore
• SNMP v1 / v2
• System log
• Firmware upgradeable
Parametre
Hmotnosť | 4,544 kg |
---|
