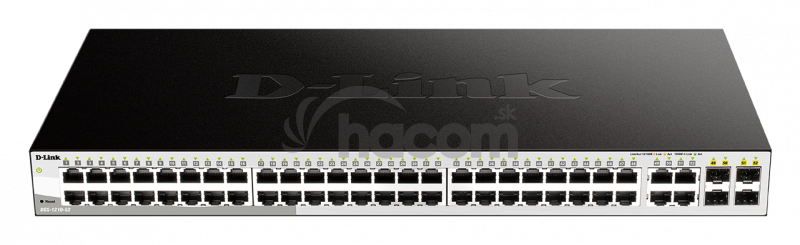

D-Link DGS-1210-52 L2 / L3 Smart + switch, 48x GbE, 4x RJ45 / SFP, fanless DGS-1210-52

D-Link DGS-1210-52 L2 / L3 Smart + switch, 48x GbE, 4x RJ45 / SFP, fanless DGS-1210-52

popis
Už piata generácia Gigabit Smart prepínačov D-Link radu DGS-1210 (v predaji od roku 2018) ponúka výkonnejší hardvér, väčšiu flexibilitu portov a viac funkcií. Model DGS-1210-52 (HW revízia F1) je 52-portový L2 / L3 Gigabit Ethernet Smart + Managed switch bez vetrákov, vhodný pre SMB a prístupové Enterprise siete. Je osadený 48 porty 10/100 / 1000Base-T RJ-45 a 4x Gigabit Combo porty RJ-45 / SFP, kde SFP sloty sú dvojrýchlostný a podporujú Gigabit SFP aj Fast Ethernet SFP moduly.
Switch DGS-1210-52 ponúka podporu IPv6 a pokročilú sadu L2 funkcií, ako sú virtuálne siete VLAN, funkcia kvality služieb QoS, LACP agregácie liniek, IGMP Snooping pre prevádzku multicast videa, bezpečnostné funkcie 802.1x Radius a ACL, Spanning Tree protokoly STP / RSTP pre kruhové topológie a MSTP pre riadenie slučiek samostatne v každej VLAN. Podporovaný je tiež L3 statický IPv4 / IPv6 routing, ktorý je určený pre smerovanie medzi VLAN sieťami a dovoľuje nastaviť štyri IP rozhranie. Kapacita routovacie tabuľky je 124 IPv4 resp. 50 IPv6 záznamov.

Funkcia Voice VLAN detekuje pripojenie IP telefónov a priraďuje ich automaticky do samostatnej VLAN s vyššou prioritou. Novinkou je unikátny Surveillance mód, ktorý pomocou MAC adries, LLDP a ONVIF protokolov dokáže detekovať prvky IP kamerových systémov (IP kamery, NVR) od rôznych výrobcov a automaticky ich priradiť do oddelenej video-VLAN s vyššou prioritou. Prepínač zobrazí topológiu siete tiež priamo vo webovom rozhraní prepínača. Výrazne sa tak zjednodušuje a urýchľuje nasadenie a správa firemnej siete a IP kamerových systémov.

Správa prepínača je z intuitívneho webového rozhrania alebo pomocou SNMP príkazov. Kompaktná sada Telnet CLI príkazov umožňuje základné nastavenie prepínača (nastavenie IP adresy, heslá, reset, reboot, ping, upgrade FW, nahranie / zálohovanie konfigurácie, show, debug). Podpora Dual Image a Dual Configuration umožňuje nahranie dvoch firmwarov alebo konfiguračných súborov do prepínača. Upgrade firmvéru alebo zmenu v nastavení siete nie je nutné vykonať okamžite, ale možno ju odložiť.

K dispozícii je tiež bezplatný softvérový nástroj D-Link Network Assistant (DNA), ktorý ponúka základné správu a dohľad nad viac prepínačmi v sieti. Nástroj DNA prehľadá sieť a nájde prepínač aj v prípade, kedy jeho IP adresa (napr. Defaultný IP adresa) nie je v rovnakom L2 segmente. Následne možno vykonať základné nastavenia, rozdelenie prepínačov do pracovných skupín a hromadnú správu, upgrade či zálohu. V rozsiahlych podnikových sieťach je možné spravovať prepínača centrálne pomocou pokročilých NMP plaformy D-View 7 (zadarmo pre 25 zariadení, viac info a online demo na )

TECHNICKÁ ŠPECIFIKÁCIA

Features

Green Technology

* Link status detection
* Port shut-off
* System Hibernation
* Time-based PoE (PoE models only)

Security Features

* Access Control Lists (ACLs)
* D-Link Safeguard Engine protects the CPU from broadcast / multicast / unicast flooding
* Port Security supports up to 64 MAC addresses per port
* ARP spoofing Prevention
* Smart Binding

Intuitive Management

* D-Link Network Assistant (DNA) utility or multilingual Web UI
* Built-in SNMP MIB for remote NMS (D-View 7.0)
* Compact Command Line Interface (CLI) through Telnet

advanced Features

* Static route
* Surveillance Mode
* Auto Voice VLAN
* Dual softvér images
* Dual configuration files


interface


Number of 10/100 / 1000BASE-TX ports

* DGS-1210-52 / 52MP - 48 ports

Number of Combo 1000BASE-TX / SFP ports

* DGS-1210-20 / 28 / 28P / 28MP / 52 / 52MP - 4 ports

PoE Supported Models (Standard (s) / Number of Ports / Maximum Power Budget)

* DGS-1210-52MP (802.3af / 802.3at / 52 ports / 370W)

performance

switch Capacity

* DGS-1210-52 / 52MP - 104 Gbps

64-Byte Packet Forwarding Rate

* DGS-1210-52 / 52MP - 77.4 Mpps

MAC Address Table Size

* 8K

Packet Buffer Memory

* DGS-1210-52 / 52MP -12 Mbits

jumbo Frame

* Up to 10,000 Bytes

Physical & Environmental

Power Consumption (Standby / Maximum)

* DGS-1210-52 - 13.9W / 34.2W

power Input

* DGS-1210-10 / 10MP / 20/26/28 / 28P / 28MP / 52 / 52MP - 10 to 240 VAC, 50 / 60HZ internal universal power supply

Dimensions (W x D x H)

* DGS-1210-52 - 440 x 210 x 44 mm

weight

* DGS-1210-52 - 3.46 kg

Ventilation

* DGS-1210-52 - fanles

Heat Dissipation

* DGS-1210-52 - 116.7 BTU per hour

temperature

* Operating: -5 ° to 50 ° C (23 ° to 112 ° F)
* Storage: -20 ° to 70 ° C (-4 ° to 158 ° F)

Humidity

* Operating: 0% ~ 95% non-condensing
* Storage: 0% ~ 95% non-condensing

Certification

* EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
* Safety: CB, UL, BSMI, CCC

softvér Feature

L2 Features

* MAC Address Table
8K entries
* IGMP Snooping
IGMP v1 / v2 Snooping
IGMP v3 awareness
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
* Loopback Detection
* 802.3ad Link Aggregation:
Maximum of 8 groups / 8 ports per group
* LLDP
* LLDP-MED
* Jumbo Frame
Up to 10,000 bytes
* Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
* Flow Control
802.3x Flow Control
HOL Blocking Prevention
* Port Mirroring
One-to-one
Many-to-One
Supports Mirroring for Tx / Rx / Both
* Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
* Configurable MDI / MDIX
MLD snooping v1 / v2 (256 groups)

VLAN

* 802.1Q
* VLAN Group
Max. 256 static VLAN groups
* Configurable VID from 1 - 4094
* Asymmetric VLAN
* Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
* Auto Surveillance VLAN

Quality of Service (QoS)

* 802.1p Quality of Service
* 8 queues per port
* Queue Handling
Strict
Weighted Round Robin (WRR)
* Bandwidth Control
Port-based (Ingress / egress, min granularity 10/100/1000 is 16 Kbps)
* QoS based on:
802.1p priority queues
DSCP
MAC address
EtherType
IP address
protocol type
ToS
IP preferencie
IPv6 Traffic Class
TCP / UDP port

L3 Features

* IP interface
Supports 4 interfaces
* IPv6 Neighbor Discovery (ND)
* Static routing
124 IPv4 static route entries
50 IPv6 static route entries

Access Control List (ACL)

* Max. 50 access lists
* Max. 768 rules shared by IPv4, MAC, and IPv6
* Each rule can only be associated with a single port
* ACL based on
MAC address
802.1p priority mask
VID mask
Source / destination MAC address mask
EtherType mask
IP address
Source / destination IP address mask
DSCP mask
Protocol type mask
TCP / UDP port number mask
IPv6 address
Source / destination IP address mask
DSCP mask
Protocol type mask
TCP / UDP port number mask
IPv6 traffic class mask

Security

* Broadcast / Multicast / Unicast Storm Control
* D-Link Safeguard Engine
* Traffic segmentation
* SSH v2
* TLS v1.0
* DoS attack prevention
* 802.1X Port-based Access Control
* Port Security
Supports up to 64 MAC addresses per port
* ARP spoofing Prevention
Max. 127 entries
* DHCP Server Screening
* IP-MAC-Port Binding (Smart Binding)
ARP Inspection
Max. 256 entries
IPv4 Inspection
Max. 127 entries
IPv6 Inspection
Max. 63 entries
DHCP Snooping
Max. 512 entries

AAA

* 802.1X Authentication
Supports local / RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
Max. 128 entries when using local database
* IPv6 RADIUS server
* Support MD5 authentication

OAM

* Cable diagnostics
* Factory reset

Management

* Web-based GUI
* D-Link Network Assistant Utility
* Compact CLI
* Telnet Server
* TFTP Client
* Configurable MDI / MDIX
* SNMP
Supports v1 / v2c / v3
* SNMP Trap
* Backup / upgrade firmware
* Smart Wizard
* Upload / download configuration file
* BootP / DHCP Client
* System Log
Max. 500 log entries
* SNTP
* ICMP v6
* IPv4 / v6 Dual Stack
* DHCP Auto Configuration
* Time setting
SNTP
* RMONv1
* Trusted hosť
* Dual image
* Dual configuration

Green V3.0 Technology

* Power Saving by:
Link Status
Time-based PoE: PoE ports can be turned on / off by port or system through schedule
System Hibernation
Port shut off
Cable length detection

MIBs

* RFC1212 Concise MIB Definitions
* RFC1213 MIBI
* RFC1215 MIB Traps Convention
* RFC1493 Bridge MIB
* RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
* RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, * RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB
* RFC271, RFC1757, RFC2819 RMON MIB
* RFC2021 RMONv2 MIB
* RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB
* RFC2674 802.1p MIB
* Interface Group MIB
* RFC2618 RADIUS Authentication Client MIB
* RFC4022 MIB for TCP
* RFC4113 MIB for UDP
* RFC2389 MIB for Diffserv.
* RFC2620 RADIUS Accounting Client MIB
* Private MIB
* PoE MIB
* DDP MIB
* LLDP-MED MIB

RFC Standards

* RFC791 IP
* RFC768 UDP
* RFC793 TCP
* RFC792 ICMPv4
* RFC2463, RFC4443 ICMPv6
* RFC826 ARP
* RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP)
* RFC2573 SNMP Applications
* RFC2461, RFC4861 Neighbor Discovery for IPv6
* RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
* RFC2464 IPv6 over Ethernet and definition
* RFC4291 IPv6 Addressing Architecture
* RFC2893, RFC4213 IPv4 / IPv6 dual stack function
