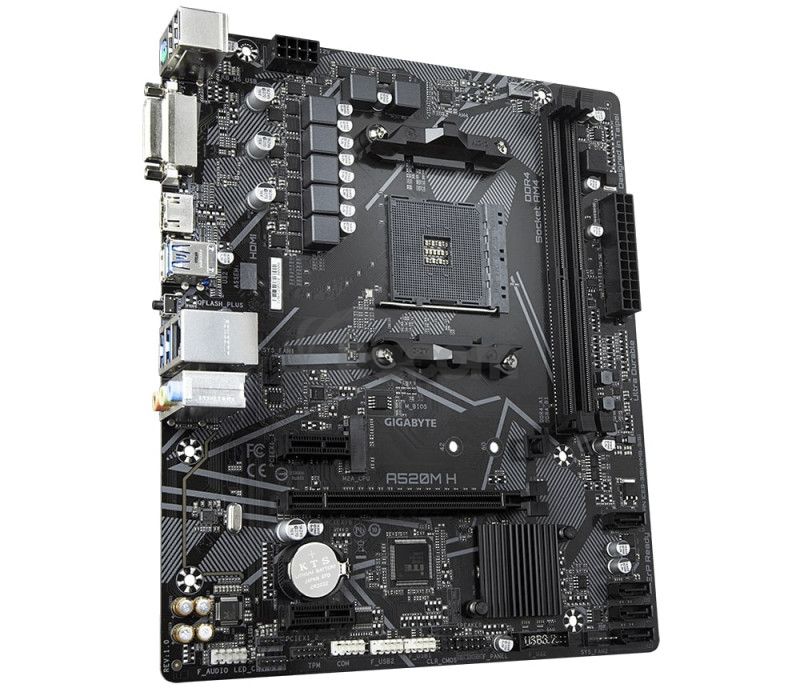

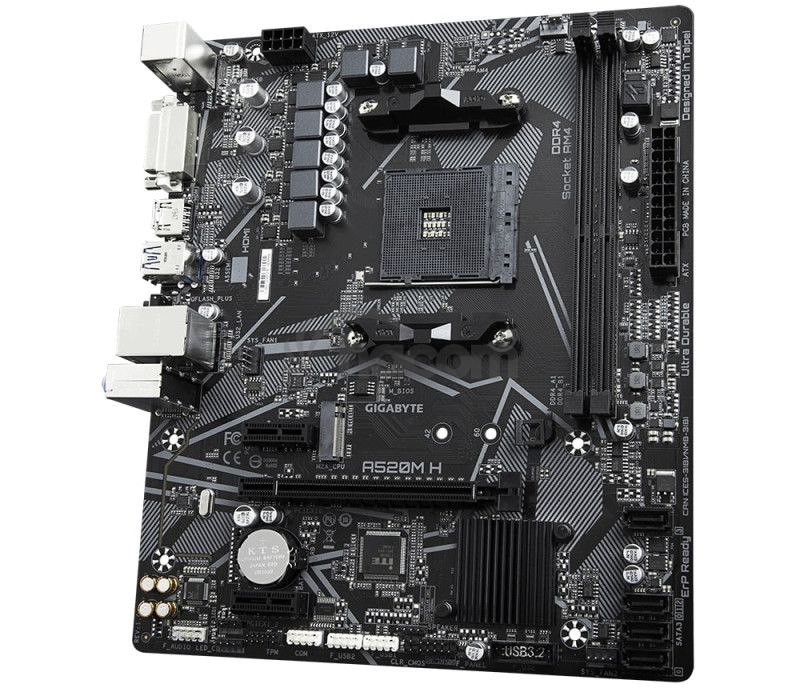

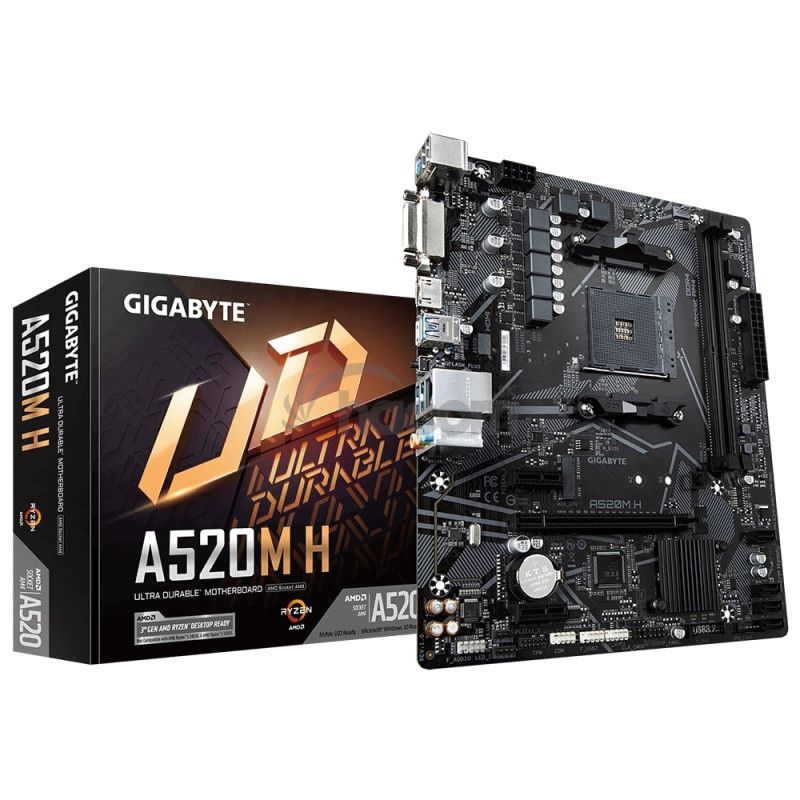

GIGABYTE A520 H (rev. 1.0) A520M H

GIGABYTE A520 H (rev. 1.0) A520M H

Chipset: AMD A520

Rozmerový formát: Micro ATX Form Factor (244 mm x 205 mm)
Podpora pre procesory: Support for 3rd Generation AMD Ryzen ™ processors / 3rd Generation AMD Ryzen ™ with Radeon ™ Graphics processors
Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 3rd Gen AMD Ryzen ™ Processors: Support for DDR4 SDRAM 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933 / 2667/2400/2133 MHz memory modules
* 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics processors: Support for DDR4 SDRAM 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM (Dual Channel)
* ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules
* Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
* Extreme Memory Profile (XMP) memory modules

Grafická karta: Integrated in the 3rd Generation AMD Ryzen ™ with Radeon ™ Graphics processors (na základe CPU)

Zvuková karta:
* Realtek® ALC887 codec

Sieťová karta:
* Realtek® GbE LAN chip (1000 Mbit / 100 Mbit)

Rozširujúce sloty:
* 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* 2x PCI Express x1 slots, supporting PCIe 3.0

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s connectors

M.2:
* 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4 / x2 SSD support)

USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 1 ports
* 2x USB 2.0 / 1.1 ports
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x CPU fan header
* 2x system fan headers
* 1x addressable LED strip header
* 1x RGB LED strip header
* 1x M.2 Socket 3 connector
* 4x SATA 6Gb / s connectors
* 1x front panel header
* 1x front panel audio header
* 1x speaker header
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0 / 1.1 headers
* 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
* 1x serial port header
* 1x chassis intrusion header
* 1x Clear CMOS jumper

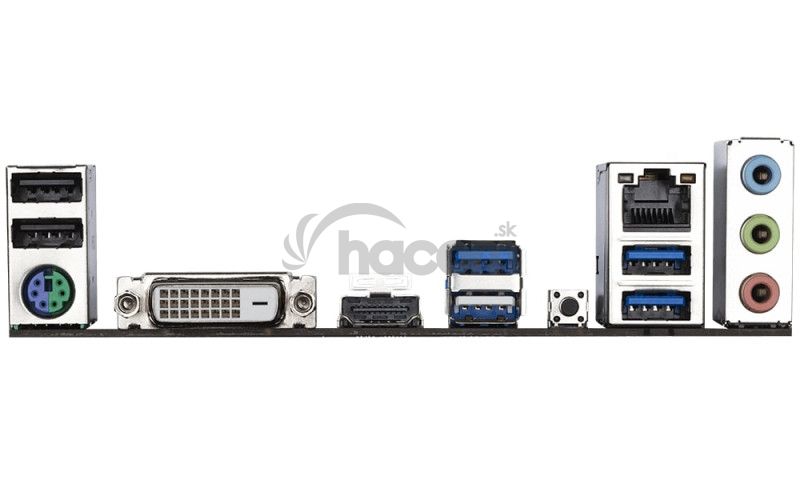

Externé porty:
* 1x PS / 2 keyboard / mouse port
* 1x DVI-D port
* 1x HDMI port
* 4x USB 3.2 Gen 1 ports
* 2x USB 2.0 / 1.1 ports
* 1x Q-Flash Plus button
* 1x RJ-45 port
* 3x audio jacks

BIOS: 1x 128 Mbit flash

Stránka výrobca: https://www.gigabyte.com/Motherboard/A520M-H-rev-10
