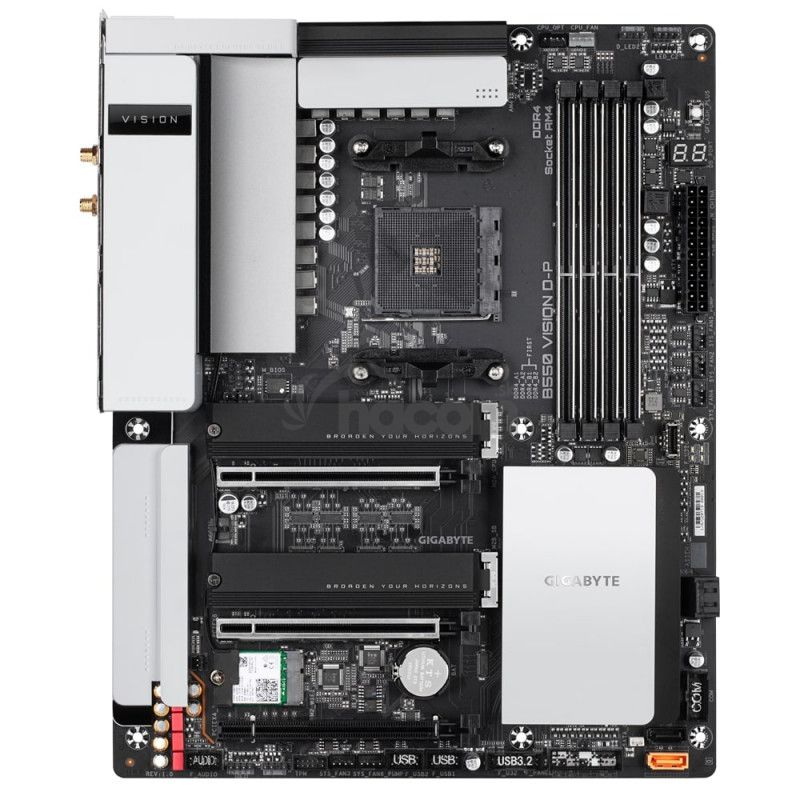

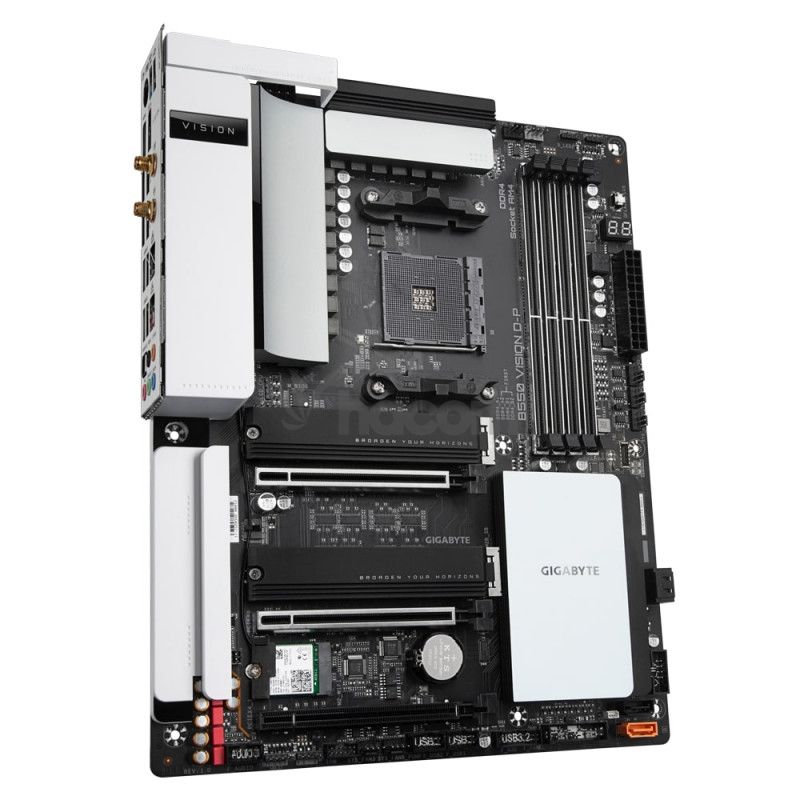

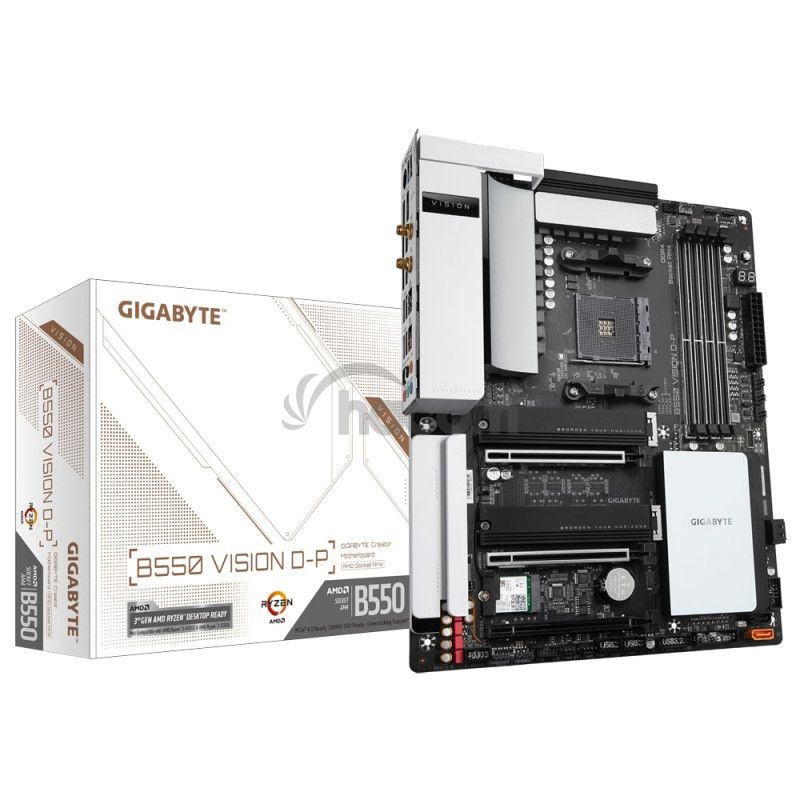

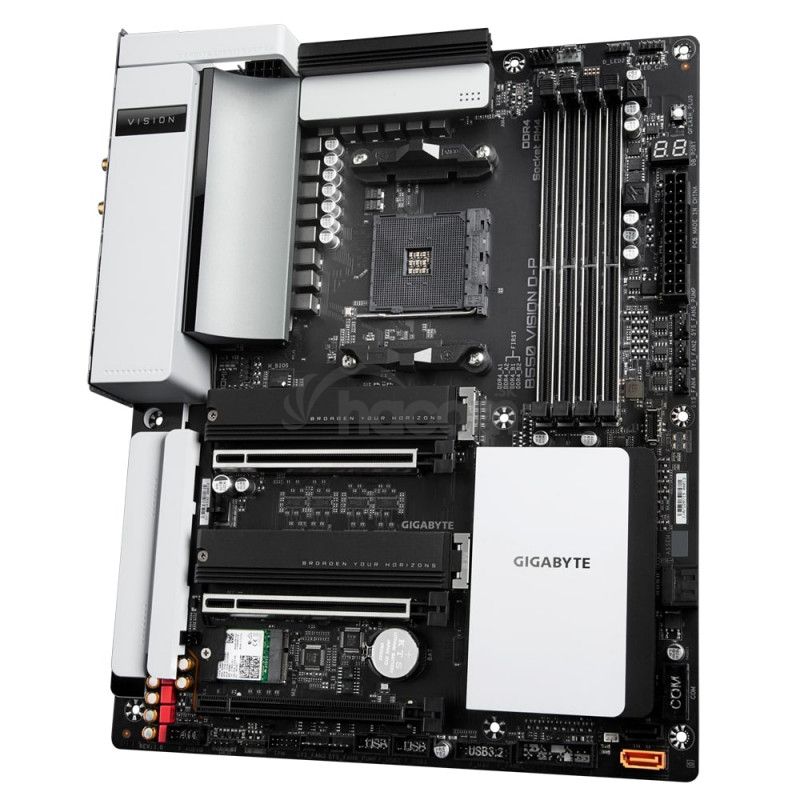

GIGABYTE B550 VISION DP (rev. 1.0) B550 VISION D-P

GIGABYTE B550 VISION DP (rev. 1.0) B550 VISION D-P

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: AMD Ryzen ™ 5000 Series / 3rd Generation AMD Ryzen ™ processors / 3rd Generation AMD Ryzen ™ with Radeon ™ Graphics processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* AMD Ryzen ™ 5000 series processors: Support for DDR4 SDRAM 5100 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules
* 3rd Gen AMD Ryzen ™ Processors: Support for DDR4 SDRAM 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules
* 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics processors: Support for DDR4 SDRAM 5400 (OC) / 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules
* Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Multi GPU: AMD Quad-GPU CrossFire ™ and 2-Way AMD CrossFire ™ technologies

Zvuková karta:
* Realtek® ALC1220-VB codec

Sieťová karta:
* Intel® 2.5GbE LAN chip (2.5 Gbit / 1000 Mbit / 100 Mbit) (LAN1)
* Realtek® 2.5GbE LAN chip (2.5 Gbit / 1000 Mbit / 100 Mbit) (LAN2)
* Intel® Wi-Fi 6 AX200
* Bluetooth 5

Rozširujúce sloty:
* 1x PCI Express x16 slot (PCIex16)
* 1x PCI Express x16 slot (PCIEX8)
* 1x PCI Express x16 slot (PCIEX4)

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s

M.2:
* 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110
* 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110

USB:
* Zadné USB porty (celkom 9)
* 3x USB 3.2 Gen 1 ports
* 2x USB 3.2 Gen 2 Type-A port
* 2x USB Type-C ™ ports
* 2x USB 2.0 / 1.1 ports
* Predné USB porty (celkom 7)
* 1x USB Type-C ™ port with USB 3.2 Gen 1
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x CPU fan header
* 1x water cooling CPU fan header
* 4x system fan headers
* 2x system fan / water cooling pump headers
* 2x addressable LED strip headers
* 2x RGB LED strip headers
* 1x CPU chladič LED strip / RGB LED strip header
* 2x M.2 Socket 3 connectors
* 4x SATA 6Gb / s connectors
* 1x SATA DOM power connector
* 1x front panel header
* 1x front panel audio header
* 1x USB Type-C ™ port, with USB 3.2 Gen 1 support
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0 / 1.1 headers
* 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
* 1x serial port header
* 1x Clear CMOS jumper
* 2x temperature sensor headers
* 1x Q-Flash Plus button

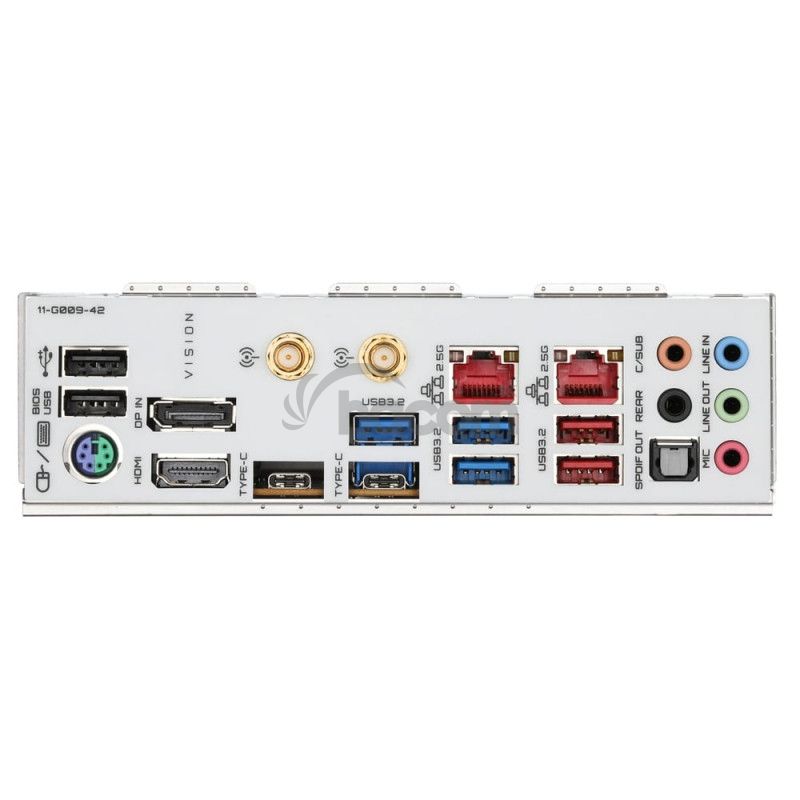

Externé porty:
* 1x PS / 2 keyboard / mouse port
* 1x DisplayPort In port
* 1x HDMI port
* 2x SMA anténa connectors (2T2R)
* 2x USB 3.2 Gen 2 Type-A ports (red)
* 2x Thunderbolt ™ 3 connectors (USB Type-C ™ port, with USB 3.2 Gen 2 support)
* 3x USB 3.2 Gen 1 ports
* 2x USB 2.0 / 1.1 ports
* 2x RJ-45 ports
* 1x optical S / PDIF Out connector
* 5x audio jacks

BIOS: 256 Mb AMI UEFI BIOS PnP 1.0a, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobca: https://www.gigabyte.com/Motherboard/B550-VISION-DP-rev-10
