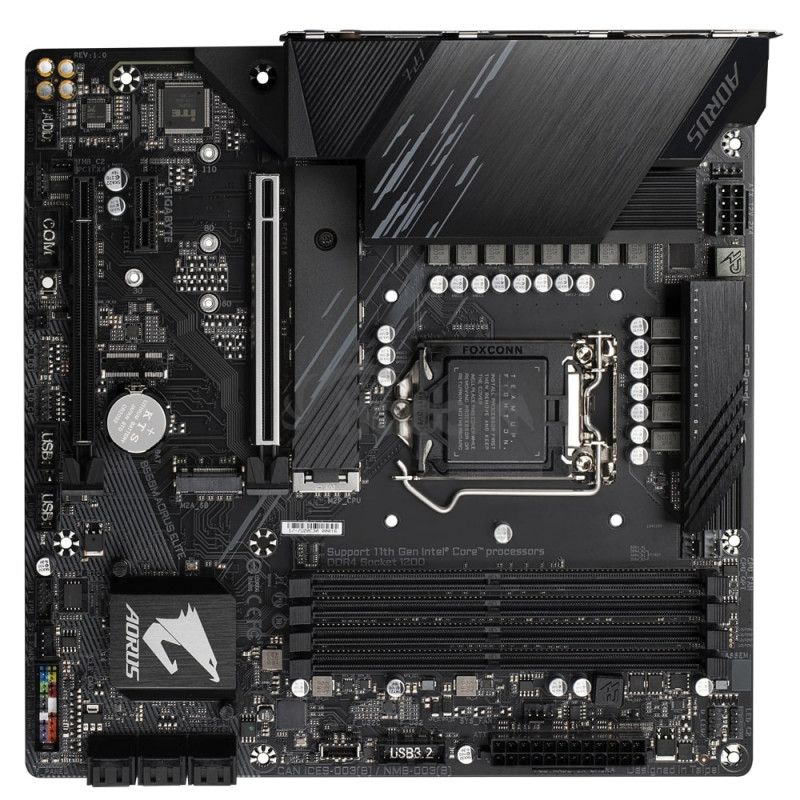

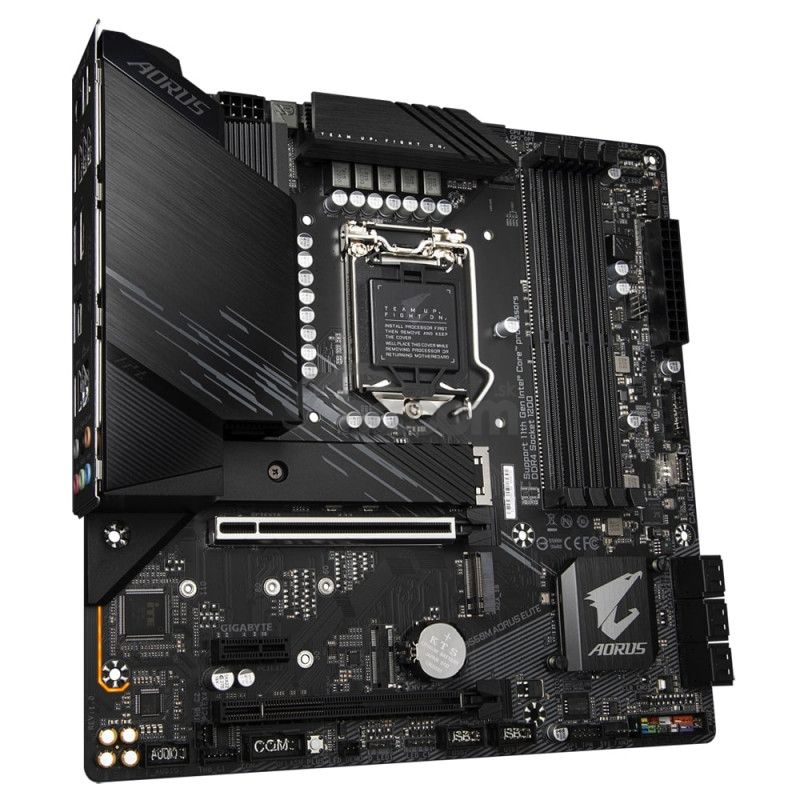

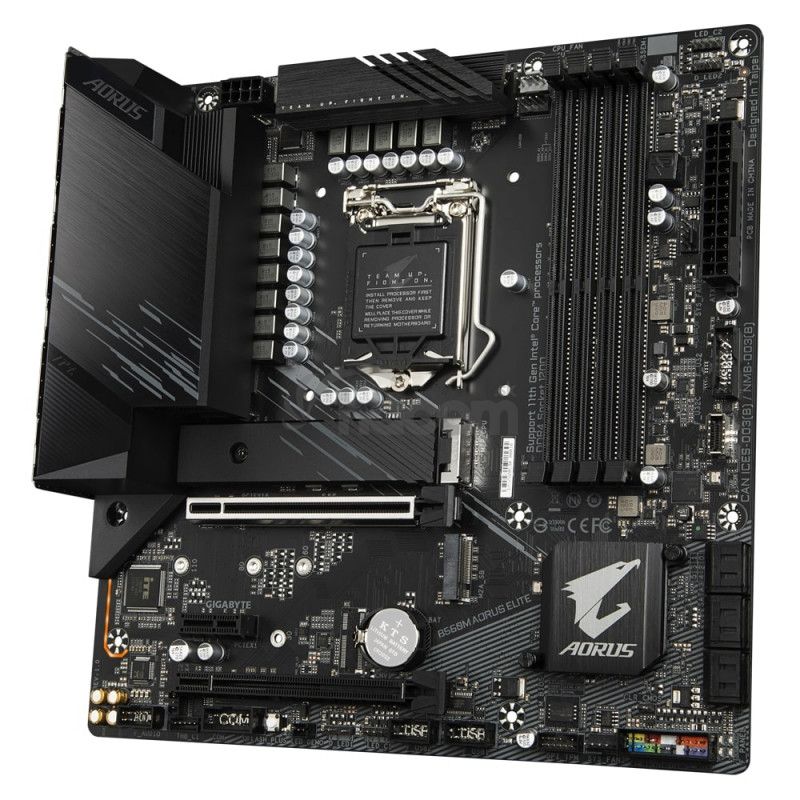

GIGABYTE B560 AORUS ELITE B560M AORUS ELITE

GIGABYTE B560 AORUS ELITE B560M AORUS ELITE

Chipset: Intel® B560 Express Chipset

Rozmerový formát: Micro ATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: 11th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors + 10th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors / Intel® Core ™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 11th Generation Intel® Core ™ i9 / i7 / i5 processors:
* Support for DDR4 SDRAM 5333 (OC) / DDR4 SDRAM 5133 (OC) / DDR4 SDRAM 5000 (OC) / 4933 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3666 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz memory modules
* 10th Generation Intel® Core ™ i9 / i7 processors
* Support for DDR4 SDRAM 2933/2666/2400/2133 MHz memory modules
* 10th Generation Intel® Core ™ i5 / i3 / Pentium® / Celeron® processors:
* Support for DDR4 SDRAM 2666/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dvojkanálová architektúra pamäte
* Podpora pamäťových modulov ECC Un-buffered DIMM 1Rx8 / 2Rx8 (pracuje ako non-ECC mode)
* Podpora pamäťových modulov non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
* Podpora pamäťových modulov s XMP profilom (Extreme Memory Profile)

Grafická karta: Integrovaná v závislosti na CPU

Multi-GPU:
* AMD Quad-GPU CrossFire ™
* 2-Way AMD CrossFire ™

Zvuková karta:
* Realtek® Audio codec

Sieťová karta:
* LAN Realtek® 2.5GbE LAN (2.5 Gbit / 1 Gbit / 100 Mbit)

Rozširujúce sloty:
* 1x PCI Express x16 slot, running at x16 (PCIex16)
* 1x PCI Express x16 slot, running at x4 (PCIEX4)
* 1x PCI Express x1 slot

SATA:
* 6x konektor SATA 6 Gb / s

M.2:
* 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4 / x2 SSD support) (M2P_CPU)
* 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4 / x2 SSD support) (M2A_SB)

USB:
* Zadné USB porty (celkom 10)
* 1x USB 3.2 Gen2 Type-C® port
* 1x USB 3.2 Gen2 Type-A ports (red)
* 2x USB 3.2 Gen1 + ports
* 6x USB 2.0 / 1.1 ports
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen1 + Type-C® port
* 2x USB 3.2 Gen1 + ports
* 4x USB 2.0 / 1.1 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x CPU fan header
* 1x water cooling CPU fan header
* 3x system fan headers
* 2x addressable LED strip headers
* 2x RGB LED strip headers
* 6x SATA 6Gb / s connectors
* 2x M.2 Socket 3 connectors
* 1x front panel header
* 1x front panel audio header
* 1x USB Type-C® header, with USB 3.2 Gen 1 support
* 1x USB 3.2 Gen 1 header
* 2x USB 2.0 / 1.1 headers
* 2x Thunderbolt ™ add-in card connectors
* 1x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
* 1x serial port header
* 1x Clear CMOS jumper
* 1x Q-Flash Plus button

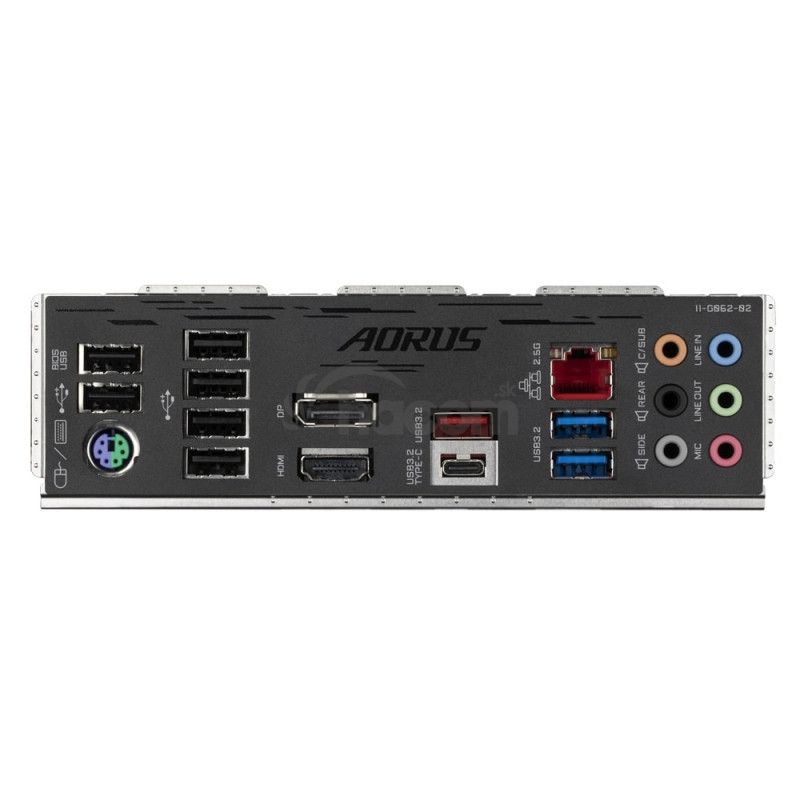

Externé porty:
* 1x PS / 2 keyboard / mouse port
* 1x USB Type-C® port, with USB 3.2 Gen2 support
* 1x USB 3.2 Gen2 Type-A port (red)
* 2x USB 3.2 Gen1 + ports
* 6x USB 2.0 / 1.1 ports
* 1x DisplayPort
* 1x HDMI port
* 1x RJ-45 port
* 6x audio jacks

BIOS: 1x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobca: https://www.gigabyte.com/Motherboard/B560M-AORUS-ELITE-rev-10
