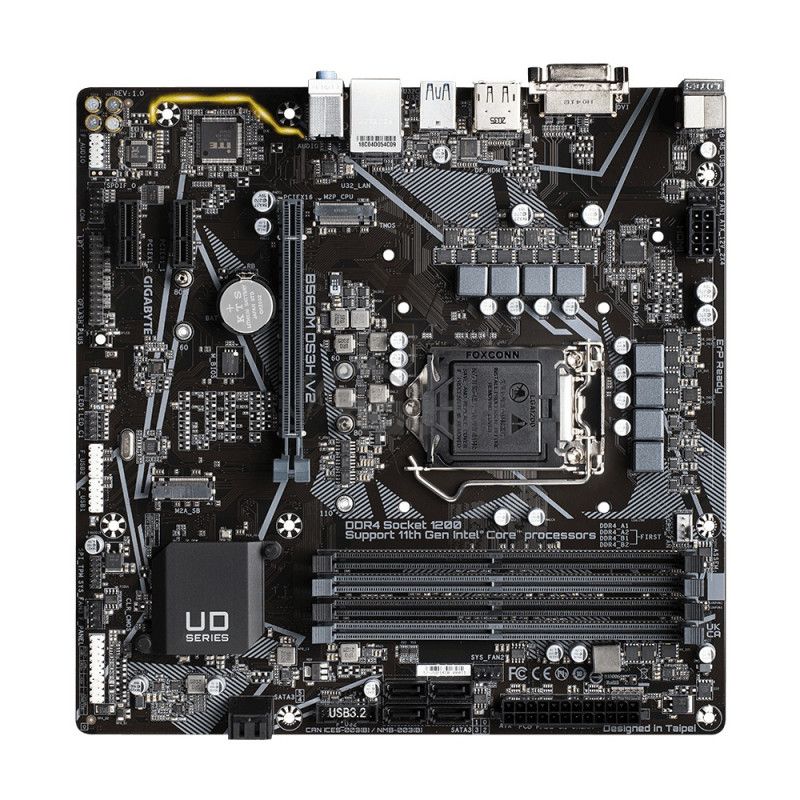

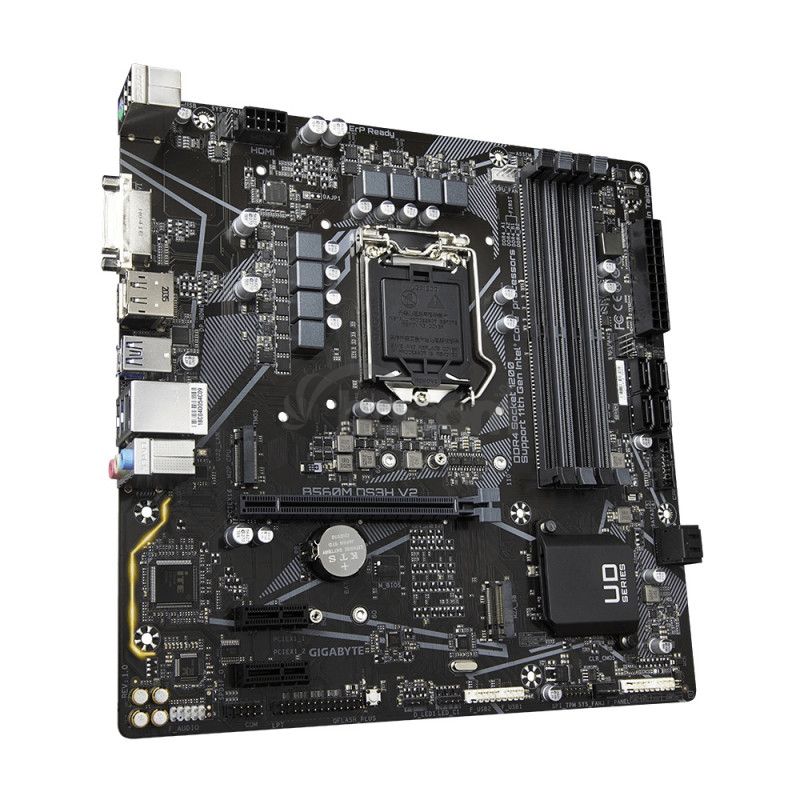

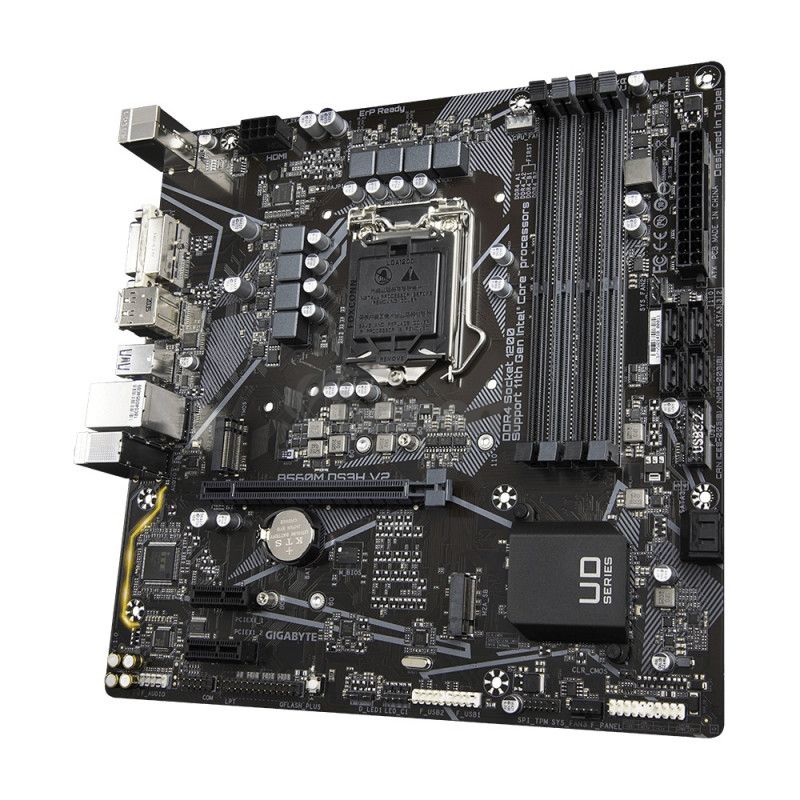

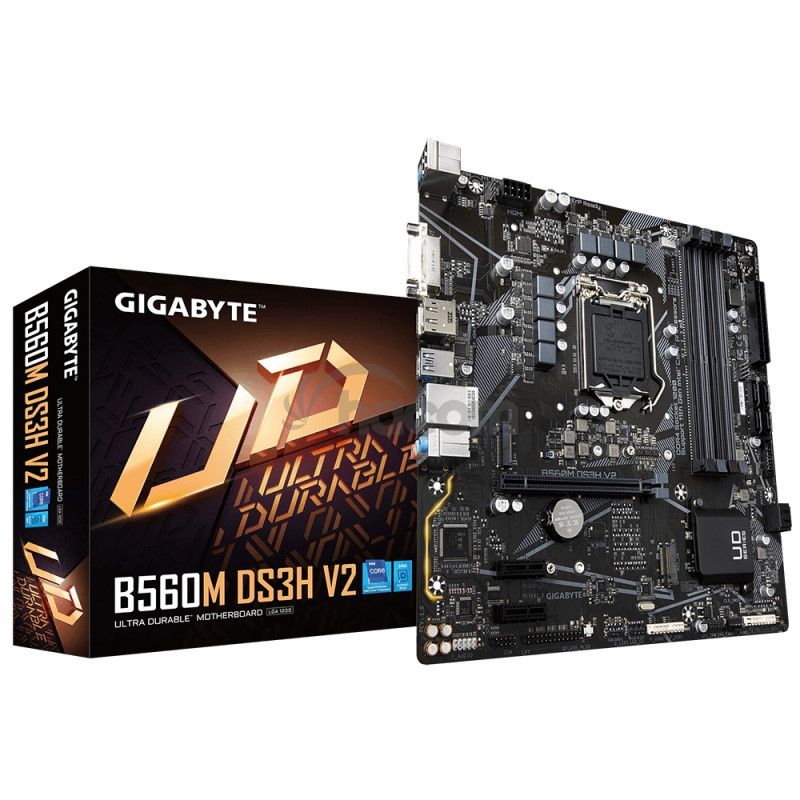

GIGABYTE B560M DS3H V2 B560M DS3H V2

GIGABYTE B560M DS3H V2 B560M DS3H V2

Chipset: Intel B560 Express Chipset

Rozmerový formát: Micro ATX Form Factor (24.4cm x 24.4cm)
Podpora pre procesory:
*11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
*10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors
*L3 cache varies with CPU
Pätica procesora: LGA1200

Pozícia na pamäti: 4 x DDR4 DIMM sockets
Podpora pre pamäte:
11th Generation Intel Core i9/i7/i5 processors:
*Support for DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
*Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
*Support for DDR4 2666/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu:
*Dual channel memory architecture
*Support pre ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Support for Extreme Memory Profile (XMP) memory modules

Grafická karta:
*Integrated Graphics Processor-Intel HD Graphics

Zvuková karta:
*Realtek Audio CODEC

Sieťová karta:
*Realtek GbE LAN chip (1 Gbps/100 Mbps)

Rozširujúce sloty:
*1 x PCI Express x16 slot, bežiaci na x16
*2 x PCI Express x1 slots

RAID radič: nie

SATA:
*6 x SATA 6Gb/s konektory

M.2:
*1 x M.2 konektor (Socket 3, M key, typ 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
*1 x M.2 konektor (Socket 3, M kľúč, typ 2260/2280 SATA a PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

USB:
* zadné USB porty ( celkom 6 )
*1 x port USB typu C s USB 3.2 Gen 1 support
*3 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports
* predné USB porty ( celkom 6 )
*2 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports

Interné porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x CPU fan header
*3 x system fan headers
*1 x addressable LED strip header
*1 x RGB LED strip header
*6 x SATA 6Gb/s konektory
*2 x M.2 Socket 3 konektory
*1 x front panel header
*1 x front panel audio header
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Module pre hlavu (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x serial port header
*1 x parallel port header
*1 x Clear CMOS jumper
*1 x Q-Flash Plus button

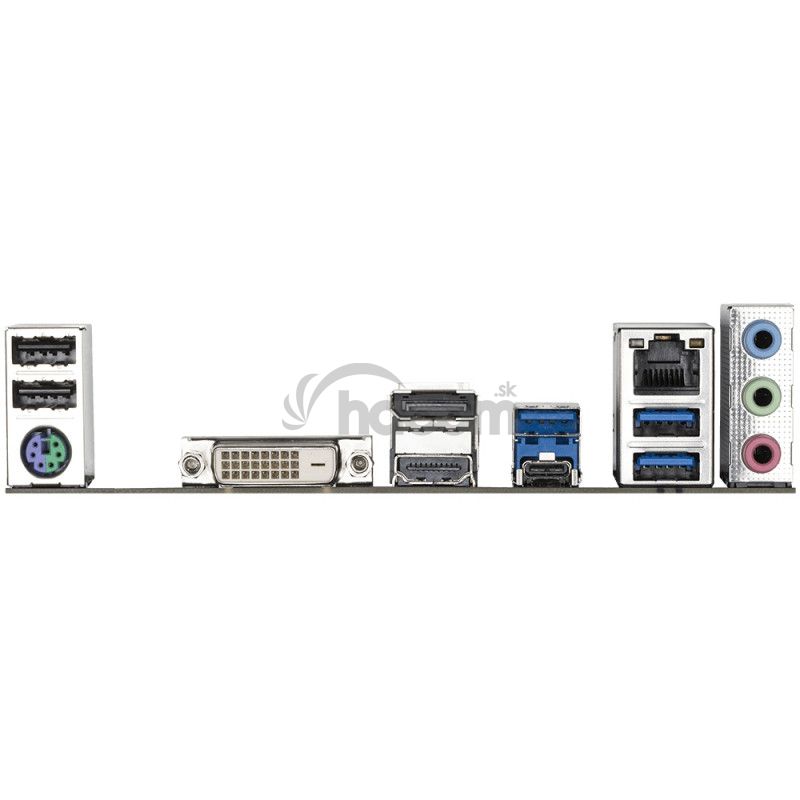

Externé porty:
*2 x USB 2.0/1.1 ports
*1 x PS/2 keyboard/mouse port
*1 x DVI-D port
*1 x DisplayPort
*1 x HDMI port
*3 x USB 3.2 Gen 1 ports
*1 port USB typu C, s USB 3.2 Gen 1 support
*1 x RJ-45 port
*3 x audio jacks

BIOS:
*1 x 256 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobcu: https://www.gigabyte.com/Motherboard/B560M-DS3H-V2-rev-10/sp#sp
