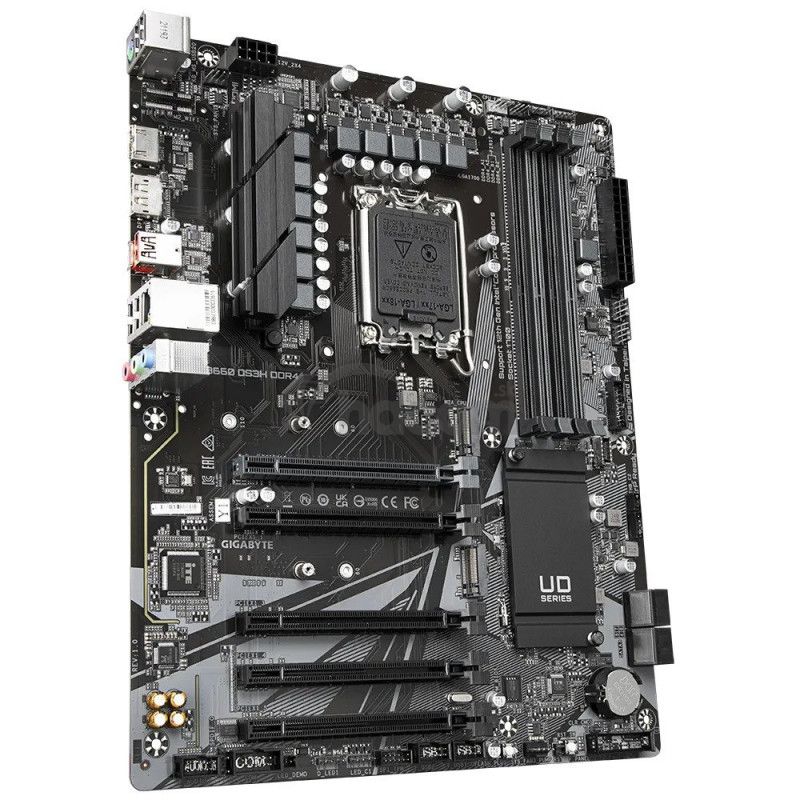

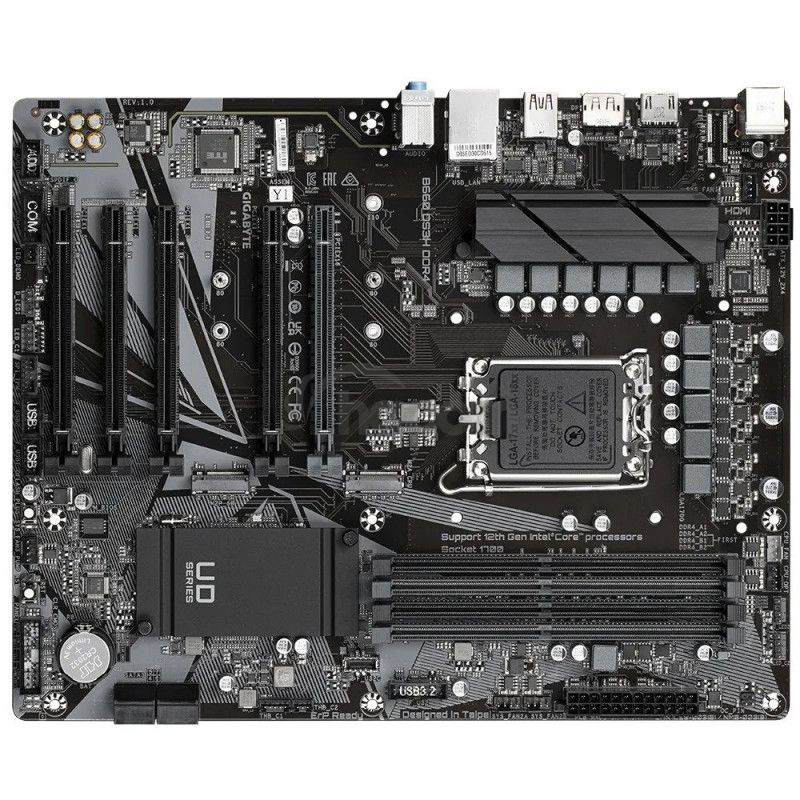

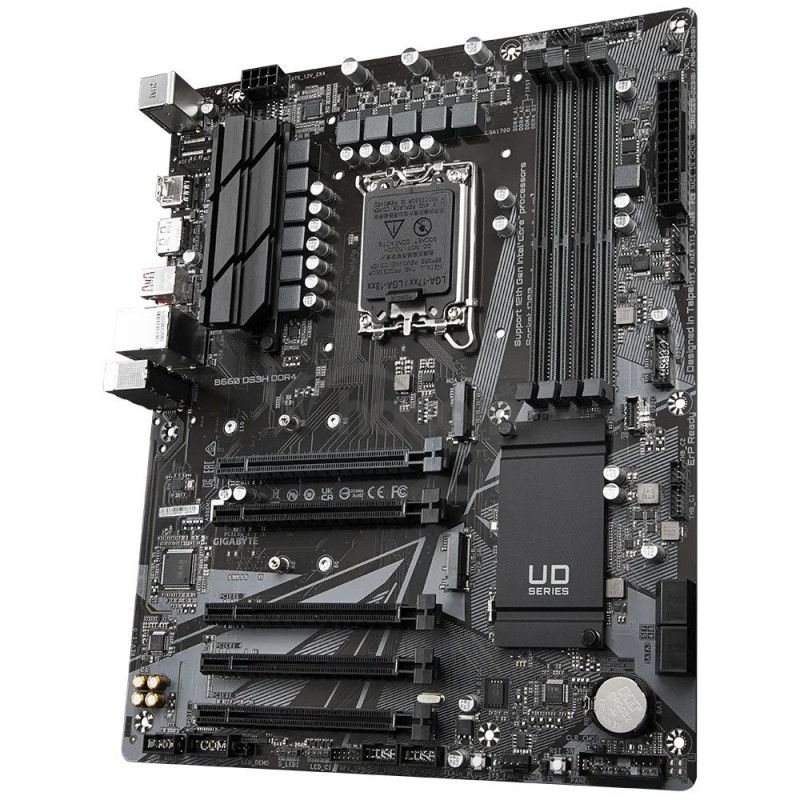

GIGABYTE B660 DS3H DDR4/LGA 1700/ATX B660 DS3H DDR4

GIGABYTE B660 DS3H DDR4/LGA 1700/ATX B660 DS3H DDR4

Chipset: Intel B660 Express Chipset

Rozmerový formát: ATX (30.5cm x 24.4cm)
Podpora pre procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 4 x DDR DIMM, Dual channel memory architecture
Podpora pre pamäte: DDR4 5333(OC)/ DDR4 5133(OC)/DDR4 5000(OC)/4933(OC)/4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC) )/ 4300(OC)/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) ) / 3400(OC) / 3333(OC) / 3300(OC) / 3200/3000/2933/2666/2400/2133 MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: ECC, XMP

Grafická karta: (Intel HD Graphics)
*1 x HDMI 2.1 port - 4096x2160@60 Hz
*1 x DisplayPort 1.2 - 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC
*2/4/5.1/7.1-channel
*Podpora S/PDIF Out

Sieťová karta: Realtek GbE LAN chip (1 Gbps/100 Mbps)

Rozširujúce sloty:
*1 x PCI Express x16 slot, bežiaci na x16 (PCI Express 4.0 štandard)
*4 x PCI Express x16 slots, running at x1 (PCI Express 3.0 štandard)

RAID radič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 4 x SATA 6Gb/s konektory

M.2: 2 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x Type-C header USB s USB 3.2 Gen 1 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
* Externé:
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 2 Type-A port (red)
*4 x USB 2.0/1.1 ports


Interné porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x CPU fan header
*1 x water cooling CPU fan header
*3 x system fan headers
*1 x systém ventilátora/water cooling pump header
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*2 x M.2 Socket 3 konektory
*4 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x Type-C header USB s USB 3.2 Gen 1 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*2 x Thunderbolt add-in card connectors
*1 x Trusted Platform Moduly hlavice (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x serial port header
*1 x Q-Flash Plus button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper

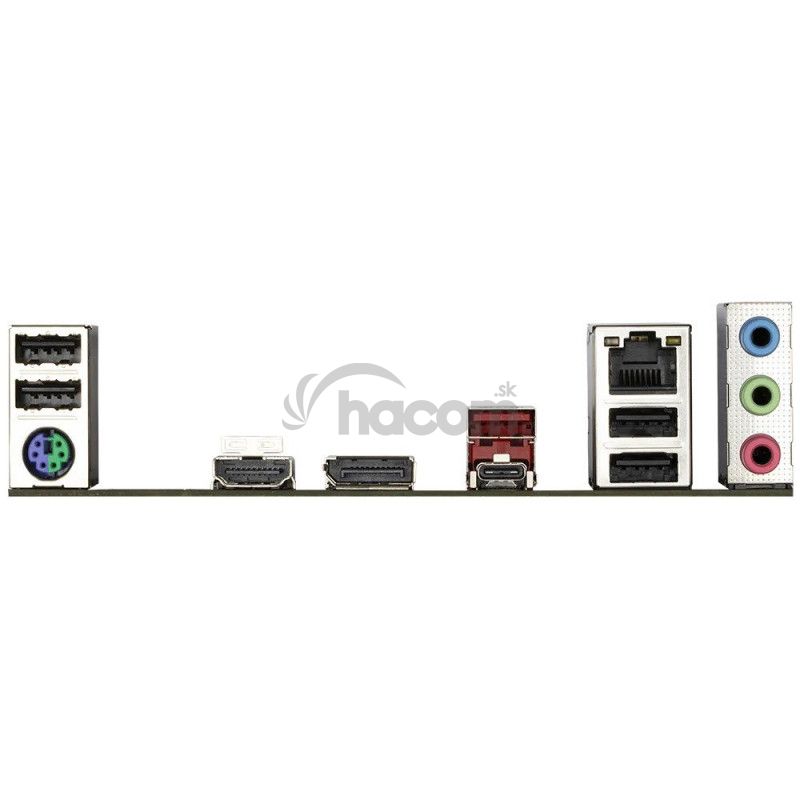

Externé porty:
*1 x PS/2 keyboard/mouse port
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 2 Type-A port (red)
*4 x USB 2.0/1.1 ports
*1 x HDMI port
*1 x DisplayPort
*1 x RJ-45 port
*3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/B660-DS3H-DDR4-rev-10#kf
