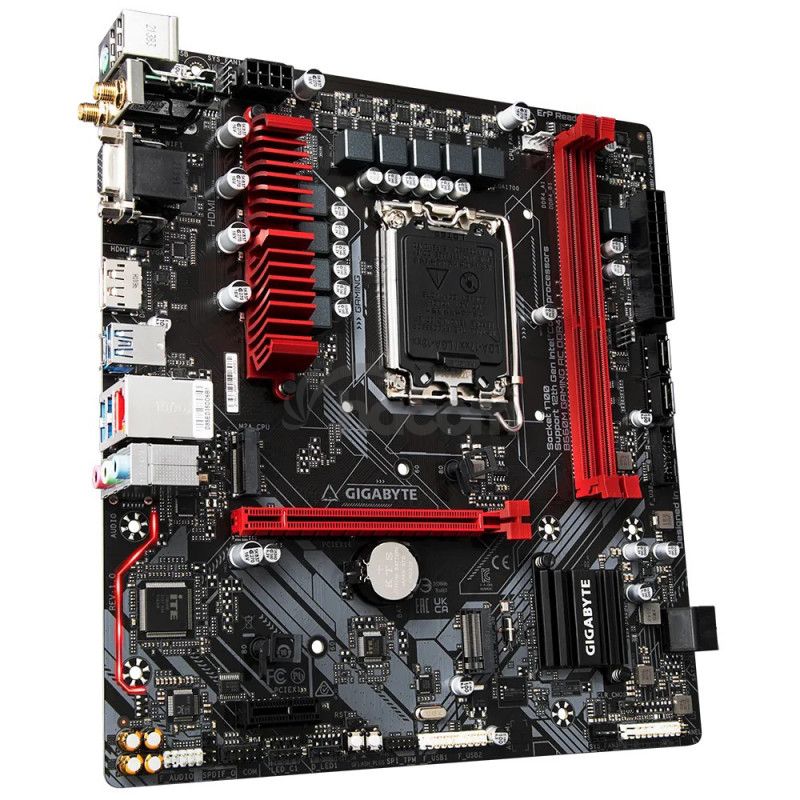

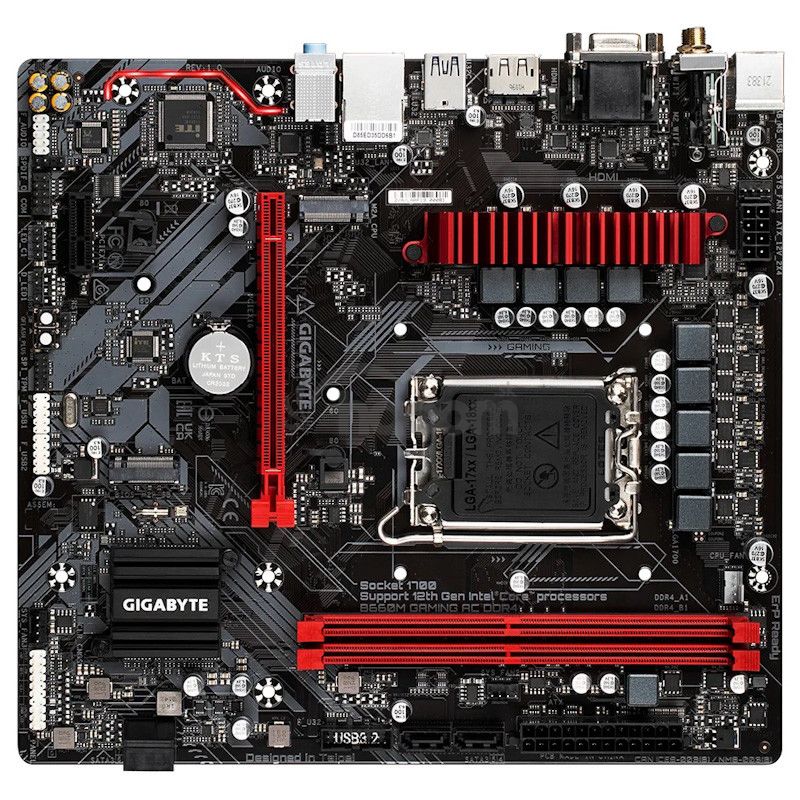

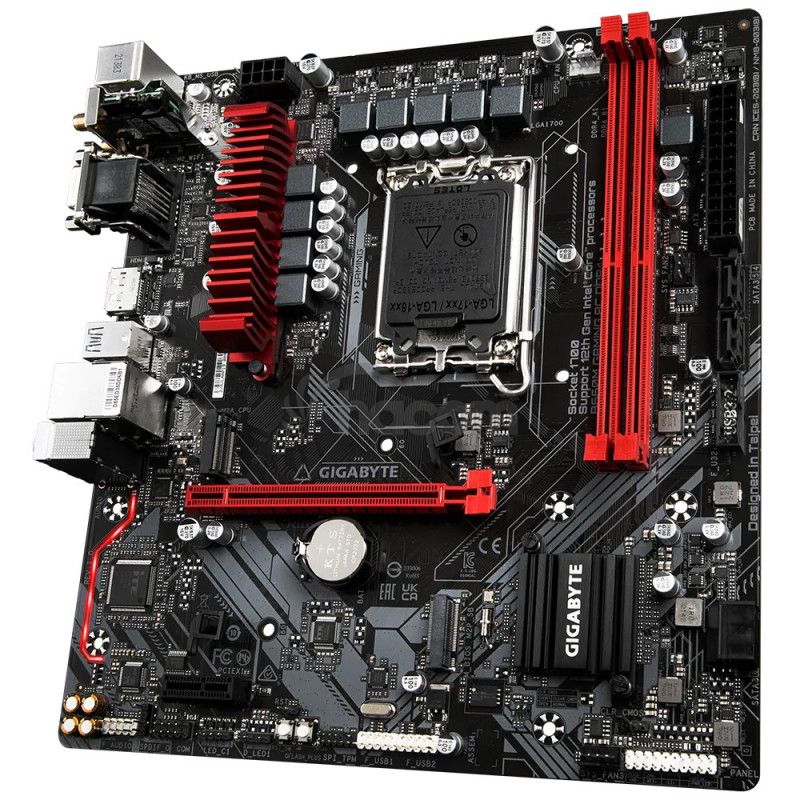

GIGABYTE B660 GAMING AC DDR4 B660M GAMING AC DDR4

GIGABYTE B660 GAMING AC DDR4 B660M GAMING AC DDR4

Chipset: Intel B660 Express Chipset

Rozmerový formát: Micro ATX Form Factor; (24.4cm x 22.5cm)
Podpora pre procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 2 x DDR4 DIMM sockets, Dual channel memory architecture
Podpora pre pamäte: DDR4 5333(OC)/ DDR4 5133(OC)/DDR4 5000(OC)/4933(OC)/4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC) )/ 4300(OC)/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) ) / 3400(OC) / 3333(OC) / 3300(OC) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 64 GB (32 GB single DIMM capacity)
Podpora pre pamäte typu: ECC, non-ECC, XMP

Grafická karta: (Intel HD Graphics)
*1 x D-Sub port, maximálne rozlíšenie 1920x1200 @ 60 Hz
*1 x HDMI 2.1 port, maximálne rozlíšenie 4096x2160@60 Hz
*1 x DisplayPort 1.2, maximálne rozlíšenie 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC
*2/4/5.1/7.1-channel

Sieťová karta:
*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*WIFI 802.11a/b/g/n/ac
*Bluetooth 4.2

Rozširujúce sloty:
*1 x PCI Express x16 slot, bežiaci na x16
*1 x PCI Express x1 slot

RAID radič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 4 x SATA 6Gb/s konektory
M.2: 2 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
* Externé:
*2 x USB 2.0/1.1 ports
*3 x USB 3.2 Gen 1 ports
*1 port USB typu C, s USB 3.2 Gen 1 support


Interné porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x CPU fan header
*3 x system fan headers
*1 x addressable LED strip header
*1 x RGB LED strip header
*2 x M.2 Socket 3 konektory
*4 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Moduly hlavice (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x serial port header
*1 x S/PDIF Out header
*1 x Q-Flash Plus button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper

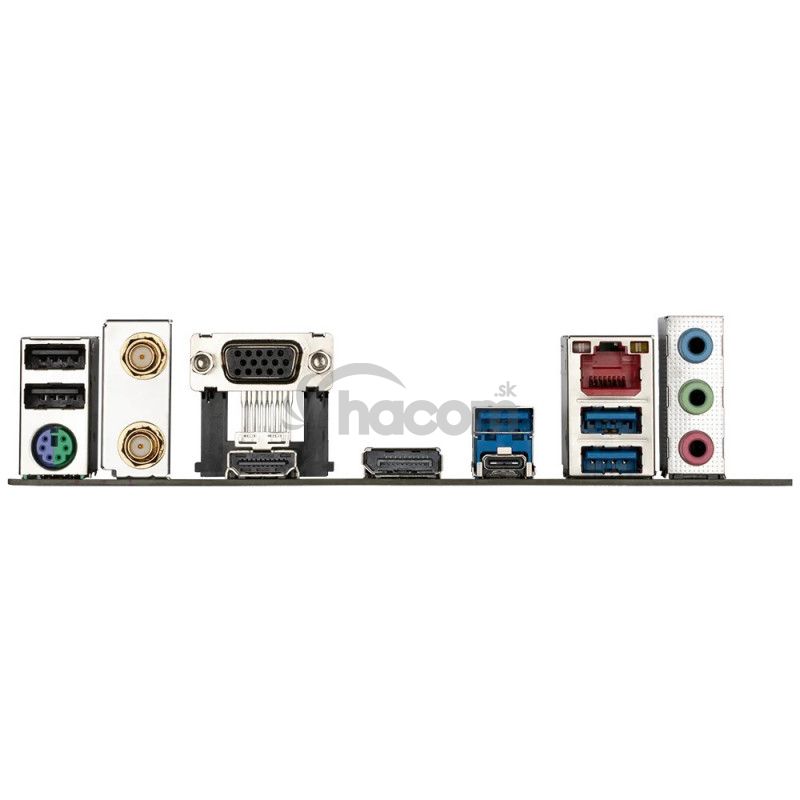

Externé porty:
*1 x PS/2 keyboard/mouse port
*2 x SMA antenna connectors (1T1R)
*1 x D-Sub port
*1 x HDMI port
*1 x DisplayPort
*2 x USB 2.0/1.1 ports
*3 x USB 3.2 Gen 1 ports
*1 port USB typu C, s USB 3.2 Gen 1 support
*1 x RJ-45 port
*3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/B660M-GAMING-AC-DDR4-rev-1x#kf
