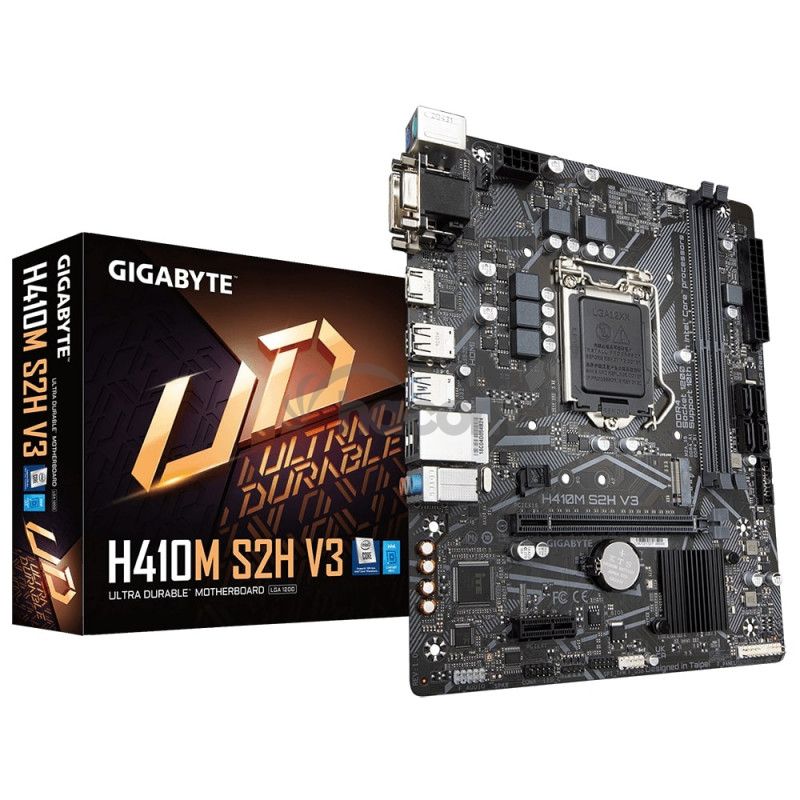

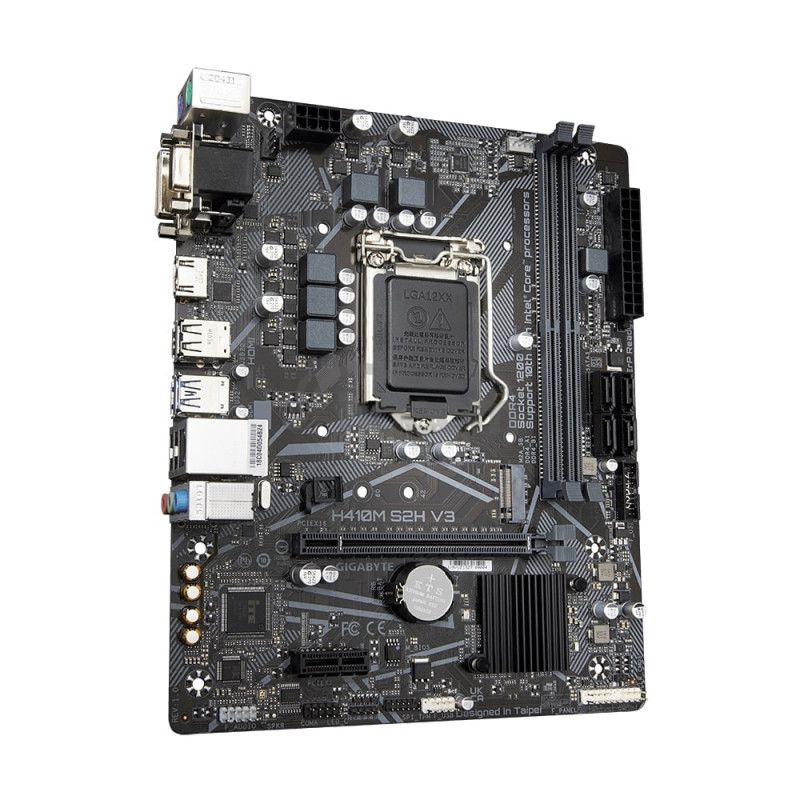

GIGABYTE H410 S2H V3 H410M S2H V3

GIGABYTE H410 S2H V3 H410M S2H V3

Chipset: Intel® H510

Rozmerový formát: Micro ATX Form Factor (226 mm x 185 mm)
Podpora pre procesory: Support for 10th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors / Intel® Core ™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1200 package
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* Intel® Core ™ i9 / i7 processors: DDR4 SDRAM 2933/2666/2400/2133 MHz memory modules
* Intel® Core ™ i5 / i3 / Pentium® / Celeron® processors: DDR4 SDRAM 2666/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules (operate in non-ECC mode)
* Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
* Extreme Memory Profile (XMP) memory modules

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek® Audio CODEC

Sieťová karta:
* Gigabit Ethernet Chip (1 Gbps / 100 Mbps)

Rozširujúce sloty:
* 1x PCI Express x16 slot, running at x16
* 1x PCI Express x1 slot

RAID radič: Nie je

SATA:
* 4x SATA 6Gb / s

M.2:
* 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4 / x2 SSD support)

USB:
* Zadné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports
* Predné USB porty (spolu 4)
* 2x USB 3.2 Gen 1 ports
* 2x USB 2.0 / 1.1 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 4x SATA 6Gb / s connectors
* 1x CPU fan header
* 1x system fan header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x USB 3.2 Gen 1 header
* 1x USB 2.0 / 1.1 header
* 1x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
* 1x serial port header
* 1x Clear CMOS jumper

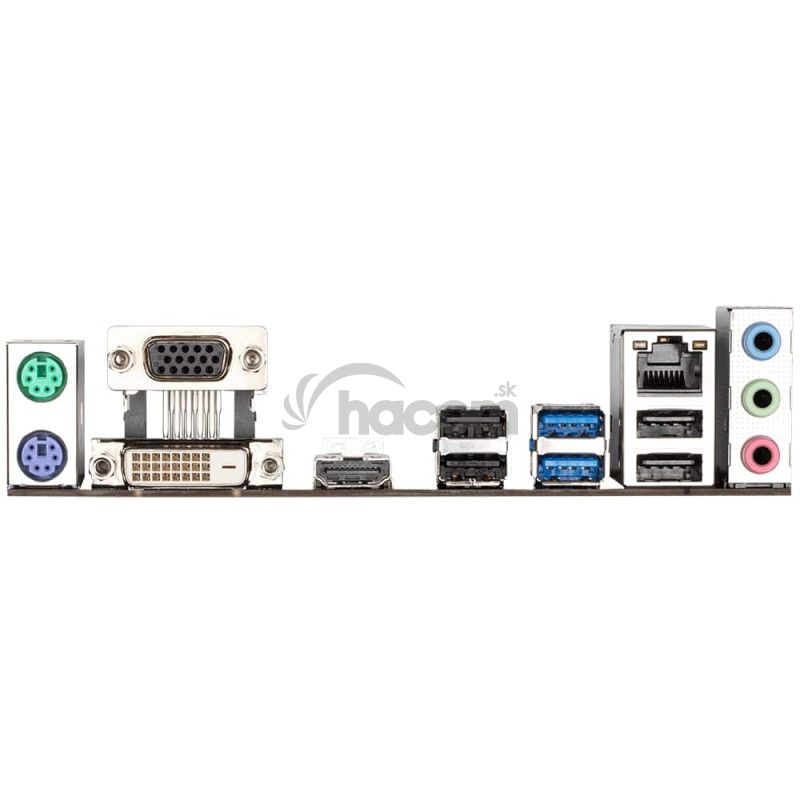

Externé porty:
* 1x PS / 2 keyboard port
* 1x PS / 2 mouse port
* 1x D-Sub port
* 1x DVI-D port
* 1x HDMI port
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports
* 1x RJ-45 port
* 3x audio jacks

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobca: https://www.gigabyte.com/Motherboard/H410M-S2H-V3-rev-10#
