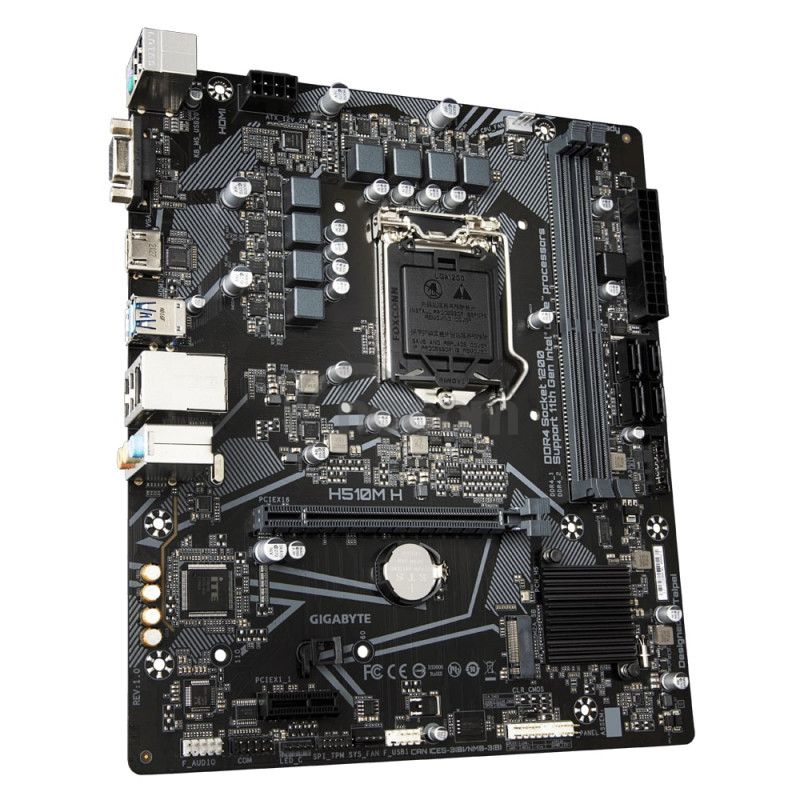

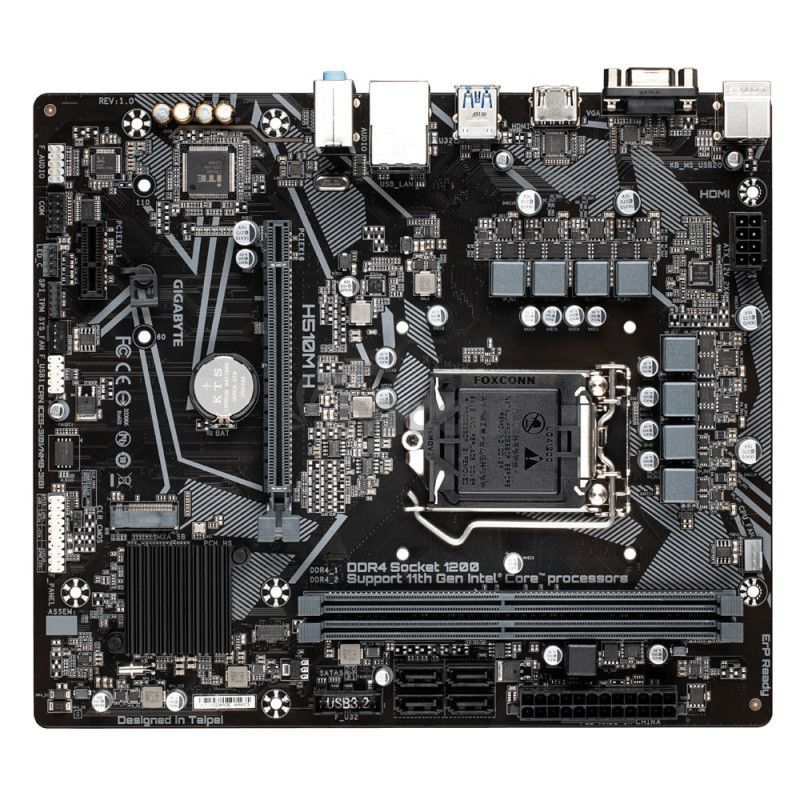

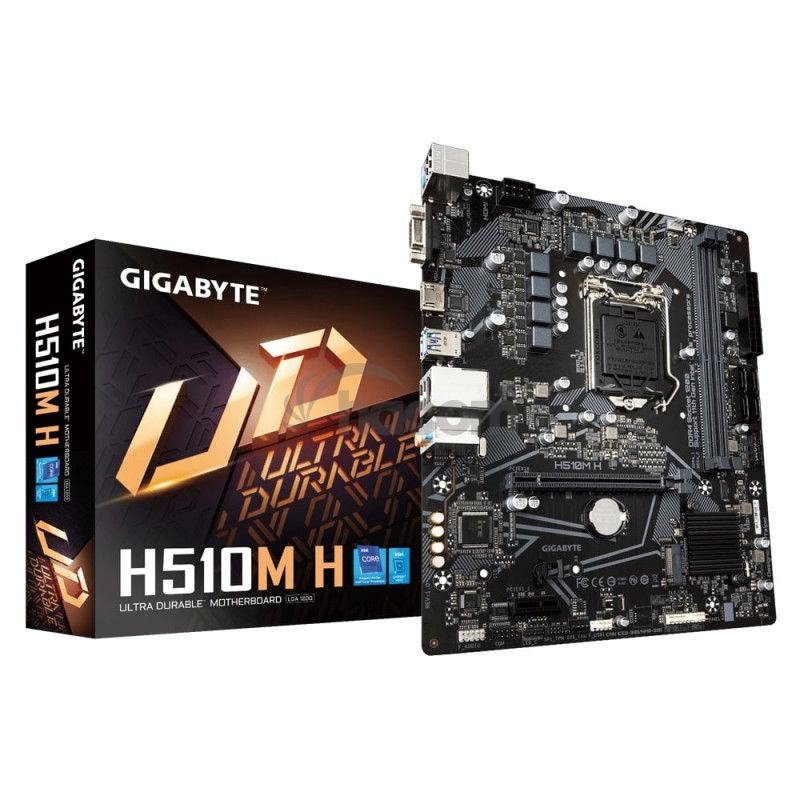

GIGABYTE H510 H H510M H

GIGABYTE H510 H H510M H

Chipset: Intel® H510 Express Chipset

Rozmerový formát: Micro ATX Form Factor (244 mm x 210 mm)
Podpora pre procesory: 11th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors + 10th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors / Intel® Core ™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 11th Generation Intel® Core ™ i9 / i7 / i5 processors:
* Support for DDR4 SDRAM 3200/3000/2933/2666/2400/2133 MHz memory modules
* 10th Generation Intel® Core ™ i9 / i7 processors:
* Support for DDR4 SDRAM 2933/2666/2400/2133 MHz memory modules
* 10th Generation Intel® Core ™ i5 / i3 / Pentium® / Celeron® processors:
* Support for DDR4 SDRAM 2666/2400/2133 MHz memory modules
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dvojkanálová architektúra pamäte
* Podpora pamäťových modulov ECC Un-buffered DIMM 1Rx8 / 2Rx8 (pracuje ako non-ECC mode)
* Podpora pamäťových modulov non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
* Podpora pamäťových modulov s XMP profilom (Extreme Memory Profile)

Grafická karta: Integrovaná v závislosti na CPU

Zvuková karta:
* Realtek® Audio CODEC

Sieťová karta:
* Realtek® GbE LAN chip (1 Gbit / 100 Mbit)

Rozširujúce sloty:
* 1x PCI Express x16 slot, running at x16 (PCIex16)
* 1x PCI Express x1 slot (PCIEX1_1)

SATA:
* 4x konektor SATA 6 Gb / s

M.2:
* 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4 / x2 SSD support)

USB:
* Zadné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports
* Predné USB porty (spolu 4)
* 2x USB 3.2 Gen 1 ports
* 2x USB 2.0 / 1.1 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x CPU fan header
* 1x system fan header
* 1x RGB LED strip header
* 1x M.2 Socket 3 connector
* 4x SATA 6Gb / s connectors
* 1x front panel header
* 1x front panel audio header
* 1x USB 3.2 Gen 1 header
* 1x USB 2.0 / 1.1 header
* 1x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
* 1x serial port header
* 1x Clear CMOS jumper

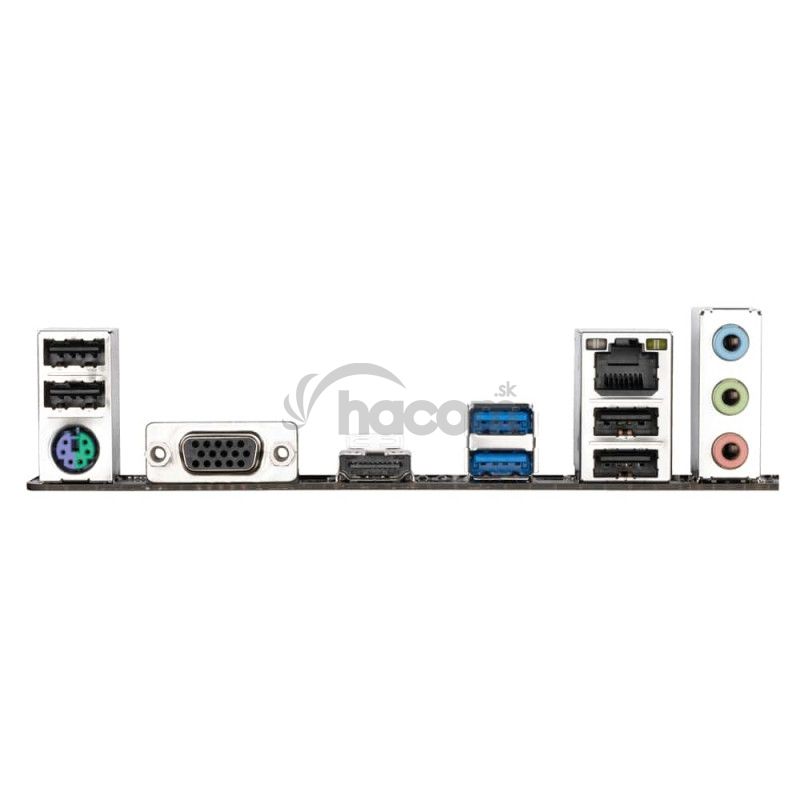

Externé porty:
* 1x PS / 2 keyboard / mouse port
* 1x D-Sub port
* 1x HDMI port
* 2x USB 3.2 Gen 1 ports
* 4x USB 2.0 / 1.1 ports
* 1x RJ-45 port
* 3x audio jacks

BIOS: 1x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0
