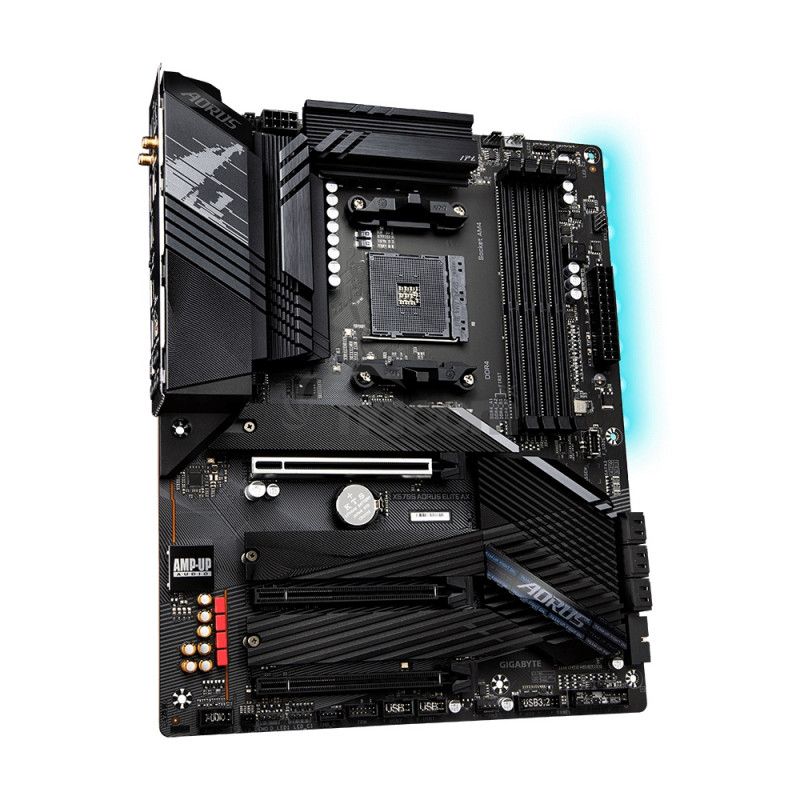

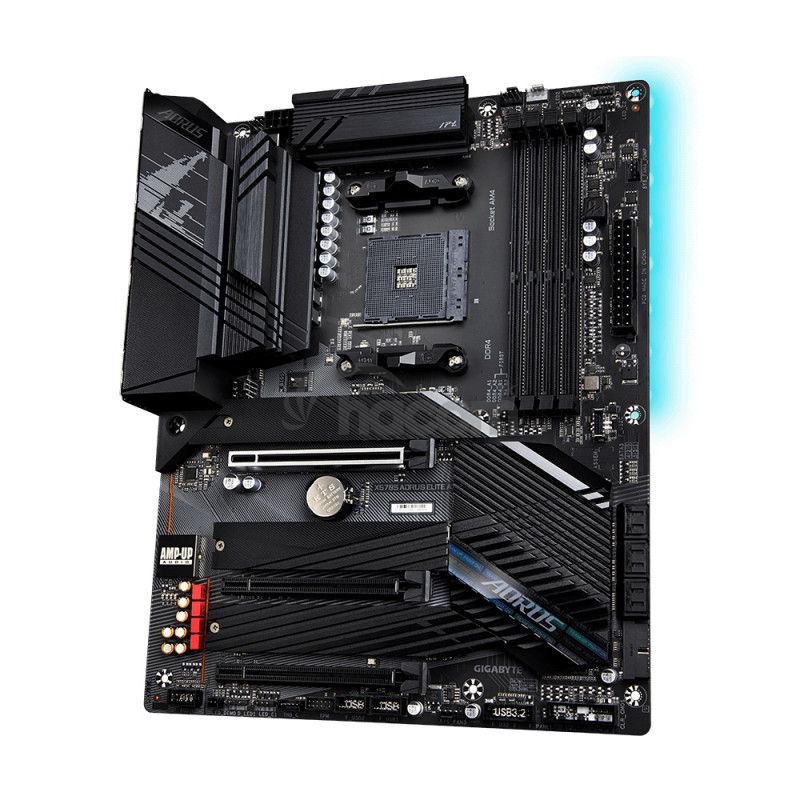

GIGABYTE X570S AORUS ELITE AX (rev. 1.0) X570S AORUS ELITE AX

GIGABYTE X570S AORUS ELITE AX (rev. 1.0) X570S AORUS ELITE AX

Chipset: AMD X570

Rozmerový formát: ATX Form Factor (305 x 244 mm)
Podpora pre procesory: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000
Pätica procesora: AMD Socket AM4

Pozícia na pamäti: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Podpora pre pamäte:
*DDR4 3200(OC)/2933(OC)/2667*/2400/2133 MHz memory modules
Max. veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4
*Dual channel memory architecture
*Support for DDR4 5400(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000 (OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz memory modules
*Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (ECC mode) support varies by CPU)
*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Support for Extreme Memory Profile (XMP) memory modules

Grafická karta: Integrated Graphics Processor (na základe procesora)
*1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and HDR)

Zvuková karta:
*Realtek ALC1220-VB kódec

Sieťová karta:
*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*AMD Wi-Fi 6E RZ608 (MT7921K) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands + BLUETOOTH 5.2 (Support for 11ax 80MHz Wireless standard and up to up rate)

Rozširujúce sloty:
*1x PCI Express x16 slot (PCIEX16), integrovaný v CPU
*1x PCI Express x16 slot (PCIEX4), integrated in the Chipset
*1x PCI Express x16 slot (PCIEX2), integrovaný in the Chipset

RAID radič: 0, 1, 10

SATA:
*6x SATA 6Gb/s konektory

M.2:
*1x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2260/2280/22110 SSDs
*2x M.2 konektory (M2B_SB/M2C_SB), integrované v chipsete, podporujúce Socket 3, M kľúč, typ 2260/2280/22110 SSDs

USB:
* zadné USB porty ( celkom 12 )
*4x USB 3.2 Gen 1 ports
*1x USB Type-C port (USB 3.2 Gen 2x2)
*3x USB 3.2 Gen 2 Type-A ports
*4x USB 2.0/1.1 ports
* predné USB porty ( celkom 9 )
*1x USB Type-C port (USB 3.2 Gen 2)
*4x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports

Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x CPU fan header
*1x water cooling CPU fan header
*3x system fan headers
*1x system fan/water cooling pump header
*2x addressable LED strip headers
*2x RGB LED strip headers
*1x CPU cooler LED strip/RGB LED strip header
*3x M.2 Socket 3 konektory
*6x SATA 6Gb/s konektory
*1x front panel header
*1x front panel audio header
*1x USB Type-C header, with USB 3.2 Gen 2 support
*2x USB 3.2 Gen 1 headers
*2x USB 2.0/1.1 headers
*1x Trusted Platform Module (TPM) header (2x6 pin, pre modul GC-TPM2.0_S only)
*1x Thunderbolt add-in card connector
*1x Clear CMOS jumper

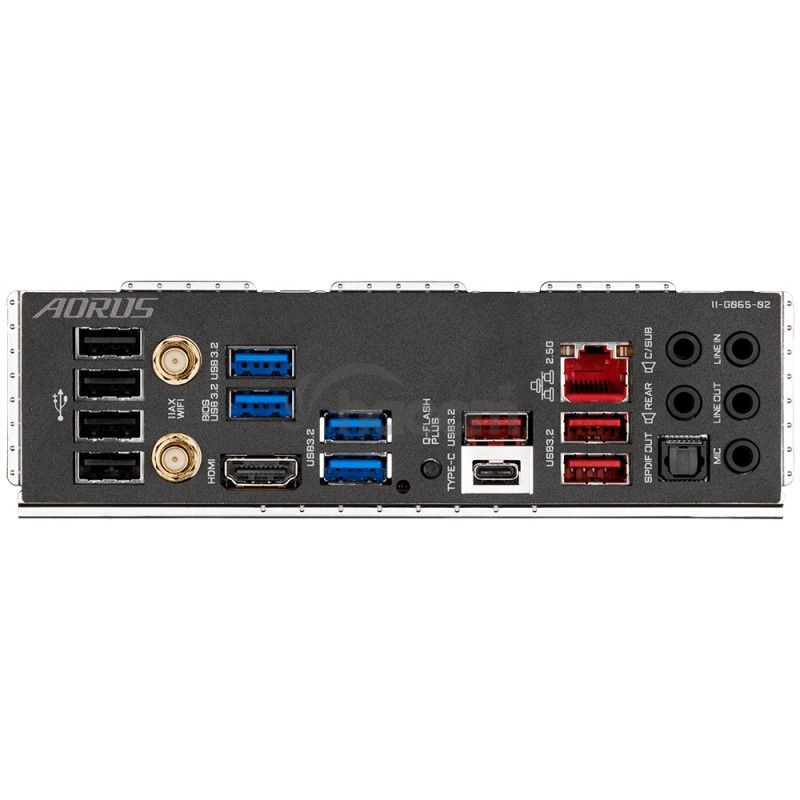

Externé porty:
*4x USB 2.0/1.1 ports
*2x SMA antenna connectors (2T2R)
*1x HDMI port
*4x USB 3.2 Gen 1 ports
*1x Q-Flash Plus button
*1x USB Type-C port, with USB 3.2 Gen 2x2 support
*3x USB 3.2 Gen 2 Type-A ports (red)
*1x RJ-45 port
*1x optical S/PDIF Out connector
*5x audio jacks

BIOS: 1 x 256 Mbit flash, Použite licencie AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobcu: https://www.gigabyte.com/Motherboard/X570S-AORUS-ELITE-AX-rev-11/sp#sp
