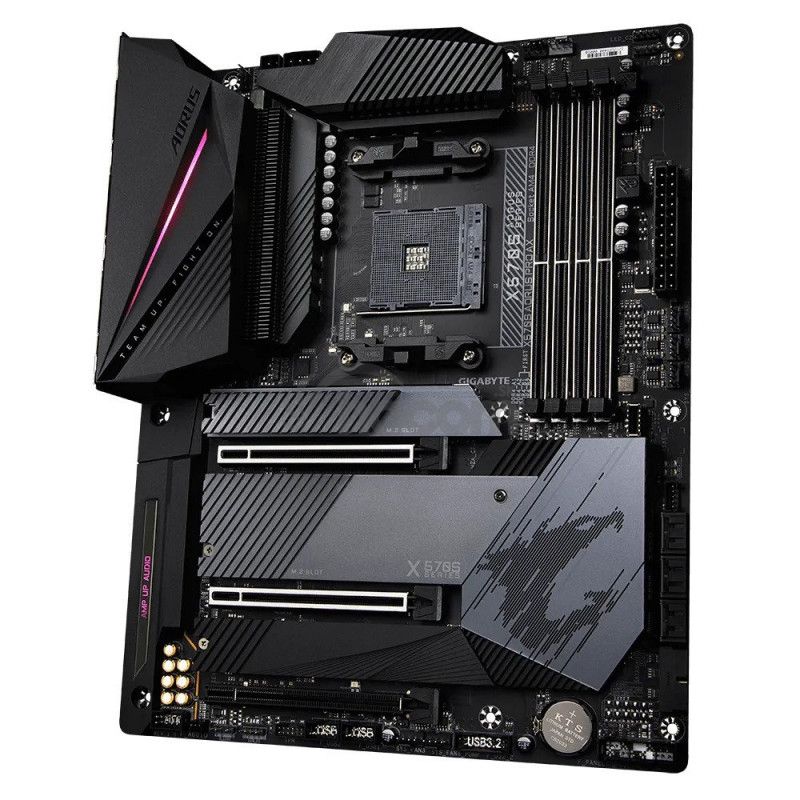

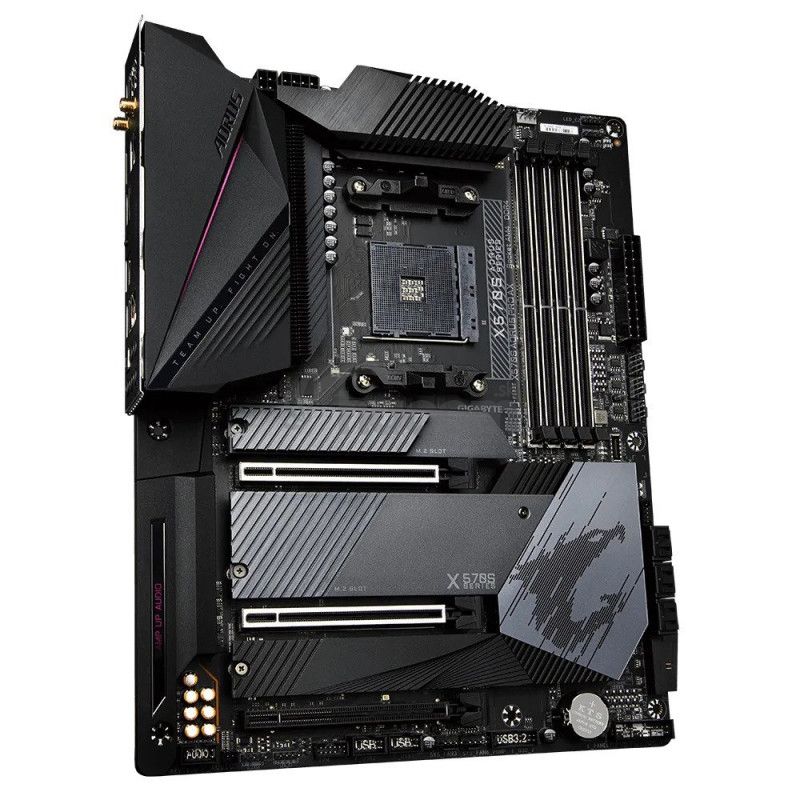

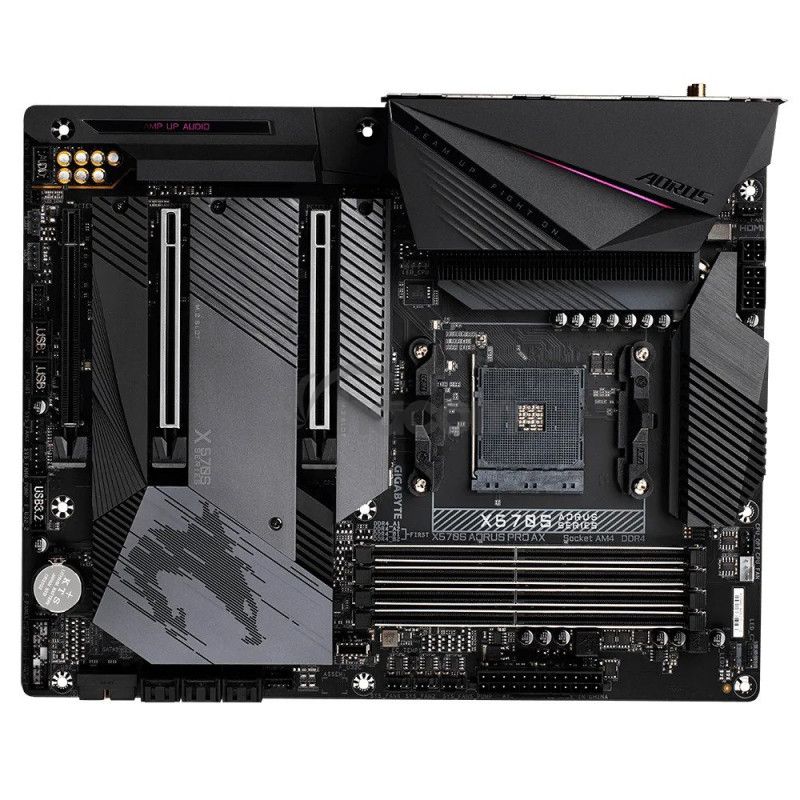

GIGABYTE X570S AORUS PRO AX (rev. 1.0) X570S AORUS PRO AX

GIGABYTE X570S AORUS PRO AX (rev. 1.0) X570S AORUS PRO AX

Chipset: AMD X570

Rozmerový formát: ATX Form Factor (30.5cm x 24.4cm)
Podpora pre procesory: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2 -Series Processors
Pätica procesora: AM4

Pozícia na pamäti: 4 x DDR4 DIMM, Dual channel memory architecture
Podpora pre pamäte: DDR4 5400(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP, ECC

Grafická karta: Maximálna zdieľaná pamäť 16 GB
*1 x HDMI port - 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB Audio CODEC
*2/4/5.1/7.1-channel
*Podpora S/PDIF Out

Sieťová karta:
*Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*Intel Wi-Fi 6 AX200 - WIFI a, b, g, n, ac, ax
*Bluetooth 5.2

Rozširujúce sloty: 3 x PCI Express x16 slot

RAID radič: RAID 0, RAID 1, and RAID 10

SATA: 6 x SATA 6Gb/s konektory

M.2: 3 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x USB Type-C header, with USB 3.2 Gen 2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers
* Externé:
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*3 x USB 3.2 Gen 1 ports

Interné porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x 4-pin ATX 12V power connector
*1 x CPU fan header
*1 x water cooling CPU fan header
*4 x system fan headers
*2 x systém ventilátora/water cooling pump headers
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*1 x CPU cooler LED strip/RGB LED strip header
*3 x M.2 Socket 3 konektory
*6 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x USB Type-C header, with USB 3.2 Gen 2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Module (TPM) header (2x6 pin, pre modul GC-TPM2.0_S only)
*1 x Thunderbolt add-in card connector
*1 x Clear CMOS jumper
*2 x temperature sensor headers

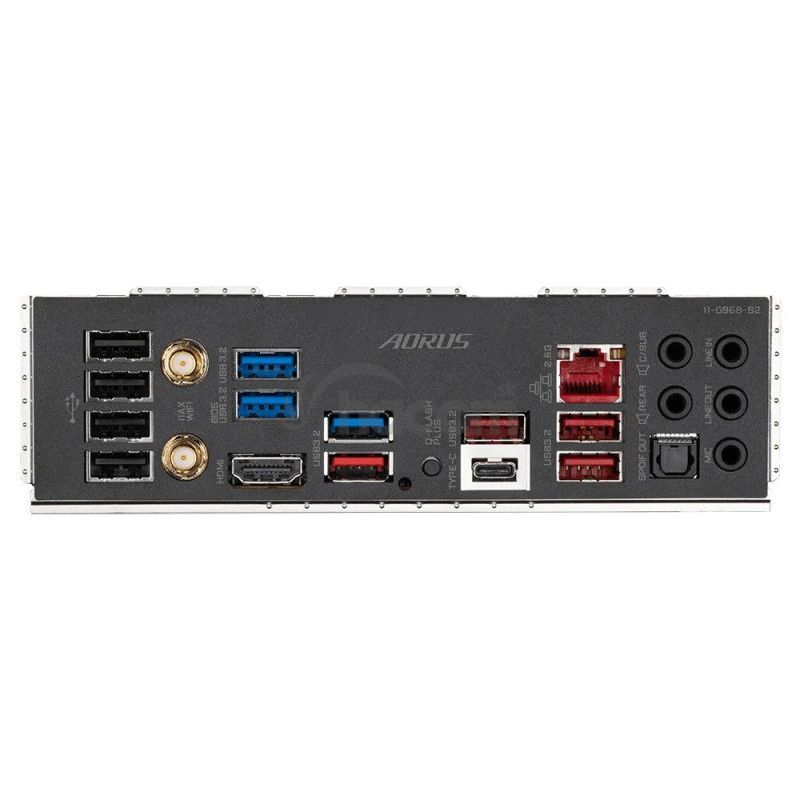

Externé porty:
*4 x USB 2.0/1.1 ports
*2 x SMA antény konektory (2T2R)
*1 x HDMI port
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*3 x USB 3.2 Gen 1 ports
*1 x RJ-45 port
*1 x optical S/PDIF Out connector
*5 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/X570S-AORUS-PRO-AX-rev-10#kf
