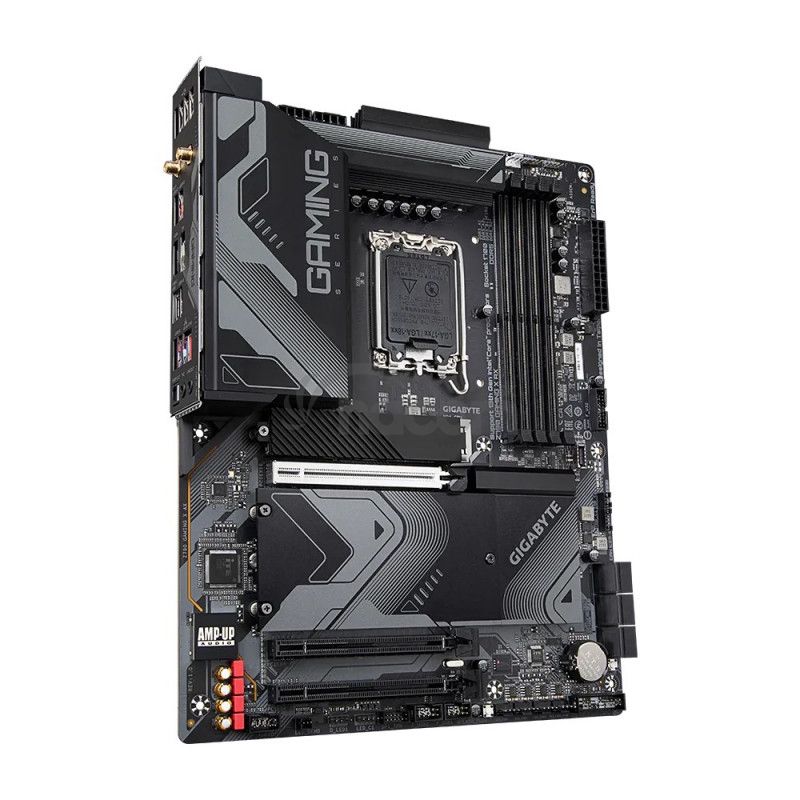

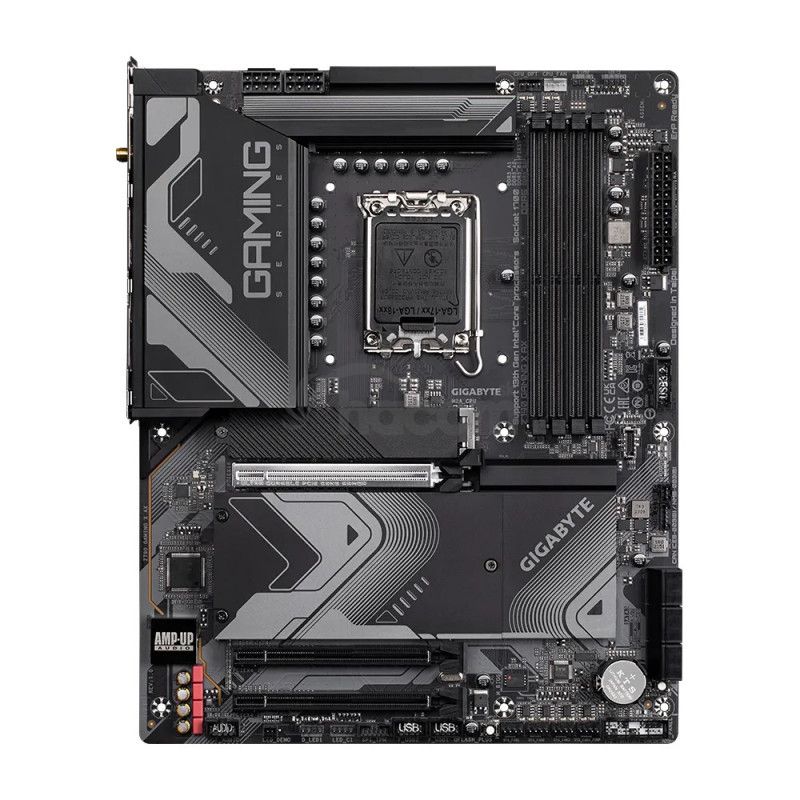

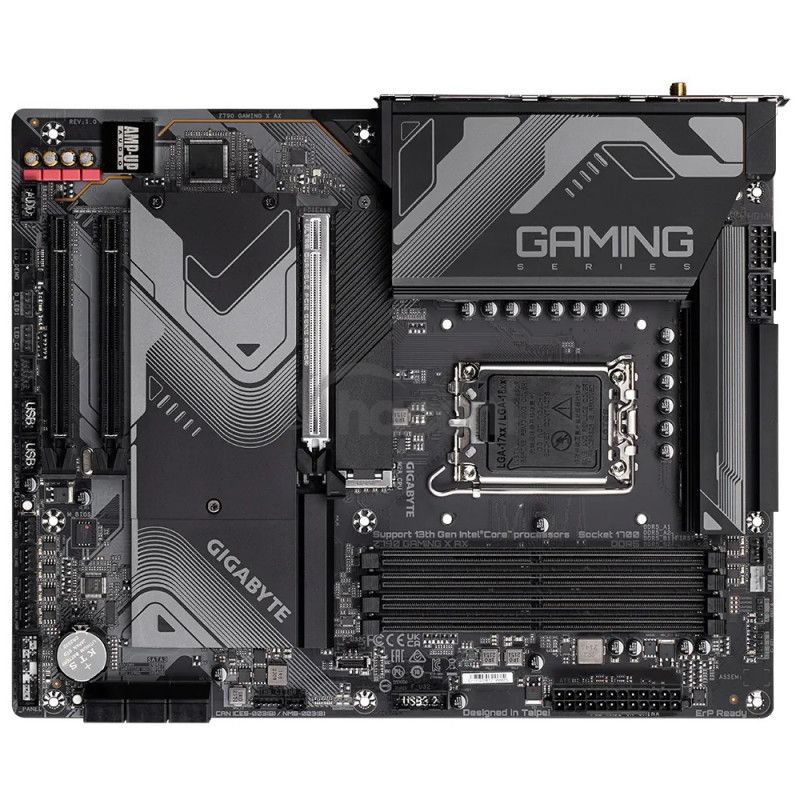

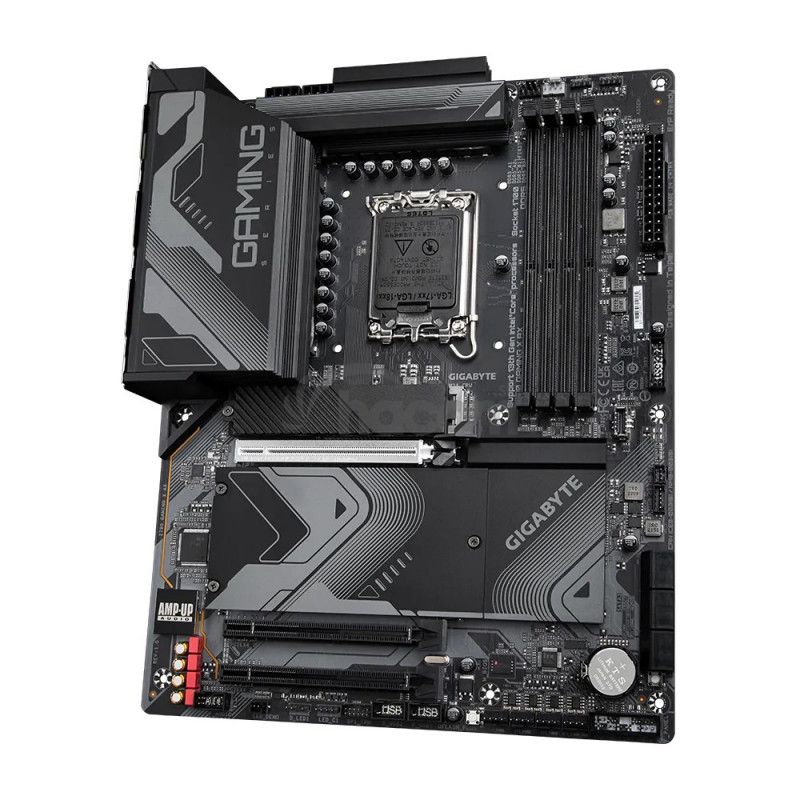

GIGABYTE Z790 GAMING X AX Z790 GAMING X AX

GIGABYTE Z790 GAMING X AX Z790 GAMING X AX

Chipset: Intel Z790 Express Chipset

Rozmerový formát: ATX Form Factor; (30.5cm x 24.4cm)
Podpora pre procesory: 13. a 12. generácia Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 4 x DDR DIMM sockets, Dual channel memory architecture
Podpora pre pamäte: DDR5 7600(OC) /7400(OC) /7200(OC) /7000(OC) /6800(OC) /6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 memory modules
Max.veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity)
Podpora pre pamäte typu: ECC, non-ECC, XMP

Grafická karta: (Intel HD Graphics)
*1 x HDMI 2.0 port, maximálne rozlíšenie 4096x2160@60 Hz
*1 x DisplayPort 1.2, maximálne rozlíšenie 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC
*2/4/5.1/7.1-channel
*Podpora S/PDIF Out

Sieťová karta:
*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax
*Bluetooth 5.3

Rozširujúce sloty:
*1 x PCI Express slot x16, supporting PCIe 5.0 a bežiaci na x16 (PCIEX16)
*2 x PCI Express x16 zásuviek, supporting PCIe 4.0 a bežiaci na x4 (PCIEX4_1, PCIEX4_2)

RAID radič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 6 x SATA 6Gb/s konektory
M.2: 4 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x Type-C header USB s USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
* Externé:
*4 x USB 2.0/1.1 ports
*2 x USB 3.2 Gen 2 Type-A ports (red)
*3 x USB 3.2 Gen 1 ports
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support

Interné porty:
*1 x 24-pin ATX main power connector
*2 x 8-pin ATX 12V power connectors
*1 x CPU fan header
*1 x water cooling CPU fan header
*3 x system fan headers
*1 x systém ventilátora/water cooling pump header
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*4 x M.2 Socket 3 konektory
*6 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x Type-C header USB s USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*2 x Thunderbolt add-in card connectors
*1 x Trusted Platform Moduly hlavice (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x Q-Flash Plus button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper

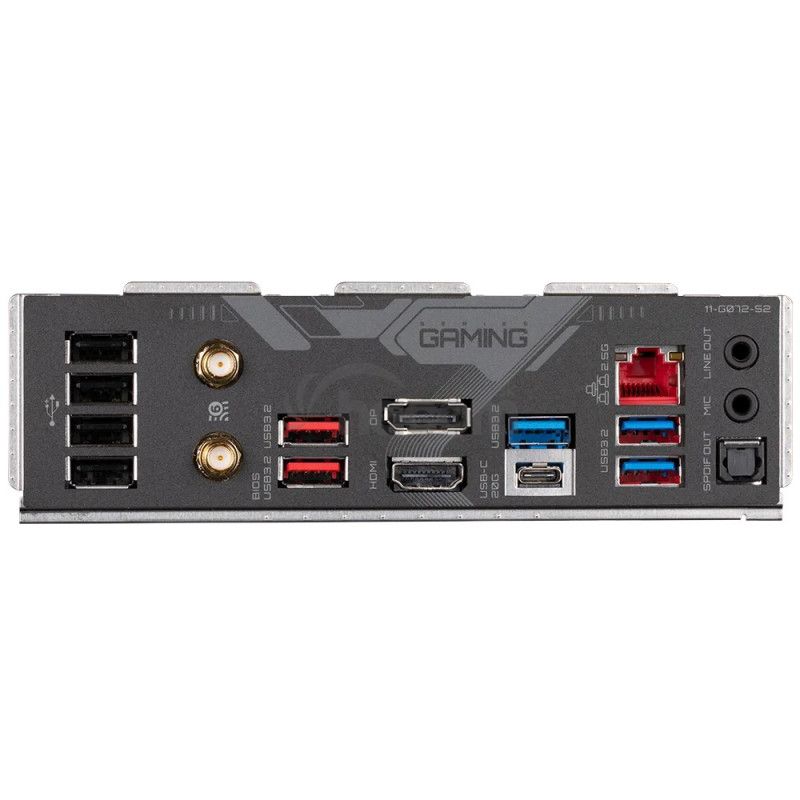

Externé porty:
*2 x SMA antenna connectors (2T2R)
*2 x USB 3.2 Gen 2 Type-A ports (red)
*1 x DisplayPort
*1 x HDMI 2.0 port
*4 x USB 2.0/1.1 ports
*3 x USB 3.2 Gen 1 ports
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support
*1 x RJ-45 port
*1 x optický S/PDIF Out connector
*2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/Z790-GAMING-X-AX-rev-10#kf
