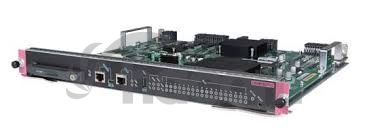

HP 10500 Type D TAA w / Comware v7 OS MPU JH206A

HP 10500 Type D TAA w / Comware v7 OS MPU JH206A

HP 10500 Type D TAA w / Comware v7 OS MPU

flash
* 512 MB

SDRAM (DDR3)
* 8 GB by default

CF card
* 4 GB by default

Dimensions (H x W x D)
* 40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)

power consumption
* 46 W to 52 W

Number of user interfaces
* 1 console port
* 1 USB console port
* 1 network management port
* 1 CF card slot
* 1 USB port

interface speed
* Console port:? 115200 bps (default: 9600 bps)
* USB console port:? 115200 bps (default: 9600 bps)
* Network management port: 10/100/1000 Mbps (half / full duplex)

Cable and maximum transmission distance
* Console port: 15 m (49.21 ft) over ordinary asynchronous serial port cable
* USB console port: 10 m (32.81 ft) over USB-AB cable
* Network management port: 100 m (328.08 ft) over Category 5 or higher twisted pair cable

net weight
* 3.05 kg (6.72 lb)

Applicable hardvér platforms
* 10504, 10508, 10508-V, 10512
