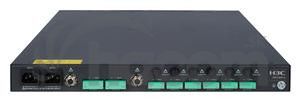

HPE RPS1600 Redundant Power System JG136A#ABB

HPE RPS1600 Redundant Power System JG136A#ABB

HP RPS1600 Redundant Power System (JG136A)

A-RPS1600 je efektívny výkon redundancy solution, ktorý môže podporovať 8 aktívnych zariadení a 3200W power per system, 1400W power per port to fixed port switches

Ports:
8 redundant power supply ports
Restrictions: dve -56V/25A DC(PoE); six -56V/8A DC(non-PoE)

Physical characteristics:
Dimensions: 15.63(d) x 17.32(w) x 1.74(h) in. (39.7 x 44 x 4.42 cm)
Weight: 14.11 lb. (6.4 kg)
Full configuration weight: 16.75 lb. (7.6 kg)

Electrical characteristics:
Voltage: 100-120/200-240 VAC
Current: 30/60 A
Idle power: 38 W
Maximum power rating: 3550 W
RPR power: 3200 W
PoE power: 2800 W
RPR: -55 V
PoE: -55 V
Frequency: 50/60 Hz

Poznámky: Idle power is actual power consumption device with no ports connected.
Maximum výkonu ratingu a maximum heat dissipation sú najvyššie-case teoretické maximum čísel provided pre plánovanie infraštruktúry s fully loaded PoE (if equipped), 100% traffic, všetky porty plugged in, a všetky moduly populated.
With one RPS1600 Power Supply, the PRS1600 Redundant Power System môže vykonávať 1600W power output; S dvoma PRS1600 Power Supplies, output power je s 3200W.

Safety
• CE Labeled
• UL 60950-1
• IEC 60950-1
• ICES-003
• FCC Part 15, Subpart B
• EU RoHS Compliant
• EN 60950-1/A11
• C-Tick
• VCCI Class A
• ROHS Compliance
• EN 300386

Compatible products
• HP 5120 EI Switch Series
• HP 5500 SI Switch Series
• HP 5500 EI Switch Series
• HP 3610 Switch Series
• HP 3600 EI Switch Series
• HP 3600 SI Switch Series
• HP 3100 EI Switch Series
• HP 5120 SI Switch Series
• HP 5800 Switch Series
• HP 5820 Switch Series
