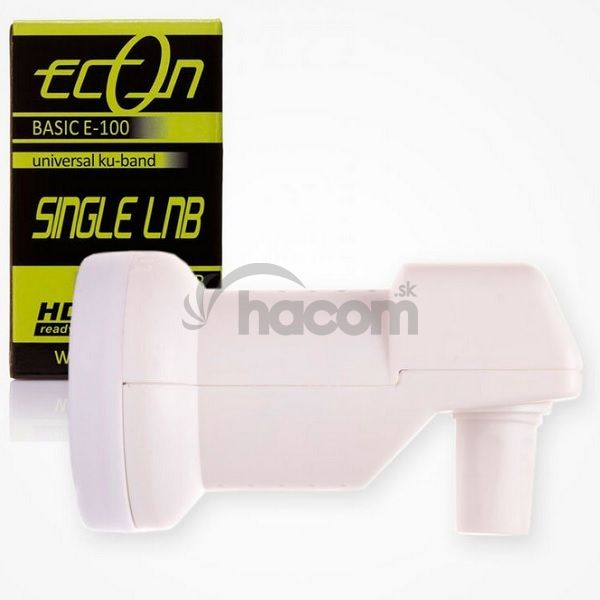

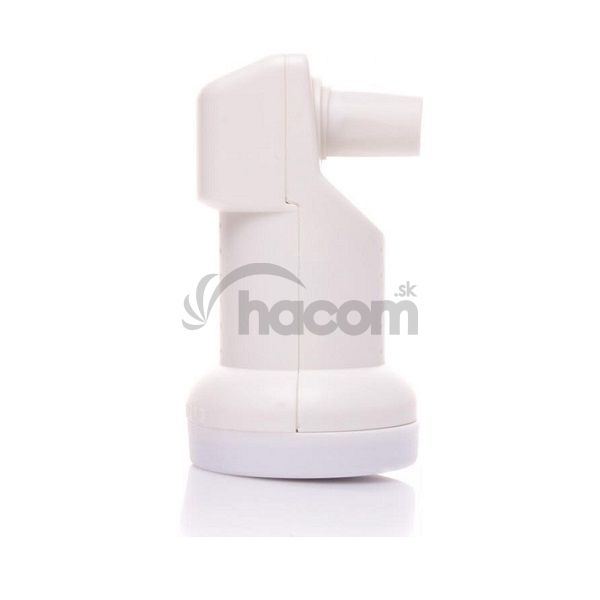

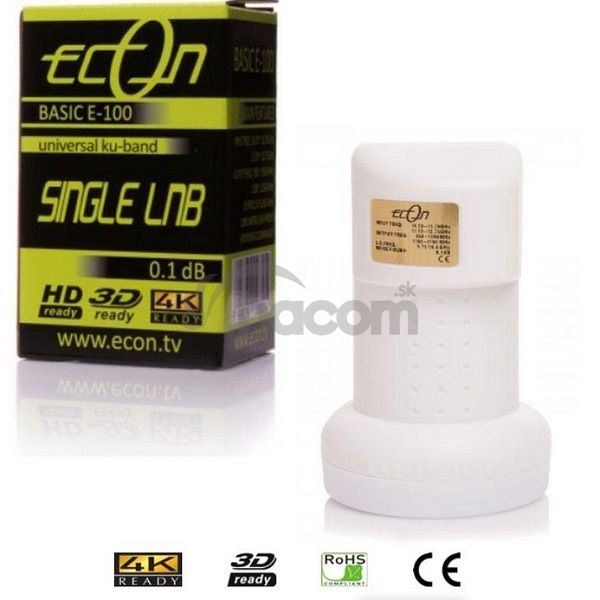

LNB Econ single E-100

LNB Econ single E-100

Parametre produktu:

Typ: Single
Šumové číslo: 0,1dB
Dľžka úchytu: 40 mm
Polarizácia: linear H/V
Vstupná frekvencia: od 10,7 GHz do 12,75 GHz
Výstupná frekvencia: od 950-1950 MHz , 1100- 2150 MHz
Odber: 100 mA
Zisk: 58 -63 dB
Frekvencia L.O.: 9,75 - 10,6 GHz

Vlastnosti produktu:

• Výstup: 1
• Šumové číslo : 0.1dB
• Reflector Type: Offset
• Dĺžka úchytu: 40mm
• Input Frequency Range: 10.7GHz - 11.7 GHz (Low Band)
• Input Frequency Range: 11.7GHz - 12.7 GHz (High Band)
• Output Frequency Range: 950 MHz - 1950MHz (Low Band)
• Output Frequency Range: 1100 MHz - 2150 MHz (High Band)
• L.O. Frequency: 9.75 GHz (Low Band) / 10.6GHz (High Band)
• L.O. Frequency Phase Noise: -60dBc/Hz @ 1KHz (Max) / -85dBc/Hz @10KHz (Max) / -95dBc @ 100KHz (Max)
• Conversion Gain: 58-63dB
• Gain Flatness 26MHz Bandwidth: +/-0.5dB/36MHz
• Polarity Switching Voltage: Horizontal: 16-18V / Vertical: 12-14.5V
• High Band Switching: 22KHz +/- 4KHz
• Cross Pol. Isolation: >=18dB (Typ.)
• Image Rejection: 40dB (Min)
• Output Spurious: <-60dBm
• Power Consumption: 80mA (Typ.)
• Output Connector Type: 75Ohm - F Type (Female)
• Operating Temperature Range: -40ºC - +65ºC
