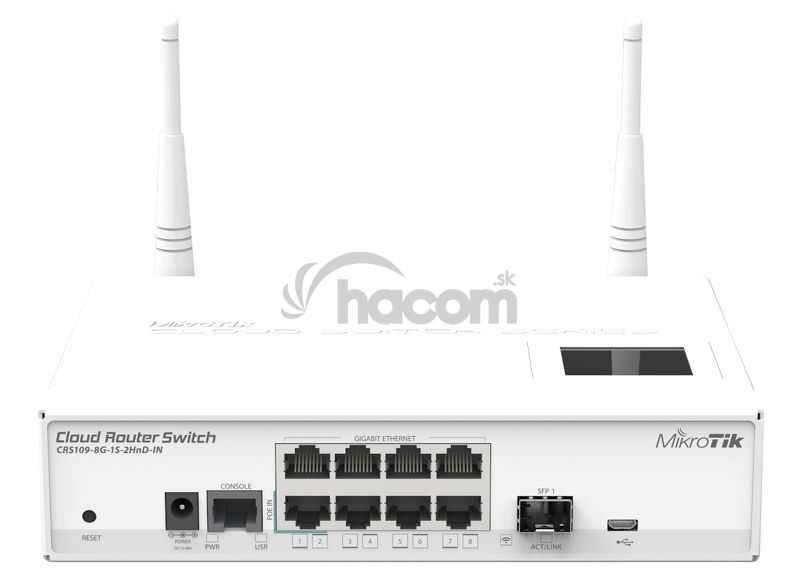

MikroTik CRS109-8G-1S-2HnD-IN

OVERVIEW

Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 1000mW 2.4GHz wireless. Product supports 10-57V and is 802.3af / at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.


SPECIFICATIONS
Product code
* CRS109-8G-1S-2HnD-IN

SFP DDMI
* yes

CPU nominal frequency
* 600 MHz

CPU core count
* 1

Size of RAM
* 128 MB

10/100 Ethernet ports
* None

10/100/1000 Ethernet ports
* 8

MiniPCI slots
* 0

MiniPCI-e slots
* 0

Wireless chip model
* AR9344-DC3A-R

wireless standards
* 802.11b / g / n

Number of USB ports
* 1

power Jack
* 1

802.3af support
* yes

PoE out
* No

PoE in
* Yes

Supported input voltage
* 8 V - 57 V

voltage Monitor
* Yes

PCB temperature monitor
* Yes

CPU temperature monitor
* No

Dimensions
* 200x145x45mm

Operating System
* RouterOS

Operating temperature range
* -35C Predajná to + 65C tested

license level
* 5

Antenna gain DBI
* 2.5

current Monitor
* Yes

CPU
* AR9344-DC3A-R

Max Power consumption
* 13 W

SFP ports
* 1

SFP + ports
* None

USB slot type
* MicroUSB type AB

Number of chains
* 2

serial port
* RJ45
