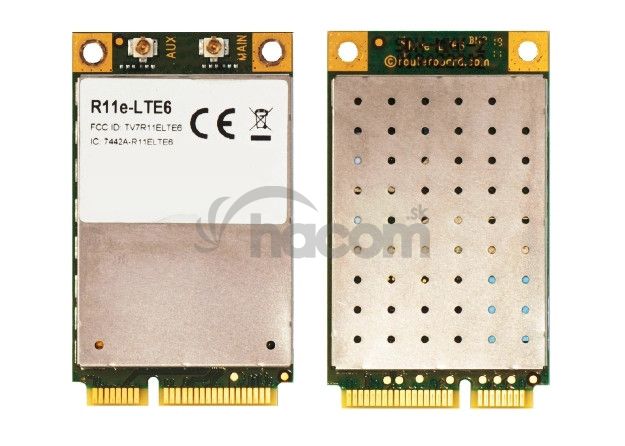

Mikrotik R11e-LTE6, 2G / 3G / LTE6 miniPCI-e modul R11e-LTE6

Mikrotik R11e-LTE6, 2G / 3G / LTE6 miniPCI-e modul R11e-LTE6

2G / 3G / LTE6 miniPCI-e modul od výrobcu Mikrotik podporujúci pásma 1/2/3/5/7/8/20/38/40 MHz.

LTE modem kategórie 6 umožňuje až 300 Mbps downlink a 50 Mbps uplink data rate so spätnou podporou 3G a 2G.

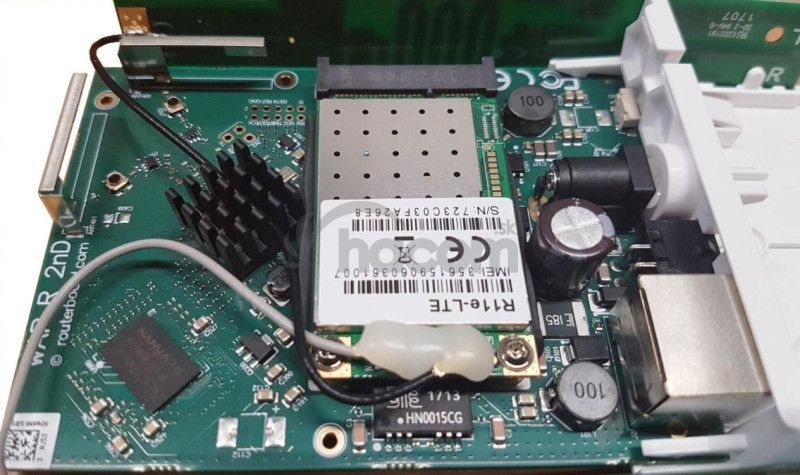

K nasadeniu s celou modelovou radou Mikrotik RouterBOARD s RouterOS (okrem RB800 a RB4011).

Technické špecifikácie:
Product code RBLHGR & R11e-LTE6
Format miniPCIe
LTE category 6 (300 Mbps downlink, 50 Mbps uplink)
3G category R7 (21 Mbps downlinks, 5.76 Mbps uplink)
R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
2G category Class12
Connectors 2 U.FL
IP support IPv4, IPv6
Dimensions 51 x 30 x 5 mm
Operating ambient temperature -30 ° C .. + 70 ° C
Supported OS RouterOS
Max power consumption 5 W

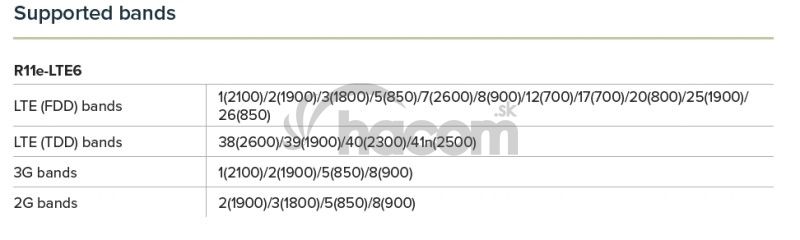

Podporovaná pásma:
LTE (FDD) bands 1 (2100) / 2 (1900) / 3 (1800) / 5 (850) / 7 (2600) / 8 (900) / 12 (700) / 17 (700) / 20 (800) / 25 (1900) / 26 (850)
LTE (TDD) bands 38 (2600) / 39 (1900) / 40 (2300) / 41N (2500)
3G bands 1 (2100) / 2 (1900) / 5 (850) / 8 (900)
2G bands 2 (1900) / 3 (1800) / 5 (850) / 8 (900)
